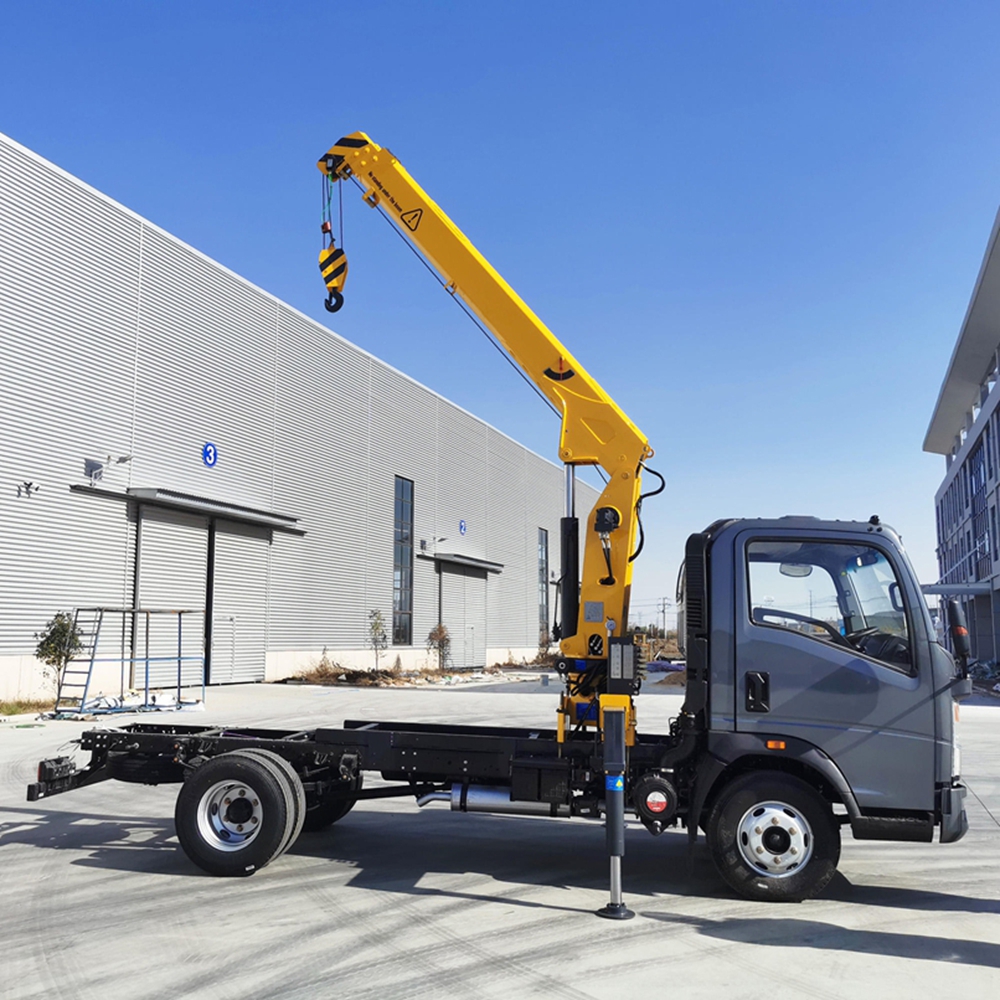

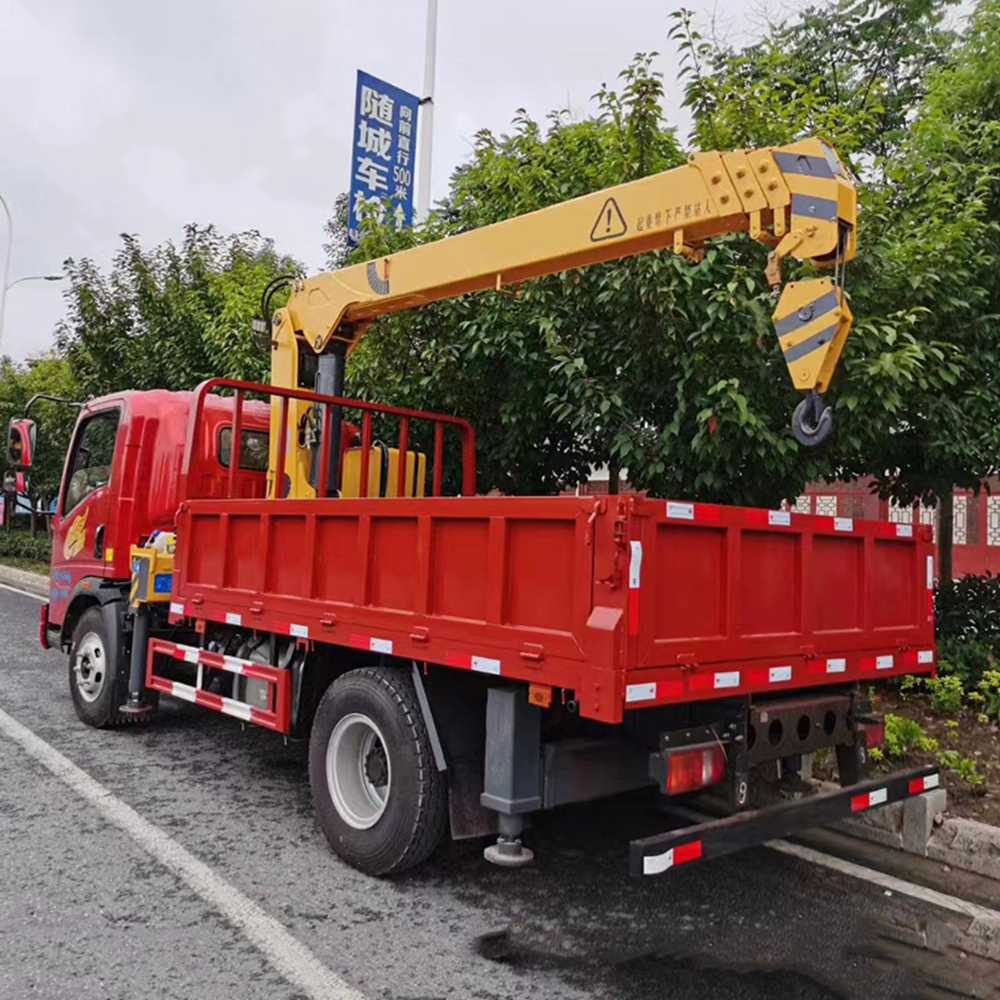

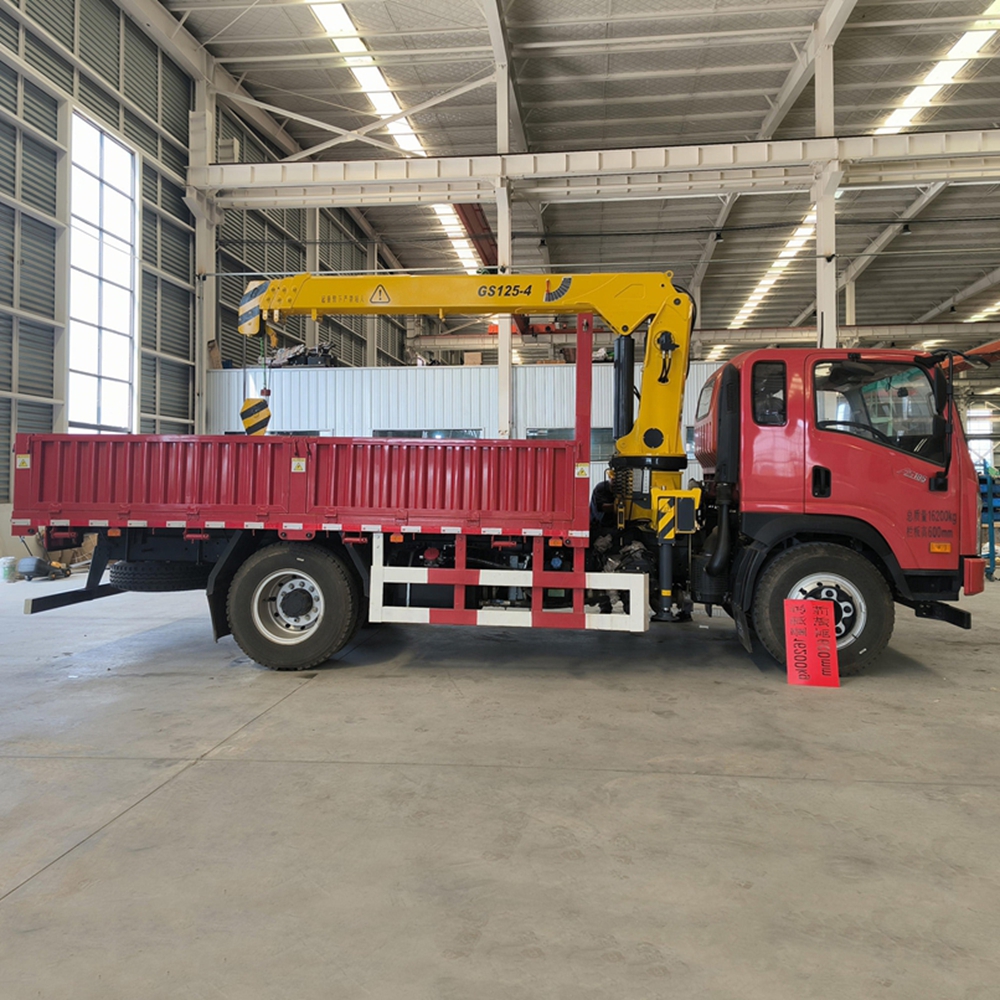

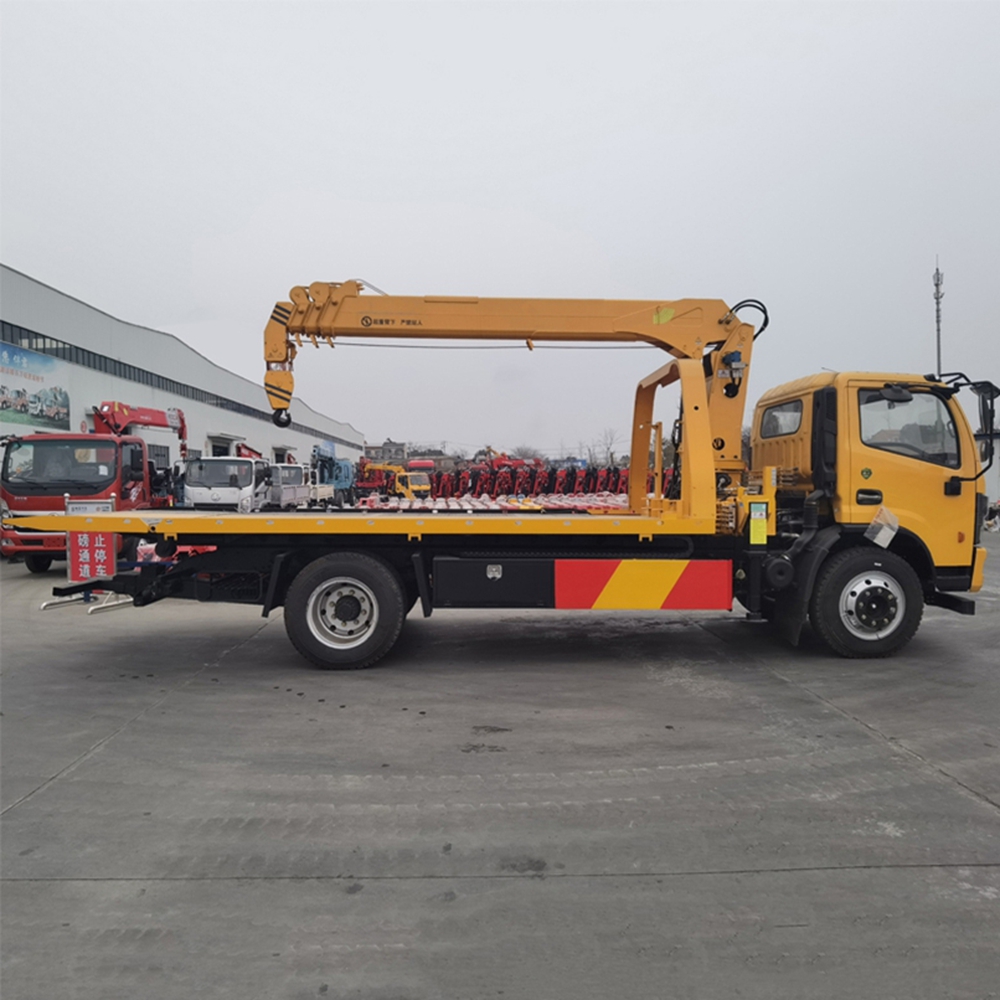

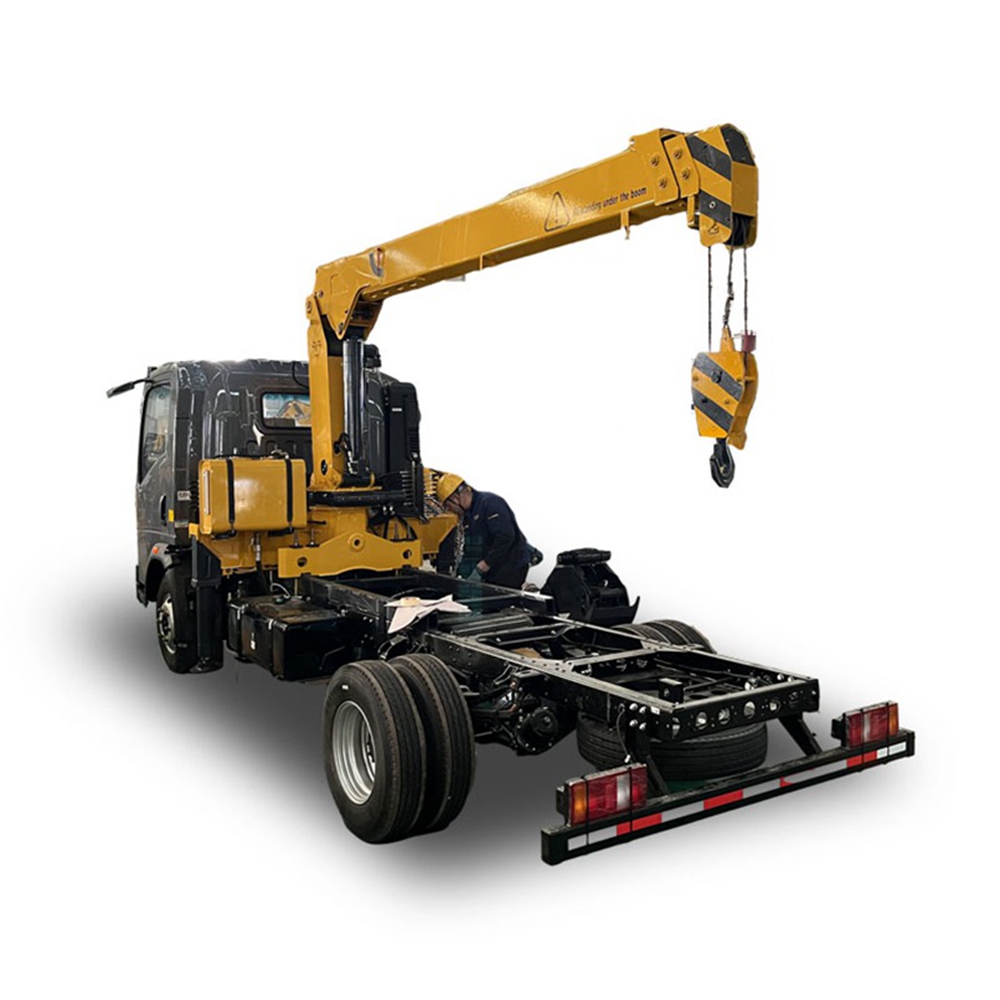

The TENGCHANG SQS80A-3 is a compact yet powerful telescopic boom truck-mounted crane engineered for efficient lifting in demanding job sites. With a maximum lifting capacity of 3,200 kg and an 8 t·m lifting moment, it delivers reliable performance for a wide range of applications.
Designed for versatility, this hydraulic truck crane features full 360° rotation, ensuring smooth and precise load positioning in confined or complex working environments. Its high-efficiency hydraulic system provides stable operation, faster response, and enhanced productivity.
Thanks to its compact structure and space-saving design, the SQS80A-3 is easy to install on various truck chassis, making it an ideal solution for mobile operations.
Perfect for construction projects, logistics handling, warehouse loading, and material transportation, this crane combines power, flexibility, and durability to meet modern lifting demands.
|
Product Advantage
Compact & High-Capacity Design: Despite its lightweight 1,250 kg construction, the crane handles loads up to 3,200 kg, maximizing lifting efficiency on medium-duty trucks.
Efficient Hydraulic System: With 25 L/min flow and 20 MPa rated pressure, the crane ensures smooth lifting, precise positioning, and reduced energy consumption.
360° Slewing & Operational Flexibility: The full rotation allows operators to lift and place loads in tight spaces, urban construction zones, warehouses, or docks.
Durable & Safe Construction: Built with high-strength steel and precision welding, the SQS80A-3 provides reliable load-bearing capacity and long-term operational safety.
Versatile Applications: Functions as a telescopic boom crane, hydraulic truck crane, mobile lifting crane, or compact heavy-duty crane, suitable for construction, logistics, municipal maintenance, and industrial projects.
|
Technical Parameters

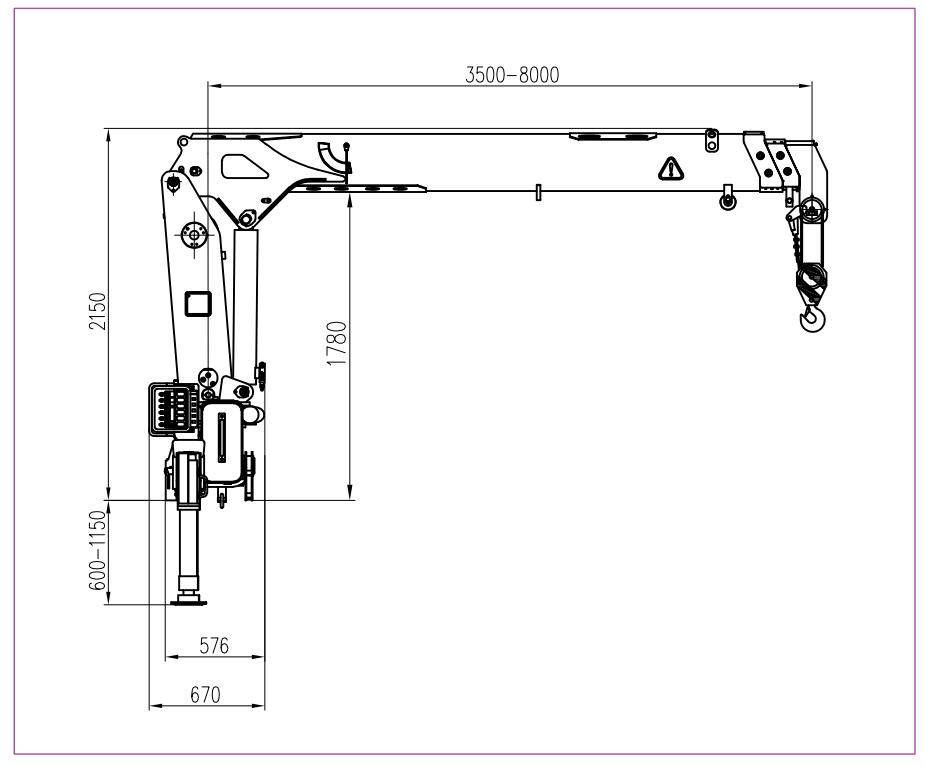

Crane main technical parameters

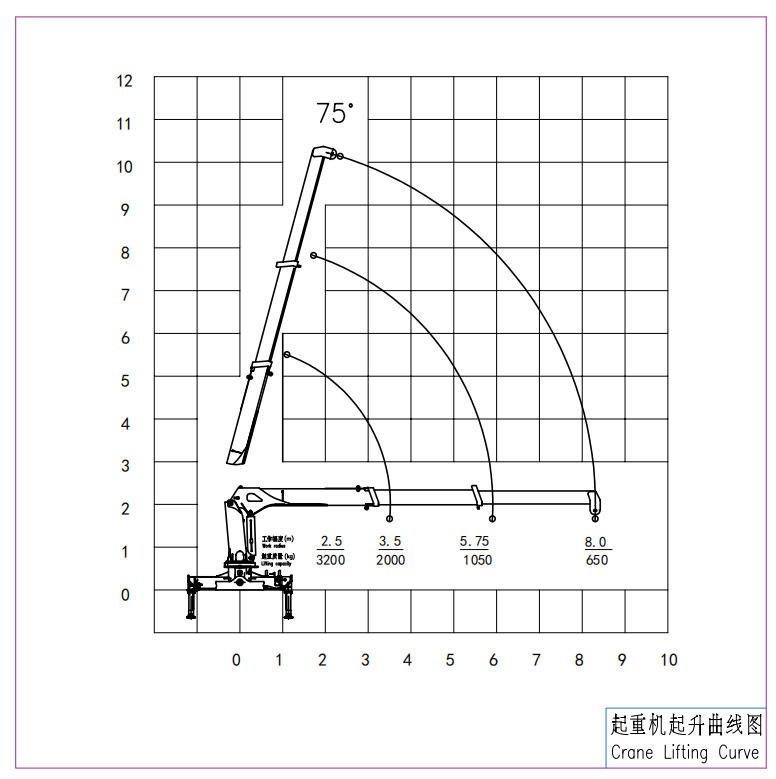

| Maximum Lifting weight | 3200Kg | Oil tank capacity | 60L |
| Maximum lifting moment | 8.0t.m | Slewing angle | 360° |
| Recommended power | 16 KW | Hydrauic Crane weight | 1250kg |

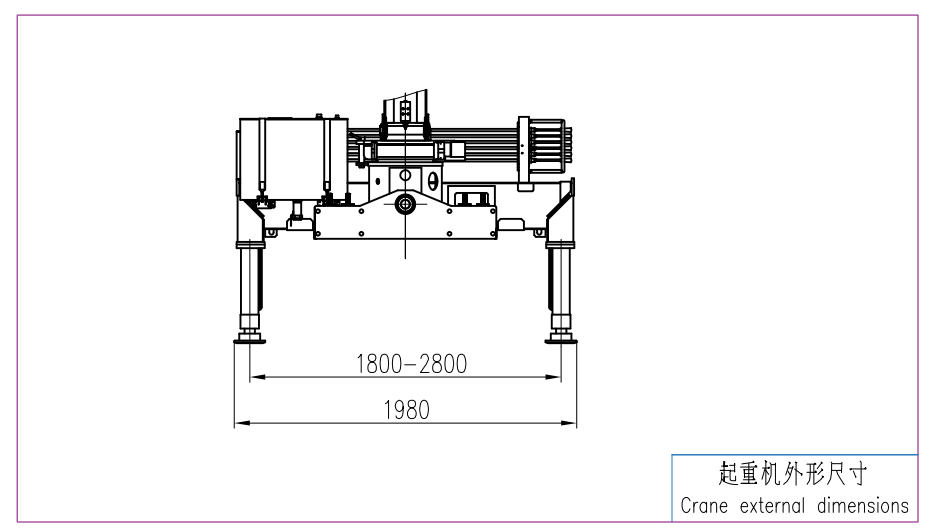

| Recommended hydroulic flow | 25 L/min | Installation space | 780mm |
| Rated hydraulic pressure | 20MPa |
|
|
|
Product Uses
Construction & Infrastructure: Lifting steel beams, precast panels, and construction materials for urban or mid-size construction sites.
Industrial & Manufacturing: Loading/unloading machinery, positioning heavy equipment, and assembly tasks in factories.
Warehousing & Logistics: Handling pallets, containers, and medium-weight cargo efficiently in storage yards and freight terminals.
Municipal Projects: Installing street furniture, traffic equipment, and small utility structures safely and efficiently.
|
FAQ
1. What trucks can the SQS80A-3 truck mounted crane be installed on?
A: The SQS80A-3 truck mounted crane is designed for installation on most light-duty and medium-duty trucks with at least 780 mm chassis mounting space. It is commonly fitted on cargo trucks, flatbed trucks, and logistics vehicles. With a compact structure and a weight of around 1,250 kg, it ensures good vehicle balance, stable driving performance, and efficient payload utilization for mobile lifting operations.
2. Is the SQS80A-3 suitable for urban or narrow job sites?
A: Yes, the SQS80A-3 is ideal for urban construction and confined working environments. It features 360° continuous rotation and a compact truck-mounted design, allowing flexible operation in narrow streets, residential areas, and tight job sites. The telescopic boom provides extended reach while minimizing space requirements.
3. How often should the hydraulic system be maintained?
A: It is recommended to service the hydraulic system every 6 months or 500 working hours, whichever comes first. Routine maintenance includes checking hydraulic oil condition, hoses, seals, cylinders, and system pressure. Regular servicing helps ensure stable lifting performance, safety, and longer service life.
4. Does TENGCHANG provide spare parts and after-sales service?
A: Yes, TENGCHANG offers full after-sales support, including original spare parts, technical assistance, installation guidance, and maintenance training. Key components such as hydraulic cylinders, valves, seals, wire ropes, and control systems are readily available to ensure minimal downtime and reliable operation.
TENGCHANG 3.2 Ton Telescopic Boom Truck Mounted Crane
The TENGCHANG 3.2 Ton Telescopic Boom Truck Mounted Crane is engineered for reliable and efficient lifting performance in medium-duty applications. It offers a maximum lifting capacity of 3,200 kg and a lifting moment of 7 t·m, delivering strong and stable operation across construction, logistics, and industrial environments.
Equipped with a 14 kW recommended power system, 25 L/min hydraulic flow, and 20 MPa system pressure, this crane ensures smooth, responsive, and energy-efficient hydraulic performance. Its compact 750 mm installation space makes it ideal for a wide range of truck chassis, while the 360° continuous rotation provides maximum operational flexibility on-site.
Why Choose TENGCHANG?
The TENGCHANG telescopic boom crane adopts an advanced dual-cylinder telescopic system, featuring one cylinder for boom lifting and another for extension. This system works in coordination with a wire rope and pulley block, ensuring powerful lifting capacity while effectively protecting internal components and extending service life.
The boom is designed with a pentagonal and hexagonal structural profile, significantly improving resistance to bending and structural deformation. Constructed from high-strength steel plates, the boom offers enhanced durability and anti-collapse performance under heavy loads.
In addition, the crane utilizes a hydraulic lifting mechanism combined with a friction brake and disc spring system, ensuring stable operation, precise load control, and improved safety during lifting tasks.
Key Advantages
Compact design with only 750 mm installation space
Strong lifting performance with 7 t·m lifting moment
360° rotation for full working coverage
Advanced dual-cylinder telescopic structure
Reinforced anti-deformation boom design
Stable and safe hydraulic + braking system
