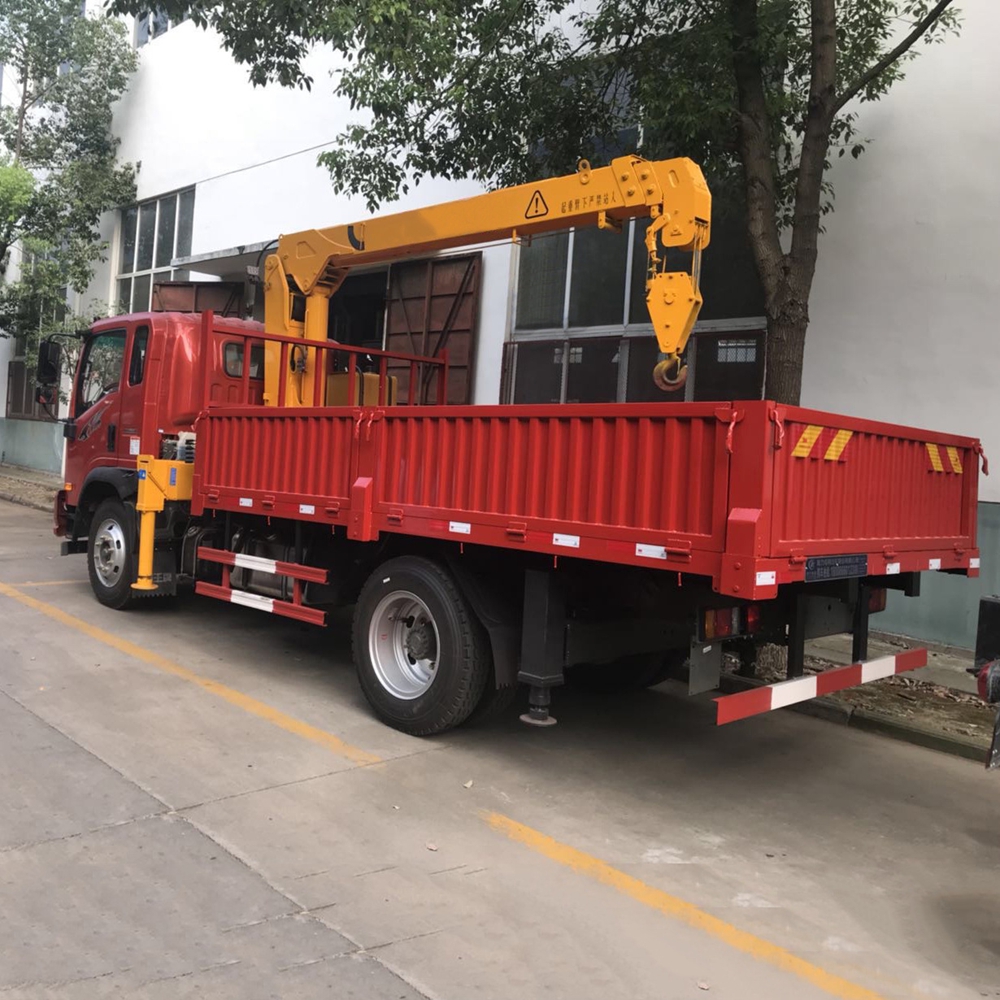

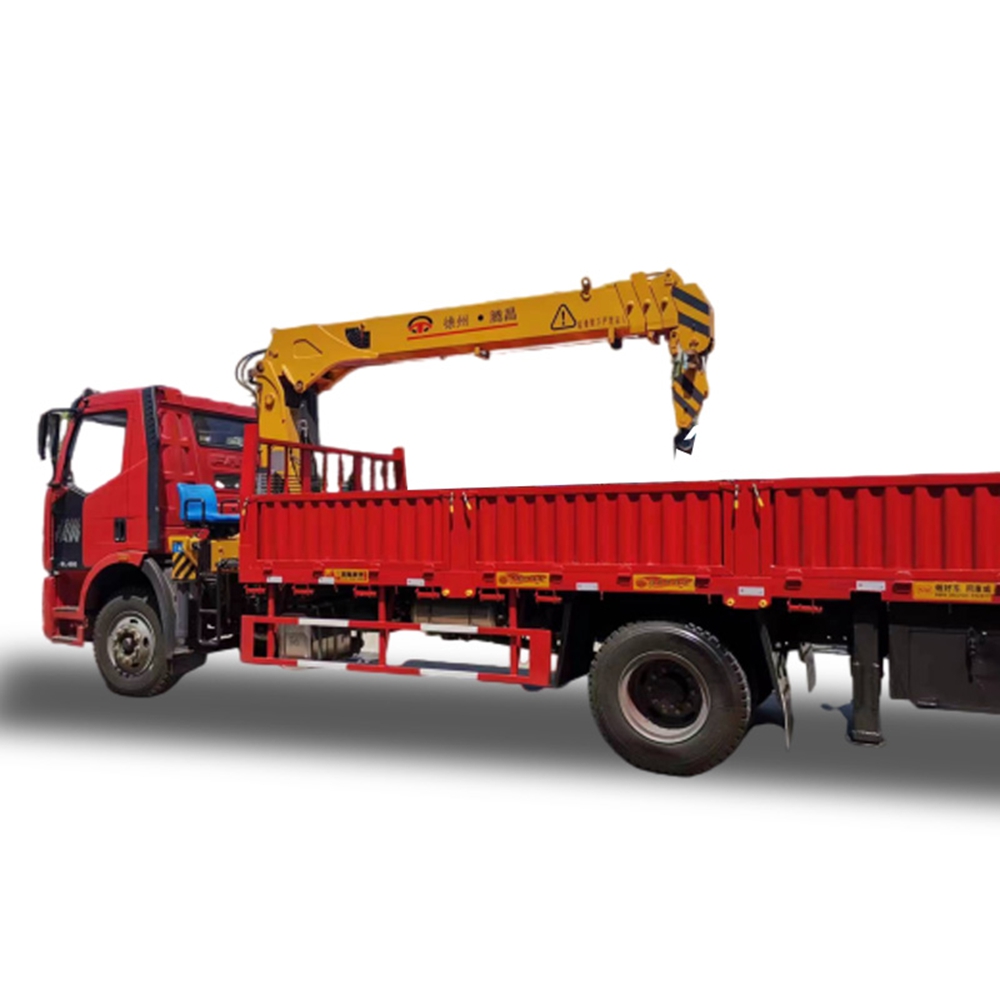

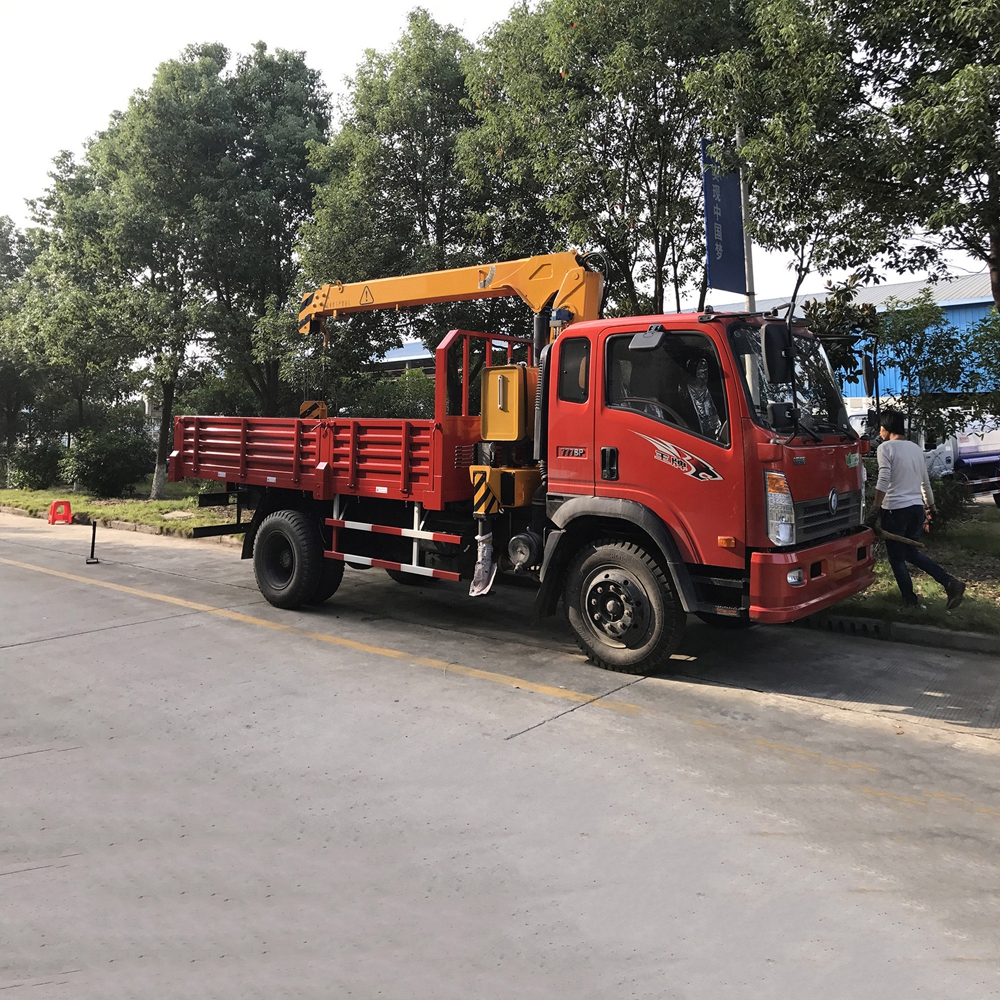

(SQS157G-5) 6.3 Ton Truck Crane with Telescopic Boom

Model: SQS157G-5

The SQS157G-5 is a premium heavy-duty telescopic boom truck crane, engineered for 6,300 kg (6.3 t) lifting capacity with 15.75 t·m lifting moment. With a hydraulic crane weight of 2,850 kg, 360° slewing, and 900 mm installation space, this crane delivers superior stability and precision for industrial, construction, port, and municipal lifting tasks. Powered by a 20 kW hydraulic system at 40 L/min and 20 MPa, it provides smooth load handling and efficient operations. Ideal for heavy machinery placement, industrial assembly, urban infrastructure, and logistics projects requiring high-capacity mobile lifting solutions.

Availability:

Quantity:



Inquire Add to Basket

truck crane with telescopic boom 6.3 ton truck telescopic boom crane hydraulic truck crane telescopic boom telescopic boom truck crane specs telescopic boom lifting truck crane truck crane telescopic boom price telescopic boom truck crane supplier

Product Description

Product Description Safety Related Products

Product Description

|

Product Advantage

Exceptional Lifting Power: Lifts up to 6,300 kg (6.3 t) with precise control and stability for heavy industrial and construction loads.

Reliable Hydraulic Performance: Smooth operation ensured by 40 L/min flow at 20 MPa, reducing operational wear and energy consumption.

360° Slewing for Maximum Flexibility: Full rotation allows operation in tight urban, industrial, or port environments.

Durable Heavy-Duty Structure: Robust steel construction and precision fabrication ensure long-term reliability and safety.

Versatile Applications: Functions as a heavy-duty telescopic boom crane, hydraulic truck-mounted crane, industrial lifting crane, or municipal maintenance crane.

|

Technical Parameters

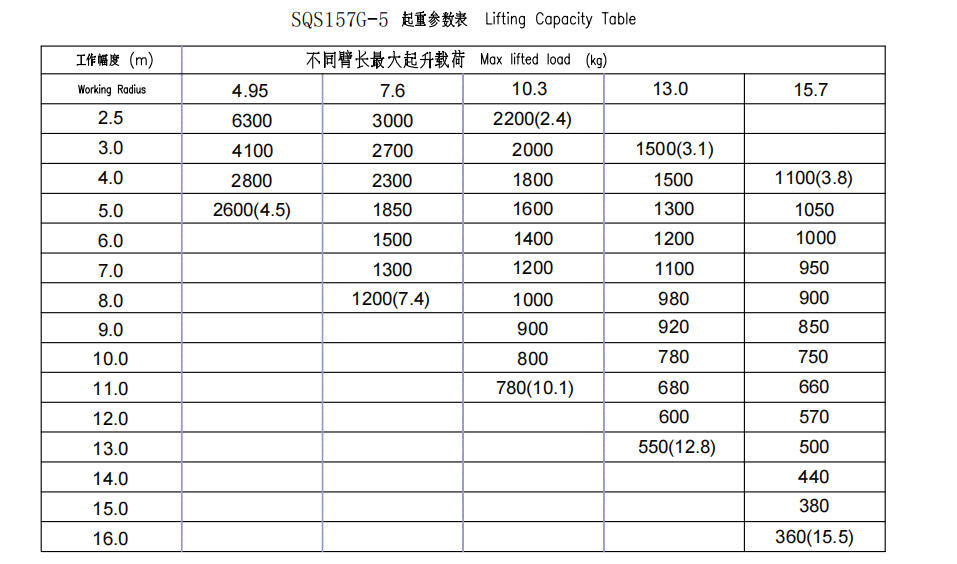

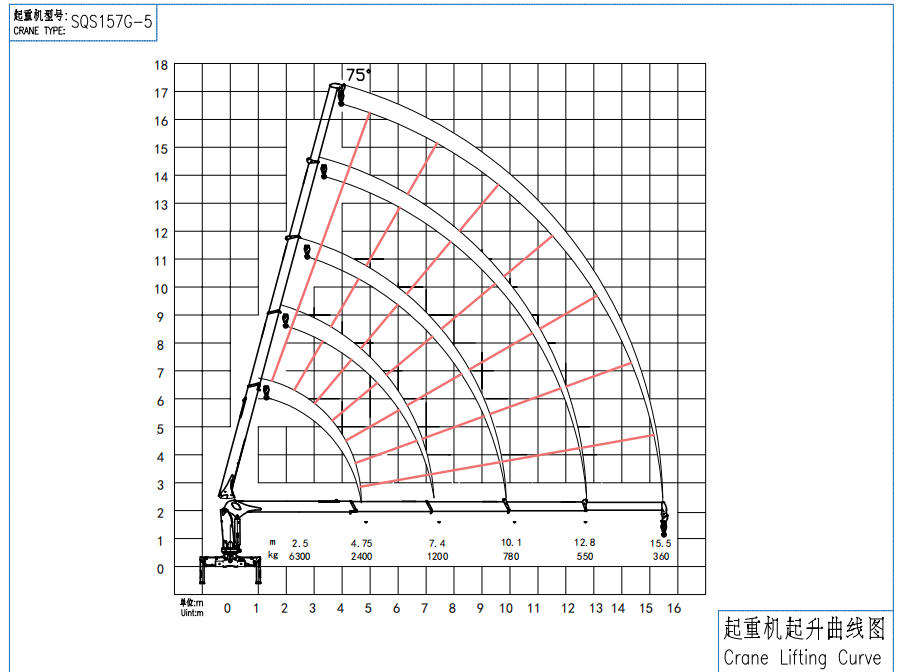

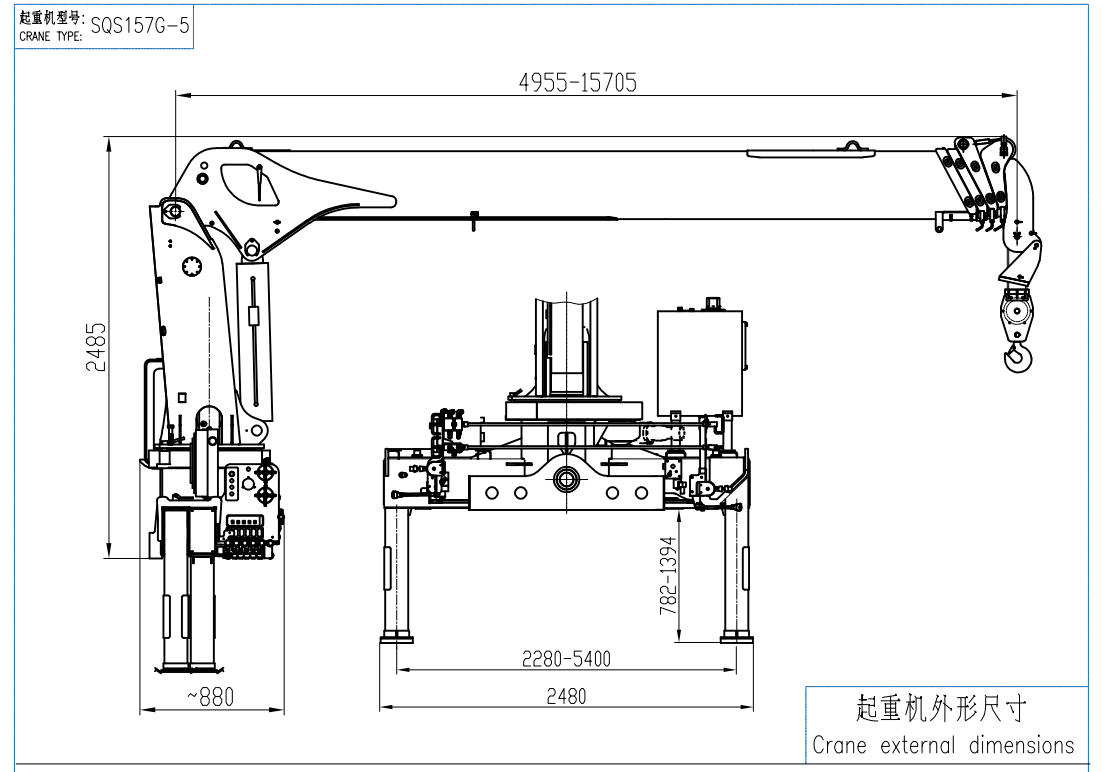

ScreenShot_2026-03-02_113013_197 ScreenShot_2026-03-02_113035_114 ScreenShot_2026-03-02_113043_902

Crane main technical parameters

Maximum Lifting weight	6300Kg	Oil tank capacity	90L
Maximum lifting moment	15.75t.m	Slewing angle	360°
Recommended power	20 KW	Hydrauic Crane weight	2850kg
Recommended hydroulic flow	50 L/min	Installation space	900mm
Rated hydraulic pressure	22MPa

|

Product Uses

Industrial & Manufacturing: Installing heavy machinery, factory assembly, and moving industrial components.

Construction Sites: Lifting large steel frames, concrete slabs, and prefabricated building materials.

Ports & Logistics: Loading/unloading heavy cargo, containers, and industrial materials efficiently.

Urban & Municipal Projects: Installing street lights, traffic equipment, and other urban infrastructure with precision.

|

FAQ

1. What is the weight of SQS157G-5?

A: 2,850 kg, ensuring stability and reliable operation on medium-to-heavy trucks.

2. Can this crane lift 6.3 t safely on uneven ground?

A: Yes, designed with load sensors, stabilizers, and high-strength steel for safe lifting under typical operational conditions.

3. How does Tengchang support international customers?

A: Tengchang provides global logistics, after-sales service, technical support, and spare parts for all models.

4. What industries commonly use SQS157G-5?

A: Construction, industrial manufacturing, ports/logistics, and municipal infrastructure projects.

5. What certifications ensure product quality?

A: ISO9001, national truck crane manufacturing license, and GJB9001C-2017 weaponry quality certification.

Truck-Mounted Crane Safety & Operation Guide

Ensuring operator and crew Safety with proper handling.

Boom Positioning & Load Alignmen

Rotate the crane to align the boom over the load.

Adjust boom height and telescopic extension to position the hook correctly.

Safety Tip: Follow the load chart and ensure lifting weight is within allowed limits for current boom radius and angle.
Crane Extension Preparation

Sit at operator seat and slowly operate boom angle handles to extend the main boom and telescopic sections.

Move one handle at a time.

Safety Tip: Never operate multiple boom handles simultaneously. Keep boom path clear of personnel.
Outrigger Setup

Unlock outriggers and extend main and auxiliary outriggers fully.

Place support pads under each outrigger on soft ground.

Safety Tip: Ensure the truck is level. Incomplete extension may lead to tipping hazards.
Engaging Power Take-Off (PTO)

Ensure truck gear is in neutral and PTO switch is off.

Start engine and wait for safe air pressure levels.

Engage PTO slowly to drive the hydraulic crane system.

Safety Tip: Confirm all control levers are neutral before operation. Improper PTO engagement can damage hydraulic components.
Pre-Operation Site Check

Park the truck on firm, level ground. Engage the parking brake.

Inspect the surrounding area for obstacles, overhead lines, or unstable surfaces.

Confirm the load is within crane rated capacity and lifting height limits.

Safety Tip: Never operate on soft or sloped surfaces. Maintain at least 10 meters distance from high-voltage lines.

Post-Operation Maintenance

Lubricate pivot points, boom slides, and hydraulic cylinder pins

Check hydraulic oil levels, inspect hoses, and tighten bolts

Safety Tip: Only trained personnel should perform hydraulic maintenance. Replace worn parts immediately.
Crane Retraction & Stowage

Retract telescopic sections and fold boom sequentially.

Rotate crane to stowed position and fully retract outriggers

Safety Tip: Follow reverse order of extension to protect hydraulic cylinders and boom sections.
Lowering & Load Placement

Lower the load carefully to the designated position.

Detach slings and cables only when load is stable and personnel are clear.

Safety Tip: Never leave a suspended load unattended. Avoid sudden lowering.
Rotating with Load

Rotate the crane slowly to move the load

Monitor outrigger stability and crane tipping indicators.

Safety Tip: Do not extend the working radius while rotating a loaded boom. Keep movements smooth.
Lifting Operation

Lift the load slowly and steadily. Avoid sudden movements or swinging.

Monitor vehicle stability and outrigger pressure during the lift.

Safety Tip: Never exceed rated capacity. Avoid lifting loads over personnel.
