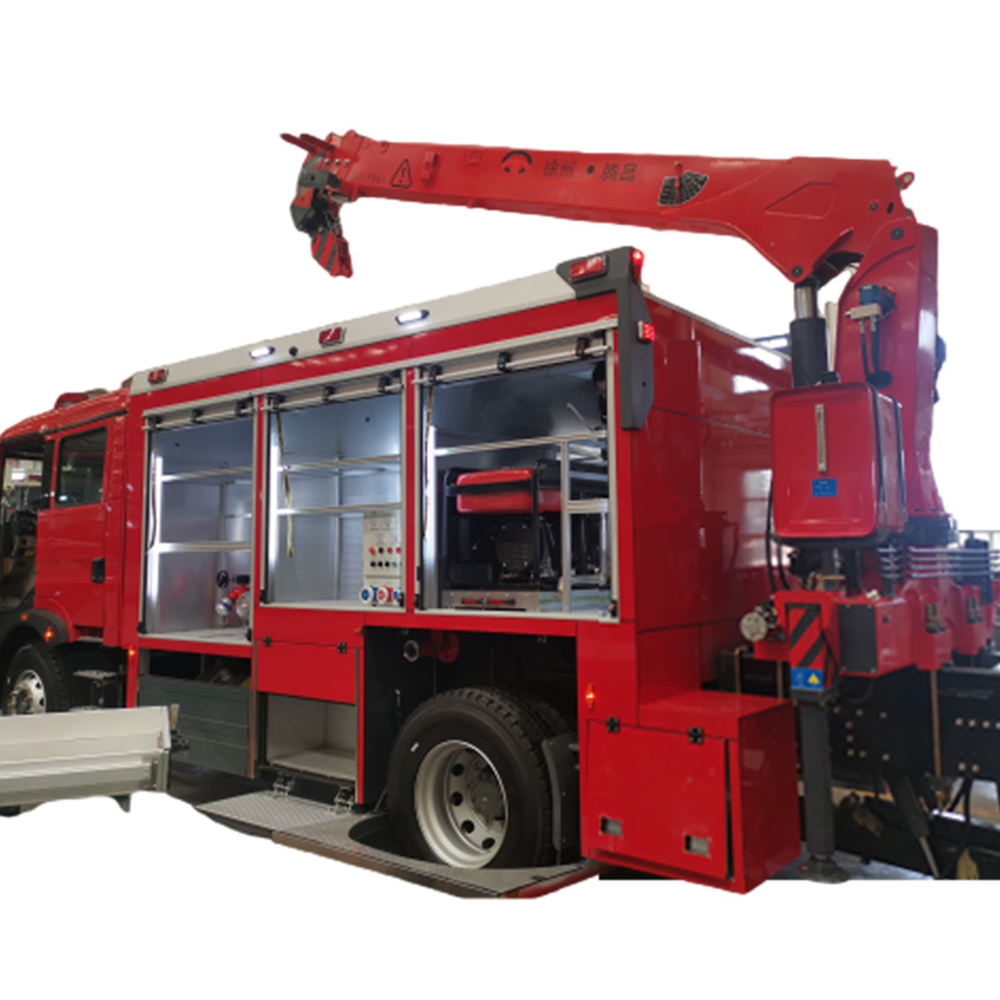

The TENGCHANG 6.3 Ton Telescopic Boom Truck Mounted Crane is engineered using advanced structural analysis and modern hydraulic technology to deliver reliable performance, high lifting efficiency, and long-term durability. Designed for medium to heavy-duty lifting applications, this hydraulic truck-mounted crane provides excellent flexibility for construction projects, logistics handling, equipment installation, warehouse loading, and industrial material lifting. Operators will immediately notice the tactile responsiveness of the control levers, which translate minimal physical effort into millimeter-precise boom movements. The exterior features an industrial-grade, weather-resistant matte coating that not only protects against harsh outdoor elements but also gives the equipment a rugged, professional appearance. Its telescopic boom structure, compact installation design requiring only 900mm of chassis space, and powerful 6,300kg lifting capacity make it a convenient and versatile solution. Whether executing small lifting tasks or demanding job site operations, this crane offers operators a safe, efficient, and mobile lifting solution tailored for intensive daily use.
Heavy-Duty Performance: Lifts up to 6,300 kg (6.3 t) with absolute stability, enabling efficient handling of industrial and construction materials. The structural integrity ensures that even at maximum load capacity, the boom maintains strict alignment without unwanted deflection, providing operators with confidence during critical lifts.
Smooth Hydraulic Operation: The recommended 40 L/min flow and 20 MPa system pressure allow precise load control and minimal wear. During operation, the hydraulic system emits a consistent, low-decibel hum, reflecting the optimized fluid dynamics that prevent sudden jerks and ensure smooth, continuous lifting motions.
360° Slewing Design: Full continuous rotation enhances flexibility for urban construction, industrial plants, or port operations. The slewing mechanism glides effortlessly, allowing the operator to position heavy loads precisely where needed without having to repeatedly reposition the transport vehicle.
Robust Construction: Thick, high-strength steel ensures long-term reliability and operational safety under continuous use. The cold-formed steel profiles provide exceptional anti-buckling strength, significantly extending the lifecycle of the equipment even under demanding daily workloads.
Versatile Industrial Use: Functions as a mobile telescopic boom crane, hydraulic lifting crane, or heavy-duty truck-mounted crane across multiple sectors. It perfectly bridges the gap between stationary lifting equipment and massive mobile cranes, offering unmatched site adaptability.
The engineering specifications of the TENGCHANG 6.3 Ton crane reflect a deep understanding of heavy material handling requirements. With a maximum lifting moment of 15.75t.m, it delivers substantial leverage for demanding tasks. The system is supported by a generous 100L oil tank capacity, which effectively dissipates heat during high-frequency lifting cycles, preventing fluid degradation. Despite its formidable lifting capabilities, the hydraulic crane weight is optimized at 2350kg, ensuring it does not excessively consume the payload capacity of the host vehicle. Paired with a recommended power of 20 KW, these precise parameters guarantee that every component works in harmony to maximize operational uptime and safety.
Crane main technical parameters
Maximum Lifting weight | 6300Kg | Oil tank capacity | 100L |
Maximum lifting moment | 15.75t.m | Slewing angle | 360° |
Recommended power | 20 KW | Hydrauic Crane weight | 2350kg |
Recommended hydroulic flow | 40 L/min | Installation space | 900mm |
Rated hydraulic pressure | 20MPa |
Construction & Infrastructure: Positioning steel beams, concrete panels, and other heavy materials on-site. The precise hydraulic control allows operators to lower heavy structural components into place with minimal manual guidance, accelerating project timelines.
Industrial & Manufacturing: Moving and installing machinery, production line equipment, and factory components. Its compact footprint means the transport vehicle can navigate tight factory aisles, bringing lifting power directly to the assembly floor.
Logistics & Port Handling: Efficiently loading/unloading heavy cargo and containers. The rapid deployment of the telescopic boom minimizes turnaround times for transport vehicles in busy logistics hubs.
Municipal Projects: Installing street furniture, utility poles, and traffic infrastructure safely and efficiently. The 360-degree rotation is particularly valuable when working on narrow municipal roads without disrupting surrounding traffic.
Custom Attachments & Extensions: Beyond standard hook lifting, this model supports OEM/ODM customization. It can be integrated with specialized attachments such as log grapples or aerial work baskets, transforming a single vehicle into a multi-functional utility asset.
A: The recommended installation space is strictly 900 mm, making it highly suitable for medium-duty and heavy-duty truck chassis, including cargo trucks, flatbed trucks, logistics vehicles, and construction transport trucks. This incredibly compact structure ensures easy integration directly behind the vehicle cabin without severely compromising the original cargo bed length or the vehicle's driving stability.
A: The SQS157A-4 is engineered for high-frequency lifting cycles and continuous operation, delivering true industrial-grade durability. With a robust hydraulic system operating at 20MPa and precision-machined internal components, it prevents fluid overheating and mechanical fatigue. It is ideal for demanding construction lifting, material handling, infrastructure projects, and industrial applications where downtime is not an option.
A: Yes, the crane is purpose-built for outdoor and harsh environment operations. It features corrosion-resistant materials, a heavy-duty weatherproof coating, and completely sealed hydraulic components. This meticulous sealing process prevents dust, moisture, and debris from entering the system, ensuring reliable performance in construction sites, mining areas, ports, and logistics yards under fluctuating weather conditions.
A: Tengchang offers a complete range of original spare parts supplied directly from the factory, including hydraulic cylinders, pumps, directional valves, reinforced hoses, seals, and structural components. Our global supply network and rapid technical response team ensure fast maintenance, drastically reduced downtime, and a long service life for your truck crane and lifting equipment.
A: Yes, the crane strictly complies with ISO9001 quality management standards, holds a prestigious national special equipment manufacturing license, and meets rigorous GJB9001C-2017 certification requirements. These authoritative certifications guarantee high manufacturing standards, operational safety, and mechanical reliability for buyers in global construction and logistics markets.
