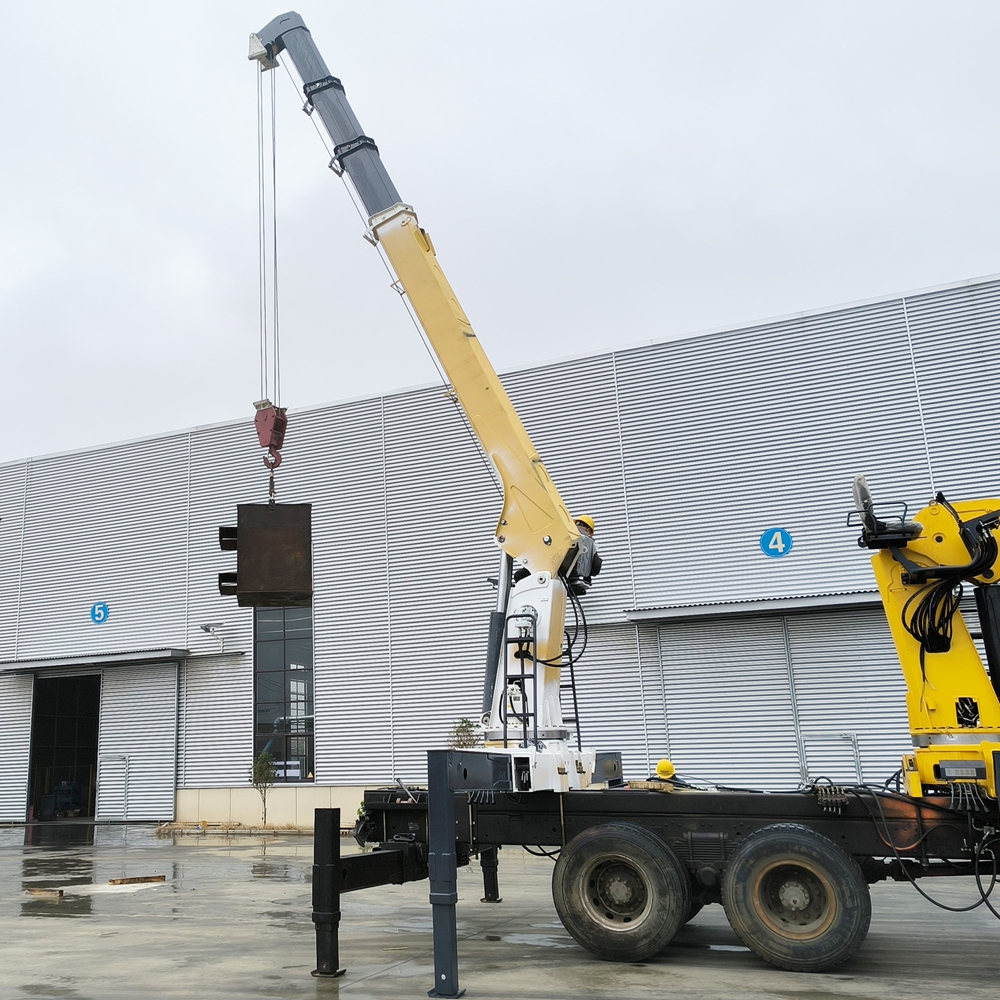

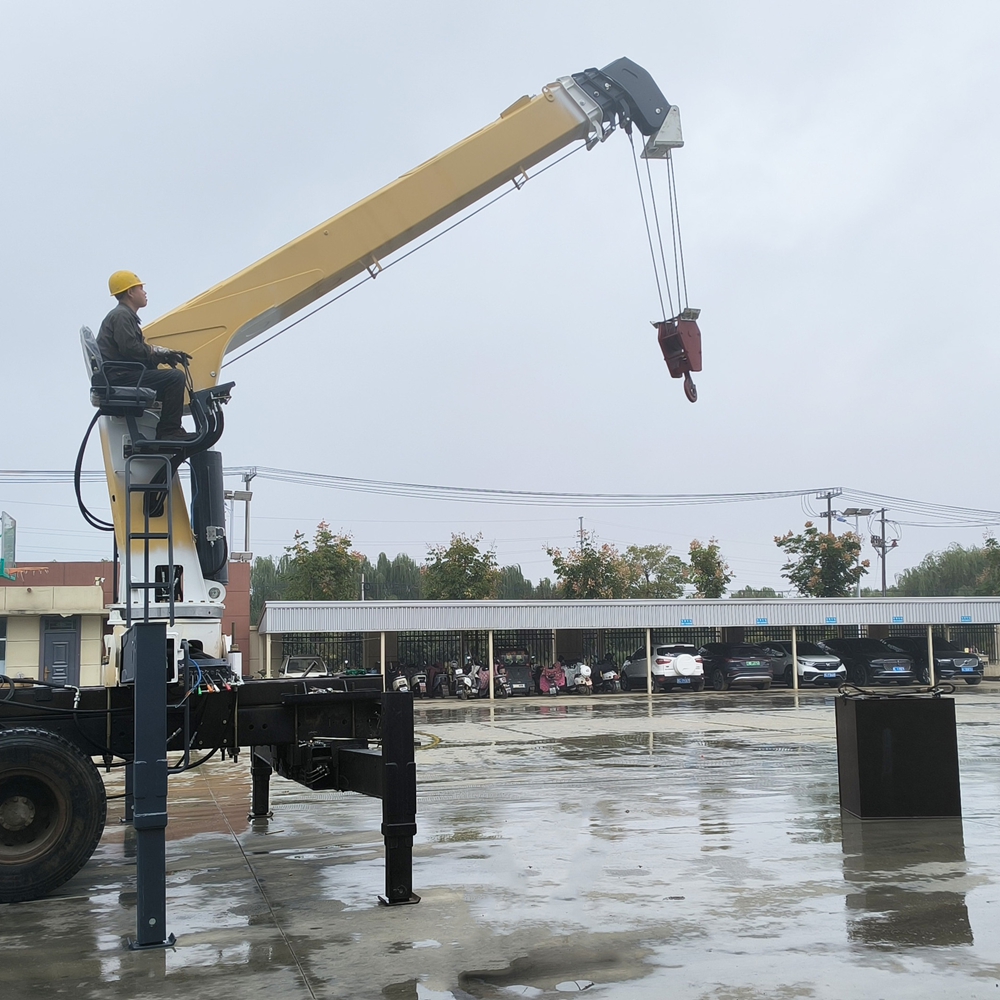

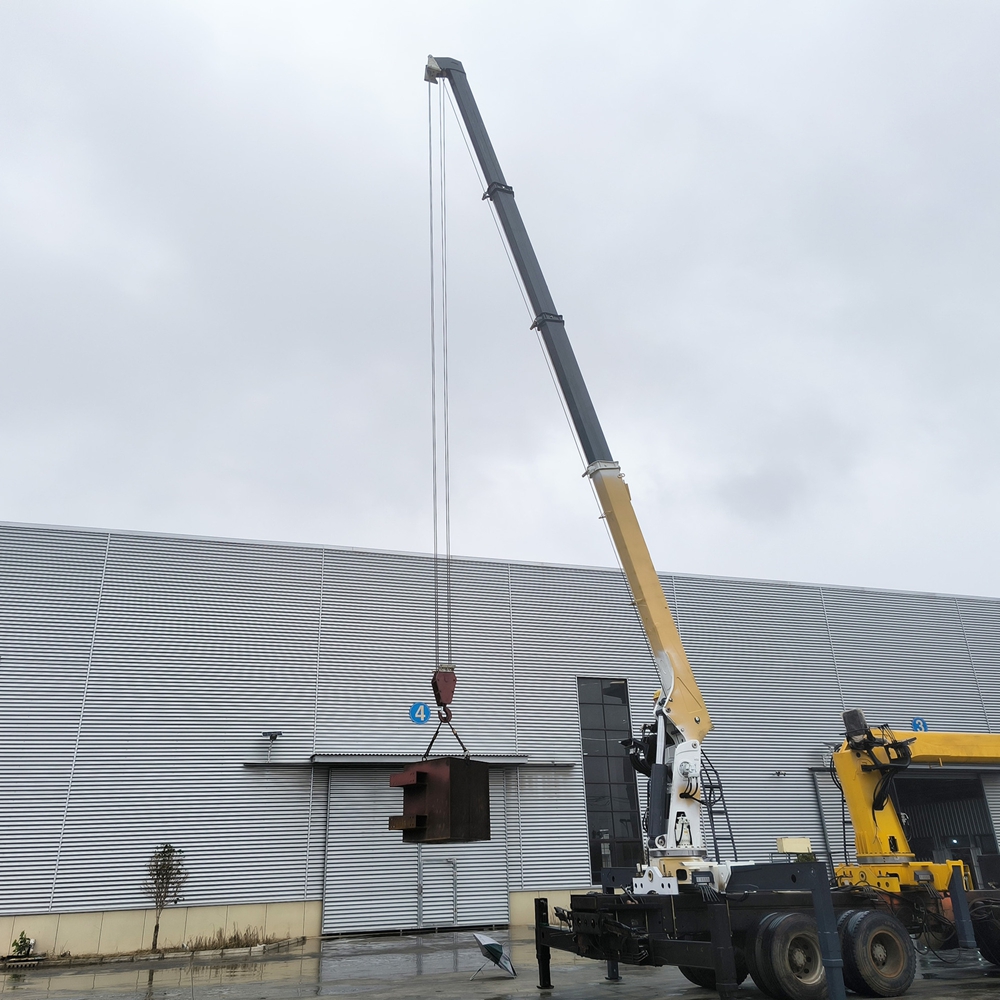

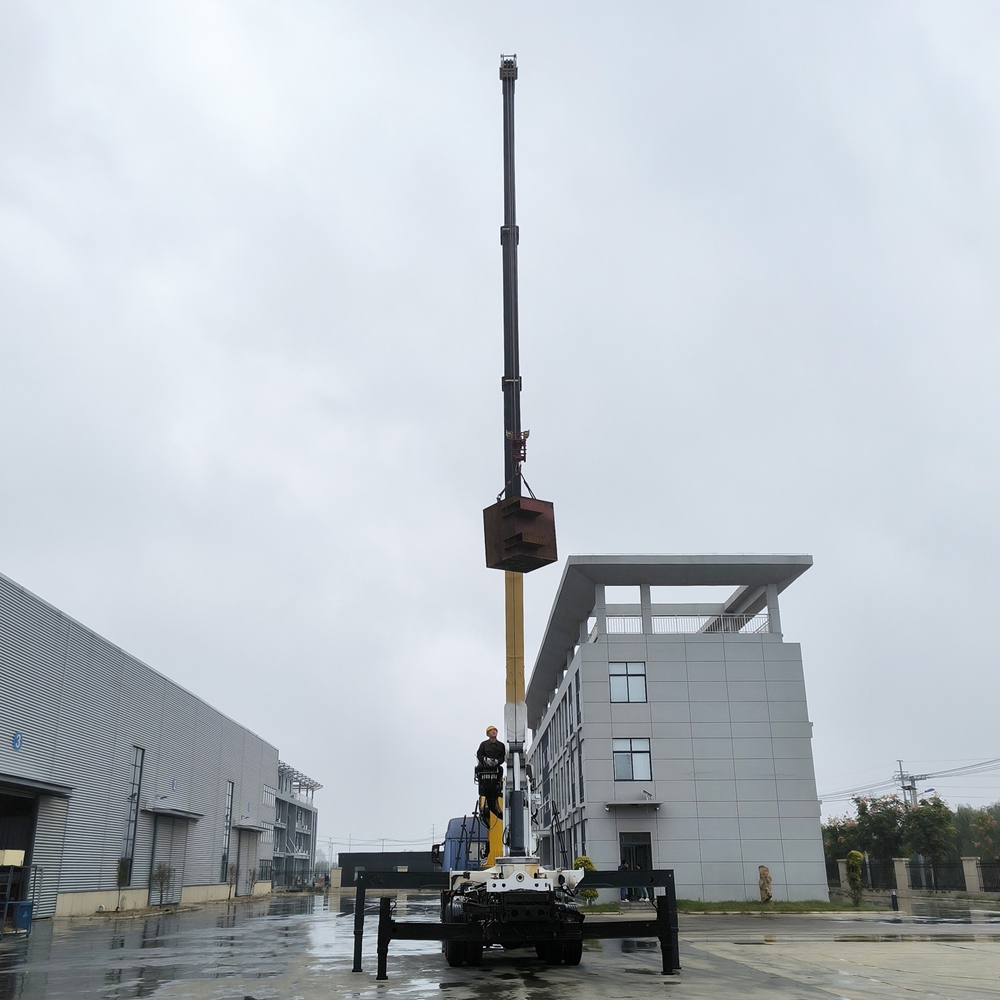

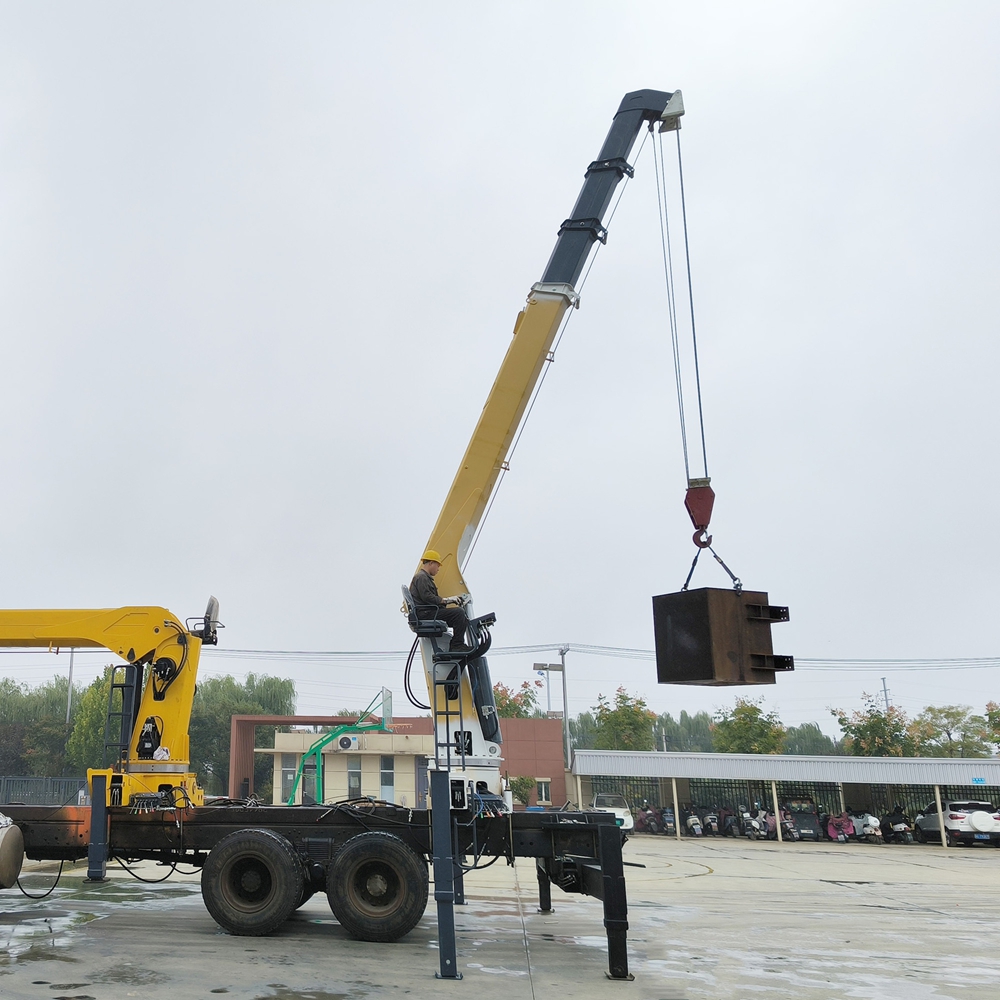

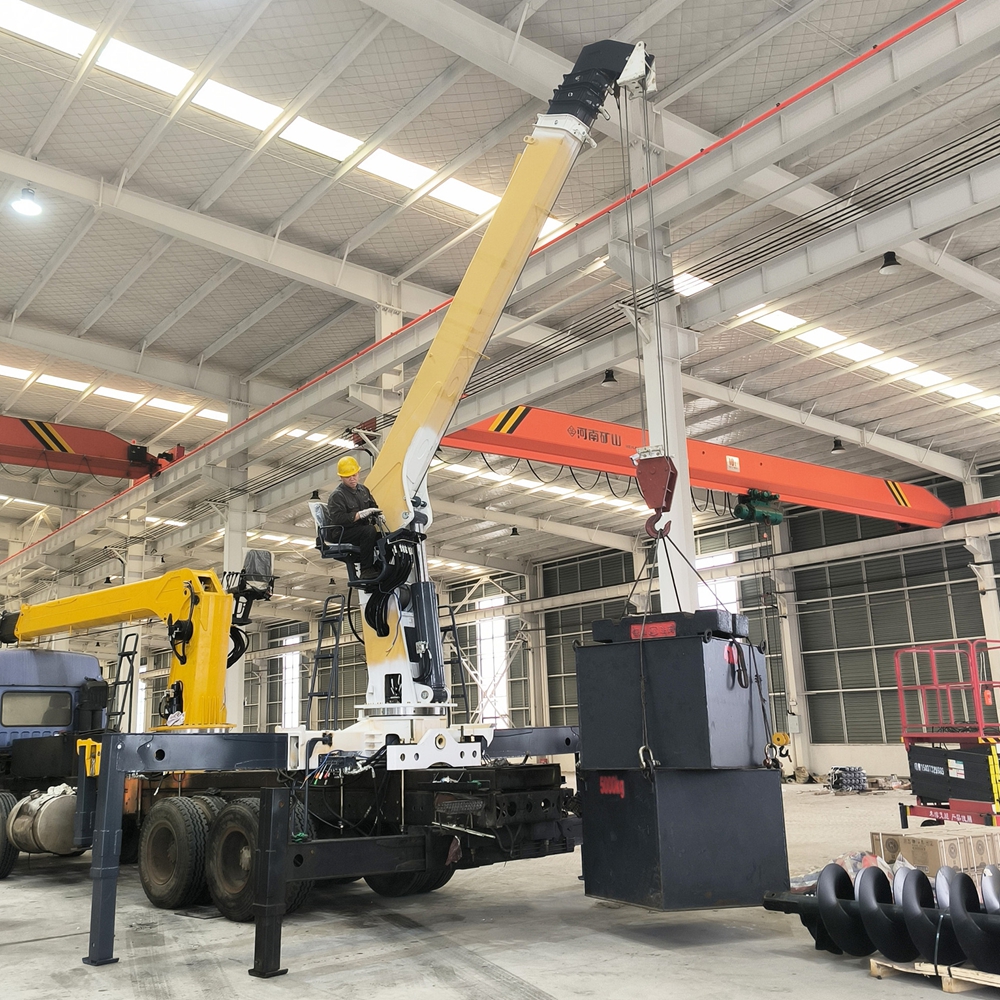

The SQS200A-4 8 Ton Telescopic Boom Truck Mounted Crane is a heavy-duty, high-performance mobile lifting solution engineered for professional industrial business operators, commercial construction teams, and logistics fleet managers requiring reliable, efficient load handling. With a class-leading 8000 kg (8 Ton) maximum lifting weight and 20 t·m rated lifting moment, this hydraulic telescopic boom crane delivers consistent power and precision for the most demanding job sites. Built with high-strength structural steel and a premium hydraulic system, it combines 360° full slewing capability with compact installation requirements, making it adaptable to both tight urban work zones and large-scale industrial operations. Designed for long-term durability and low maintenance, it is the go-to lifting equipment for businesses prioritizing safety, efficiency, and return on investment.
At the core of this 8T telescopic boom crane is its industry-leading lifting capacity, supporting a maximum 8000 kg load at optimal radius, with a 20 t·m lifting moment to handle heavy construction materials, industrial machinery, and bulk cargo with ease.
Powered by a 30 kW hydraulic system delivering 63 L/min flow at 28 MPa rated pressure, this truck mounted telescopic crane ensures smooth, jitter-free load control, energy-efficient operation, and accurate positioning even for high-sensitivity lifting tasks.
Unlimited 360° rotation enables seamless load placement in confined spaces, eliminating blind spots and reducing repositioning time for trucks on busy construction sites, ports, and municipal work zones.
Fabricated with high-tensile steel and precision welding, the crane features a robust 3400 kg structure, delivering exceptional wear and impact resistance in harsh working environments, while requiring only 1250 mm of installation space for flexible chassis mounting.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 8000 kg (8 Ton) | Slewing Angle | 360° Full Rotation |
Rated Lifting Moment | 20 t·m | Hydraulic Crane Weight | 3400 kg |
Recommended Hydraulic Power | 30 kW | Required Installation Space | 1250 mm |
Rated Hydraulic Pressure | 28 MPa | Oil Tank Capacity | 150 L |
Recommended Hydraulic Flow | 63 L/min | - | - |
This telescopic boom truck crane is ideal for lifting steel beams, concrete panels, and prefabricated components on mid-to-high-rise construction sites, with flexible boom extension to adapt to varying lifting heights.
It delivers efficient loading/unloading of bulk cargo, containers, and heavy goods in ports, warehouses, and logistics hubs, reducing handling time and improving fleet operational efficiency.
Perfect for precision installation of factory equipment, heavy machinery positioning, and routine maintenance in manufacturing plants and production facilities.
Widely used for street light installation, traffic signal setup, and urban infrastructure maintenance, with a compact design to navigate narrow urban roads.
Before use, park the truck on firm, level ground, engage the parking brake, fully extend and stabilize outriggers with support pads, and inspect hydraulic hoses, boom structure, and control levers. Maintain a minimum 10 meter distance from high-voltage overhead lines at all times.

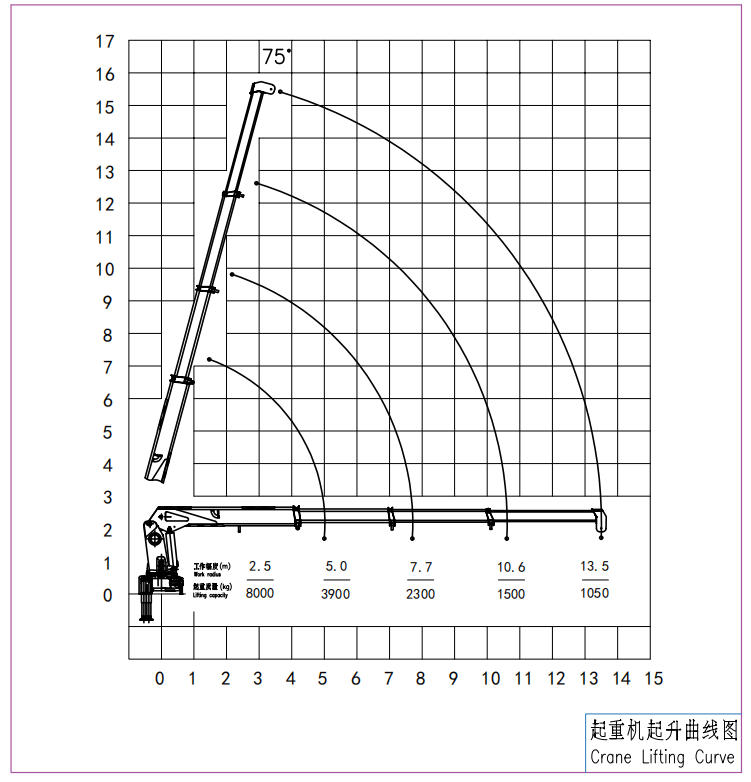

Only trained personnel may operate the crane, strictly following the load chart to avoid exceeding rated capacity. Operate one control handle at a time, avoid sudden movements, and never leave a suspended load unattended.
Perform regular lubrication of pivot points, boom slides, and hydraulic cylinder pins; check hydraulic oil levels before each use; inspect hoses and fasteners for wear; and replace damaged components immediately with genuine parts.
This 8 Ton truck mounted telescopic crane requires a truck chassis with a minimum 1250 mm mounting space and sufficient load capacity to support safe 8 Ton lifting operations.
Yes, its full telescopic boom reach and 360° slewing capability make it fully compatible with mid-to-high-rise lifting tasks on urban construction sites.
We recommend high-quality anti-wear hydraulic oil compatible with the 30 kW, 28 MPa hydraulic system to ensure optimal performance and component lifespan.
Yes, we provide full global spare parts supply, technical support, and after-sales service for all our telescopic boom truck cranes to support business operations worldwide.
