Boom Positioning & Load Alignmen

Rotate the crane to align the boom over the load. Adjust boom height and telescopic extension to position the hook correctly. Safety Tip: Follow the load chart and ensure lifting weight is within allowed limits for current boom radius and angle.

Crane Extension Preparation

Sit at operator seat and slowly operate boom angle handles to extend the main boom and telescopic sections. Move one handle at a time. Safety Tip: Never operate multiple boom handles simultaneously. Keep boom path clear of personnel.

Unlock outriggers and extend main and auxiliary outriggers fully. Place support pads under each outrigger on soft ground. Safety Tip: Ensure the truck is level. Incomplete extension may lead to tipping hazards.

Engaging Power Take-Off (PTO)

Ensure truck gear is in neutral and PTO switch is off. Start engine and wait for safe air pressure levels. Engage PTO slowly to drive the hydraulic crane system. Safety Tip: Confirm all control levers are neutral before operation. Improper PTO engagement can damage hydraulic components.

Pre-Operation Site Check

Park the truck on firm, level ground. Engage the parking brake. Inspect the surrounding area for obstacles, overhead lines, or unstable surfaces. Confirm the load is within crane rated capacity and lifting height limits. Safety Tip: Never operate on soft or sloped surfaces. Maintain at least 10 meters distance from high-voltage lines.

You are here: Home » Product » Telescopic Boom Truck Mounted Crane » (SQS300G-5) 12 Ton Telescopic Truck Loader

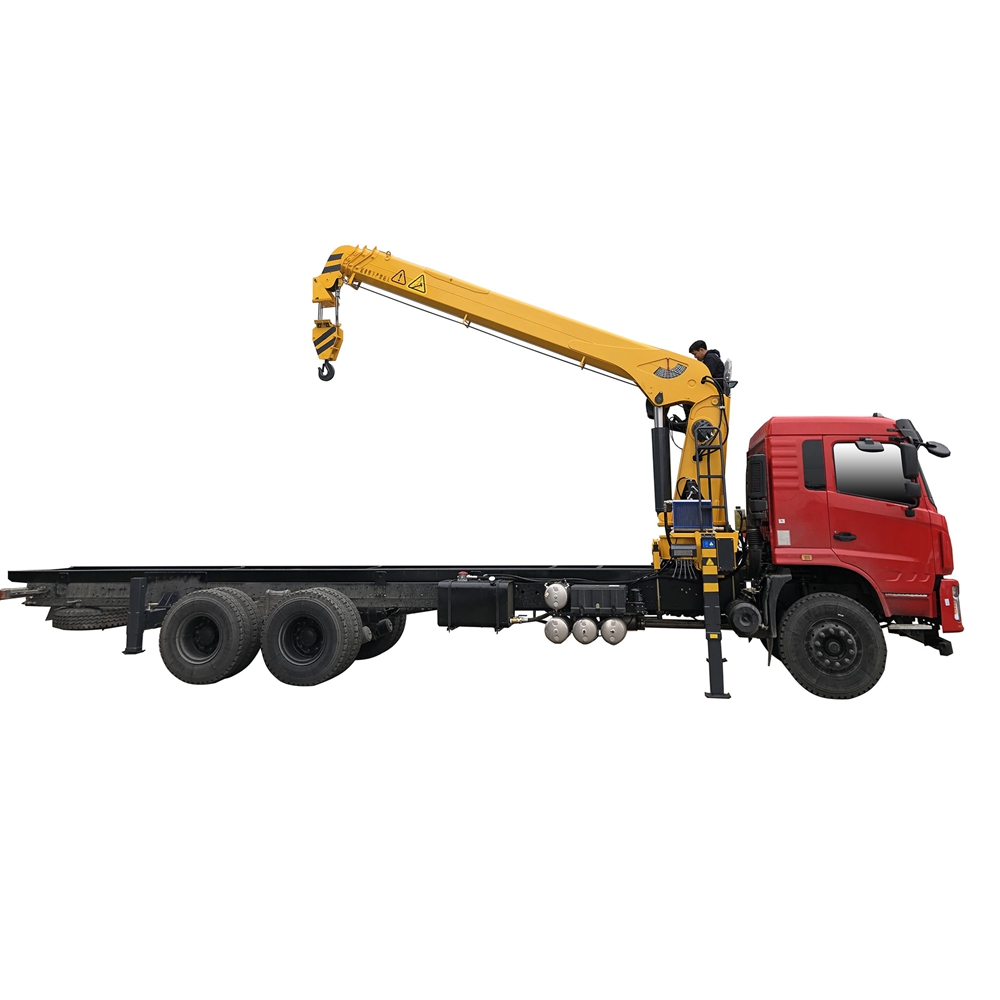

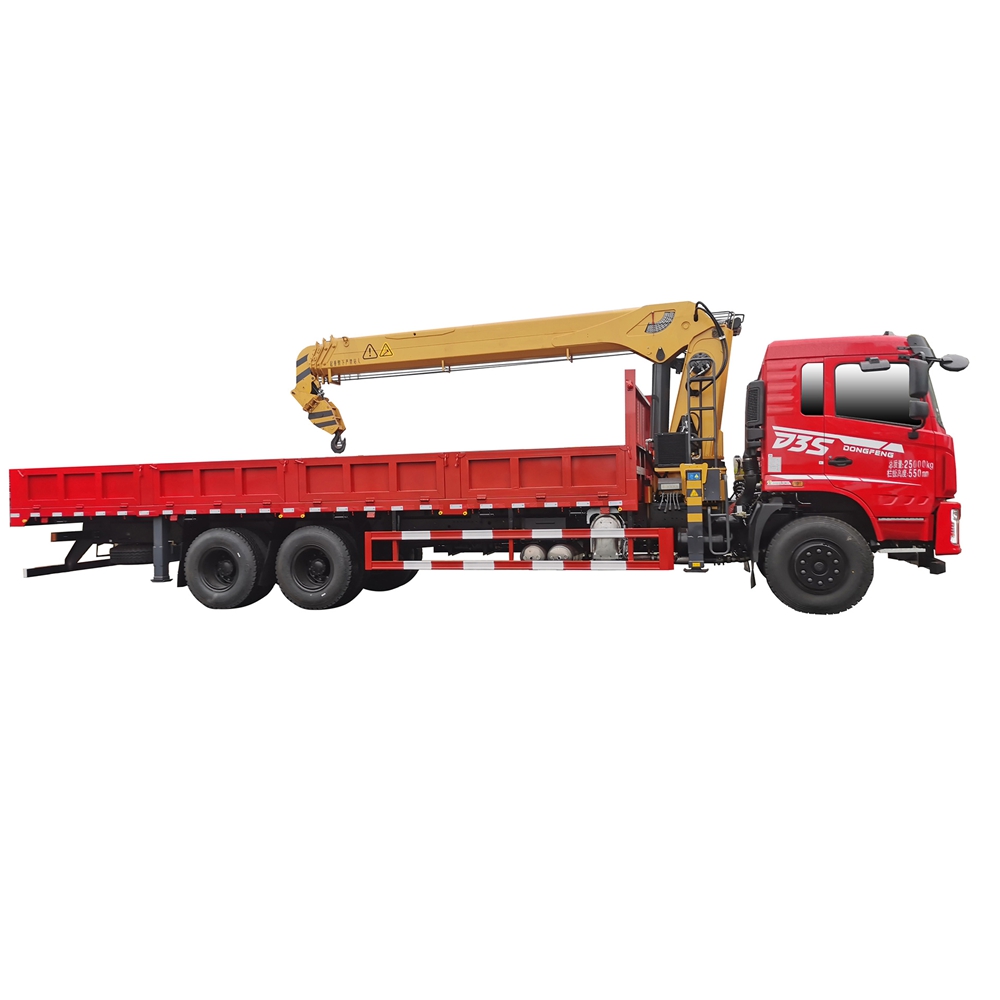

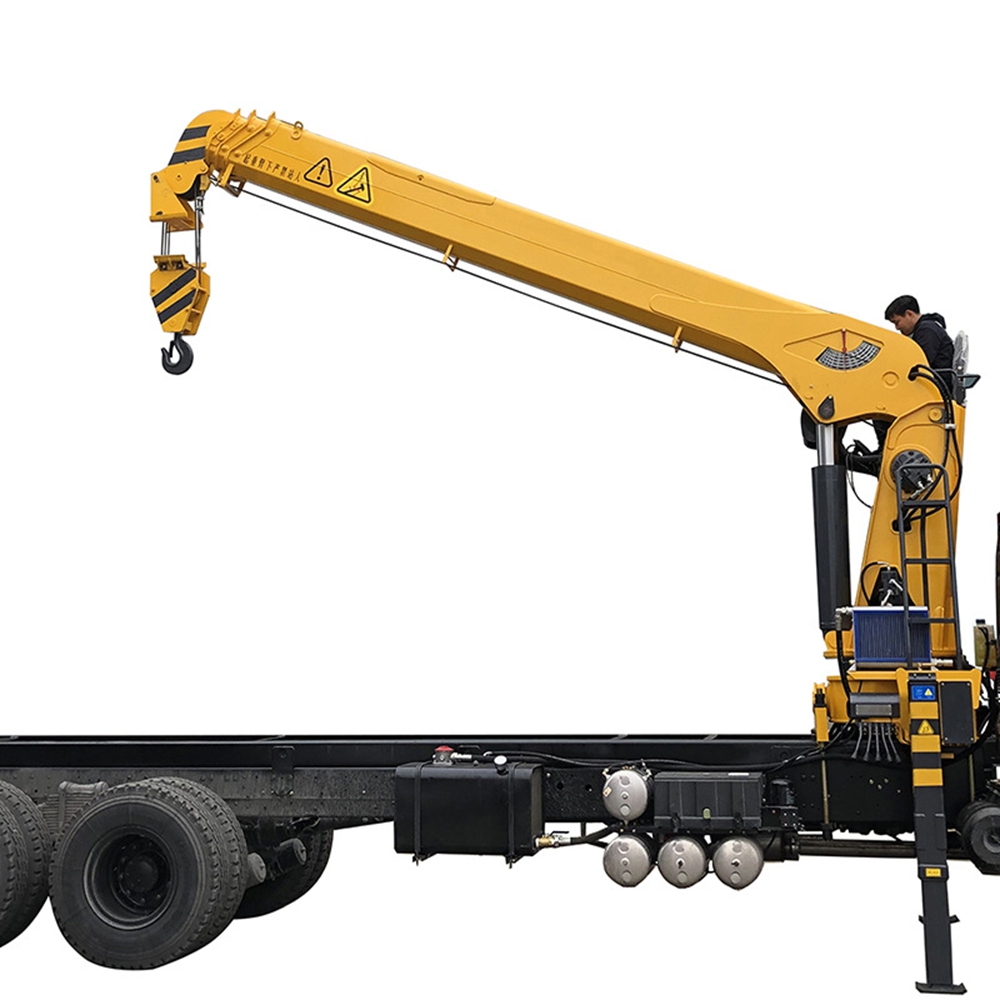

(SQS300G-5) 12 Ton Telescopic Truck Loader

Model: SQS300G-5

The SQS300G-5 is a high-capacity hydraulic telescopic truck crane designed for heavy industrial lifting, large-scale construction, port logistics, and infrastructure projects. With a maximum lifting weight of 12 t (12,000 kg) and lifting moment of 30 t·m, this crane delivers powerful, precise, and reliable performance even under challenging conditions. Equipped with an 80 L/min hydraulic system at 26 MPa, 360° slewing capability, and a reinforced steel frame, it ensures smooth operations, enhanced stability, and operational efficiency. Weighing 4,810 kg with 1,300 mm installation space, it is ideal for environments requiring high lifting precision, flexibility, and heavy-duty performance.

Availability:

Quantity:



Inquire Add to Basket

12 ton telescopic truck loader truck loader telescopic crane hydraulic telescopic boom crane 12 ton hydraulic telescopic truck loader telescopic boom truck crane mobile telescopic loader crane compact telescopic truck loader

Product Description

Product Description Safety Related Products

Product Description

|

Product Advantage

SQS300G-5 stands out for its exceptional lifting performance, operational flexibility, and robust industrial design, making it a preferred solution for demanding projects.

Superior Lifting Power: Superior Lifting Power

High-Efficiency Hydraulics: 80 L/min flow at 26 MPa ensures smooth, stable, and precise lifting movements.

360° Slewing Flexibility: Full rotation allows operation in confined sites or complex project areas.

Durable & Safe: Reinforced steel structure and advanced manufacturing ensure reliability under heavy workloads.

Multi-Industry Applications: Perfect for construction, industrial projects, port operations, municipal works, and heavy cargo logistics.

Multi-Industry Applications: Optimized hydraulic system reduces energy consumption while maintaining lifting performance.

|

Technical Parameters

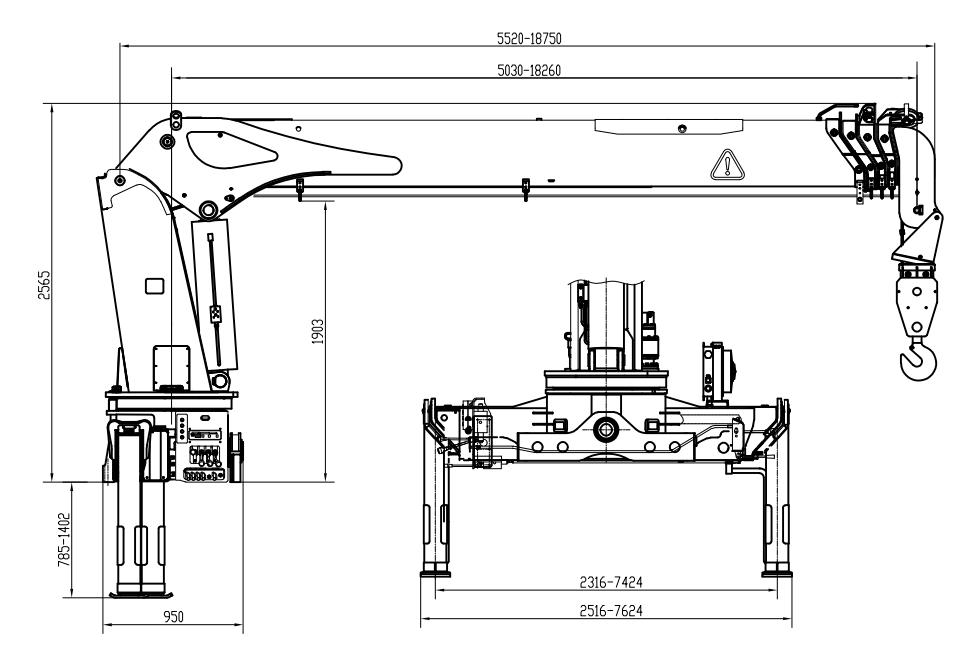

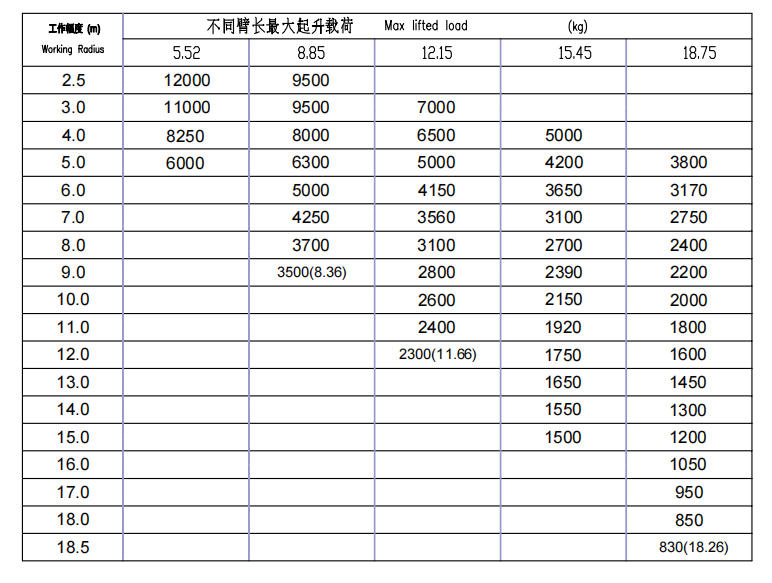

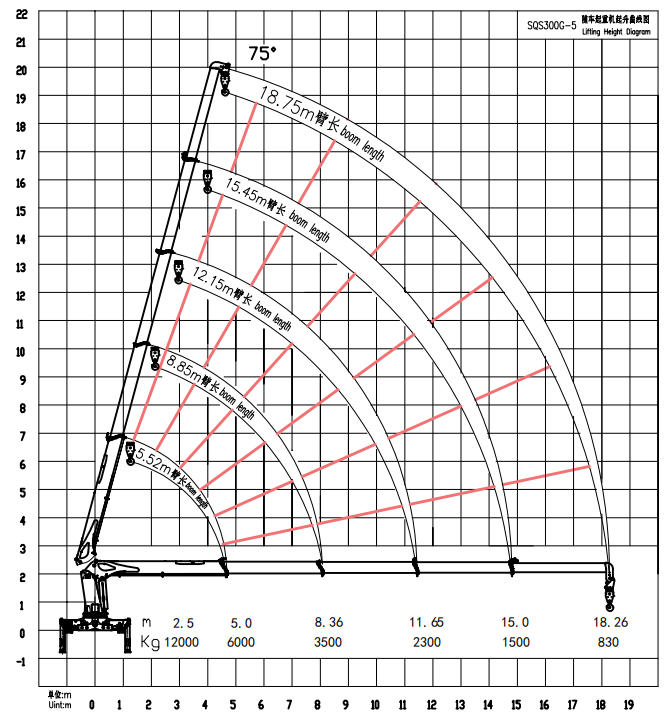

ScreenShot_2026-03-02_124514_542 ScreenShot_2026-03-02_124527_679 ScreenShot_2026-03-02_124534_999

Crane main technical parameters

Maximum Lifting weight	12000Kg	Oil tank capacity	240L
Maximum lifting moment	30t.m	Slewing angle	360°
Recommended power	30 KW	Hydrauic Crane weight	4810kg
Recommended hydroulic flow	80+40 L/min	Installation space	1300mm
Rated hydraulic pressure	26MPa

|

Product Uses

Construction Projects: Lifting steel beams, precast concrete panels, and heavy building materials for residential and commercial buildings.

Industrial & Manufacturing Sites: Handling large machinery, industrial equipment, and factory installations.

Port & Logistics Operations: Loading/unloading containers, heavy cargo, and industrial materials efficiently and safely.

Municipal Infrastructure: Streetlights, traffic signals, bridge components, and utility pole installation.

Energy & Utility Projects: Lifting transformers, generators, and pipeline equipment for power plants and industrial facilities.

Emergency & Fire-Fighting Support: Can be integrated with specialized jibs for rescue operations and disaster recovery tasks.

|

FAQ

1. What truck chassis is suitable for mounting SQS300G-5?

A: Recommended trucks must support at least 4,810 kg crane weight with a mounting space of 1,300 mm. Medium to heavy-duty trucks are ideal.

2. Can this crane operate continuously for industrial use?

A: Yes, designed for extended operations with minimal maintenance intervals.

3. How is Tengchang’s quality assurance ensured?

A: Tengchang cranes are manufactured under ISO9001:2015 and GJB9001C-2017 standards, with rigorous quality control at every stage.

4. Does Tengchang provide customized solutions?

A: Yes, we offer custom boom lengths, hydraulic configurations, and optional jibs to suit project-specific requirements.

5. Is operator training provided?

A: Yes, Tengchang provides worldwide operator training to ensure safe and efficient crane operation.

6. What maintenance schedule is recommended for hydraulic components?

A: Check oil, filters, hoses, and valves every 500 operational hours; regular inspection ensures longevity and performance.

Truck-Mounted Crane Safety & Operation Guide

Ensuring operator and crew Safety with proper handling.

Boom Positioning & Load Alignmen

Rotate the crane to align the boom over the load.

Adjust boom height and telescopic extension to position the hook correctly.

Safety Tip: Follow the load chart and ensure lifting weight is within allowed limits for current boom radius and angle.
Crane Extension Preparation

Sit at operator seat and slowly operate boom angle handles to extend the main boom and telescopic sections.

Move one handle at a time.

Safety Tip: Never operate multiple boom handles simultaneously. Keep boom path clear of personnel.

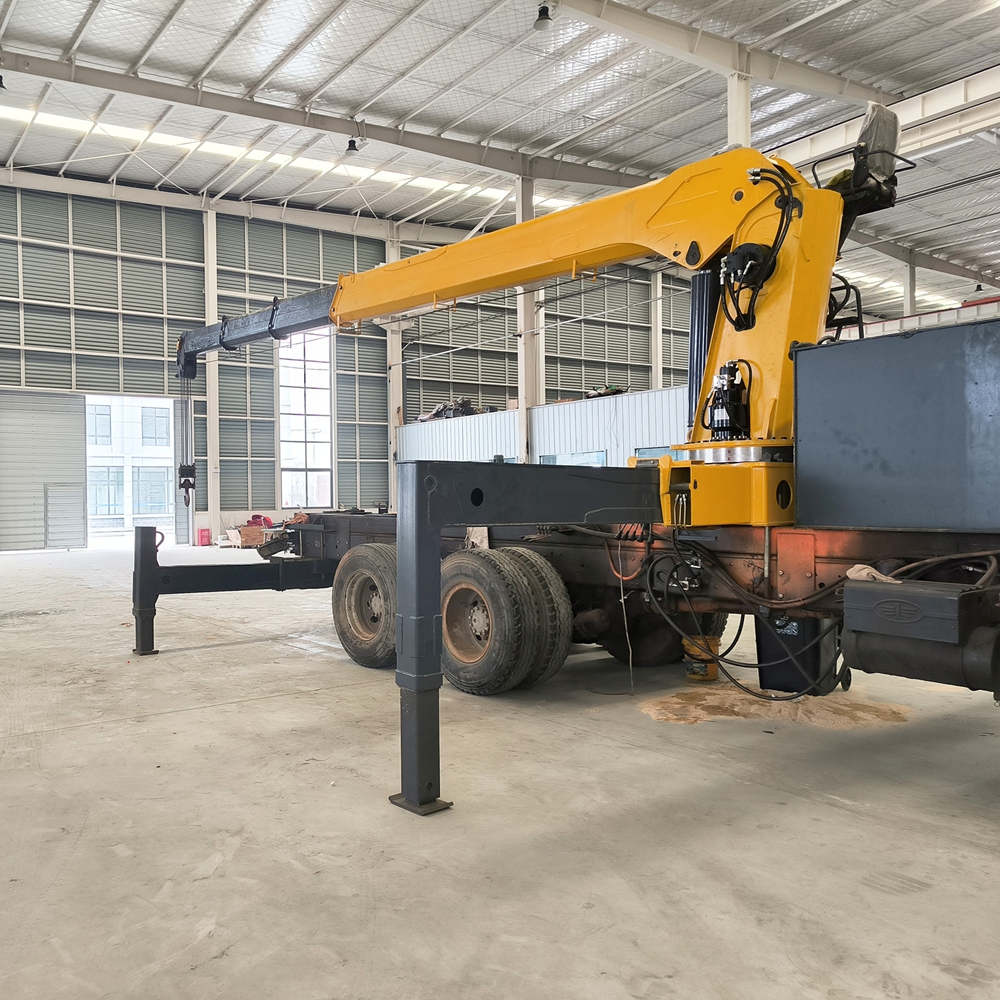

Outrigger Setup

Unlock outriggers and extend main and auxiliary outriggers fully.

Place support pads under each outrigger on soft ground.

Safety Tip: Ensure the truck is level. Incomplete extension may lead to tipping hazards.
Engaging Power Take-Off (PTO)

Ensure truck gear is in neutral and PTO switch is off.

Start engine and wait for safe air pressure levels.

Engage PTO slowly to drive the hydraulic crane system.

Safety Tip: Confirm all control levers are neutral before operation. Improper PTO engagement can damage hydraulic components.
Pre-Operation Site Check

Park the truck on firm, level ground. Engage the parking brake.

Inspect the surrounding area for obstacles, overhead lines, or unstable surfaces.

Confirm the load is within crane rated capacity and lifting height limits.

Safety Tip: Never operate on soft or sloped surfaces. Maintain at least 10 meters distance from high-voltage lines.

Post-Operation Maintenance

Lubricate pivot points, boom slides, and hydraulic cylinder pins

Check hydraulic oil levels, inspect hoses, and tighten bolts

Safety Tip: Only trained personnel should perform hydraulic maintenance. Replace worn parts immediately.
Crane Retraction & Stowage

Retract telescopic sections and fold boom sequentially.

Rotate crane to stowed position and fully retract outriggers

Safety Tip: Follow reverse order of extension to protect hydraulic cylinders and boom sections.
Lowering & Load Placement

Lower the load carefully to the designated position.

Detach slings and cables only when load is stable and personnel are clear.

Safety Tip: Never leave a suspended load unattended. Avoid sudden lowering.
Rotating with Load

Rotate the crane slowly to move the load

Monitor outrigger stability and crane tipping indicators.

Safety Tip: Do not extend the working radius while rotating a loaded boom. Keep movements smooth.
Lifting Operation

Lift the load slowly and steadily. Avoid sudden movements or swinging.

Monitor vehicle stability and outrigger pressure during the lift.

Safety Tip: Never exceed rated capacity. Avoid lifting loads over personnel.
