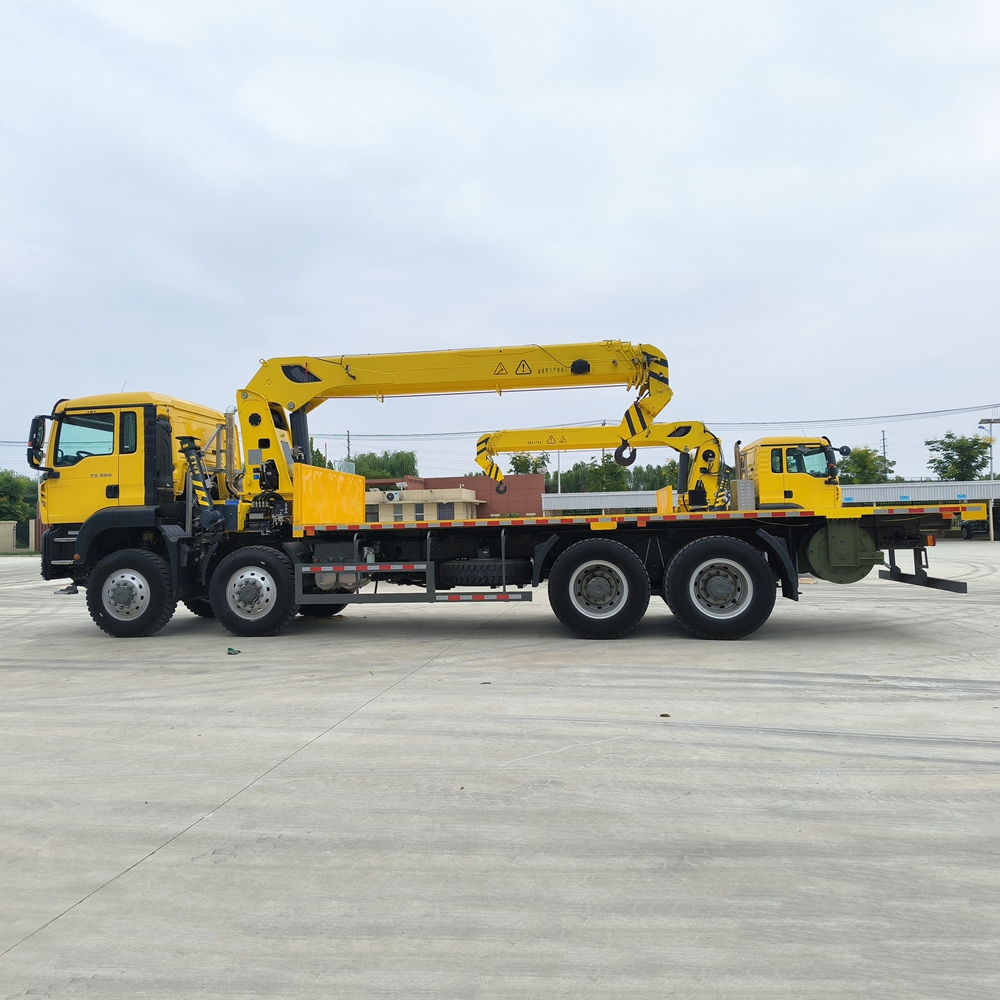

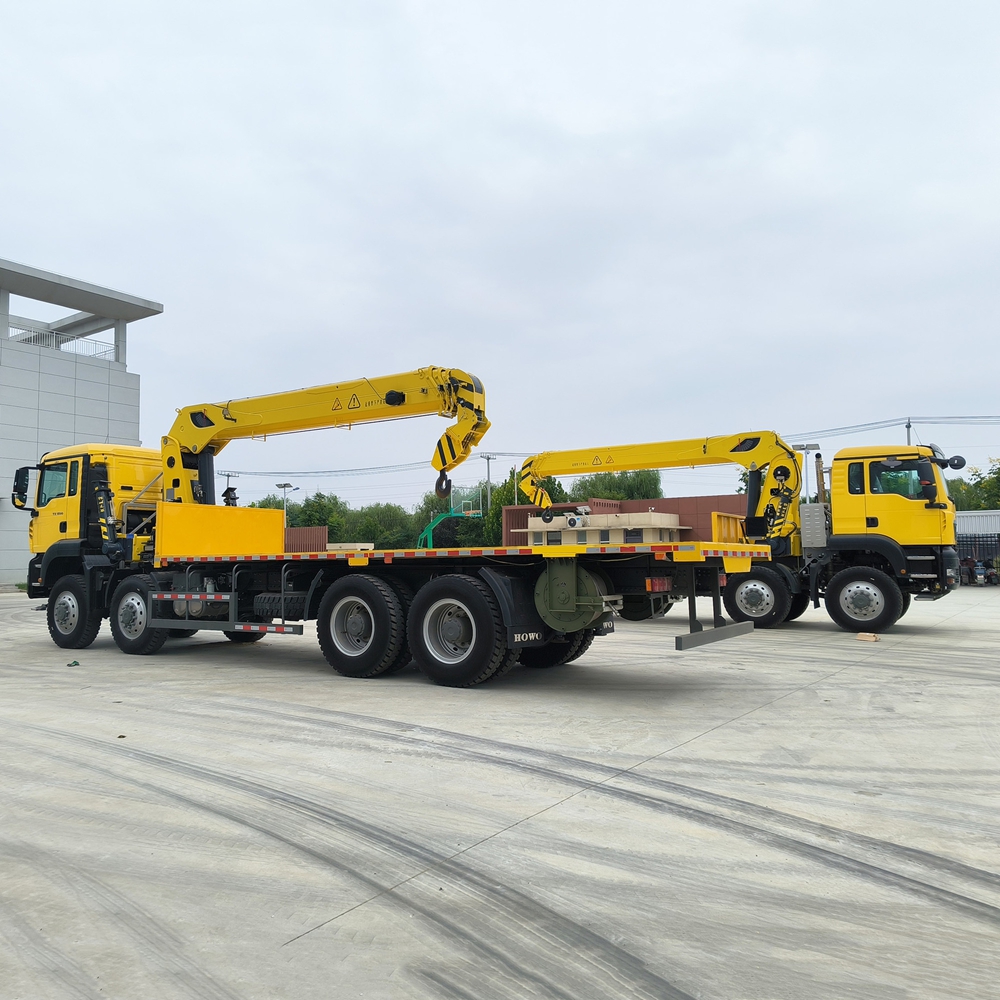

The SQS450 18 ton truck mounted telescopic crane is a premium heavy-duty lifting solution engineered for professional industrial business operators, construction enterprises, and logistics service providers. Built to deliver uncompromising performance in high-demand working environments, this hydraulic telescopic truck crane combines industry-leading lifting capacity, precision control, and long-term durability. With a maximum lifting capacity of 18,000 kg and a rated lifting moment of 45 t·m, it is optimized for seamless mounting on heavy-duty trucks, delivering reliable performance across diverse heavy lifting applications. Its compact installation footprint and robust structural design make it a versatile choice for both on-site construction and mobile logistics operations.
At the core of this heavy duty telescopic boom truck crane is its class-leading lifting capability, with a maximum 18 t load capacity and 45 t·m lifting moment to handle the heaviest industrial materials with ease. It maintains stable, safe lifting performance even at full boom extension, setting it apart from standard market alternatives.
Equipped with a 40 kW hydraulic system delivering 80 L/min flow at 28 MPa rated pressure, this mobile telescopic boom crane ensures smooth, jitter-free lifting and telescopic operations, enabling precise load positioning even in complex worksites.
The full 360° continuous slewing design delivers complete rotational flexibility, allowing operators to position loads efficiently without repositioning the host truck, drastically improving worksite productivity for 360° rotation industrial truck crane applications.
Fabricated with high-strength reinforced steel, the crane body delivers exceptional structural rigidity and fatigue resistance, with a total weight of 6,400 kg. All units are manufactured under ISO9001:2015 and GJB9001C-2017 standards, with strict quality inspections to ensure long service life in harsh working conditions.
Parameter | Specification |
Maximum Lifting Weight | 18,000 kg |
Rated Lifting Moment | 45 t·m |
Recommended Power | 40 kW |
Rated Hydraulic Pressure | 28 MPa |
Recommended Hydraulic Flow | 80 L/min |
Slewing Angle | 360° continuous |
Crane Weight | 6,400 kg |

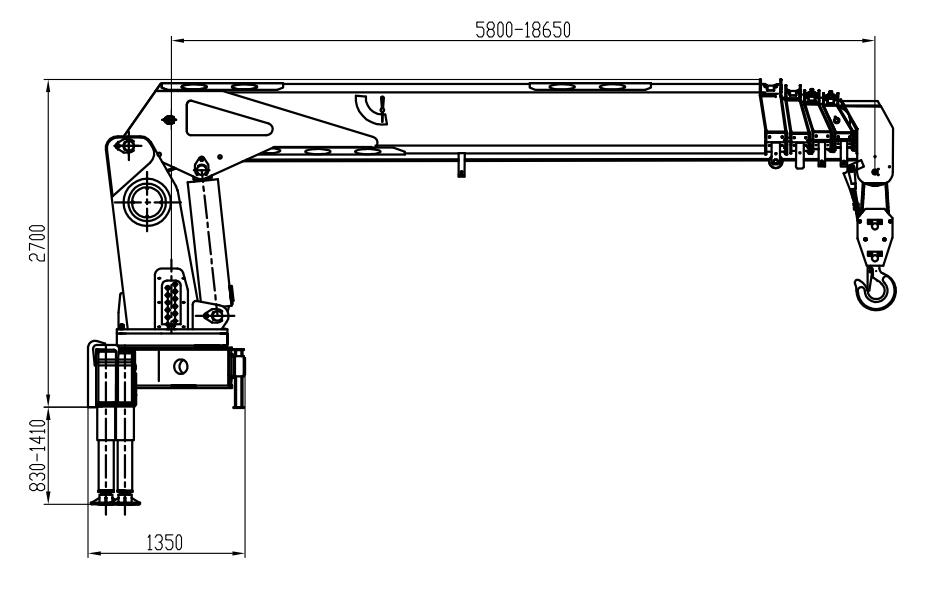

Required Installation Space | 1,400 mm |
Oil Tank Capacity | 250 L |
This telescopic boom truck crane for sale is tailored for a wide range of heavy-duty commercial applications, including large-scale construction projects for lifting steel structures and precast concrete components, port & heavy cargo logistics for container and machinery handling, urban infrastructure development for streetlight and utility pole installation, and energy & power engineering for transformer and pipeline equipment lifting.

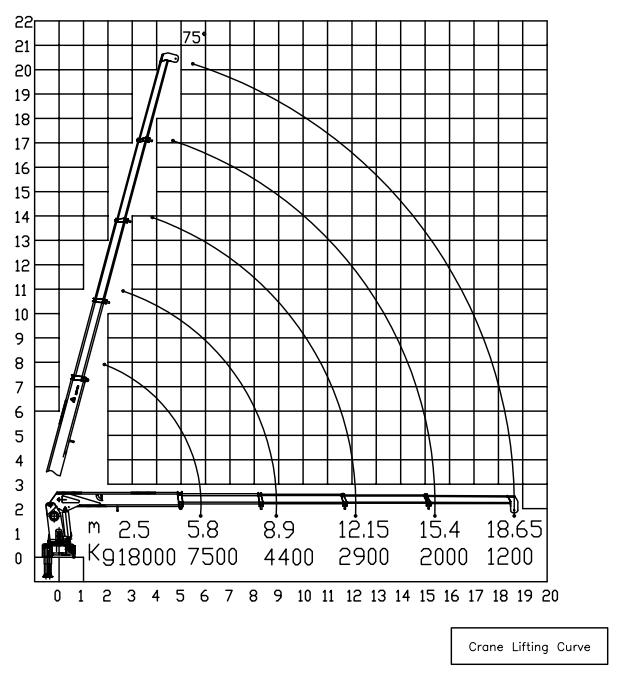

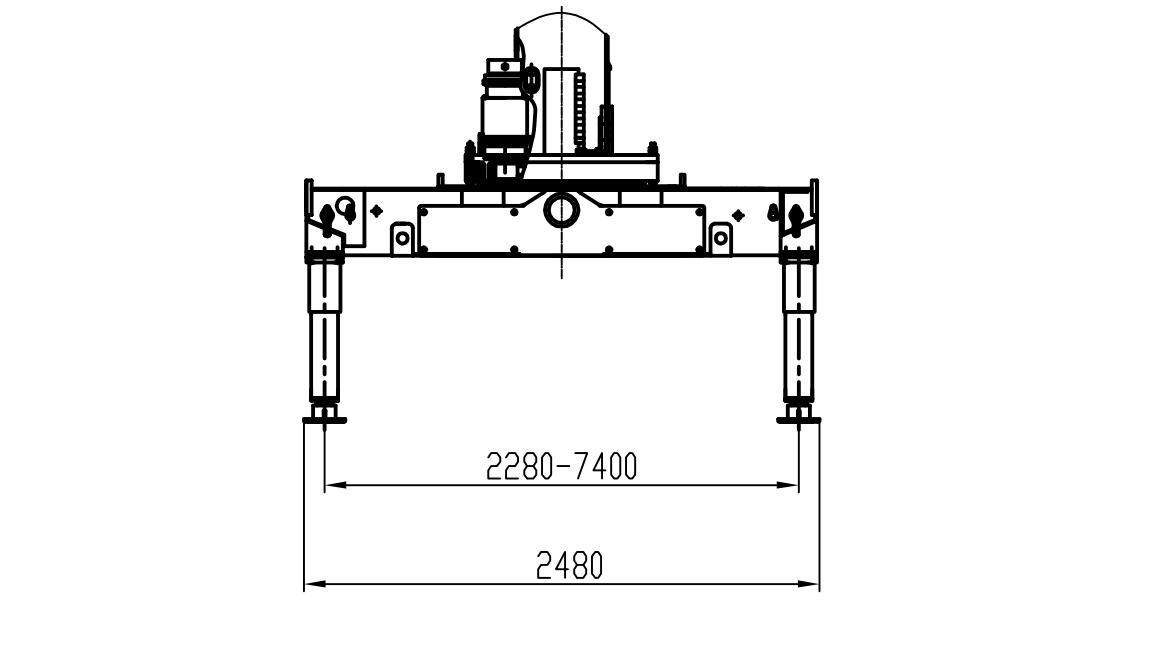

Prior to operation, park the host truck on firm, level ground, engage the parking brake, and fully extend all outriggers with support pads for maximum stability. Always maintain a minimum 10-meter distance from high-voltage overhead lines, and never operate the crane on soft or sloped surfaces. Operators must follow the official load chart strictly, never exceeding the rated capacity for the current boom radius and angle.
To ensure long-term performance and safety, conduct full inspections of hydraulic oil, filters, hoses, and valves every 500 operational hours. Regularly lubricate pivot points, boom slides, and hydraulic cylinder pins, and replace worn components immediately. All maintenance should be performed by trained professional personnel.
This crane is compatible with heavy-duty trucks that provide a 1,400 mm installation space and sufficient payload capacity to support the crane weight and maximum load.

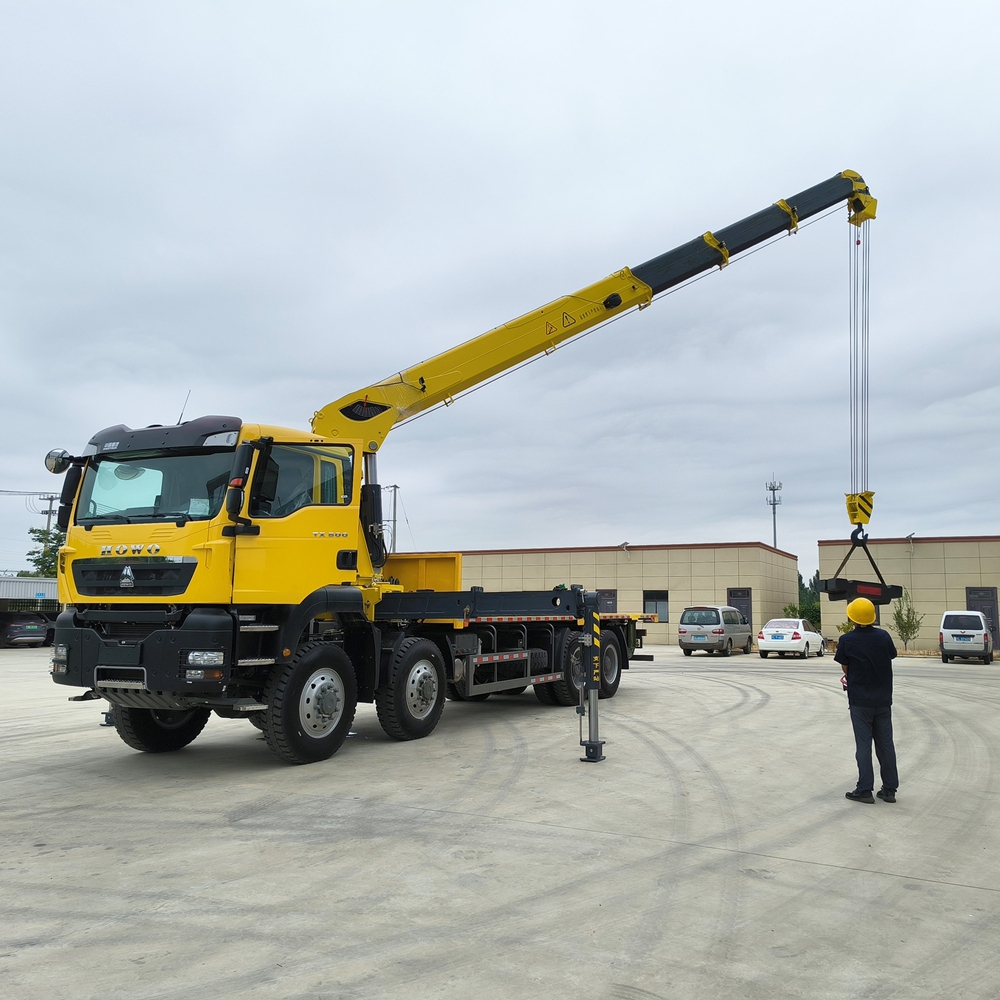

Yes, the crane is rated and tested for safe lifting at full boom extension, with strict adherence to its 45 t·m lifting moment rating.
Yes, we offer full customization for boom length, hydraulic configuration, and auxiliary jibs to meet specific project requirements.
All SQS450 cranes are manufactured under ISO9001:2015 and GJB9001C-2017 quality management standards, with multi-stage strict inspections before delivery.
