The SQS350G-5 14 Ton Telescopic Boom Truck Loader Crane is a robust medium-heavy duty hydraulic lifting system engineered for continuous, reliable performance in infrastructure construction, industrial plant operations, municipal maintenance, and port logistics. With a 14,000 kg maximum lifting capacity, 36 t·m rated lifting moment, and 19.6 m maximum boom length, this hydraulic telescopic truck crane for infrastructure projects balances powerful lifting with exceptional adaptability. Weighing just 5,250 kg with a 1300 mm minimal installation space, it fits most medium to heavy-duty truck chassis, making it the go-to lifting solution for infrastructure developers, municipal maintenance teams, industrial facility managers, and freight logistics operators.

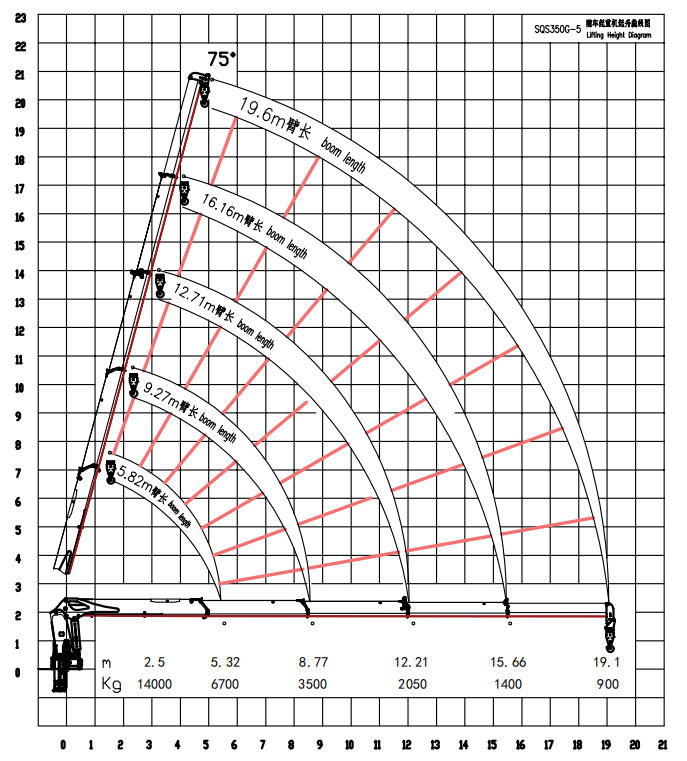

This medium-heavy duty truck mounted lifting crane delivers a 14,000 kg maximum load at 2.5 m working radius, with stable performance across 5 telescopic boom sections (5.82 m to 19.6 m). Its optimized boom design ensures consistent load retention even at extended working radii, supporting reliable performance for both short-range heavy lifts and long-reach material handling.
Equipped with a precision dual-circuit hydraulic system delivering 63+50 L/min flow at 28 MPa rated pressure, this full rotation mobile telescopic crane ensures smooth, stable load control with minimal maintenance needs. It is designed for long-hour continuous operation in industrial and construction environments, reducing downtime and improving project efficiency.
The ultra-compact 1300 mm installation footprint and optimized 5,250 kg self-weight enable seamless compatibility with most medium to heavy-duty truck chassis, without compromising the host vehicle’s payload. Its full 360° continuous slewing delivers unrivaled maneuverability in tight spaces, from narrow urban streets to crowded industrial yards, eliminating frequent truck repositioning.
Built with high-strength reinforced steel, this port operations truck loader crane is manufactured under strict ISO9001:2015 and GJB9001C-2017 quality standards. Every unit undergoes rigorous load and durability testing, ensuring exceptional resistance to harsh conditions, long service life, and maximum operational safety.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 14,000 kg | Rated Hydraulic Pressure | 28 MPa |
Maximum Lifting Moment | 36 t·m | Recommended Hydraulic Flow | 63+50 L/min |
Maximum Boom Length | 19.6 m | Slewing Angle | 360° continuous |

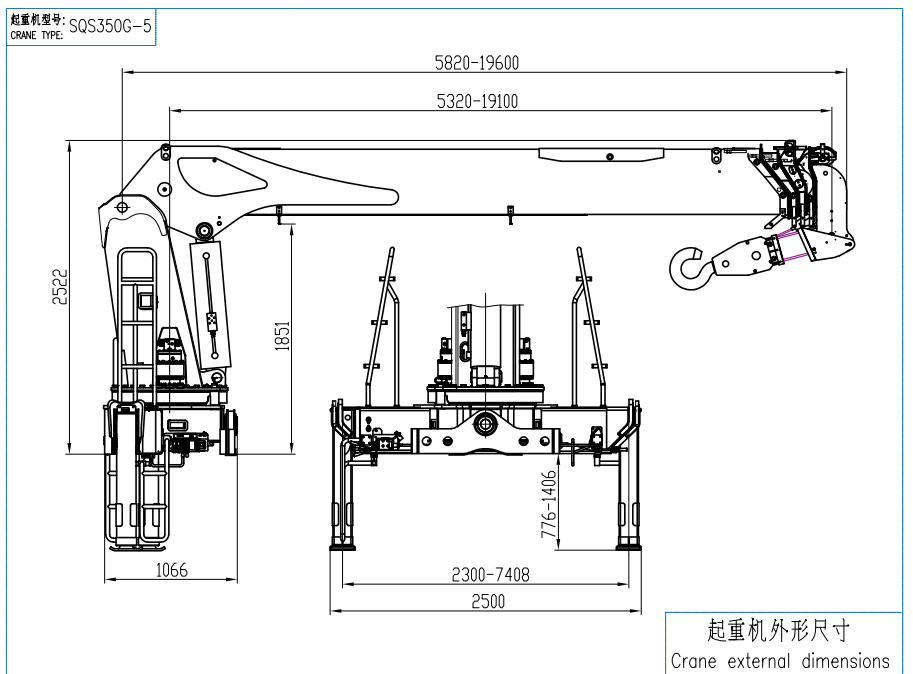

Stabilizer Spread | 2300-7408 mm | Crane Self-Weight | 5,250 kg |
Minimum Installation Space | 1300 mm | Boom Sections | 5 |
This 14 Ton Telescopic Boom Truck Loader Crane is optimized for diverse commercial lifting applications:
Large-Scale Infrastructure Construction: Lifting steel structures, precast concrete components, and bridge elements for highway, bridge, and railway projects.
Municipal Maintenance & Urban Works: Installation and maintenance of streetlights, utility poles, traffic signals, and urban pipelines in dense urban environments.
Industrial Plant Operations & Equipment Relocation: Lifting, transporting, and installing heavy production machinery, assembly line equipment, and industrial fixtures in manufacturing facilities.
Port & Freight Logistics: Safe, efficient loading/unloading of containers, heavy cargo, and bulk materials in port terminals, freight yards, and logistics centers.

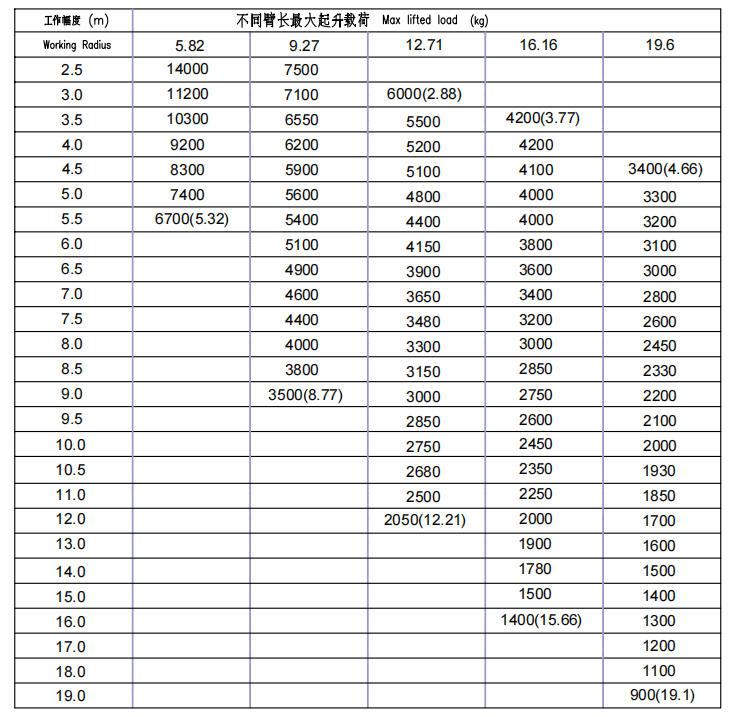

Before operation, ensure the host truck is in neutral with the PTO switch off, parked on firm, level ground with the parking brake fully engaged. Extend all outriggers completely with appropriate support pads, and confirm the vehicle is level to avoid tipping hazards. Strictly adhere to the official load chart, never extend the working radius while rotating a loaded boom, and never leave a suspended load unattended.
To maximize service life and safety, conduct a comprehensive inspection of hydraulic oil, filters, high-pressure hoses, and control valves every 500 operational hours. Regularly lubricate all boom pivot points, sliding surfaces, and hydraulic cylinder pins, and inspect and tighten connecting bolts after each long-duration operation. All maintenance should be performed by certified, trained personnel.
Medium to heavy-duty truck chassis with adequate payload capacity and sufficient mounting space to accommodate the crane’s installation requirements are fully compatible.
Yes, it is specifically engineered for long-hour continuous operation in industrial and construction settings, with a low-maintenance design to minimize downtime.
Yes, we provide fully customized solutions, including tailored boom lengths, hydraulic system configurations, and optional jibs to meet specific project requirements.
Yes, we offer worldwide shipping logistics, full spare parts supply, and ongoing technical support for all our crane models.
