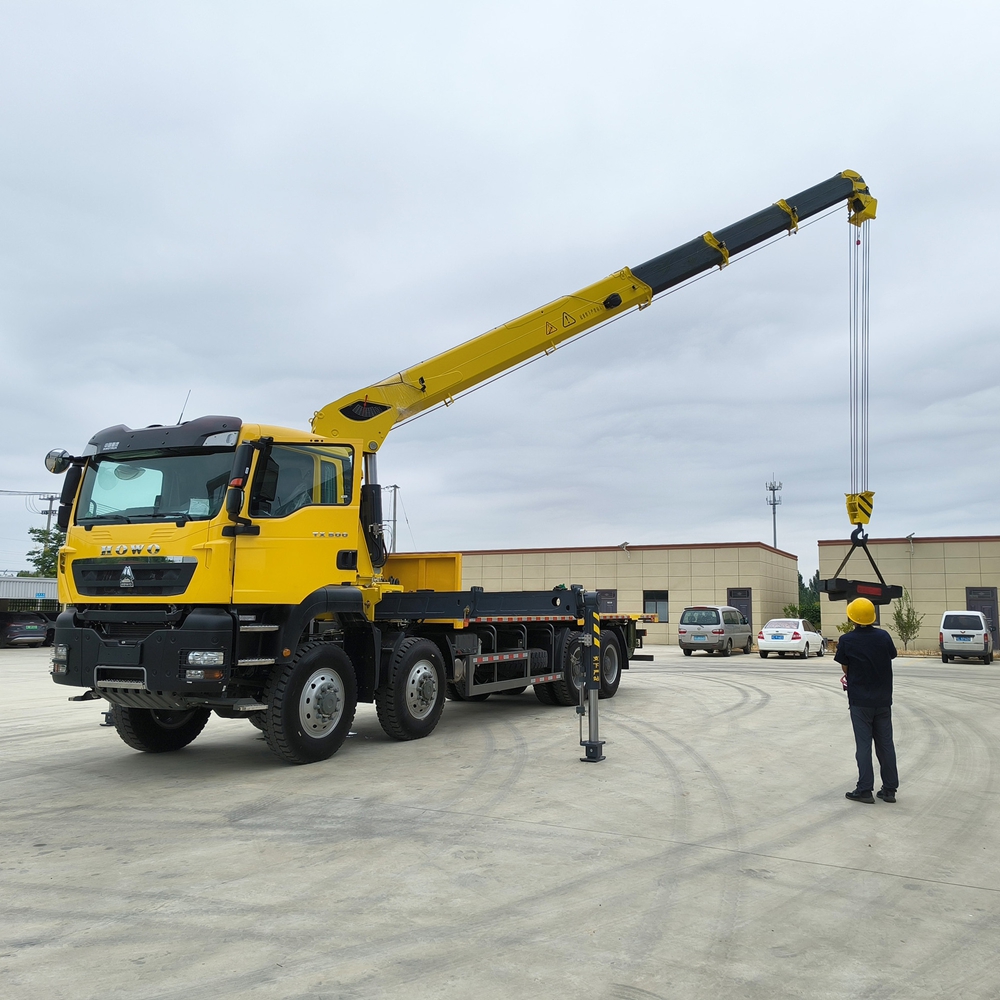

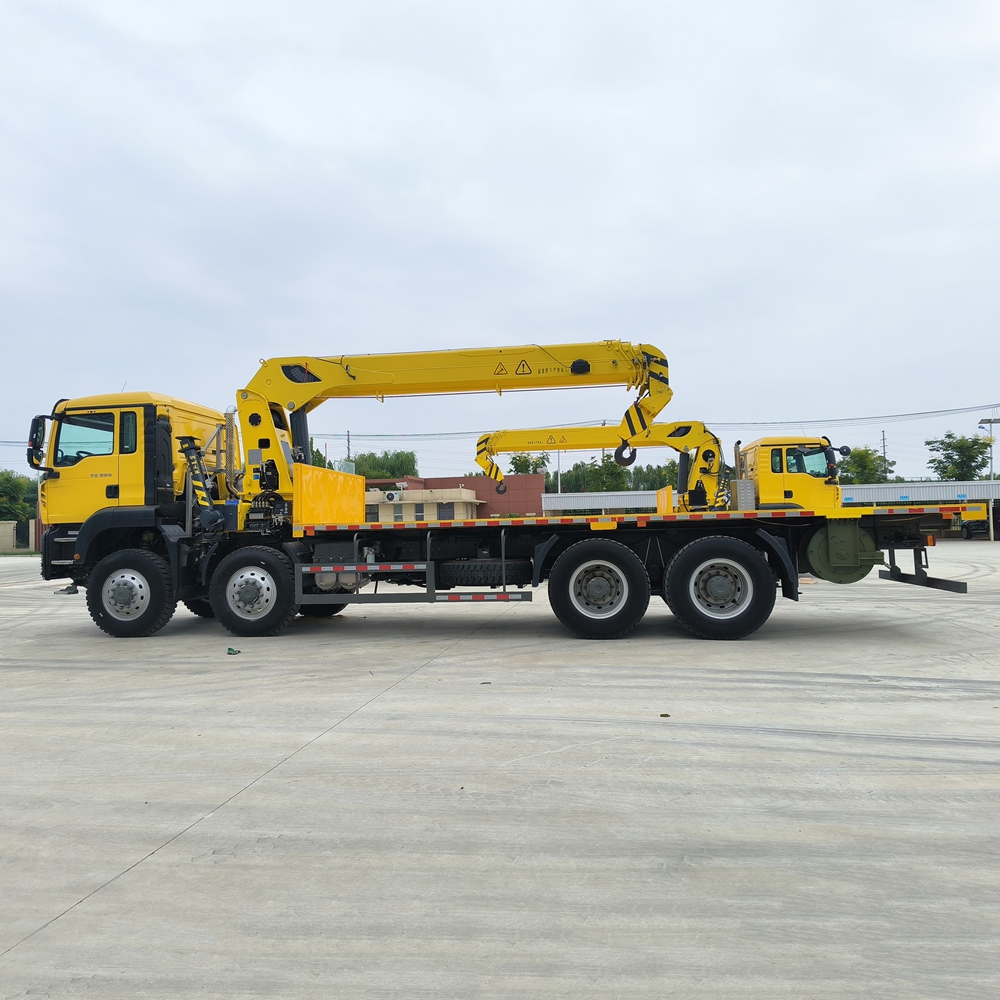

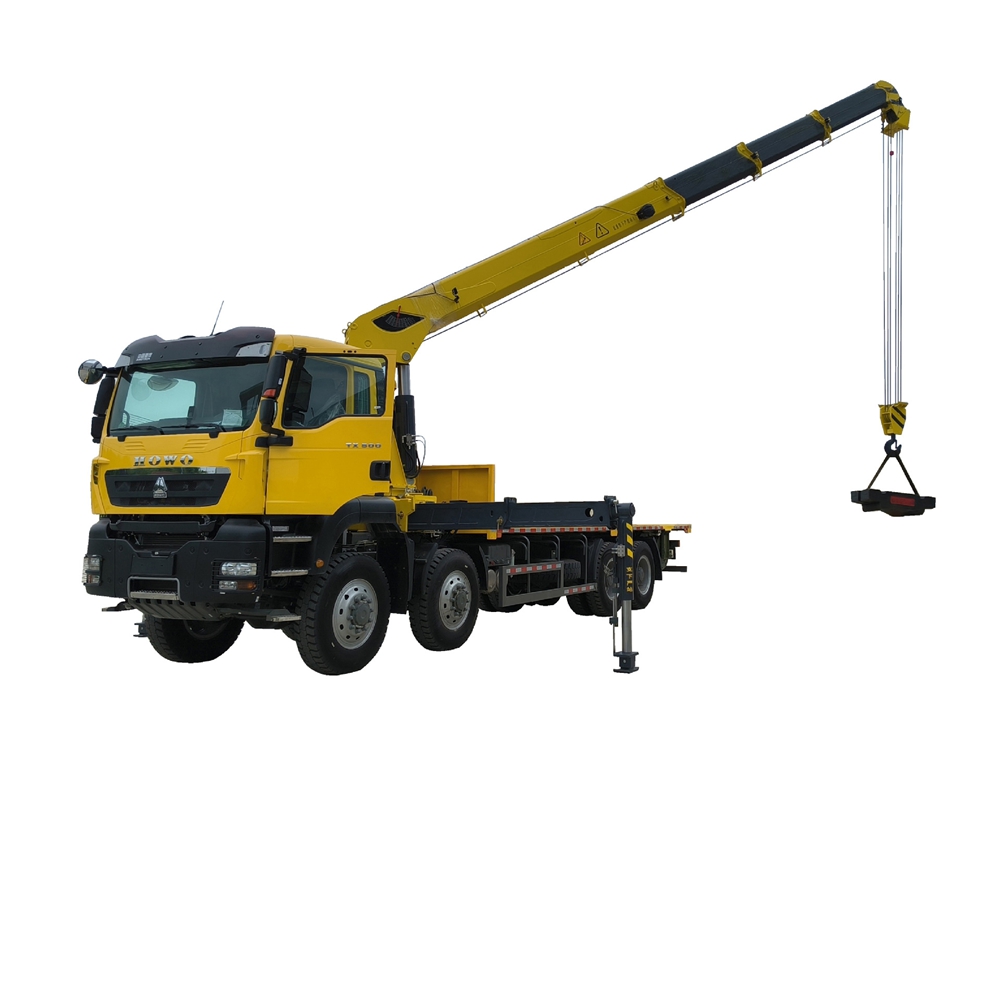

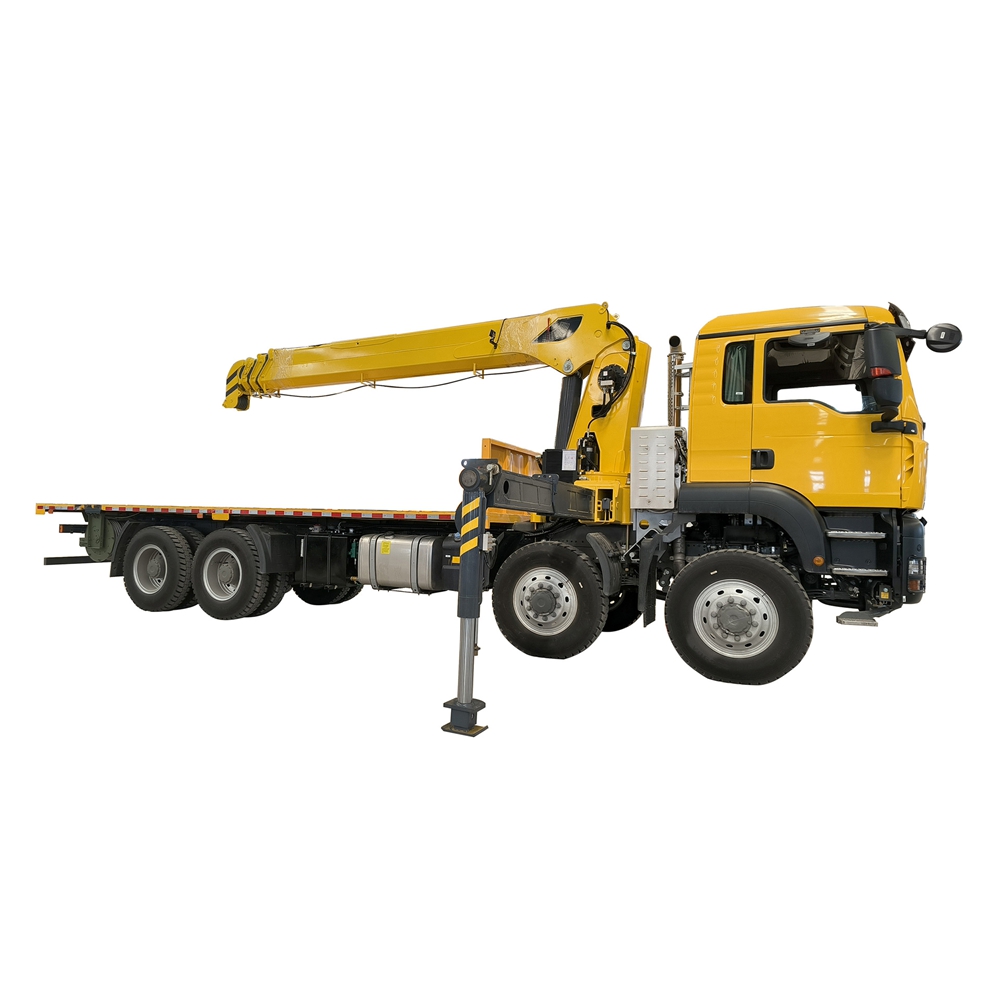

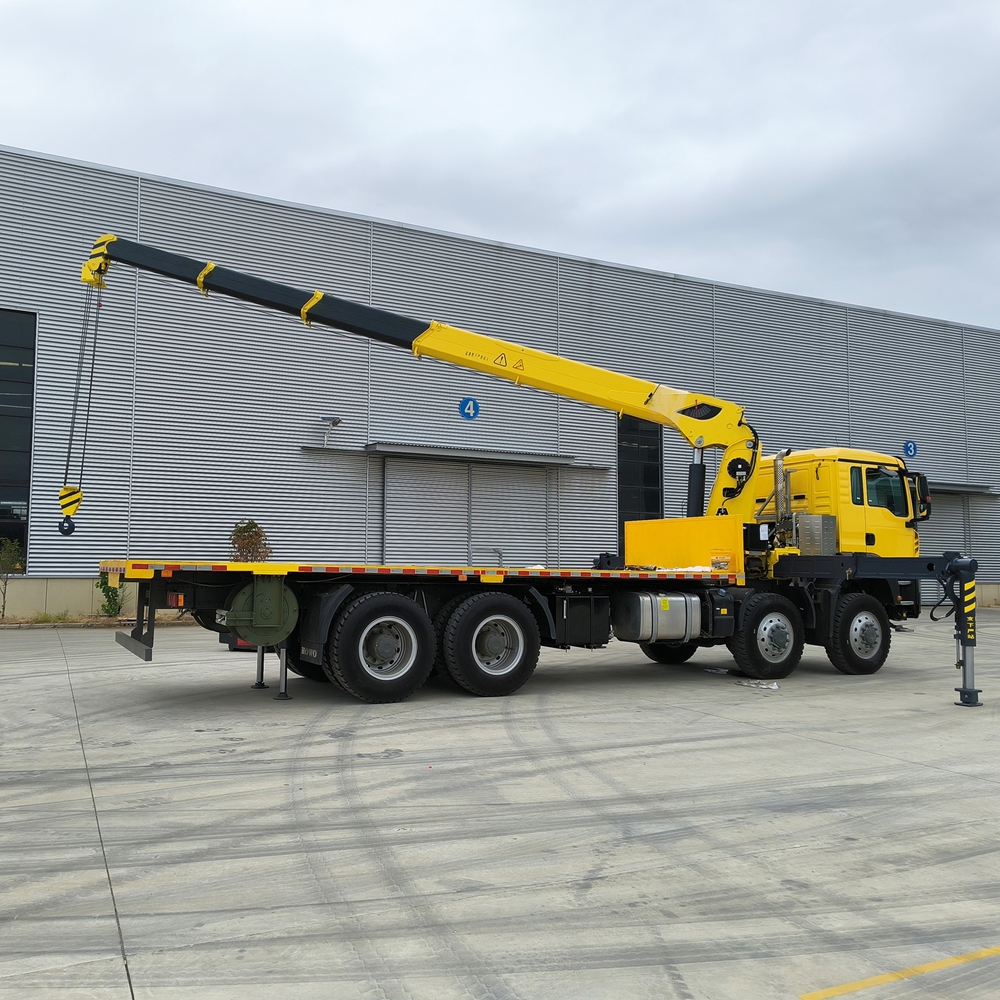

The SQS400G-4 16 Ton Telescopic Boom Truck Loader Crane is a high-performance heavy-duty hydraulic lifting system purpose-built for demanding industrial lifting, large-scale infrastructure, and high-rise construction. Engineered for unrivaled stability, precision, and efficiency in complex environments, this hydraulic telescopic truck crane delivers a 16,000 kg maximum lifting capacity, 420 kN·m rated lifting moment, and 19.3 m maximum boom length. With a compact 1320 mm installation footprint and 6,206 kg total weight, it adapts seamlessly to open industrial sites and tight urban spaces, making it the preferred lifting solution for heavy project contractors, industrial facility operators, and port logistics providers.

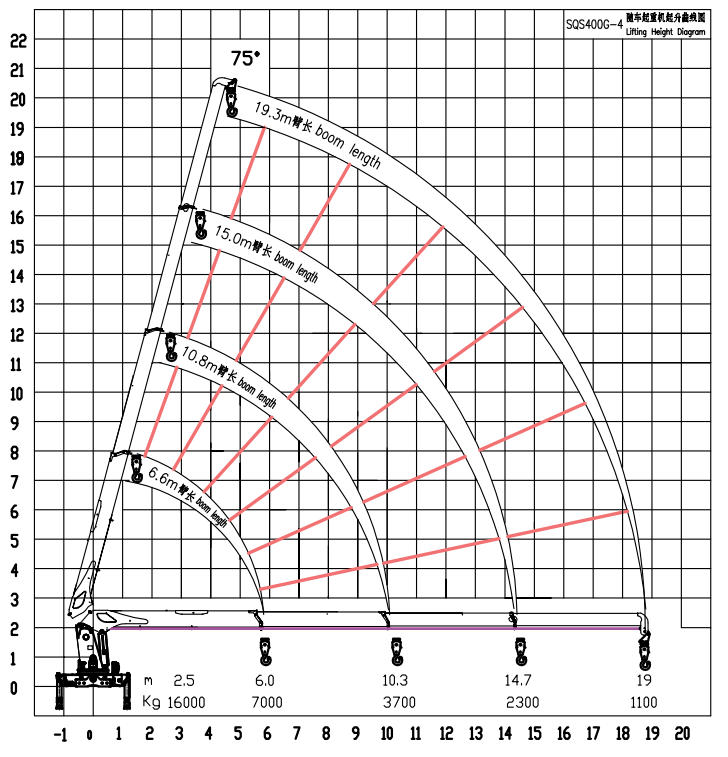

At the core of this heavy-duty truck mounted lifting crane is exceptional lifting performance, with a 16,000 kg maximum load at 2.2 m working radius. It maintains reliable performance across 6.6 m to 19.3 m boom lengths, delivering consistent power for challenging heavy material handling, outperforming peer models in the same tonnage class.
Equipped with a high-efficiency hydraulic system delivering 80+50 L/min flow at 28 MPa rated pressure, this industrial lifting truck loader crane ensures ultra-smooth, jitter-free telescopic, lifting, and slewing movements. It enables precise load positioning even for delicate heavy equipment installation, minimizing risks and improving project efficiency.
Full 360° continuous slewing delivers unmatched flexibility, allowing operators to complete lifts without repositioning the host truck – critical for confined urban sites and busy port yards. Its 1320 mm minimal installation space and optimized weight ensure compatibility with a wide range of heavy-duty truck chassis without sacrificing payload.
Built with a high-strength reinforced steel frame, this mobile telescopic crane is manufactured under ISO9001:2015 standards with rigorous testing, ensuring exceptional resistance to wear, impact, and harsh conditions, with a long service life and minimal downtime.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 16,000 kg | Rated Hydraulic Pressure | 28 MPa |
Maximum Lifting Moment | 420 kN·m | Recommended Hydraulic Flow | 80+50 L/min |
Maximum Boom Length | 19.3 m | Slewing Angle | 360° continuous |

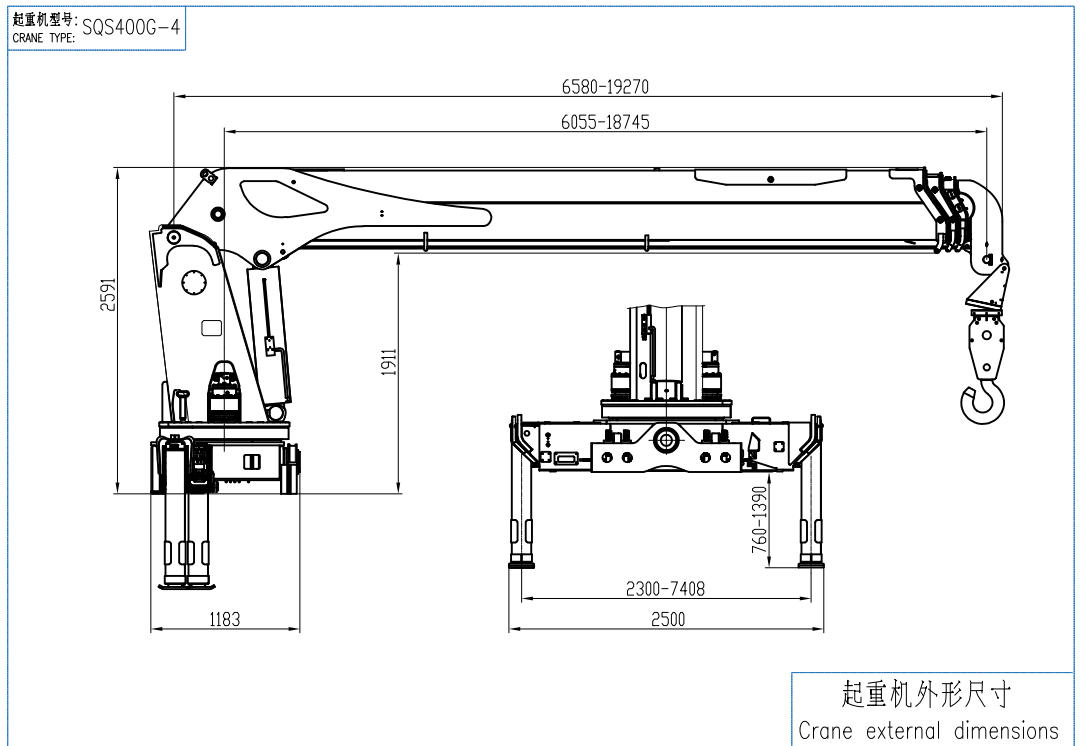

Stabilizer Spread | 2300-7408 mm | Crane Self-Weight | 6,206 kg |
Oil Tank Capacity | 270 L | Required Installation Space | 1320 mm |
This 16 Ton Telescopic Boom Truck Loader Crane is tailored for diverse heavy-duty commercial applications:
High-Rise Construction: Precision lifting of steel beams, precast concrete slabs, and prefabricated building components at height.
Port & Terminal Logistics: Efficient loading/unloading of containers, heavy machinery, and bulk cargo in busy port and freight yard environments.
Heavy Industrial Equipment Installation: Transport, lifting, and positioning of large production equipment, generators, and industrial machinery in manufacturing and power facilities.
Urban Infrastructure Development: Installation of streetlights, traffic signals, bridge components, and utility pipelines in municipal engineering projects.

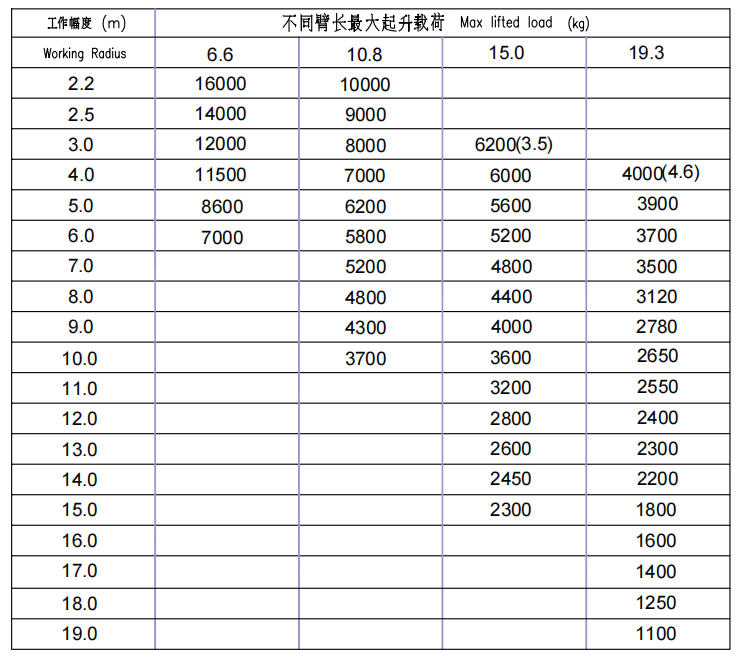

Always conduct a pre-operation site check, ensuring the truck is parked on firm, level ground with the parking brake engaged, and all outriggers fully extended with support pads. Strictly follow the official load chart, never exceeding the rated capacity for the current working radius and boom length. Maintain a minimum 10 m safety distance from high-voltage lines, and never operate multiple boom control handles simultaneously.
To ensure long-term reliability, conduct a full inspection of hydraulic oil, filters, hoses, and valves every 500 operational hours. Regularly lubricate all pivot points, boom slides, and hydraulic cylinder pins, and tighten loose bolts after each heavy-duty cycle. Only trained professional personnel should perform hydraulic system maintenance.
We recommend heavy-duty truck chassis with a minimum 1320 mm mounting space and sufficient payload capacity to accommodate the crane’s weight and lifting loads.
Yes, its full 360° continuous slewing and compact footprint deliver exceptional flexibility in tight, complex working environments.
A full inspection of hydraulic components, oil, and filters is required every 500 operational hours, with regular lubrication of moving parts after intensive use.
Yes, we offer worldwide operator training, full technical support, and spare parts supply for all our crane models.
