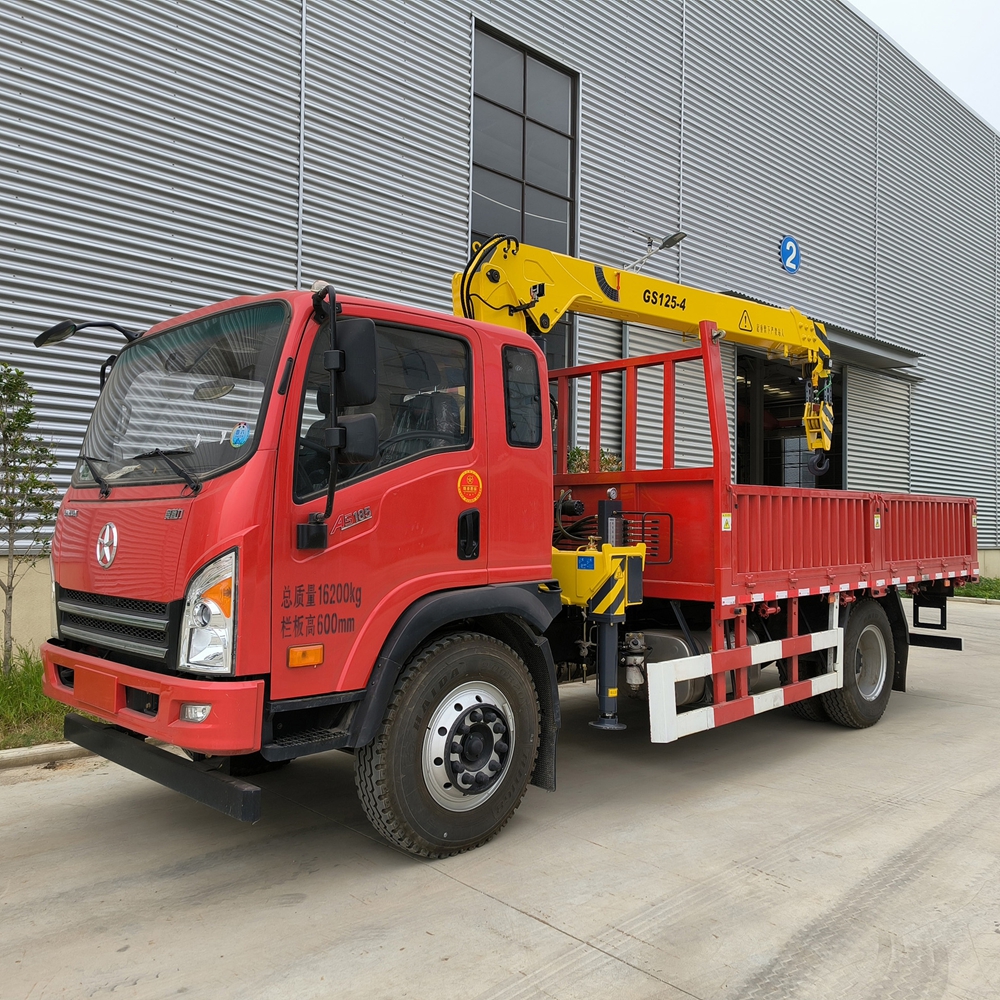

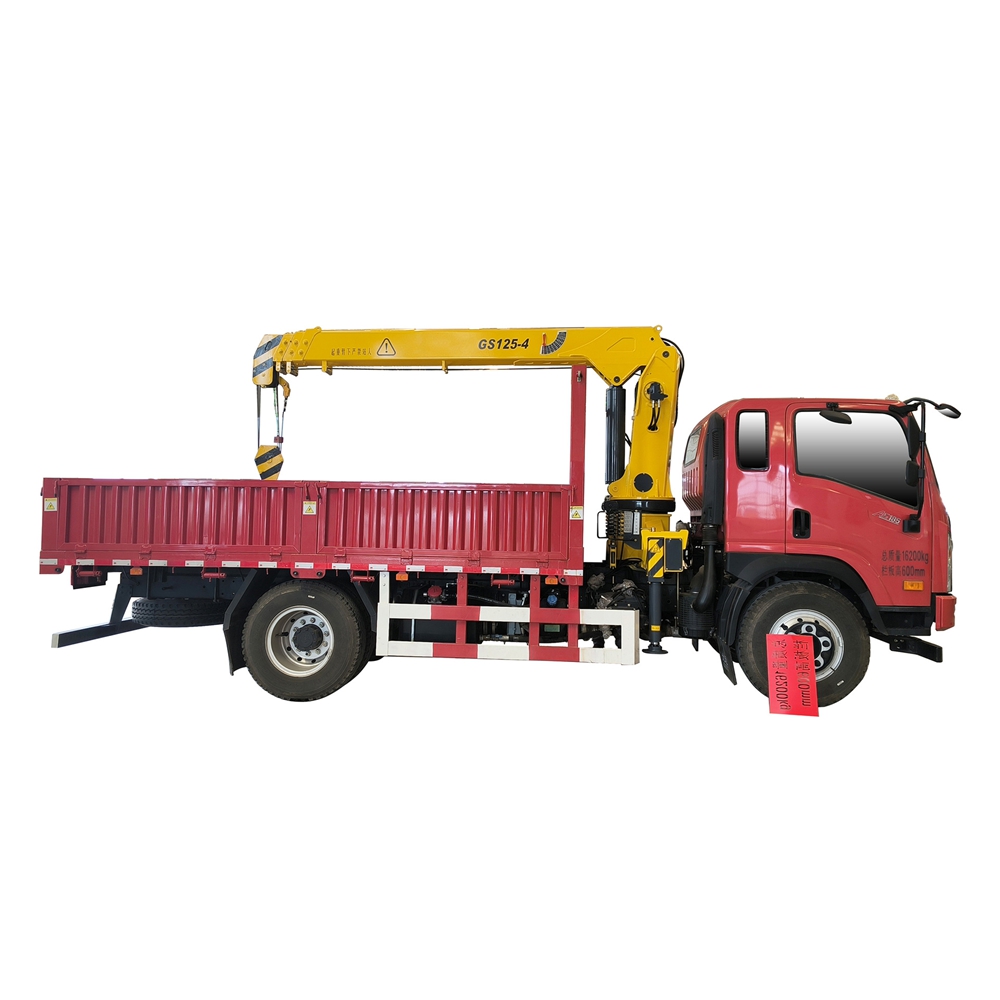

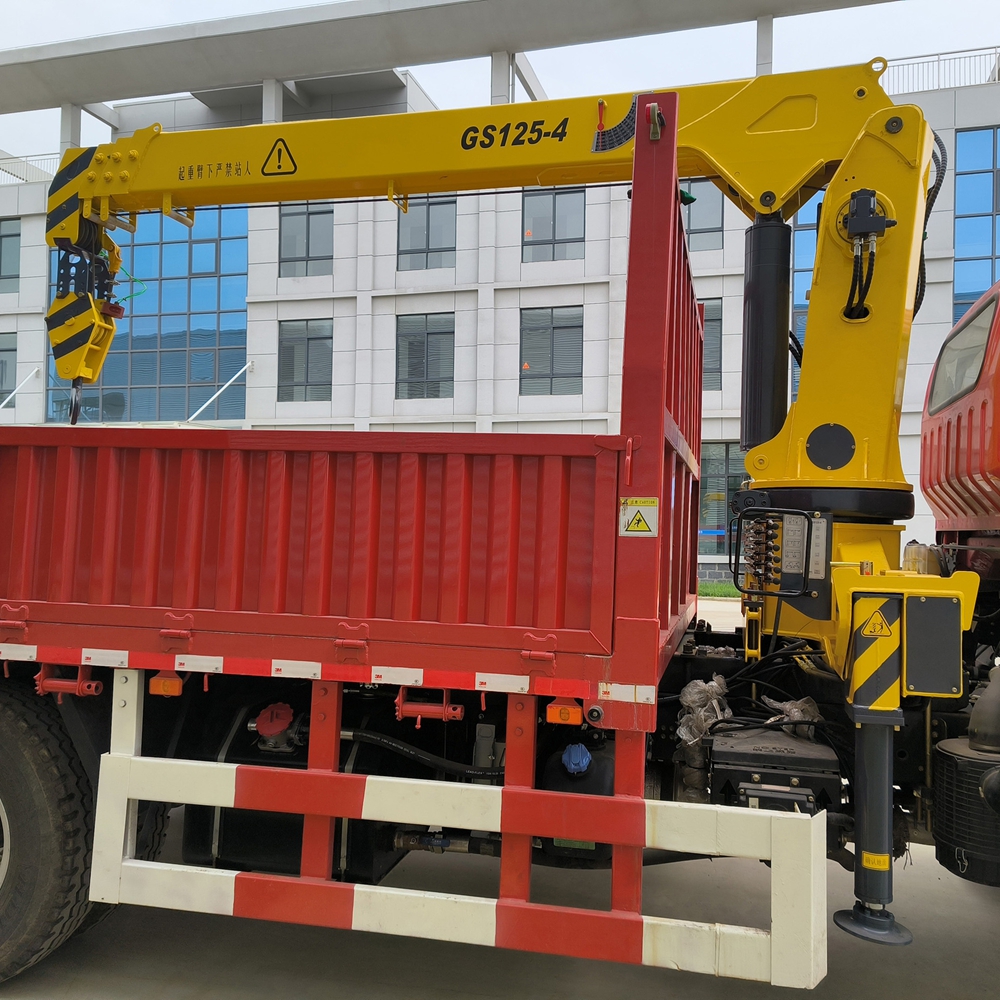

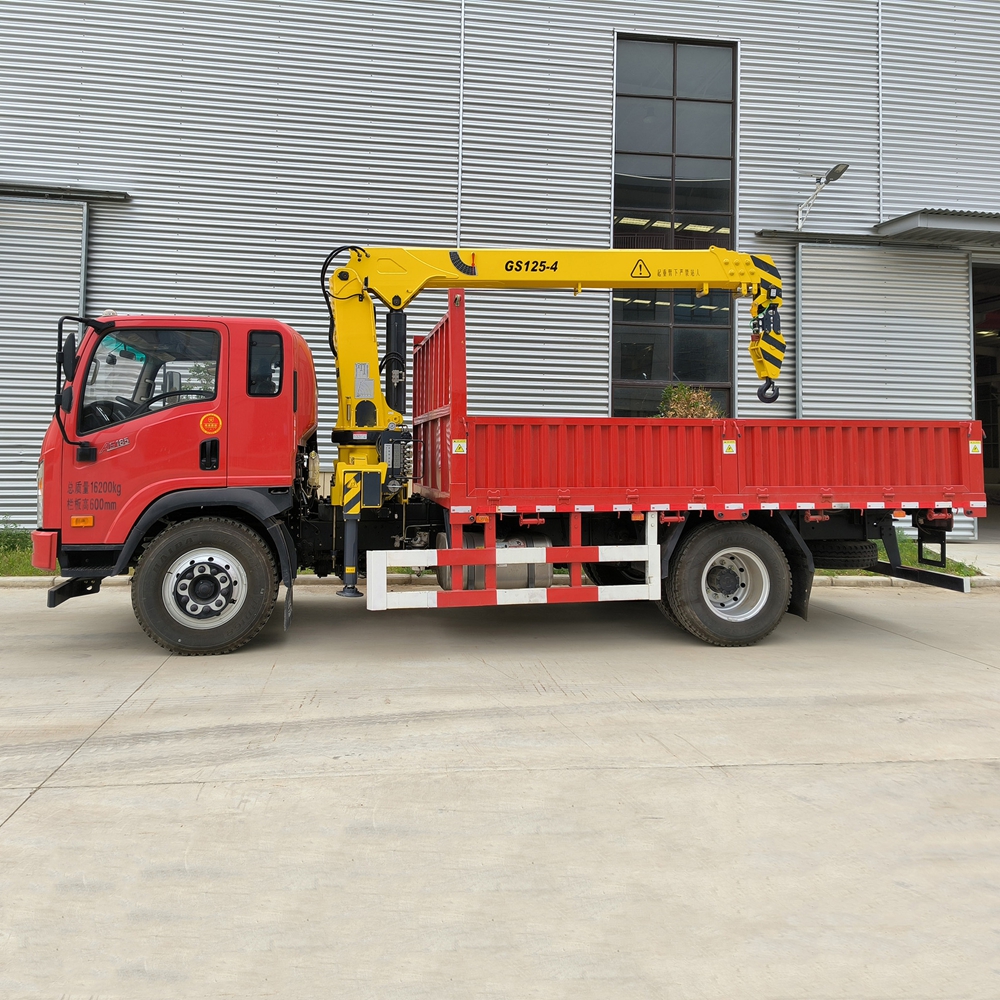

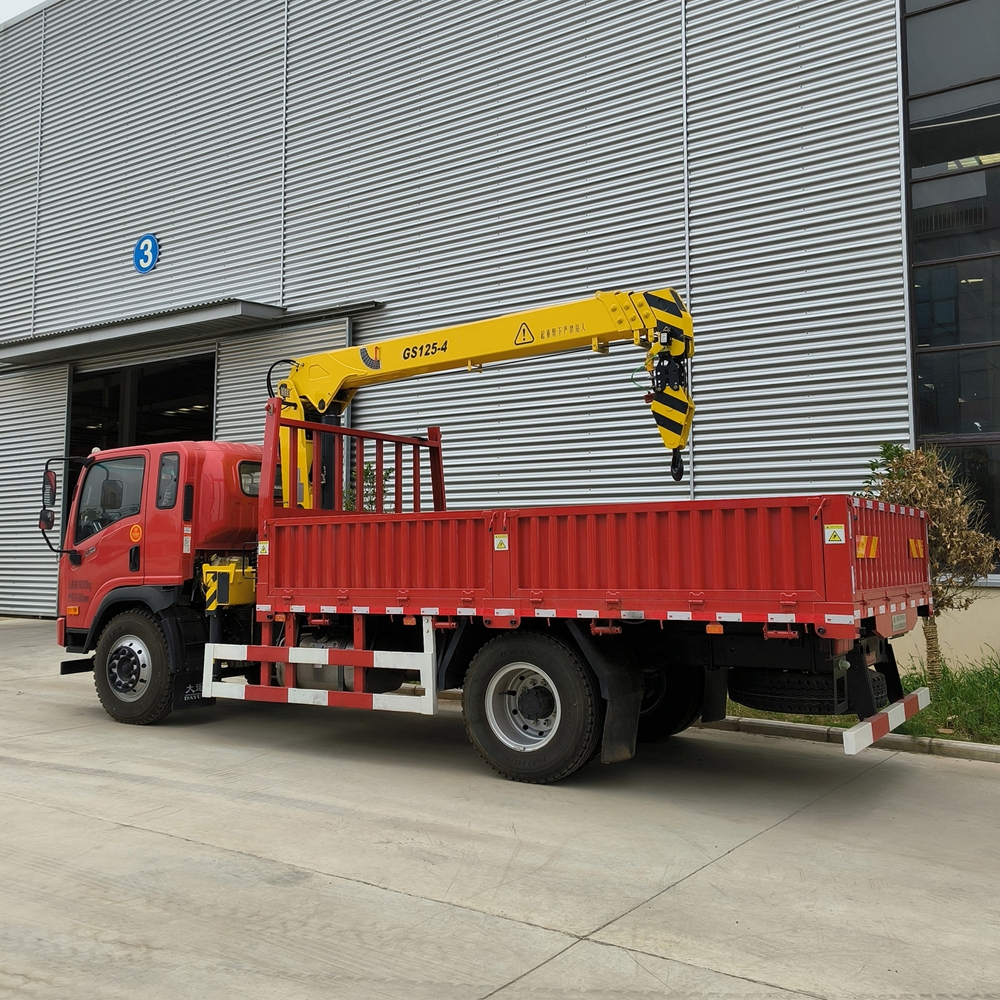

The 5 ton telescopic boom crane (Model: SQS125A-4) is an enhanced hydraulic lifting solution purpose-built for municipal service teams, small-to-medium construction contractors, and commercial facility operators, delivering balanced power, precision, and maneuverability for urban and light industrial applications. With a maximum lifting capacity of 5,000kg and a 12.5 t·m lifting moment, this 5 ton truck mounted telescopic crane combines full 360° continuous slewing with a lightweight 2,350kg build and ultra-compact 900mm installation footprint, making it perfectly suited for integration on medium to heavy-duty truck platforms. Powered by a 20KW hydraulic system delivering 40 L/min flow at 20MPa, this hydraulic telescopic truck crane ensures smooth, precise, and safe lifting operations across diverse urban, construction, and industrial scenarios.
As a versatile 5 ton telescoping boom crane, the SQS125A-4 delivers reliable 5,000kg maximum lift capacity, making it ideal for municipal works, small construction projects, and industrial facility maintenance where controlled, medium-capacity lifting is required.
Engineered with a high-efficiency hydraulic system operating at 20MPa rated pressure and 40 L/min flow rate, this mobile truck mounted telescopic boom delivers ultra-smooth operation, pinpoint load positioning, and minimal routine maintenance for consistent long-term performance.
Uninterrupted 360° slewing capability maximizes operational flexibility, allowing operators to work efficiently in tight urban environments, busy construction yards, and space-restricted industrial facilities without repositioning the host truck.
With a minimal 900mm required installation space and 2,350kg self-weight, this compact truck mounted telescopic crane is compatible with a wide range of medium-duty truck chassis, retaining excellent urban maneuverability and road adaptability.
Fabricated with corrosion-resistant materials and sealed hydraulic components, this crane delivers reliable operation in rain, humidity, and harsh outdoor conditions, with a high-strength steel build ensuring long-term structural integrity and safety.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 5,000kg | Oil Tank Capacity | 100L |
Maximum Lifting Moment | 12.5 t·m | Slewing Angle | 360° |
Recommended Power | 20 KW | Crane Self-Weight | 2,350kg |
Recommended Hydraulic Flow | 40 L/min | Required Installation Space | 900mm |
Rated Hydraulic Pressure | 20MPa |
This telescopic boom crane for municipal services is optimized for a wide range of day-to-day lifting operations, including urban municipal works for street light and traffic signal installation, small-to-medium construction projects for steel frames and prefabricated components, industrial manufacturing and facility maintenance for production line assembly, logistics and warehouse cargo handling in distribution centers, and rural infrastructure upgrades and utility maintenance works.
Safe operation requires strict adherence to standardized protocols for urban and job site lifting. Pre-operation checks include parking on firm level ground, engaging the parking brake, sweeping the area for obstacles and nearby personnel, and verifying the load aligns with the crane’s rated capacity for the current boom radius and angle. Fully extend outriggers with appropriate support pads, ensure the truck is perfectly level, and confirm all control levers are neutral before engaging the PTO. During operation, never operate multiple boom handles simultaneously, avoid sudden load movements, and never leave a suspended load unattended. For maintenance, conduct regular lubrication of boom slides, monitor hydraulic oil quality, inspect seals for wear, and restrict all service work to trained personnel.
Yes, this model can be mounted on most medium-duty truck chassis with a minimum 900mm installation space and sufficient structural stability to support safe lifting operations.
Yes, its corrosion-resistant construction and sealed hydraulic system enable safe, reliable operation in rain, high humidity, and variable outdoor temperatures.
All our cranes are ISO9001 certified, with additional national truck crane manufacturing licenses and GJB9001C-2017 quality certification for engineering excellence.
We recommend using high-quality anti-wear hydraulic oil compatible with the crane’s 20MPa system pressure and 40 L/min flow rate to ensure peak performance and long component life.
