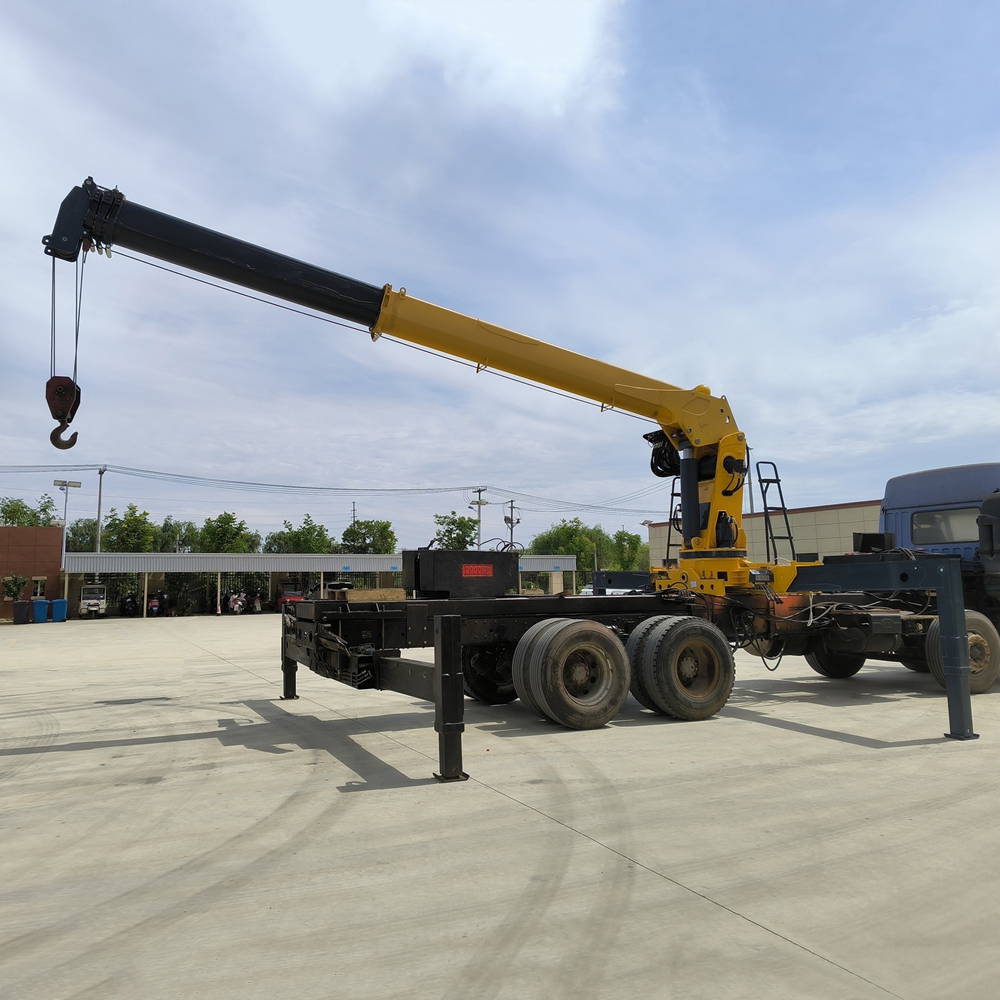

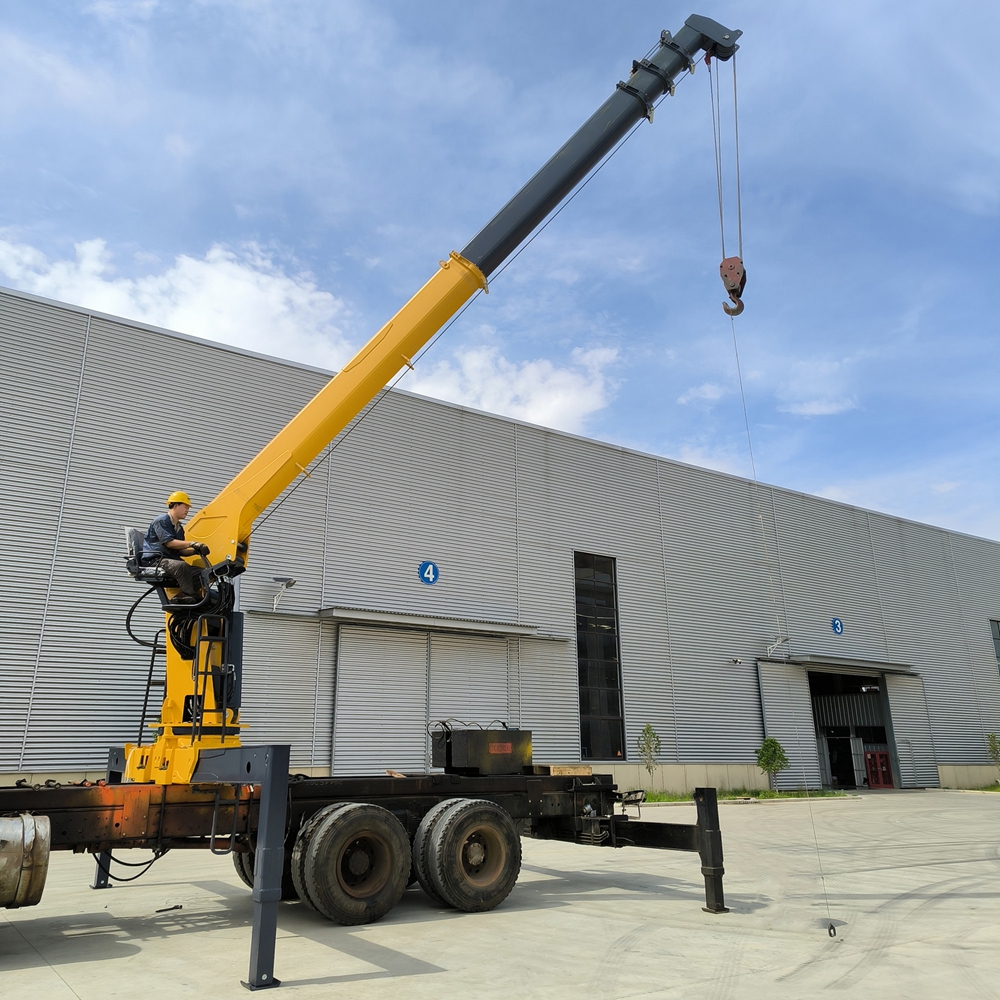

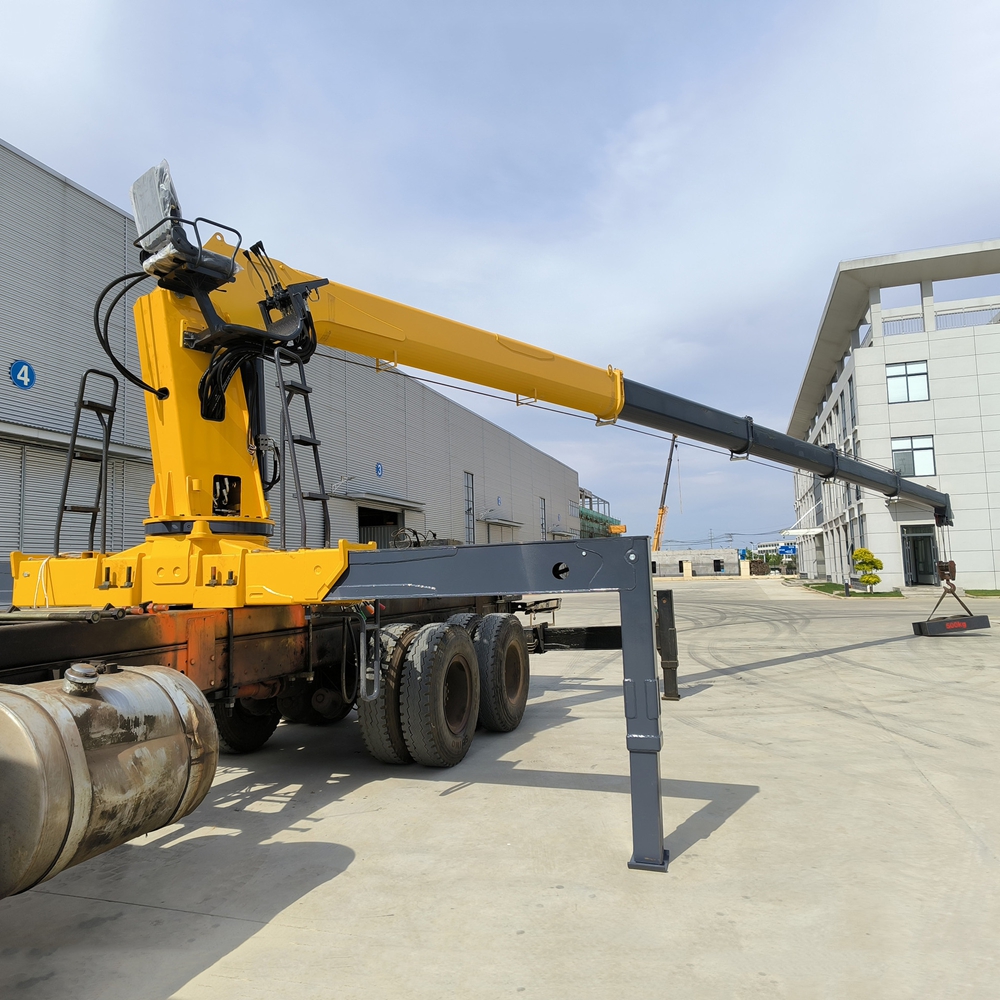

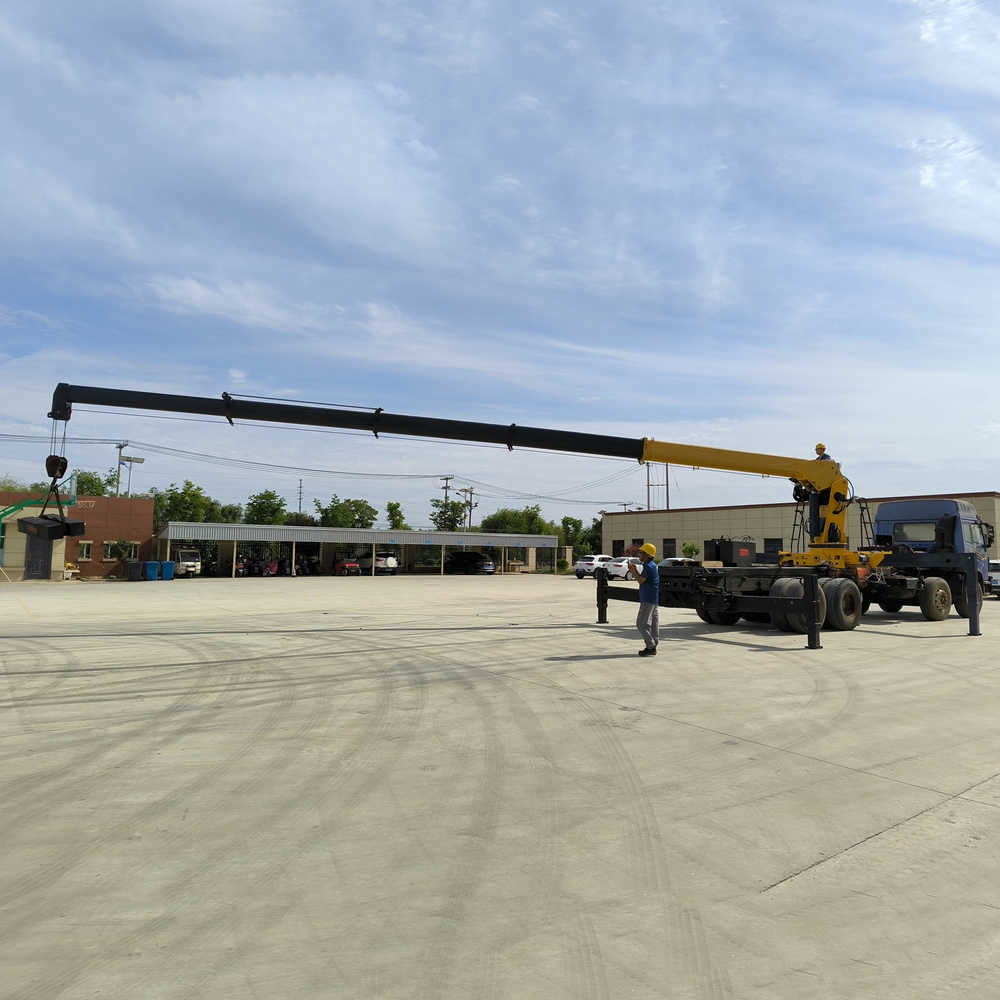

The SQS200U-5 8 ton telescopic mobile crane is a high-performance hydraulic lifting solution purpose-built for professional contractors, industrial operators, and port logistics managers requiring robust, reliable heavy-lift capabilities. As a top-tier hydraulic telescopic truck crane, it delivers a maximum 8000kg (8 ton) lifting capacity and 20 t×m rated lifting moment, paired with full 360° continuous slewing for unmatched operational versatility. With a compact 1250mm installation footprint and 3600kg reinforced high-strength steel body, this telescopic boom truck crane balances heavy-duty performance with space-saving design, powered by a 30kW hydraulic system that ensures smooth, precise load control even in demanding project environments. It is engineered to deliver consistent safety, efficiency, and durability across diverse commercial lifting applications.
At the core of this 8 ton telescopic mobile crane is its industry-leading heavy-lift capability, with an 8 ton maximum safe working load and 20 t×m lifting moment, enabling it to handle heavy structural materials, industrial equipment, and port cargo with ease. Its reinforced construction delivers enhanced stability at extended boom lengths, outperforming comparable compact telescopic mobile crane models in heavy-duty scenarios.
The 30kW hydraulic system operates at 24MPa rated pressure with a 63 L/min flow rate, delivering smooth, responsive, energy-efficient load handling. This system ensures precise boom control to minimize load swing, while the 200L oil tank supports extended work cycles for large-scale projects.

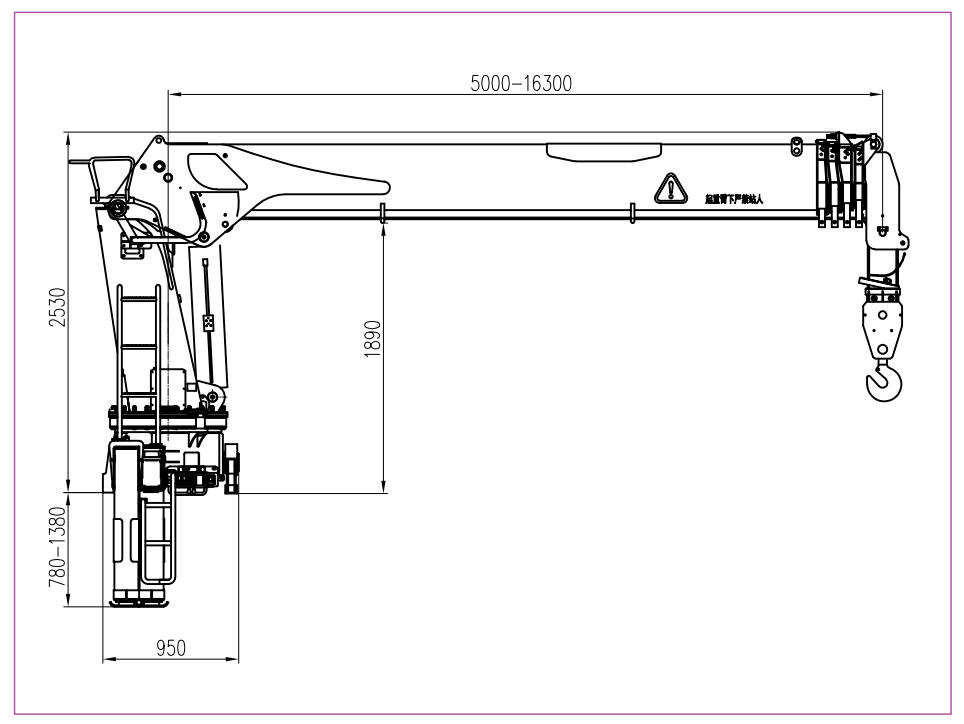

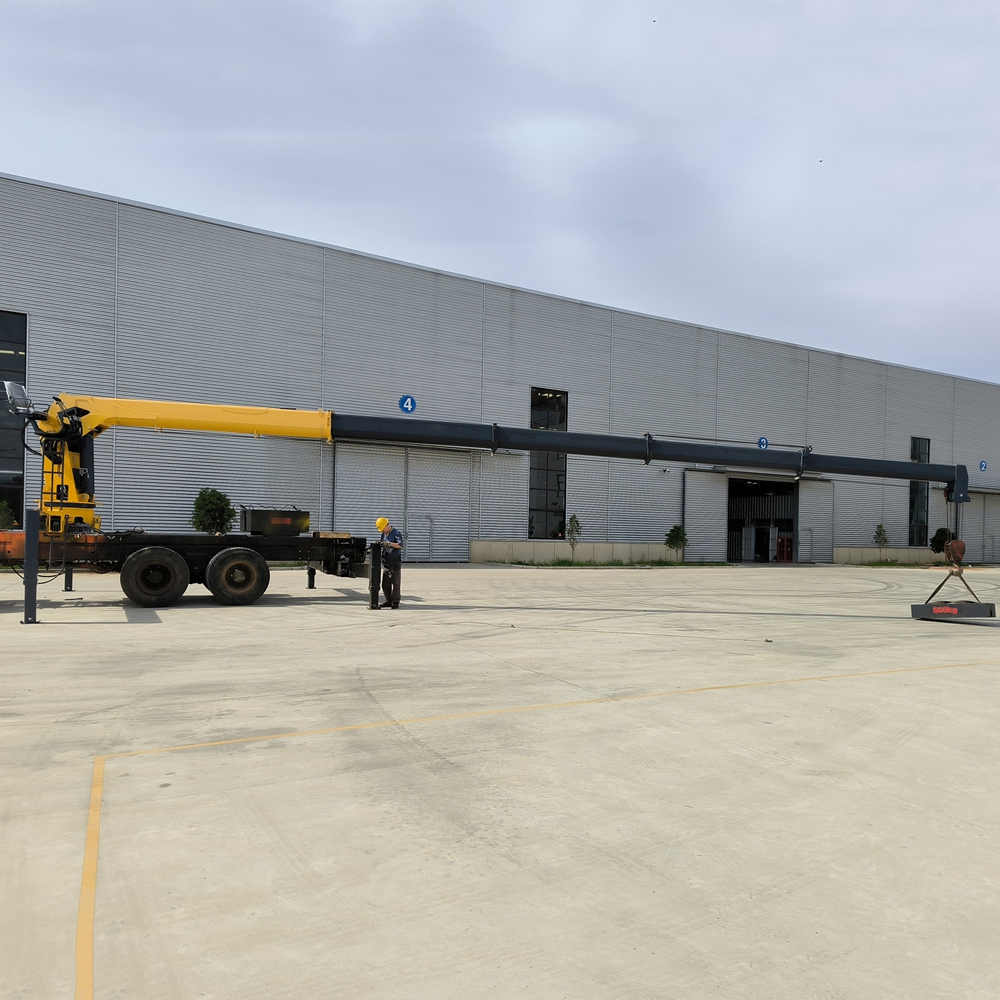

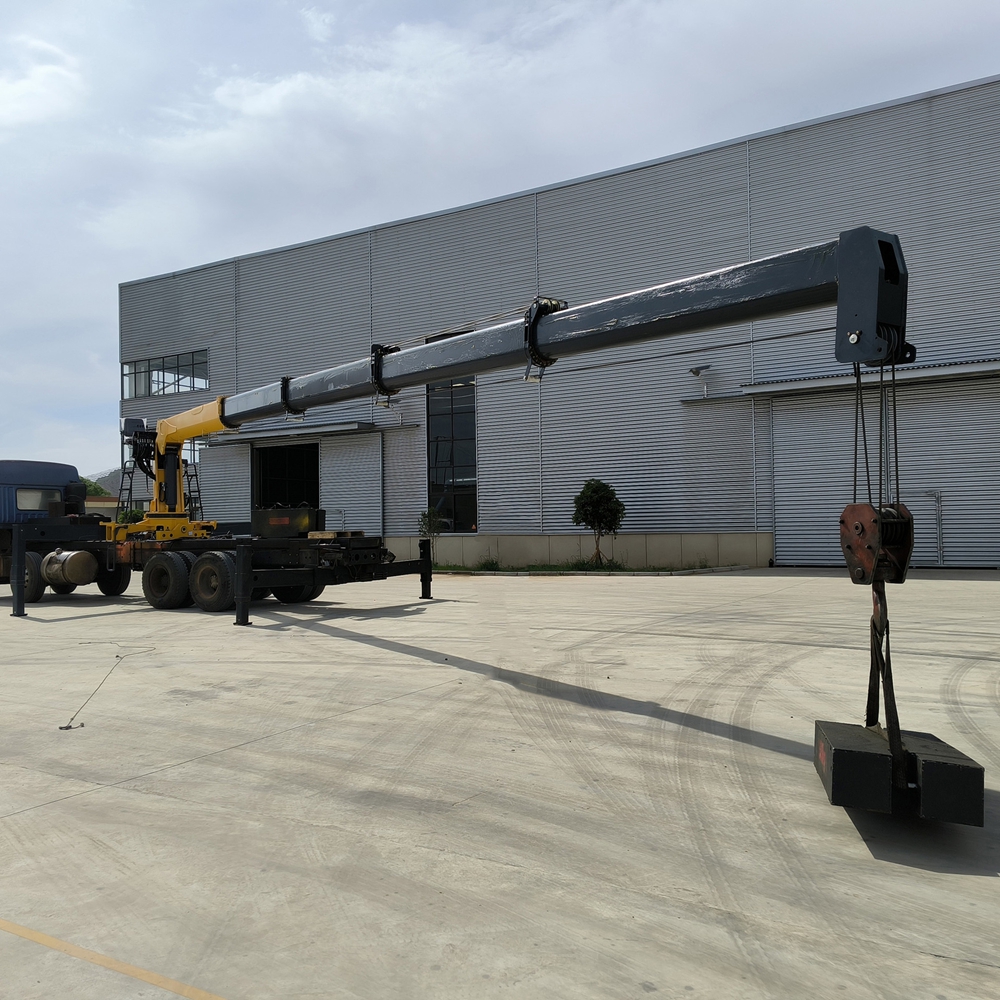

Full 360° continuous slewing allows pinpoint load positioning in confined sites, while its 1250mm installation space fits most medium-duty trucks. With a maximum 16.3m boom reach, this telescopic boom lifting crane delivers exceptional vertical and horizontal coverage for diverse project needs.
Engineered to perform reliably from -20℃ to +50℃, it supports year-round operation across diverse climates, from cold construction sites to hot port yards.
Core Parameter | Specification | Core Parameter | Specification |
Max Lifting Weight | 8000kg (8 ton) | Crane Self-Weight | 3600kg |
Rated Lifting Moment | 20 t×m | Installation Space | 1250mm |
Recommended Power | 30kW | Slewing Angle | 360° Full Continuous |
Rated Hydraulic Pressure | 24MPa | Oil Tank Capacity | 200L |
Recommended Hydraulic Flow | 63 L/min | Operating Temperature | -20℃ to +50℃ |
This 8 ton telescopic mobile crane is ideal for commercial lifting applications including:
Construction & Infrastructure Engineering: Lifting structural steel, prefabricated concrete, and building materials for high-rise, road, and bridge projects.
Port & Logistics Operations: Efficient container and heavy cargo handling in port terminals, freight yards, and logistics hubs.
Industrial Manufacturing Assembly: Precision positioning of heavy machinery and production line equipment in manufacturing facilities.
Municipal Maintenance: Safe installation of streetlights, traffic signals, and urban infrastructure for municipal engineering teams.
To ensure safety and long-term reliability for this hydraulic telescopic truck crane, professional operators must follow strict protocols:

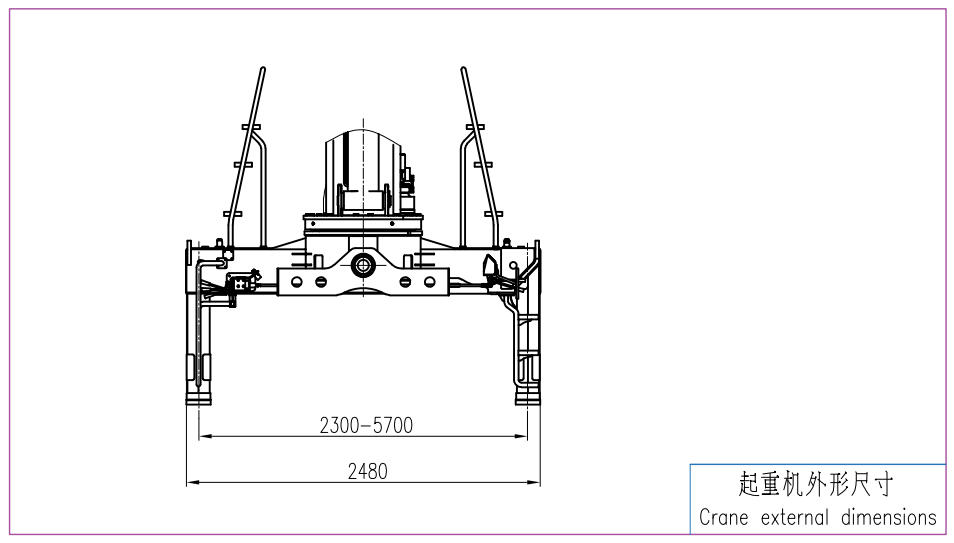

Pre-Operation Checks: Park on firm level ground, fully extend outriggers with support pads, confirm neutral control levers before PTO engagement, and maintain 10m minimum distance from high-voltage lines.

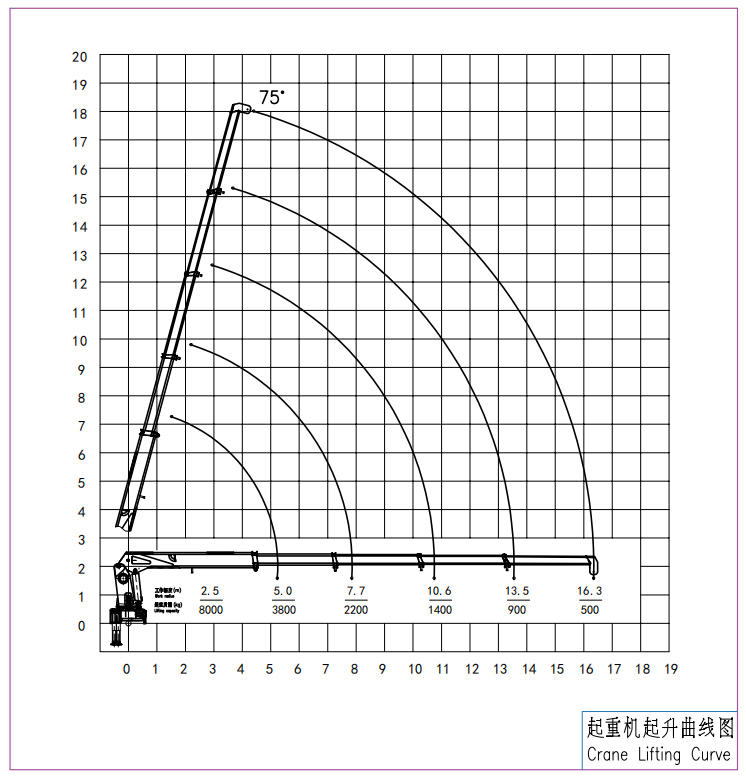

Safe Lifting Rules: Adhere strictly to the load chart, never exceed rated capacity, avoid sudden movements, and never lift loads over personnel or leave suspended loads unattended.
Routine Maintenance: Replace hydraulic oil every 500 operating hours or 6 months, lubricate pivot points pre-use, and inspect hoses, bolts, and structural components regularly. Only trained personnel may perform hydraulic maintenance.
This 8 ton telescopic mobile crane has a maximum safe working load of 8000kg (8 ton) with a 20 t×m rated lifting moment. Exceeding this capacity risks structural failure and voids the warranty.
Yes, we offer customized solutions including tailored hydraulic systems, mounting brackets, and optional accessories to meet unique industrial requirements.
Yes, we provide global shipping and comprehensive technical support for all our telescopic truck crane models to minimize operational downtime worldwide.
It operates safely and reliably across a -20℃ to +50℃ temperature range, supporting year-round use in diverse climates.
