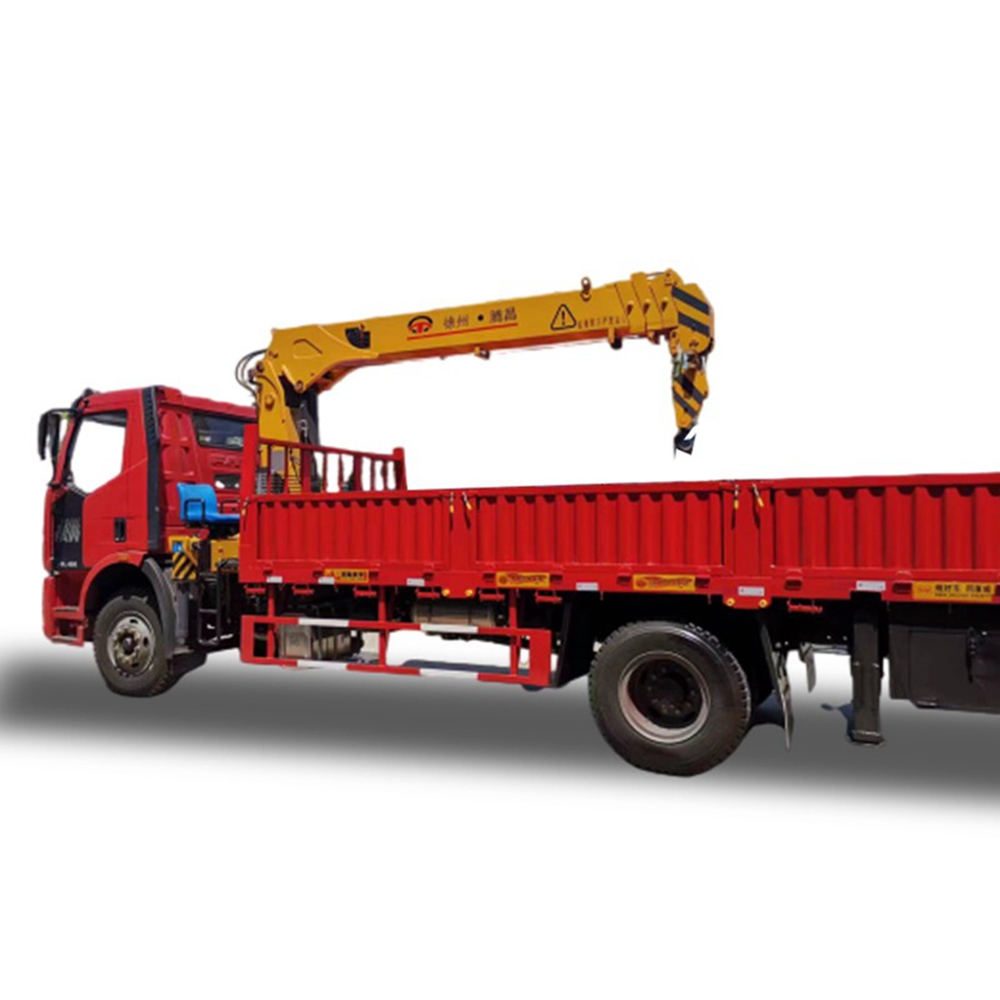

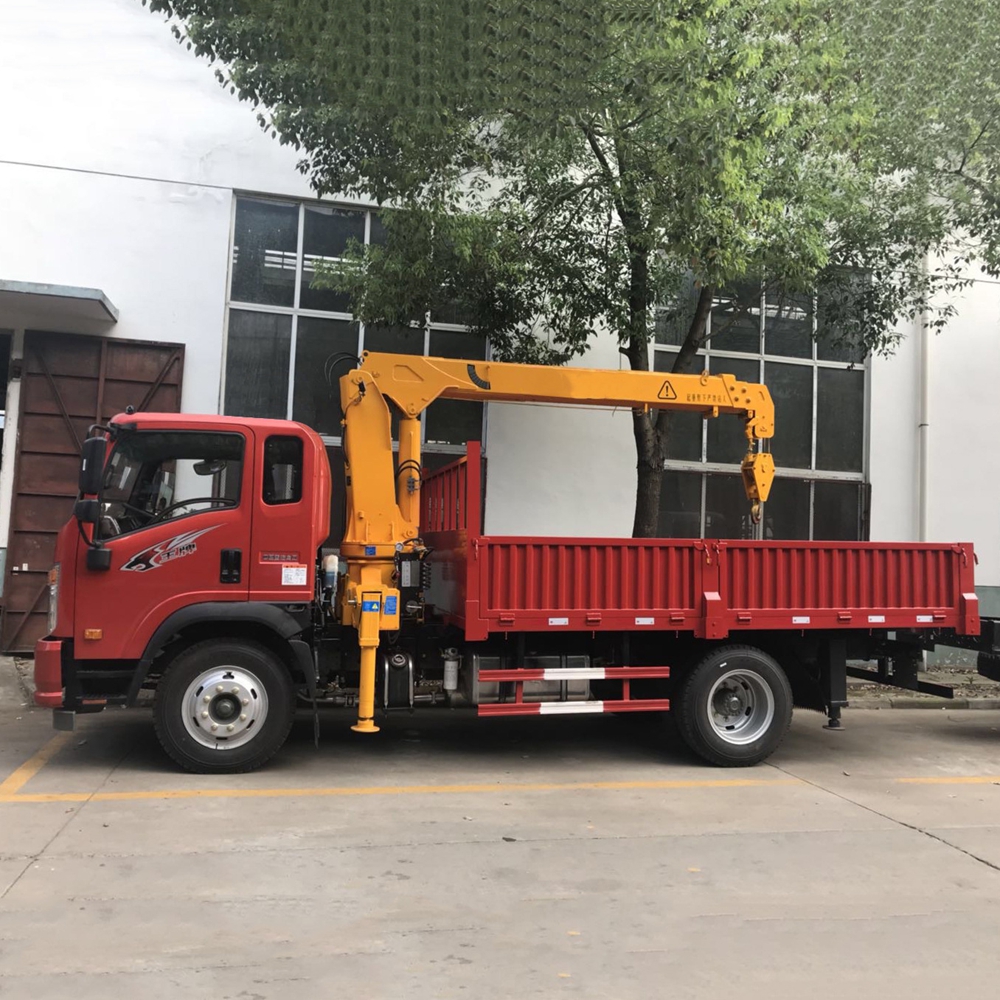

The SQS157A-3 6.3 ton telescopic boom truck mounted crane is a high-capacity, heavy-duty hydraulic lifting solution engineered for demanding industrial, construction, and logistics operations. Purpose-built for enterprise users requiring reliable high-performance lifting equipment, this heavy-duty hydraulic telescopic boom crane delivers a 6300 kg maximum lifting capacity and 15.75 t×m rated lifting moment, setting a benchmark for power and precision in medium-to-heavy duty mobile lifting. Weighing 2250 kg with a 900 mm installation space, it pairs perfectly with medium-to-heavy duty truck chassis, while full 360° slewing enables flexible load placement across diverse work environments. Powered by a 20 kW hydraulic system delivering 40 L/min flow at 20 MPa pressure, this industrial mobile telescopic crane ensures smooth, stable load control and exceptional durability for continuous heavy-duty operations.

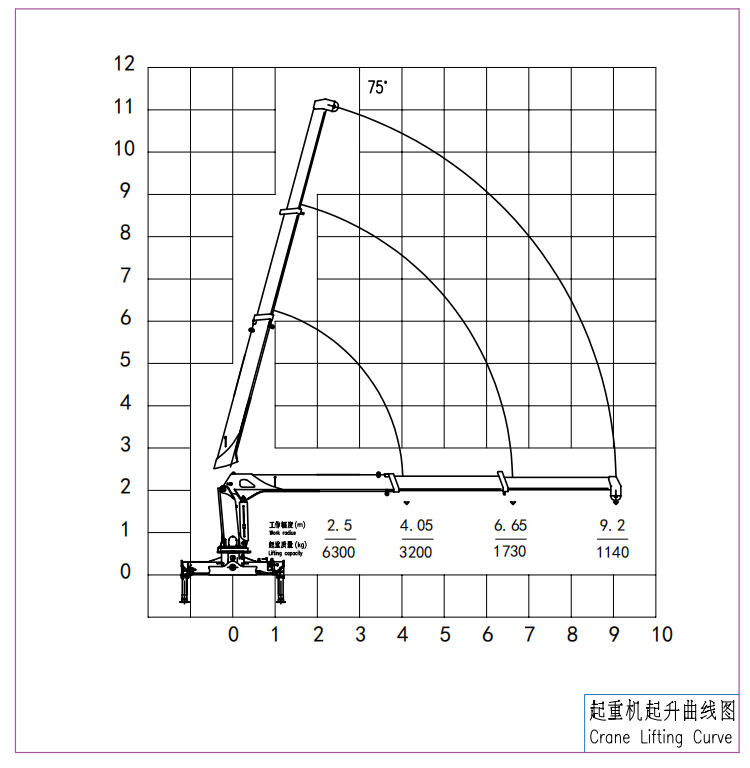

This 6.3 ton truck mounted crane delivers a 6300 kg maximum lifting capacity, ideal for handling heavy machinery, large cargo, and bulk construction materials with unrivaled stability. Its optimized boom design ensures consistent performance at extended working radii, with a detailed lifting curve providing clear guidance for safe, efficient operation in every scenario.
Optimized for 40 L/min flow at 20 MPa rated pressure, this hydraulic truck mounted crane offers ultra-smooth, precise, energy-efficient operation even during continuous heavy-lift cycles. Its advanced valve design minimizes pressure loss and operational wear, reducing maintenance costs and extending service life for high-volume commercial use.
With full 360° continuous slewing and a robust space-efficient design, this 360° rotation heavy-duty telescopic crane delivers exceptional flexibility in tight urban construction sites, busy port terminals, and large industrial facilities. Its reinforced structure ensures stable performance during full-rotation load handling, eliminating limitations for complex lifting tasks.
Manufactured from premium high-strength steel with precision welding, the crane features a reinforced boom structure for maximum torsional resistance and anti-buckling performance. It holds ISO9001 certification, national truck crane manufacturing licensing, and GJB9001C-2017 quality certification, guaranteeing uncompromising safety and reliability under continuous heavy use.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 6300 Kg | Oil Tank Capacity | 100 L |
Maximum Lifting Moment | 15.75 t×m | Slewing Angle | 360° Full Rotation |
Recommended Power | 20 KW | Crane Net Weight | 2250 kg |
Recommended Hydraulic Flow | 40 L/min | Minimum Installation Space | 900 mm |
Rated Hydraulic Pressure | 20 MPa | - | - |
This heavy-duty telescopic boom truck crane for sale is an indispensable workhorse across high-demand sectors, with core use cases including:
Port Logistics & Freight Handling: Purpose-built for container handling, bulk cargo loading/unloading, and heavy material management in ports, docks, and freight yards, delivering efficient precise lifting for high-volume logistics operations.
Large-Scale Construction & Engineering: Ideal for lifting steel frames, concrete panels, and prefabricated structures on medium-to-large construction sites, reducing project timelines and improving on-site safety for contractors.
Industrial Manufacturing & Heavy Equipment Assembly: Perfect for positioning heavy industrial machinery, assembling large-scale production equipment, and supporting factory installation projects, with stable performance for continuous industrial lifting.
Heavy Municipal Infrastructure Maintenance: Efficiently handles large utility pole installation, heavy traffic signal setup, and complex urban infrastructure projects, with the power and flexibility to tackle demanding municipal tasks.
Park the truck on firm level ground, engage the parking brake, and fully extend all outriggers with appropriate support pads, especially on soft or uneven terrain. Inspect the work zone for overhead power lines and obstacles, and cross-verify the load weight against the lifting chart for the current boom radius and angle.
Operate only one control handle at a time, with slow steady movements to avoid load swinging or sudden pressure spikes. Never extend the working radius while rotating a loaded boom, and maintain a 10-meter minimum safety distance from high-voltage lines at all times. Never exceed rated capacity or leave a suspended heavy load unattended.
Perform full hydraulic maintenance every 500 operating hours or 6 months, including oil and filter replacement, hose inspection, and valve calibration. Lubricate all pivot points, boom slides, and hydraulic pins after each shift, with daily checks of hydraulic oil levels and bolt tightness. All maintenance must be performed by certified trained personnel.
It is designed for medium-to-heavy duty trucks with a minimum 900 mm mounting space and sufficient chassis load capacity to safely support 6.3 ton lifting operations and the crane’s own weight.
Yes. It is specifically engineered for repeated continuous heavy-duty operations with minimal maintenance requirements, making it ideal for long shifts in industrial facilities, port terminals, and high-volume construction sites.
We recommend full hydraulic system maintenance every 500 operating hours or 6 months, including oil and filter replacement, hose and seal inspection, and valve calibration to ensure optimal performance and safety.
The SQS157A-3 holds ISO9001 quality certification, national truck crane manufacturing license, and GJB9001C-2017 quality certification, ensuring strict compliance with global safety and quality standards.
Yes, we provide comprehensive global technical support, genuine spare parts supply, and professional after-sales service for all our crane models, ensuring consistent support for our worldwide commercial operators.
