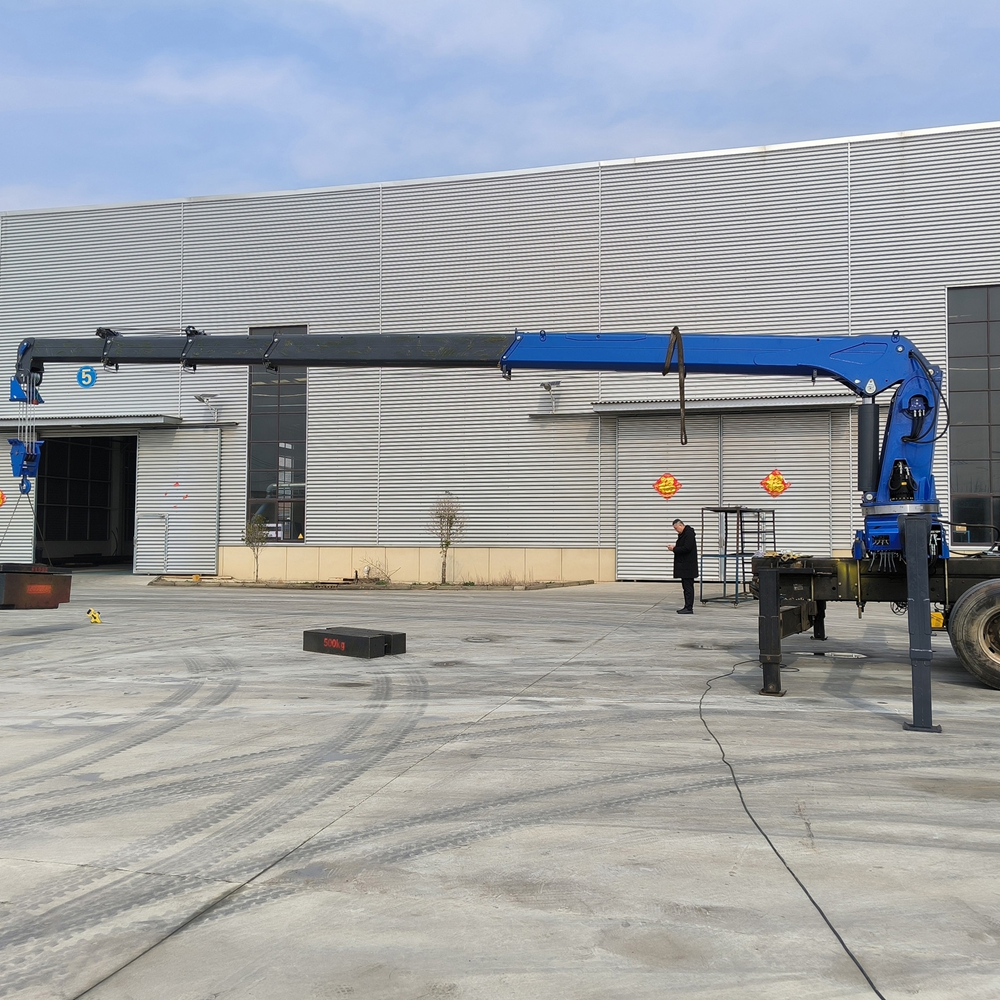

The SQS250G-5 10 ton telescopic boom truck loader crane serves as a heavy-duty lifting cornerstone engineered for large-scale project contractors, heavy logistics operators, and industrial enterprises. Boasting a maximum lifting capacity of 10000 kg and a rated lifting moment of 25 t·m, this heavy-duty hydraulic truck crane merges brute strength with precise maneuverability. The unit features a robust 4400 kg reinforced steel structure and requires a compact 1250 mm installation space, making it highly adaptable for medium-to-heavy duty truck chassis. Operators will notice the reassuring, steady hum of its high-power hydraulic system as it drives the 18.72 m maximum boom length through a full 360° continuous slewing motion. Built for relentless, non-stop heavy lifting, it transforms demanding job sites into models of operational efficiency and safety.
This 10 ton telescopic boom lorry crane harnesses a heavy-duty hydraulic network operating at a 26 MPa rated pressure with a 63 L/min recommended hydraulic flow, driven by 30 kW recommended power. By integrating international top-tier brands for critical hydraulic hoses and counterbalance valves, the system guarantees prolonged stability during high-frequency, heavy-load cycles. Operators experience ultra-smooth, millimeter-precise control, feeling the responsive feedback through the levers even under maximum load conditions. The system minimizes pressure drops and maintains exceptional thermal stability, preventing fluid overheating during round-the-clock operations.
Fabricated from high-tensile structural steel via advanced robotic welding, the 5-section telescopic boom utilizes a reinforced polygonal cross-section. This geometry fundamentally improves bending and torsional resistance. When pushing the boom to its 18.72 m maximum working radius, operators will observe minimal visual deflection. This structural rigidity ensures long-term fatigue resistance, safeguarding your equipment investment against the harsh realities of heavy-cycle industrial lifting.

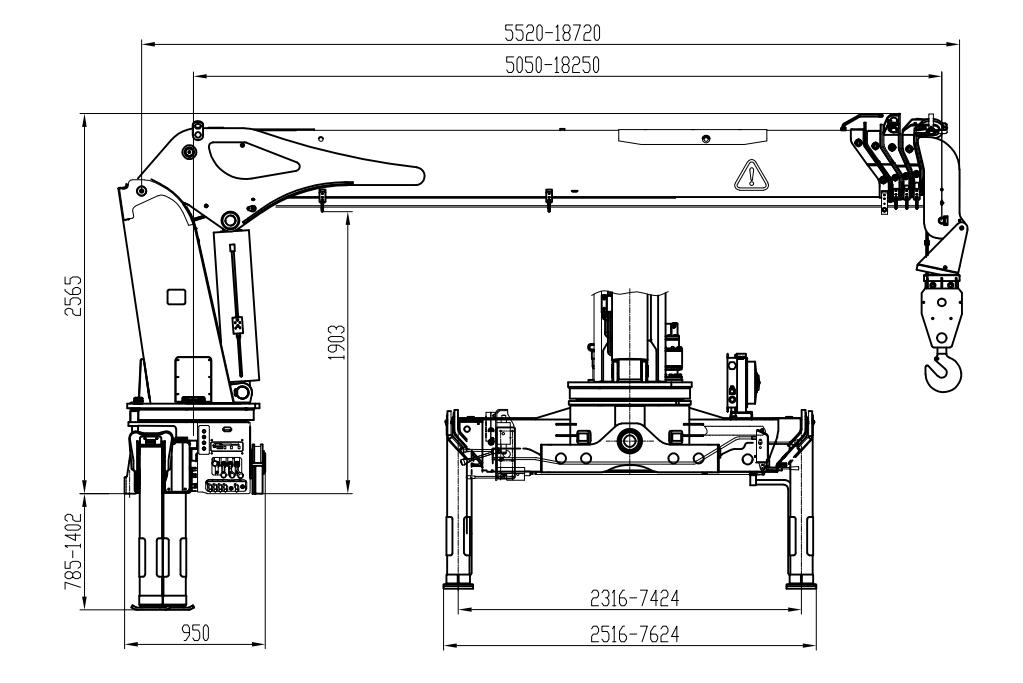

Navigating complex lifting scenarios requires more than just raw power. With 360° full rotation unrestricted slewing and a dynamic boom length range from 5.52 m × 18.72 m, this heavy-duty truck mounted loader crane excels in both confined urban spaces and expansive industrial yards. The optimized center of gravity ensures the vehicle remains firmly planted during dynamic slewing operations, allowing for confident long-radius material placement.
To keep operators out of the immediate hazard zone while maintaining absolute control, this crane supports advanced wireless remote operation paired with high-precision hydraulic proportional valves. This setup allows for millimeter-level positioning accuracy. You can visually confirm the exact placement of heavy loads without being tethered to the truck console, drastically improving site safety and operational visibility.
Industrial environments are unforgiving on exposed metal. Therefore, the entire crane structure undergoes an industrial-grade three-layer anti-corrosion coating process, featuring an epoxy zinc-rich primer topped with a durable polyurethane finish. This meticulous surface treatment provides a hard, scratch-resistant tactile feel and delivers exceptional resistance to rust and degradation, even when exposed to extreme weather variations or high-salt coastal environments.
Stability is the foundation of safe lifting. The crane is equipped with ultra-wide H-type fully hydraulic telescopic outriggers. When deployed, these heavy-duty stabilizers bite firmly into the ground, creating an exceptionally wide footprint that counteracts overturning moments. This ensures absolute steadiness and eliminates chassis wobble when executing 360-degree full-load rotations on uneven terrain.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Capacity | 10000 kg | Rated Hydraulic Pressure | 26 MPa |
Maximum Lifting Moment | 25 t·m | Recommended Hydraulic Flow | 63 L/min |
Recommended Power | 30 kW | Total Crane Weight | 4400 kg |
Slewing Angle | 360° Full Rotation | Required Installation Space | 1250 mm |
Oil Tank Capacity | 200 L | Boom Length Range | 5.52 m × 18.72 m |
This 10 ton industrial telescopic boom truck crane is engineered to drive productivity across multiple heavy-lifting sectors. Its versatility is further amplified by a highly adaptable boom tip, which supports rapid integration with custom attachments like grab buckets, aerial work baskets, pipe clamps, and earth augers, transforming a single truck into a multi-functional fleet asset.
Heavy Construction & Prefabricated Building Projects: Efficiently hoisting dense steel structures, precast concrete slabs, and bulky building materials. The precise control allows operators to gently guide heavy components into place without jarring impacts, essential for high-rise and bridge engineering.
Industrial Machinery Installation & Plant Maintenance: Facilitating heavy machinery relocation and production line assembly. The proportional valve control enables millimeter-level equipment positioning, crucial when aligning delicate manufacturing machinery in power plants or mining facilities.
Port & Freight Logistics Operations: Streamlining container handling and heavy cargo transfers in bustling logistics parks. The rapid boom extension and continuous slewing reduce turnaround times, allowing freight operators to process heavier volumes with noticeable efficiency.
Large-Scale Municipal Infrastructure: Tackling overpass construction, bridge maintenance, and massive utility pipeline installations. The crane provides the necessary heavy-load capacity to maneuver large concrete pipes into deep trenches safely within complex urban environments.

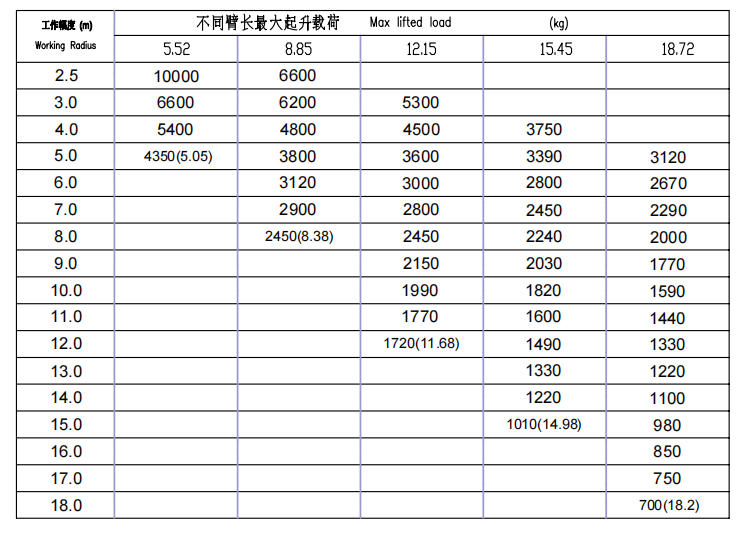

Park the truck on solid, level ground. Fully extend the H-type outriggers with reinforced support pads, confirming the vehicle is perfectly level using a precision gauge. Verify the load weight against the official load chart, ensuring strict compliance with rated capacity limits for the current boom length and radius. Inspect all hydraulic lines, listen for any abnormal hiss of escaping fluid, and check boom pins before engaging the power take-off (PTO).
For full-load lifting, hoist loads slowly and steadily. This crane is equipped with an advanced Load Moment Indicator (LMI) and an audible/visual overload warning system. This intelligent monitoring setup continuously tracks the lifting weight and working radius in real-time, instantly alerting the operator and halting dangerous movements to completely eliminate the risk of overload and tipping. Never rotate the boom with a full load at maximum extension, and keep all non-essential personnel clear of the swing zone.
Implement a rigorous daily maintenance schedule. Check hydraulic oil levels, apply fresh grease to the boom slides to maintain friction-free extension, and inspect the outrigger hydraulic cylinders. Conduct a comprehensive structural integrity assessment and hydraulic pressure test every 500 operating hours. Utilizing certified technicians for these checks ensures the equipment withstands the punishing demands of heavy-cycle use and prevents unexpected failures.
It perfectly matches medium-to-heavy duty truck chassis that offer a minimum 1250 mm mounting space and sufficient payload capacity for the crane’s 4400 kg weight plus the intended cargo. To lower the modification threshold, we provide comprehensive Power Take-Off (PTO) matching guidance and independent power pump station options, ensuring seamless integration with mainstream global heavy truck brands.

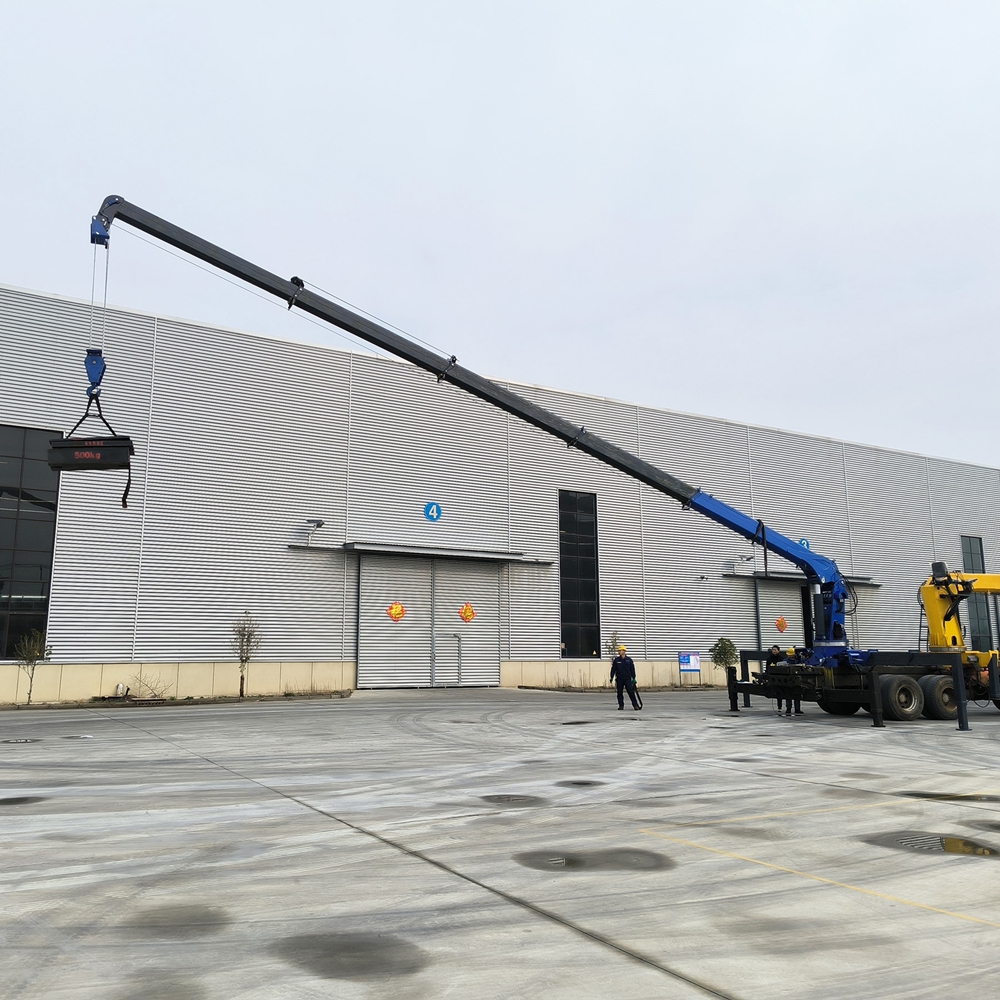

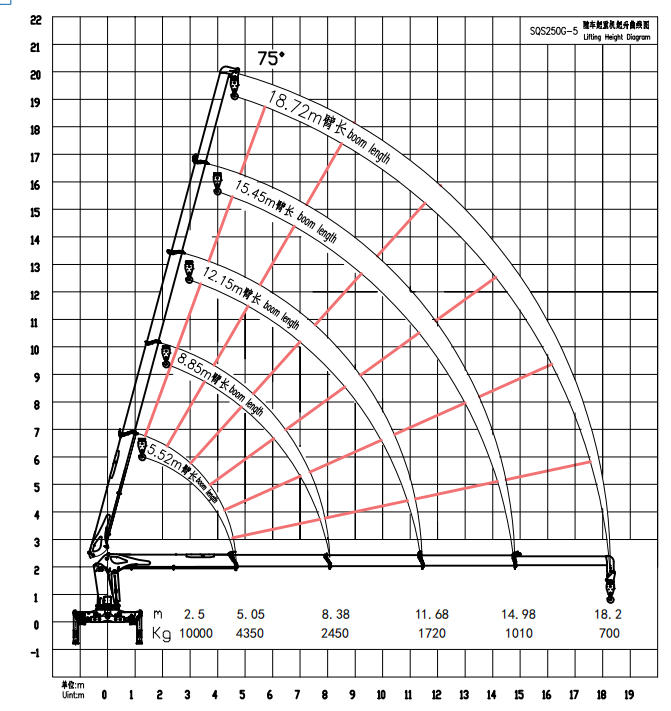

Yes. The system is meticulously engineered to lift safely at its maximum 18.72 m boom extension, offering a 700 kg rated lifting capacity at the absolute maximum working radius. The reinforced polygonal boom design guarantees minimal deflection, providing operators with a visually stable and secure lifting experience that fully complies with stringent international safety standards.
Absolutely. It is expressly built for non-stop, heavy-cycle operations. The combination of a high-volume 200 L oil tank, exceptional thermal stability in the hydraulic system, and fatigue-resistant steel structures means the crane maintains consistent, powerful performance without overheating or sluggishness, even during extended shifts in mining or manufacturing environments.
We back this equipment with a standard 12-month comprehensive warranty covering all structural and hydraulic elements. To minimize downtime, we guarantee rapid delivery for standard models and maintain a global direct-supply network for original spare parts. Combined with 24/7 online technical support and global on-site operator training, we ensure your lifting operations remain productive and profitable.
