Product Advantage
1. High-Capacity Lifting with Excellent Stability

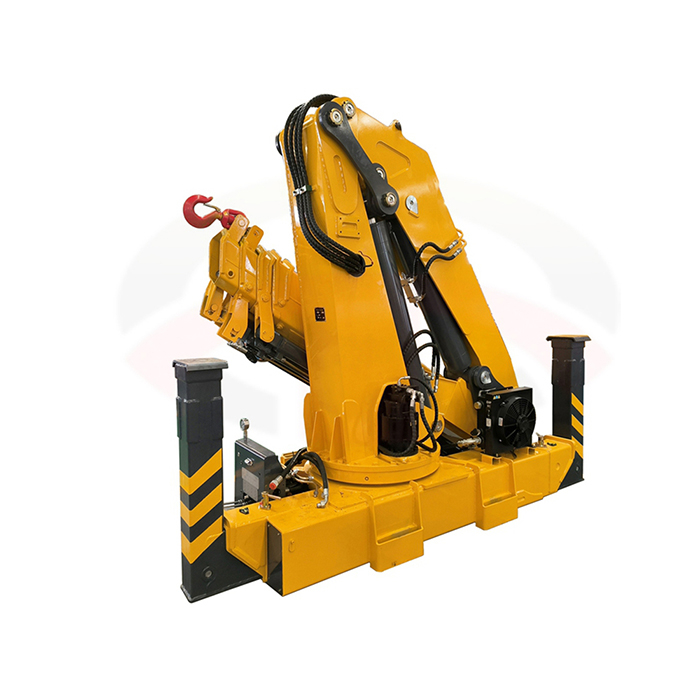

The SQZ200A.3 delivers a maximum lifting weight of 10,000 kg and a lifting moment of 20 t.m, providing powerful performance for heavy components, large machinery, and structural materials. Its reinforced boom and base design ensure stability even under heavy load conditions.
2. Robust 30 kW Recommended Power & Hydraulic Flow
With a 30 kW power configuration, a 60 L/min hydraulic flow, and a 28 MPa rated pressure, this truck crane maintains smooth, responsive lifting and slewing performance — outperforming many standard loaders by delivering stronger hydraulic torque and better control during continuous use.
3. 360° Slewing for Full Operational Flexibility
The full horizontal slewing capability allows operators to handle materials on all sides of the vehicle without repositioning, increasing efficiency in tight job sites such as urban construction zones and busy logistics yards.
4. Reinforced Structure for Continuous Heavy-Duty Operations
Compared with many typical supplier offerings, the SQZ200A.3 features thicker high-strength steel plates, optimized welding processes, and enhanced boom design for improved fatigue resistance and longer service life.
5. Professional Manufacturing and Quality Assurance
As a product of Tengchang Construction Machinery, this model is manufactured under strict ISO quality control processes, ensuring consistent product quality, reliability, and durability across every unit.
|
Technical Parameters
Crane main technical parameters

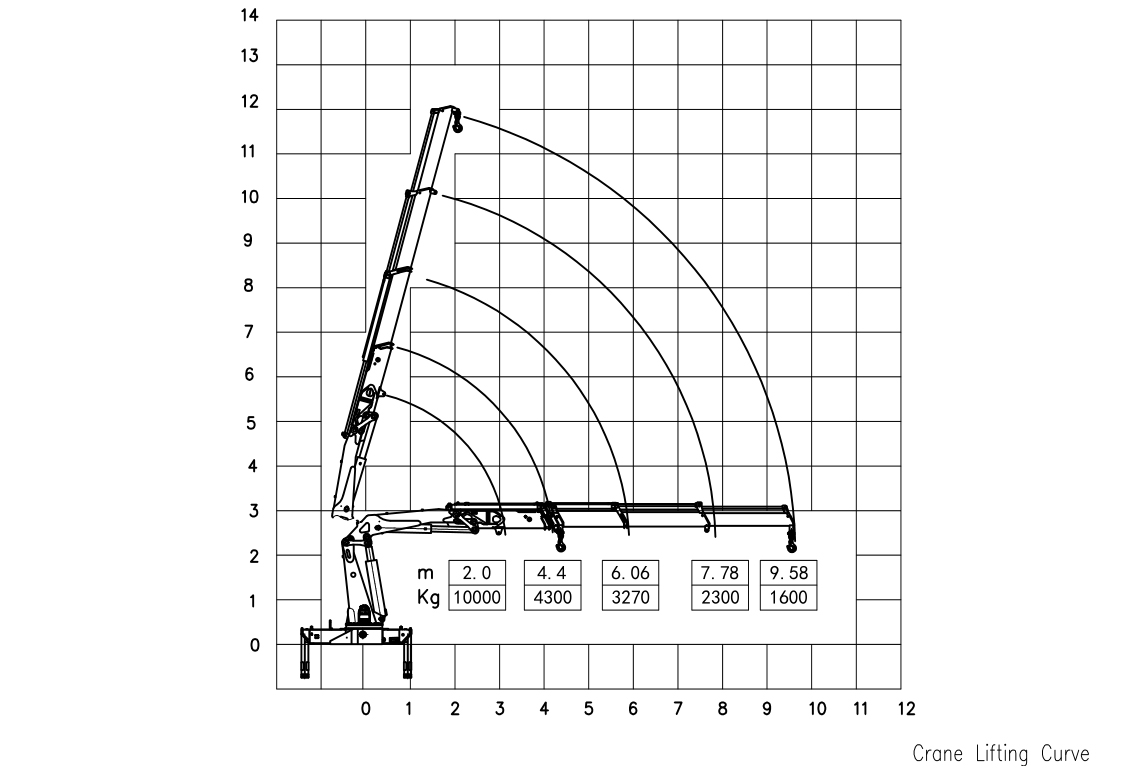

Maximun lifting weight | 10000Kg | Oil tank capacity | 150L |
Max lifting movement. | 20 t.m | Slewing angle | 360° |
Recommended power | 30KW | Hydraulic crane weight | 3800kg |

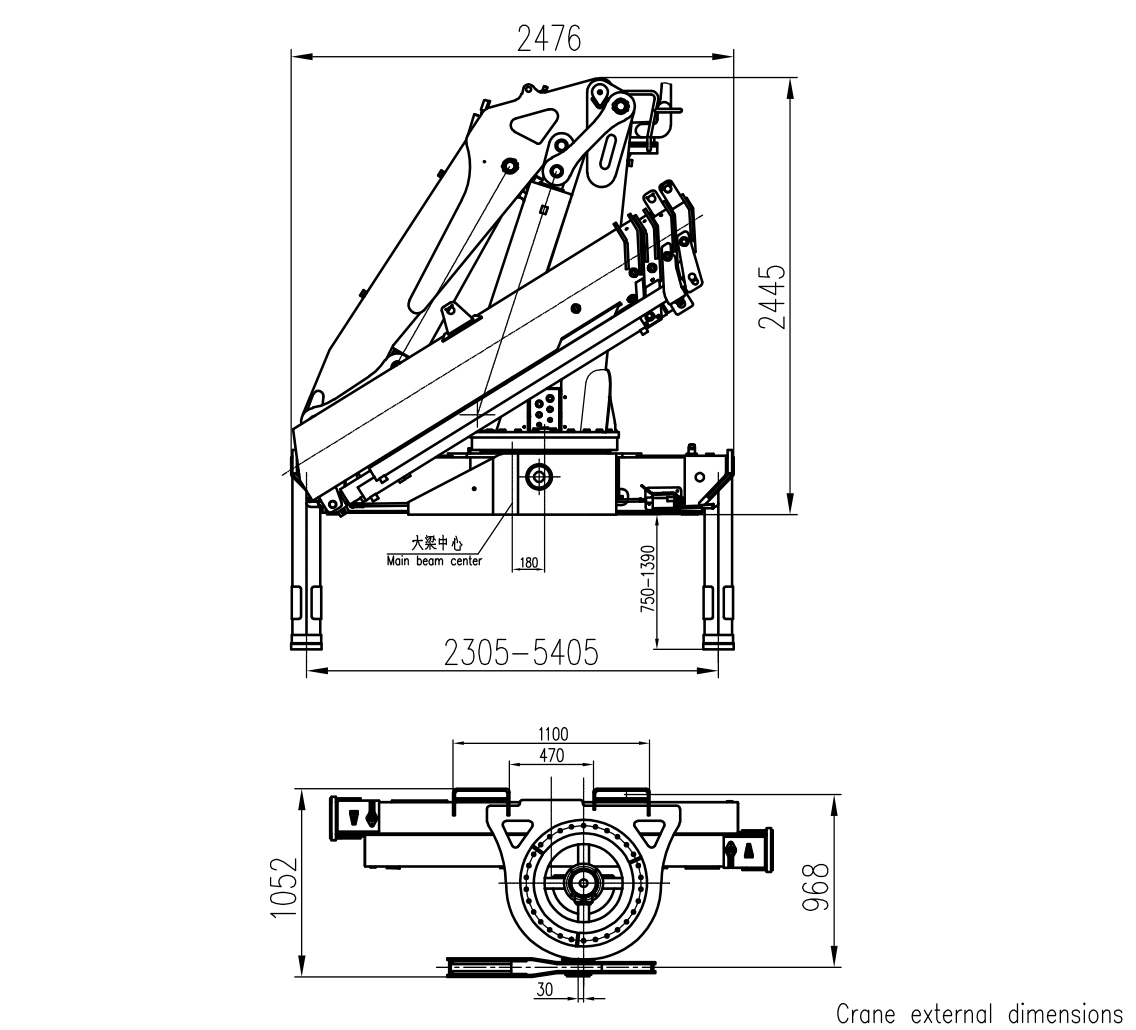

Recommended hydraulic flow | 60 L/min | Installation space | 1200mm |
Rated hydraulic pressure | 28MPa |
|
Product Uses
1. Large-Scale Construction Material Lifting
The SQZ200A.3 excels in lifting heavy building materials such as large steel beams, pre-cast concrete modules, and formwork sections on construction sites. Its robust structure and powerful hydraulics ensure safe and precise lifting cycles during intensive project phases.
2. Industrial Machinery Loading & Installation
This crane is ideal for loading and unloading industrial machinery, compressors, generators, and production-line equipment at plants, factories, and workshops. Its wide slewing range and high lifting moment allow operators to work efficiently with minimal repositioning.
3. Logistics Hubs and Port Material Handling
Deployed frequently in logistics centers, freight yards, and port terminals, the SQZ200A.3 effectively handles large pallets, heavy cargo, and oversized goods. Its load control precision enhances safety and reduces manual labor and time costs.
4. Energy & Utility Infrastructure Projects
In power station construction, transformer yard installation, and large infrastructure projects such as pipeline handling or tower assembly, this crane’s capacity and stability make it ideal for precise, heavy-duty operations.
5. Municipal Engineering & Urban Infrastructure
Used in urban roadworks, bridge enhancement works, and large-scale municipal engineering projects, where strong lifting capacity and operational flexibility are necessary to handle diverse materials and conditions.
|
FAQ
1. How does Tengchang’s SQZ200A.3 compare in quality with other supplier cranes?
A: Tengchang cranes are engineered with reinforced structures, optimized welding processes, and higher-grade steel. They demonstrate superior stability, reduced vibration, and longer fatigue life compared to many typical market offerings.
2. Is this crane suitable for continuous heavy-duty work?
A: Yes. With a robust hydraulic system, high power configuration, and reinforced components, the SQZ200A.3 is designed for long working cycles and intensive operational demands without overheating or early wear.
3. What types of trucks are compatible with SQZ200A.3?
A: It integrates easily with medium to heavy-duty trucks that meet chassis strength, hydraulic power delivery, and stability requirements. Tengchang provides compatibility guidance and technical drawings to support truck matching.
4. Does Tengchang provide after-sales and technical support?
A: Yes. Tengchang Construction Machinery offers comprehensive after-sales support including technical guidance, spare parts supply, maintenance recommendations, and global service assistance.
