You are here: Home » Product » Knuckle Boom Truck Mounted Crane » (SQZ68A.2) 3.2 Ton Knuckle Boom Truck Mounted Crane

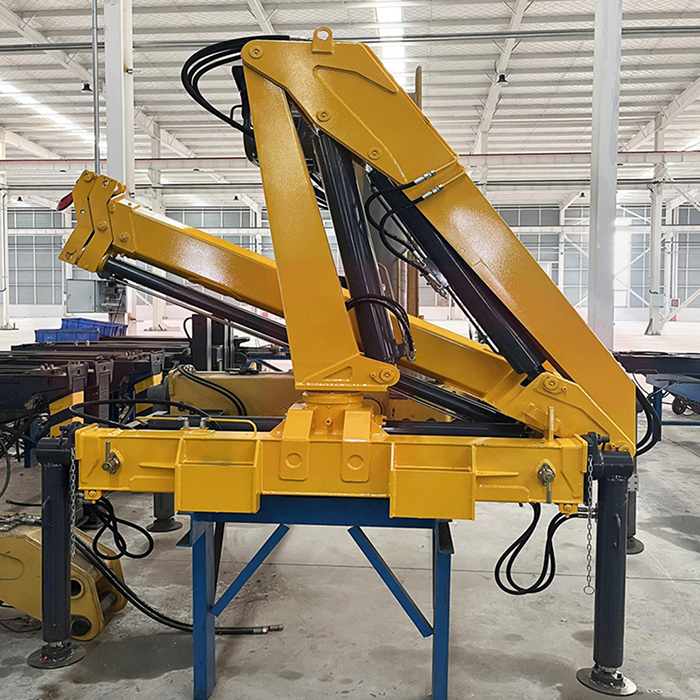

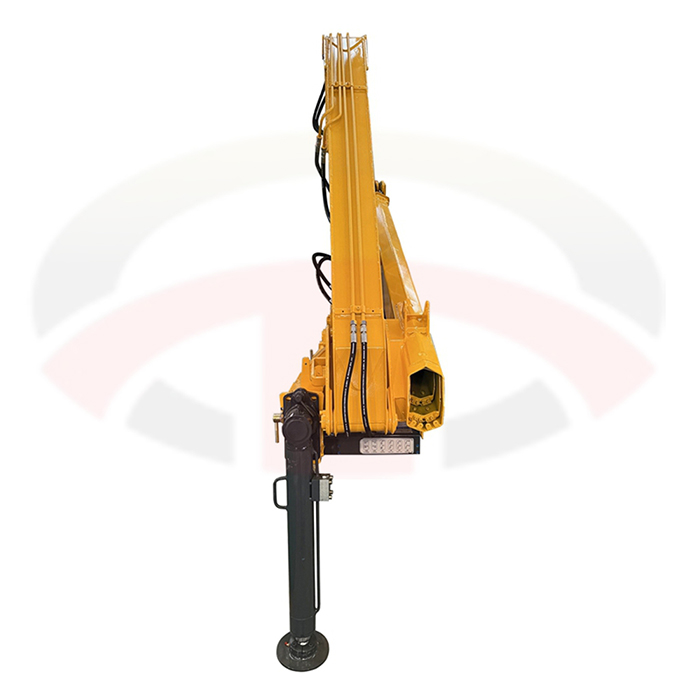

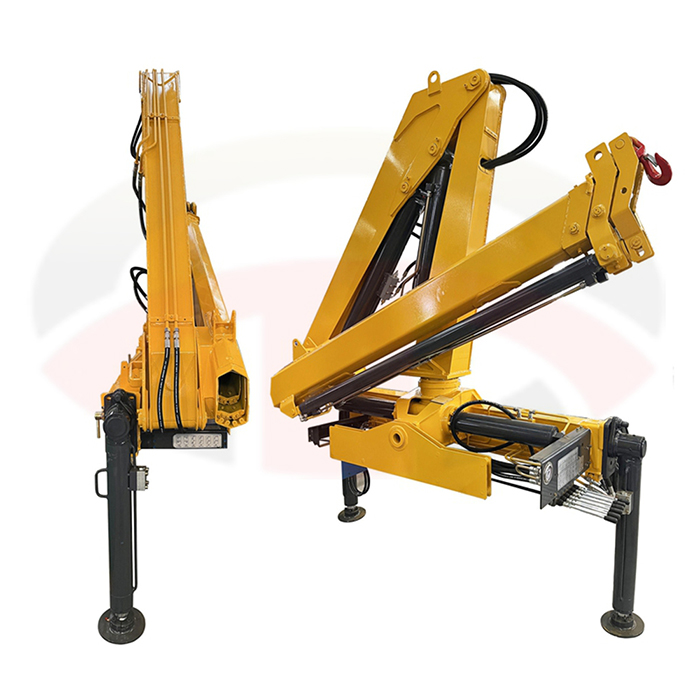

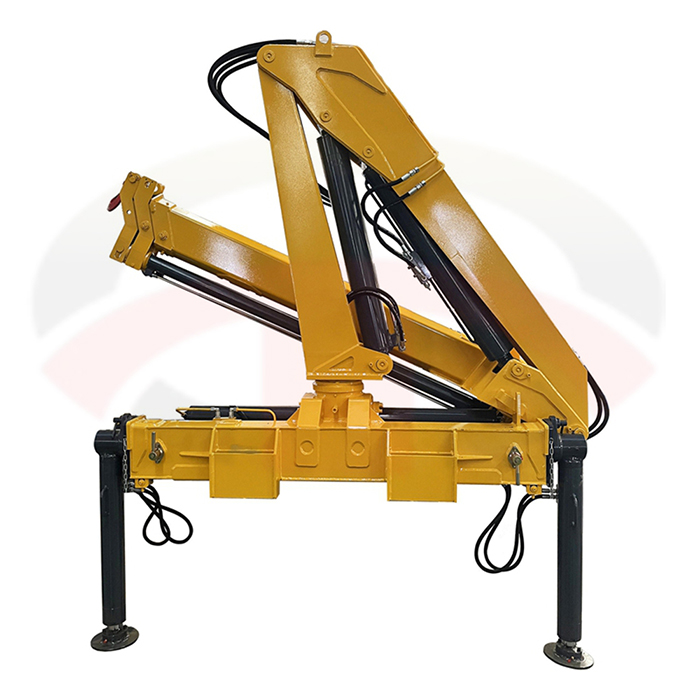

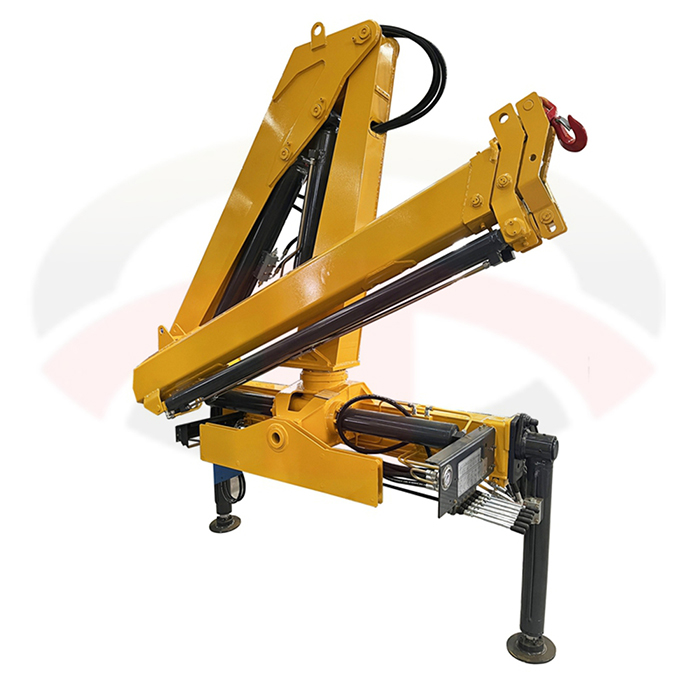

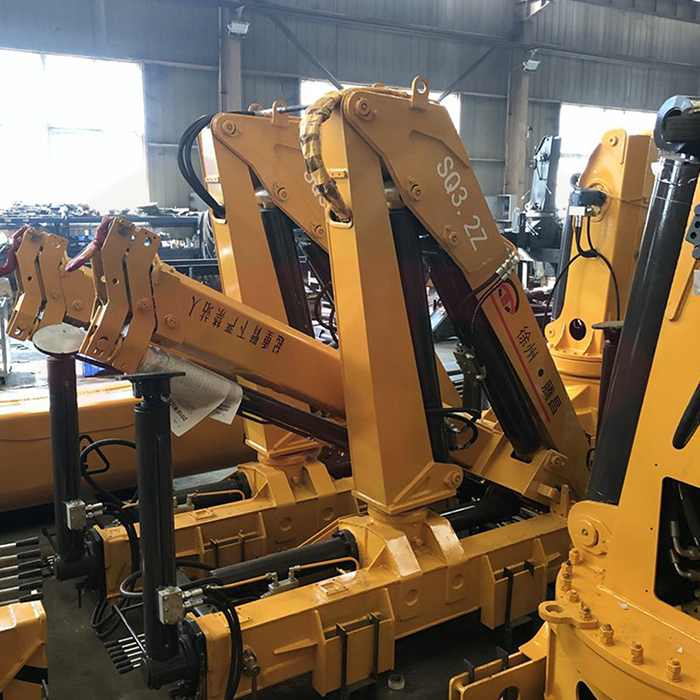

(SQZ68A.2) 3.2 Ton Knuckle Boom Truck Mounted Crane

Model: SQZ68A.2

The SQZ68A.2 Knuckle Boom Truck Mounted Crane from Tengchang Construction Machinery is a compact and efficient hydraulic loader crane with a maximum lifting capacity of 3,200 kg and a lifting moment of 6.4 t.m. Designed for medium-duty transport trucks, this folding boom crane combines strong lifting performance with a lightweight structure and wide 400° slewing angle. It is ideal for logistics loading, construction material handling, and municipal engineering tasks where flexibility, reliability, and easy installation are essential.

Availability:

Quantity:



Inquire Add to Basket

3.2 ton knuckle boom crane 3.2 T truck mounted crane 3.2 ton truck crane 3.2 T hydraulic knuckle boom crane 3.2 T folding boom crane compact 3.2 ton truck crane 3.2 T truck loader crane

Product Description

Product Description Safety Related Products

Product Description

|

Product Advantage

1. Optimized Lifting Capacity for Medium-Duty Applications
With a maximum lifting weight of 3.2 tons, the SQZ68A.2 is perfectly positioned between light-duty and heavy-duty loader cranes, offering balanced performance for daily commercial operations without overloading the truck chassis.

2. 400° Slewing Angle for Maximum Operational Flexibility
The wide slewing range allows efficient loading and unloading on both sides of the vehicle, reducing repositioning time and improving overall work efficiency, especially in narrow job sites.

3. Compact Installation with Lightweight Design
Weighing only 1,250 kg and requiring just 850 mm of installation space, this knuckle boom crane is suitable for a wide range of medium trucks, ensuring higher payload utilization.

4. Stable High-Pressure Hydraulic System
Operating at a rated pressure of 28 MPa with a recommended flow of 25 L/min, the hydraulic system ensures smooth lifting, precise control, and long-term operational stability.

5. Manufactured by Professional Crane Manufacturer
Designed and produced by Tengchang Construction Machinery, the crane benefits from strict quality control, standardized welding processes, and long service life.

|

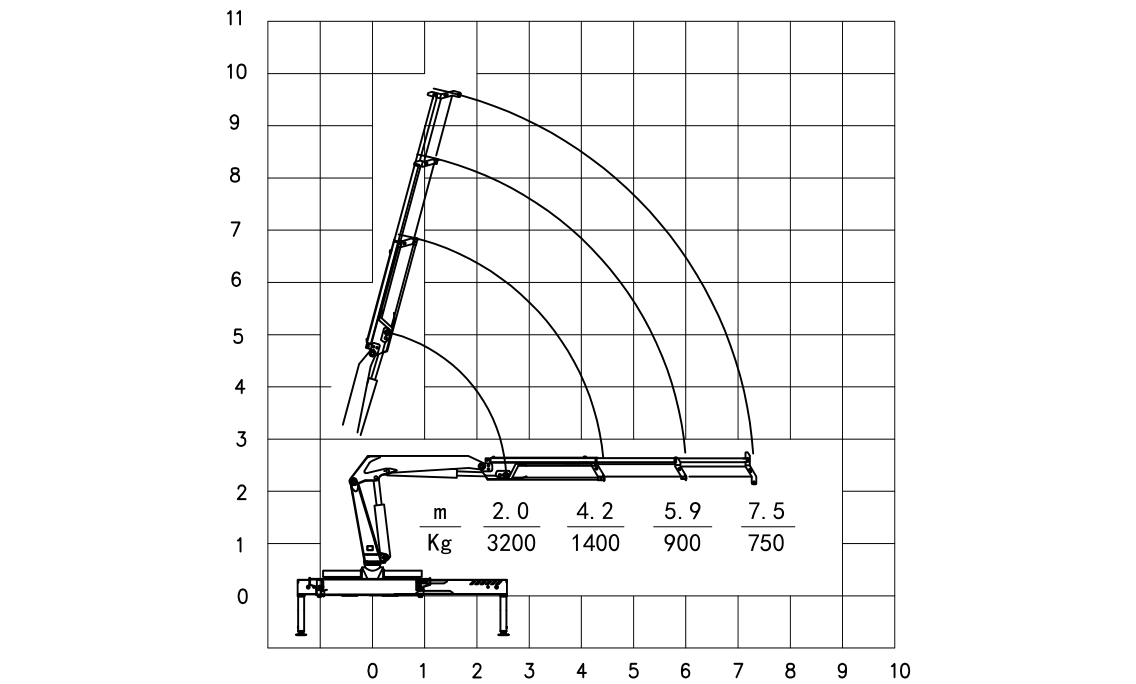

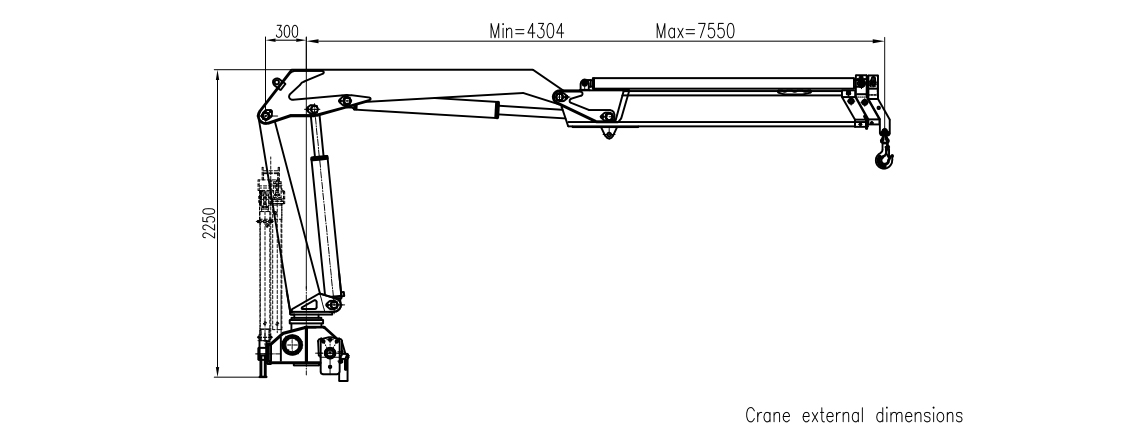

Technical Parameters

Crane main technical parameters

Maximun Lifting weight	3200Kg	Oil tank capacity	60L
Max lifting movement.	6.4 t.m	Slewing angle	400°
Recommended power	15KW	Hydraulic Crane weight	1250kg
Recommended hydraulic flow	25 L/min	Installation space	850mm
Rated hydraulic pressure	28MPa

|

Product Uses

Logistics loading and unloading of pallets, building materials, and machinery

Construction sites and municipal infrastructure projects

Equipment installation and maintenance services

Utility vehicles and service trucks

|

FAQ

1. Is SQZ68A.2 suitable for export markets?

A: Yes, Tengchang Construction Machinery supplies this model to multiple international markets and supports customized specifications.

2. Can the crane be branded with customer logos?

A: OEM and private labeling services are available upon request.

3. What quality standards does the crane follow?

A: The crane is manufactured under ISO9001 quality management standards.

Truck-Mounted Crane Safety & Operation Guide

Ensuring operator and crew Safety with proper handling.

Boom Positioning & Load Alignmen

Rotate the crane to align the boom over the load.

Adjust boom height and telescopic extension to position the hook correctly.

Safety Tip: Follow the load chart and ensure lifting weight is within allowed limits for current boom radius and angle.
Crane Extension Preparation

Sit at operator seat and slowly operate boom angle handles to extend the main boom and telescopic sections.

Move one handle at a time.

Safety Tip: Never operate multiple boom handles simultaneously. Keep boom path clear of personnel.
Outrigger Setup

Unlock outriggers and extend main and auxiliary outriggers fully.

Place support pads under each outrigger on soft ground.

Safety Tip: Ensure the truck is level. Incomplete extension may lead to tipping hazards.
Engaging Power Take-Off (PTO)

Ensure truck gear is in neutral and PTO switch is off.

Start engine and wait for safe air pressure levels.

Engage PTO slowly to drive the hydraulic crane system.

Safety Tip: Confirm all control levers are neutral before operation. Improper PTO engagement can damage hydraulic components.
Pre-Operation Site Check

Park the truck on firm, level ground. Engage the parking brake.

Inspect the surrounding area for obstacles, overhead lines, or unstable surfaces.

Confirm the load is within crane rated capacity and lifting height limits.

Safety Tip: Never operate on soft or sloped surfaces. Maintain at least 10 meters distance from high-voltage lines.

Post-Operation Maintenance

Lubricate pivot points, boom slides, and hydraulic cylinder pins

Check hydraulic oil levels, inspect hoses, and tighten bolts

Safety Tip: Only trained personnel should perform hydraulic maintenance. Replace worn parts immediately.
Crane Retraction & Stowage

Retract telescopic sections and fold boom sequentially.

Rotate crane to stowed position and fully retract outriggers

Safety Tip: Follow reverse order of extension to protect hydraulic cylinders and boom sections.
Lowering & Load Placement

Lower the load carefully to the designated position.

Detach slings and cables only when load is stable and personnel are clear.

Safety Tip: Never leave a suspended load unattended. Avoid sudden lowering.
Rotating with Load

Rotate the crane slowly to move the load

Monitor outrigger stability and crane tipping indicators.

Safety Tip: Do not extend the working radius while rotating a loaded boom. Keep movements smooth.
Lifting Operation

Lift the load slowly and steadily. Avoid sudden movements or swinging.

Monitor vehicle stability and outrigger pressure during the lift.

Safety Tip: Never exceed rated capacity. Avoid lifting loads over personnel.
