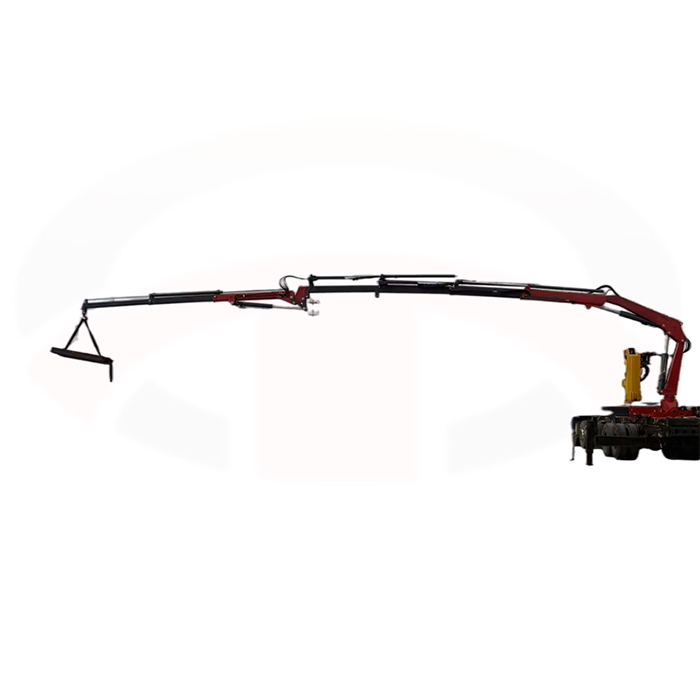

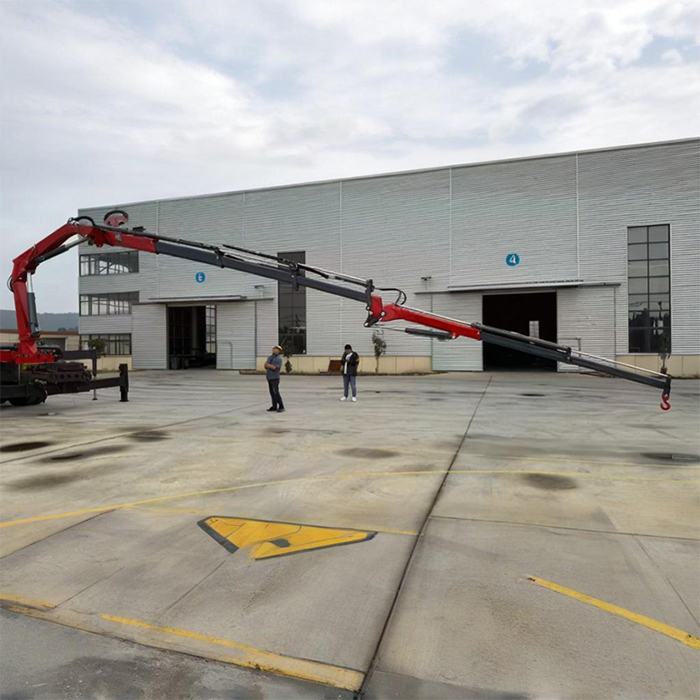

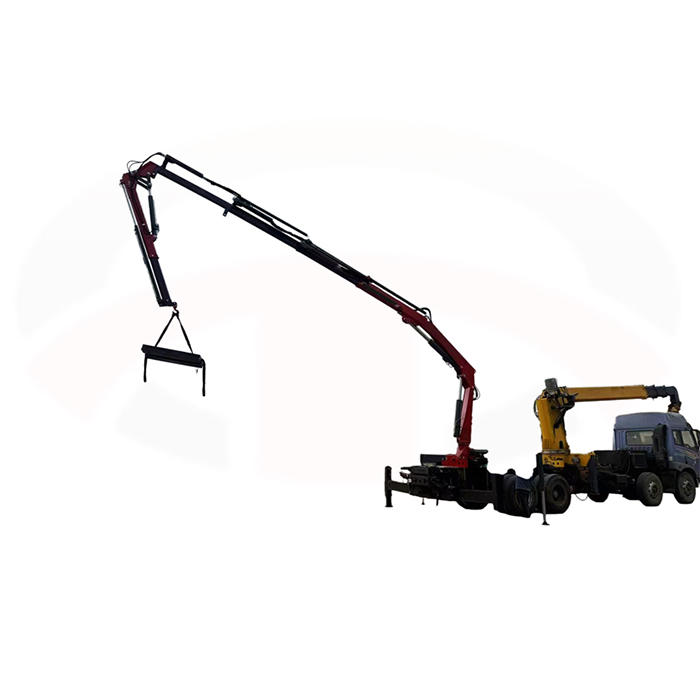

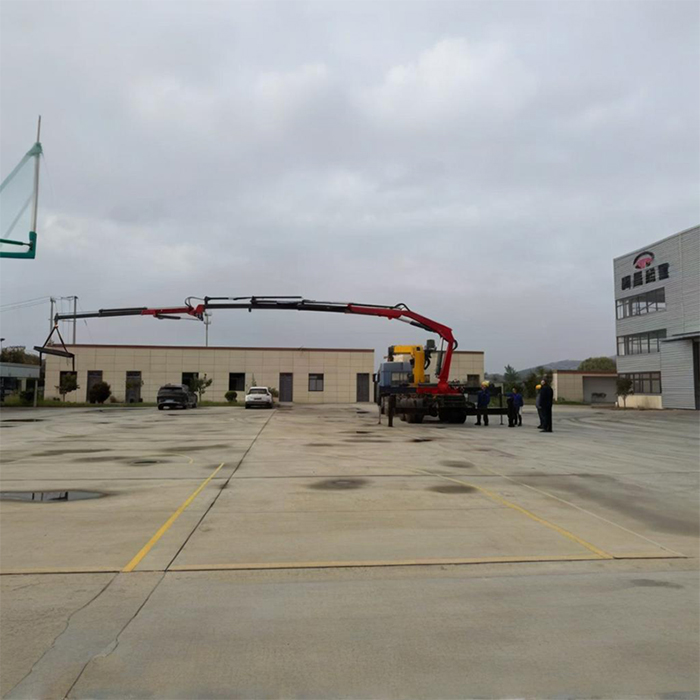

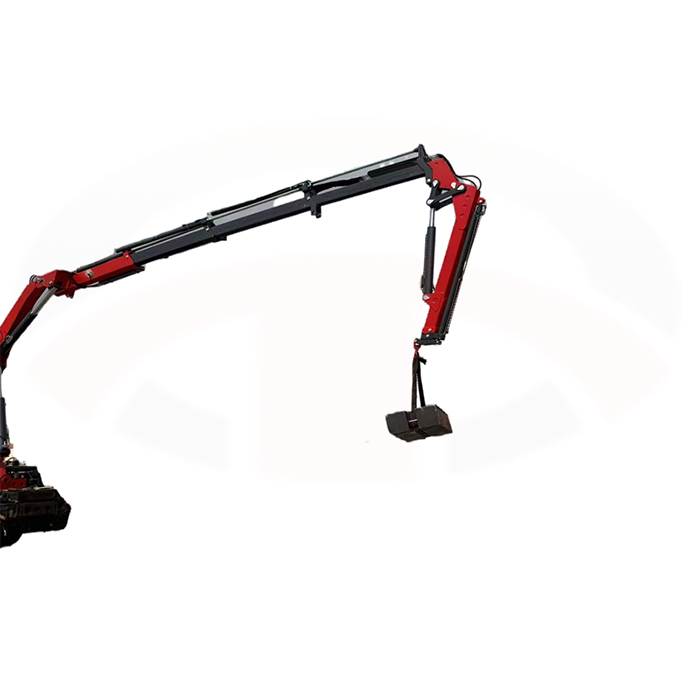

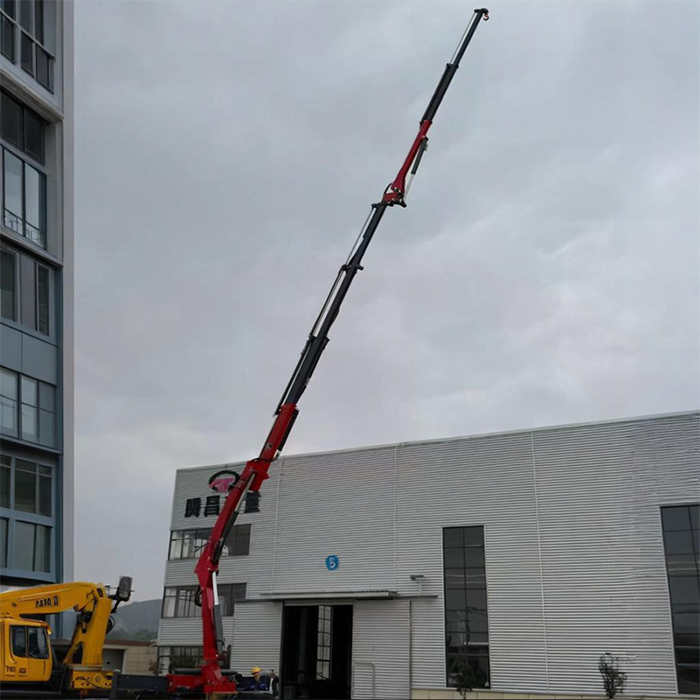

The SQZ132A.3J2 knuckle boom loader crane is engineered to deliver an exceptional strength-to-weight ratio. With a maximum lifting weight of 6,300 kg and a surprisingly lean crane self-weight of just 2,250 kg, this equipment prevents excessive strain on the truck chassis. Operators will notice the responsive handling when maneuvering heavy loads, ensuring that payload capacity is maximized without compromising vehicular stability during transit or intensive lifting operations. This optimized balance translates directly into higher daily transport efficiency and reduced fuel consumption for the carrier vehicle.
Navigating confined urban infrastructure projects or tight roadside operations requires exceptional maneuverability. This crane features a sweeping 400° slewing angle, allowing operators to execute multi-directional lifting tasks without the constant need to reposition the entire vehicle. This flexibility drastically cuts down on setup time and enhances workflow efficiency in spatially restricted terrains. The smooth rotation mechanism ensures that even when swinging heavy materials across wide arcs, the movement remains controlled and precise.
At the core of this lifting equipment is a heavy-duty hydraulic system operating at a 28 MPa rated hydraulic pressure with a steady 40 L/min recommended hydraulic flow. This configuration guarantees smooth, judder-free boom extensions and retractions. Even during extended working cycles, the system maintains excellent heat resistance, delivering a quiet, consistent hum that signifies reliable power and precise load placement under demanding conditions. The generous 100L oil tank capacity further prevents fluid overheating during continuous daily shifts.
Constructed from thickened, high-strength steel plates, the crane's boom and base are built to withstand immense stress. Advanced, optimized welding processes eliminate weak points, significantly boosting fatigue resistance. When handling maximum loads, the structural integrity feels solid and unyielding, providing operators with a tangible sense of safety and extending the overall service life of the machinery well beyond typical market alternatives. This rugged construction minimizes the risk of micro-fractures during heavy-duty material handling.
Manufactured by Tengchang Construction Machinery, every unit undergoes rigorous quality inspection procedures and standardized production protocols. This meticulous attention to detail ensures that each crane performs flawlessly right out of the factory, ready to tackle harsh environmental conditions while offering an elevated safety margin for demanding daily operations. From the initial steel cutting to the final hydraulic pressure tests, the manufacturing process is designed to deliver uncompromised reliability for global infrastructure projects.
Understanding the technical specifications of the SQZ132A.3J2 is crucial for integrating it seamlessly into your operational fleet. Engineered for optimal mechanical efficiency, this 6.3-ton knuckle boom crane balances raw lifting power with spatial economy. The compact 1070mm installation space ensures it occupies minimal deck area, leaving more room for essential cargo. Equipped with a generous 100L oil tank capacity, the system supports prolonged operational periods without the risk of hydraulic fluid overheating. A recommended power input of 20KW drives the impressive 12.6 t.m max lifting movement, translating to formidable hoisting capabilities for heavy materials. Below are the precise technical parameters that define the performance baseline of this powerful lifting solution.
Maximun lifting weight | 6300Kg | Oil tank capacity | 100L |
Max lifting movement. | 12.6 t.m | Slewing angle | 400° |
Recommended power | 20KW | Hydraulic crane weight | 2250kg |
Recommended hydraulic flow | 40 L/min | Installation space | 1070mm |
Rated hydraulic pressure | 28MPa |
The crane excels in high-intensity environments, effortlessly hoisting heavy steel structures, precast concrete components, and bulky formwork systems. Its precise control mechanisms allow operators to position materials with millimeter accuracy on bustling bridge constructions or urban development sites, ensuring structural safety and accelerating overall project timelines. The stability provided by the reinforced base means lifting operations remain secure even on uneven ground.
In fast-paced distribution hubs, ports, and expansive warehouses, efficient load control is paramount. This crane streamlines the loading and unloading of oversized pallets, industrial machinery, and heavy bulk materials. The fluid articulation of the knuckle boom provides the dexterity needed to navigate tight storage spaces, significantly reducing turnaround times for cargo transport and improving logistical flow across busy loading docks.
Installing sensitive or massive industrial assets—such as heavy-duty generators, commercial compressors, and large-capacity storage tanks—requires absolute stability. The crane offers unparalleled positioning capabilities, eliminating the need for supplementary lifting rigs. Its smooth hydraulic actuation ensures that valuable equipment is lowered into place gently and securely, minimizing the risk of impact damage during complex assembly processes.
For civic maintenance tasks, including streetlight installation, underground pipeline handling, and communication infrastructure upgrades, flexible outreach is essential. The crane's adaptable boom easily reaches over obstacles, providing dependable lifting power for utility crews working in constrained public spaces, residential zones, or along active roadways without causing major traffic disruptions.
A: The SQZ132A.3J2 distinguishes itself through the utilization of reinforced, high-yield steel structures and optimized welding techniques. Unlike standard market offerings, our manufacturing process includes comprehensive fatigue testing and rigorous defect inspections. This dedication to structural integrity translates to a noticeably more stable lifting experience, minimizing boom deflection under heavy loads and significantly extending the equipment's operational lifespan.
A: Absolutely. The crane is equipped with a premium hydraulic system featuring a 100L oil tank and operating at 28 MPa. This setup provides superior heat dissipation and fluid stability. Operators will experience consistent, fade-free performance even during prolonged, high-intensity shifts, making it highly dependable for continuous heavy-duty cycles in demanding environments.
A: Yes, this equipment is engineered for global adaptability. Whether operating in extreme temperatures, high-humidity coastal regions, or dusty construction environments, the industrial-grade protective coatings and sealed hydraulic components ensure resilient performance. Tengchang Construction Machinery designs its cranes to meet the rigorous demands of diverse international project sites.
A: We are committed to comprehensive, long-term operational success. Our global support network provides expert technical guidance, prompt troubleshooting, and a reliable supply of original spare parts. This ensures that maintenance requirements are met swiftly, keeping your lifting equipment operating at peak efficiency year after year.
