The SQZ68B.3 3.2 ton knuckle boom crane serves as a heavy-duty workhorse engineered for commercial fleet managers and industrial operators demanding exceptional load stability and consistent lifting performance. Designed with a superior 6.8 t.m lifting moment, this 3.2 ton boom truck mounted crane redefines medium-duty material handling by allowing heavier lifts at extended radiuses without compromising vehicle balance. The physical construction features thick, industrial-grade steel plating finished with a tactile, weather-resistant anti-corrosion coating that protects against harsh environmental elements and abrasive job site conditions. Operators will notice the precise, responsive feedback from the proportional control levers and the quiet, steady hum of the hydraulic system under maximum load. By minimizing the footprint required for installation, this folding boom crane maximizes the available cargo space on transport vehicles, ensuring that enterprise fleet operations remain highly productive across intensive daily use cycles.
Stepping beyond standard capacities, this 3.2 ton articulated boom truck crane utilizes a 6.8 t.m lifting moment to handle demanding loads at a greater outreach. This mechanical advantage means operators spend less time repositioning the transport vehicle and more time actively moving materials. The boom extends with a fluid, controlled motion, providing a reassuring sense of stability and eliminating the jerky movements often associated with lower-tier lifting equipment.
Weighing 1500 kg, the crane's base and boom are fabricated from premium high-strength steel. Before any unit is approved for dispatch, it undergoes rigorous quality control and testing protocols, including Non-Destructive Testing (NDT) on all critical welds and severe dynamic load simulations. This strict testing ensures structural integrity, preventing metal fatigue and minimizing long-term maintenance overhead for intensive fleet operations.
Operating with a recommended 15 kW power input and 25 L/min hydraulic flow, this 3.2 ton hydraulic loader crane achieves an optimal balance between lifting power and energy conservation. The precision-engineered hydraulic valves ensure smooth oil flow, which translates into highly controlled boom articulation. Operators can feel the immediate, vibration-free response when engaging the levers, significantly improving load safety during delicate material placement.
The unlimited 360° rotation 3.2 ton crane design enables complete, unrestricted positioning, which is critical for operations where precision and spatial awareness are top priorities. Driven by a heavy-duty slewing bearing, this full rotation capability eliminates blind spots. It allows operators to smoothly swing heavy concrete blocks or industrial machinery into tight, complex work zones with absolute maximum control and zero hesitation.
Understanding the precise mechanical capabilities of your lifting equipment is crucial for accurate fleet planning, vehicle integration, and operational safety. The SQZ68B.3 is engineered to deliver reliable metrics across all critical components, from hydraulic pressure thresholds to spatial footprint requirements. The following table outlines the exact performance parameters and technical specifications that define this industrial transport crane's operational limits and installation requirements.
Core Performance Parameters | Specification |
Maximum Lifting Weight | 3200 Kg |
Max Lifting Moment | 6.8 t.m |
Recommended Power | 15 kW |
Recommended Hydraulic Flow | 25 L/min |
Rated Hydraulic Pressure | 28 MPa |
Slewing Angle | 360° |
Slewing Pressure | ≤20 MPa |
Hydraulic Crane Weight | 1500 kg |

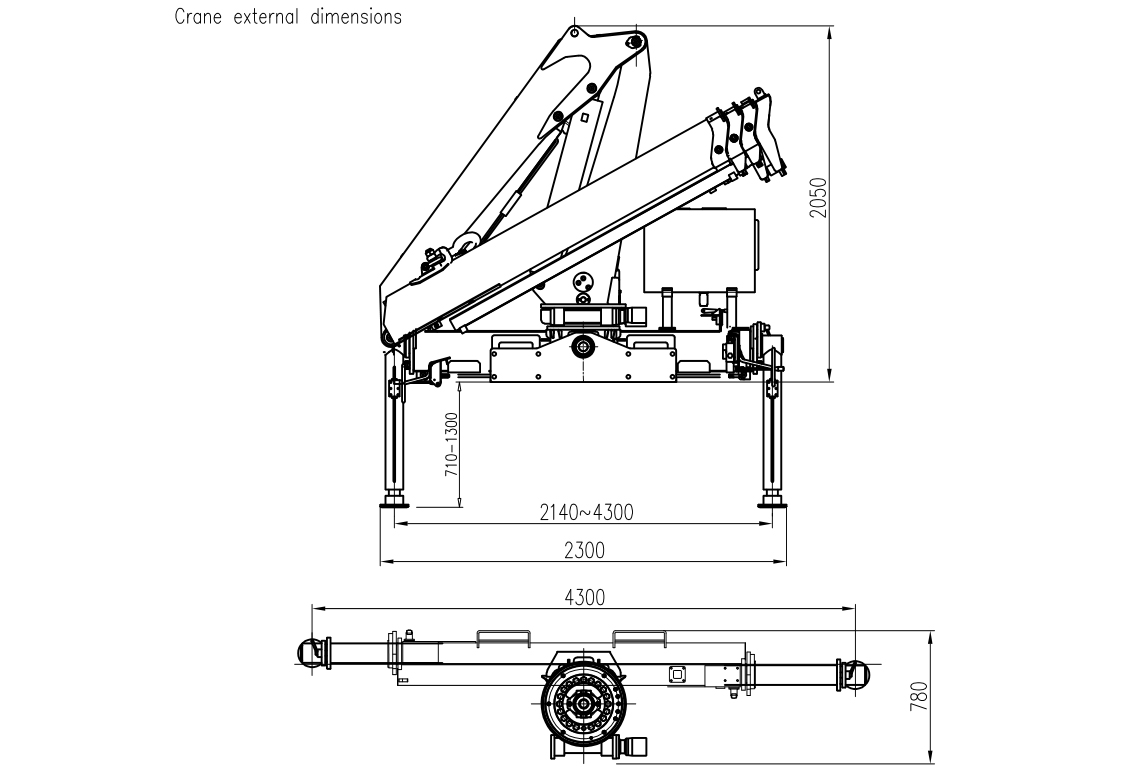

Installation Space | 850 mm |
Oil Tank Capacity | 60 L |
This 3.2 ton folding boom truck mounted crane is expertly tailored for versatile, medium-duty lifting operations across multiple demanding sectors. Its compact folding design allows trucks to retain maximum bed space, making it an indispensable asset for various commercial applications:
Construction Material Transport: Efficiently loading and unloading heavy pallets of bricks, steel beams, and cement bags directly onto residential and commercial building sites.
Industrial Equipment Relocation: Providing the precise control needed to safely lift and position sensitive manufacturing machinery, generators, and transformers within facility grounds.
Municipal & Utility Maintenance: Assisting in road maintenance, placing concrete barriers, and managing underground pipe installations where space is restricted.
Logistics & Bulk Cargo: Streamlining warehouse distribution by enabling single-operator loading and unloading of heavy, irregularly shaped cargo without requiring external forklifts.

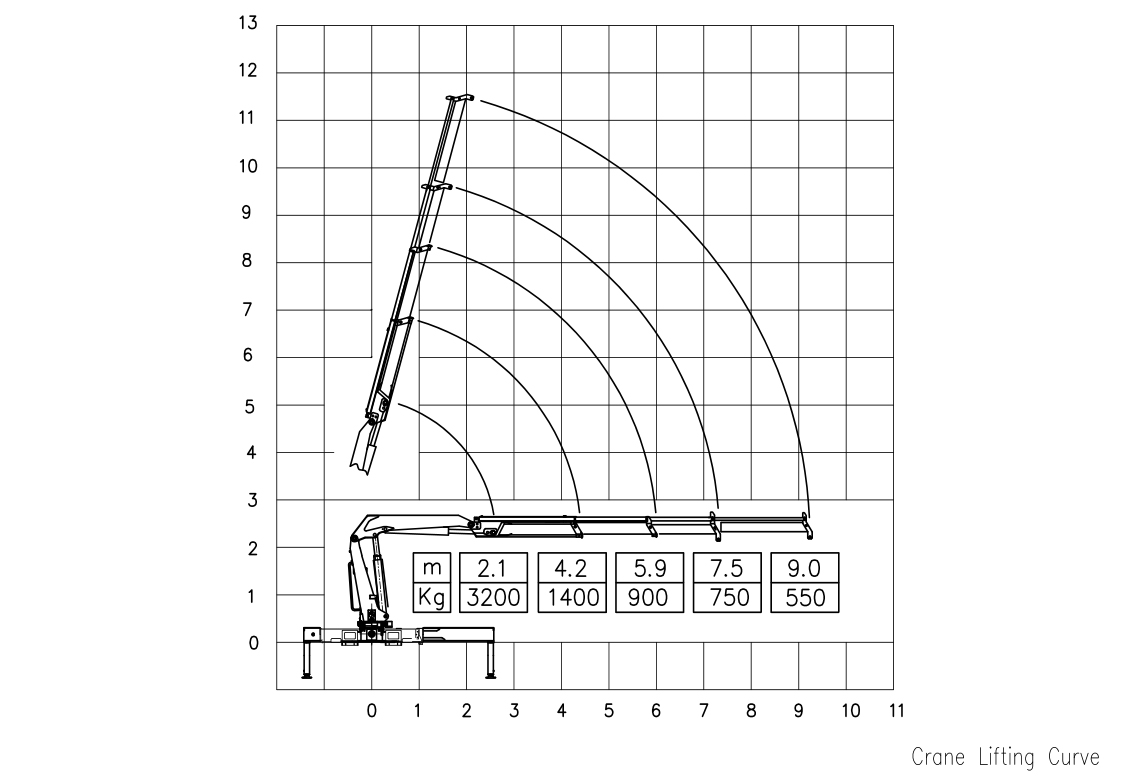

Strictly adhering to ISO9001 quality management systems and available with CE international certifications, this equipment meets global industrial safety standards. To ensure safe, long-term operation of your 3.2 ton industrial transport crane, operators must follow these core guidelines. Pre-operation: Always park the vehicle on firm, level ground. Listen for the solid, metallic clunk of the outriggers fully extending and locking to stabilize the chassis. Confirm all control levers are in the neutral position before engaging the PTO system, and maintain a strict 10-meter minimum distance from overhead high-voltage lines. During operation: Never operate multiple boom handles simultaneously, which can cause unpredictable load swings. Strictly follow the load chart to avoid exceeding rated capacity, and never leave suspended loads unattended. Post-operation: Regularly lubricate pivot points to maintain smooth articulation. Inspect hydraulic oil levels, check high-pressure hose integrity for any signs of abrasion, and ensure only certified personnel perform internal hydraulic maintenance.
The SQZ68B.3 features an upgraded 6.8 t.m lifting moment and a heavily reinforced structural design. Unlike base-level 3.2-ton models that struggle at their maximum radius, this unit delivers superior load handling at extended outreach, providing enhanced durability and structural rigidity for frequent, intensive daily transport operations.
Yes. Backed by a mature engineering cluster and a dedicated R&D team, we offer deep OEM customization services. We can tailor hydraulic configurations, integrate advanced proportional control systems, and supply specialized lifting attachments to meet the exact operational requirements of our enterprise clients.
We protect your investment with a minimum 12-month warranty on all core components. Our comprehensive after-sales support includes 7x24 global technical guidance, rapid dispatch of genuine factory spare parts, and available on-site service assistance to maximize equipment uptime and minimize operational disruptions.
Leveraging highly efficient automated production lines, standard crane models can be manufactured and ready for dispatch within 7 to 10 days. We utilize robust, anti-damage export packaging and coordinate with global logistics networks to ensure your equipment arrives securely and on schedule to keep your projects moving forward.
We understand the cash flow and compliance requirements of large-scale commercial procurement. Therefore, we support flexible international payment methods, including standard T/T (Telegraphic Transfer) and L/C (Letter of Credit), ensuring a secure and accommodating transaction process for businesses of all sizes.
