The SQZ400A.5 18 ton folding boom truck mounted crane is a heavy-duty hydraulic lifting powerhouse engineered for continuous, intensive load handling across demanding large-scale infrastructure and industrial projects. Operating as a premium 18 ton hydraulic knuckle boom crane, it delivers an impressive 18,000kg maximum lifting capacity alongside a 40 t·m lifting moment. When standing near the equipment, operators immediately notice the thick, fine-grained tensile steel construction and the steady, low hum of its 40KW power system. Equipped with a 250L large-capacity hydraulic oil tank, this system ensures stable thermal regulation, preventing fluid overheating and maintaining smooth, non-jerking motions during extended shifts. Designed for professional contractors and heavy engineering enterprises, this industrial 18 ton crane lifting solution integrates raw lifting strength with millimeter-level operational precision. It significantly reduces manual labor requirements and accelerates project timelines, making it an indispensable, long-term asset for rigorous job sites worldwide.
This heavy duty 18 ton truck loader crane effortlessly handles up to 18,000kg of dense structural components, large manufacturing machinery, and concrete prefabricated modules. Featuring a robust 40 t·m lifting moment, the crane maintains absolute stability and prevents load sway even under maximum capacity conditions. This immense lifting power translates directly into fewer lifting cycles and faster material positioning, allowing construction teams to meet aggressive project deadlines without overworking the machinery.
Driven by a rated hydraulic pressure of 30MPa and a recommended 63 L/min flow rate, the system delivers highly responsive, fluid lifting actions that operators can feel through the precise control levers. The integrated 250L oil tank acts as a massive thermal buffer, extending continuous working hours and preventing the sluggish performance often caused by overheated hydraulic fluid. This thermal efficiency greatly reduces unexpected downtime on high-demand, round-the-clock construction sites.
Unrestricted 360° full slewing eliminates the frustrating need for frequent vehicle repositioning, saving valuable fuel and time. Furthermore, the multi-section folding boom design drastically expands the operational radius. This specialized articulation allows the crane arm to reach over obstacles and navigate through complex, space-restricted industrial environments, delivering pinpoint accuracy for high-altitude or long-distance material placement where rigid booms would fail.
Despite its massive lifting capabilities, this compact 18 ton truck mounted crane requires only a 1,700mm installation space and weighs 5,950kg. This optimized, compact structure fits seamlessly onto standard heavy-duty truck chassis, preserving the vehicle's payload capacity and ensuring strict road compliance. The intelligent layout also features strategically placed maintenance access points, making daily inspections and routine servicing remarkably straightforward and less labor-intensive for fleet mechanics.
Fabricated using fine-grained, high-strength tensile steel and assembled via fully automated robotic welding, the boom structure offers exceptional fatigue resistance against repetitive heavy loads. It integrates critical overload protection mechanisms, responsive hydraulic safety valves, and highly stable control systems. Strictly manufactured under ISO9001 and CE international standards, this lifting equipment has earned market trust globally, proven to deliver safe, reliable performance across the most punishing environmental conditions.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 18000Kg | Oil Tank Capacity | 250L |
Max Lifting Moment | 40 t·m | Slewing Angle | 360° |
Recommended Power | 40 KW | Stabilizer Spread | 7200±5mm |
Max Operating Pressure | 30MPa | Crane Weight | 6150kg |
Recommended Hydraulic Flow | 63 L/min | Required Installation Space | 1700mm |
This 18 ton remote control truck crane is widely deployed across demanding sectors where precision and heavy lifting are non-negotiable:
Infrastructure & Civil Engineering: Essential for bridge construction, road expansion projects, rail facility maintenance, and urban infrastructure development, where lifting heavy steel girders and concrete pillars safely is a daily requirement.
Industrial Machinery Installation: The folding boom excels at navigating the tight overhead spaces of factories and power plants, allowing crews to precisely position large production equipment, heavy power units, and delicate transformers without damaging surrounding structures.
Energy & Utility Projects: Highly effective for wind power component handling, power transmission tower assembly, and heavy pipeline installation projects across rugged, uneven terrain.
Port & Heavy Logistics: Streamlines the loading and unloading of heavy cargo, shipping containers, and oversized industrial equipment at busy logistics hubs and freight terminals, reducing turnaround times.
Emergency Recovery: Provides the rapid deployment and brute lifting force necessary for vehicle accident recovery, heavy equipment salvage, and critical disaster response operations.

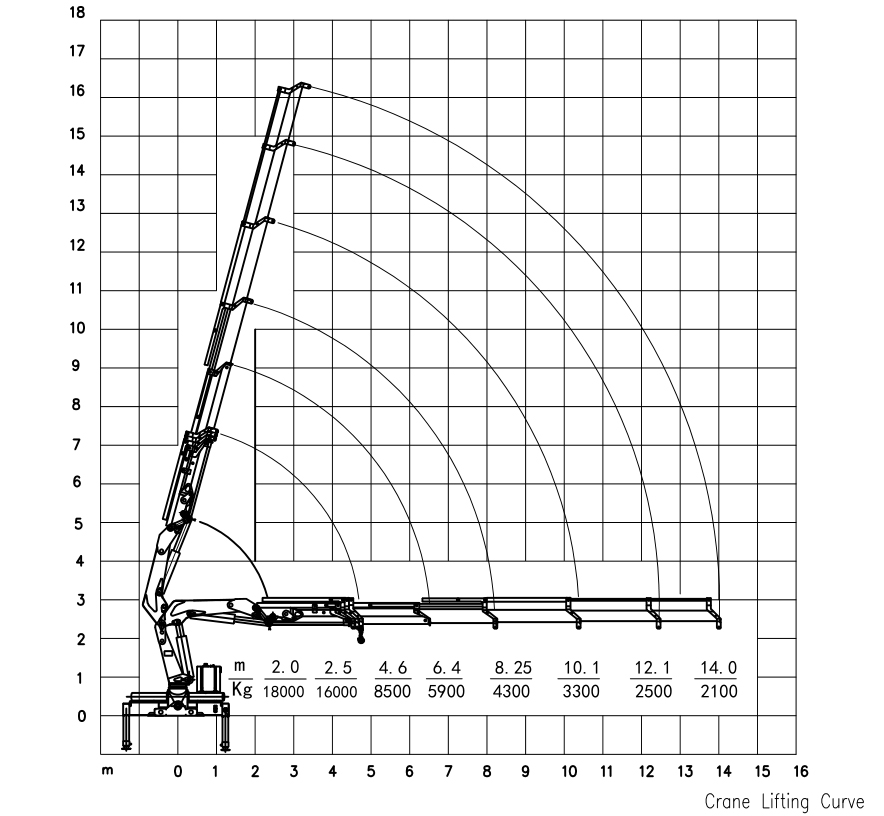

Prior to operation, always park the truck on firm, level ground and securely engage the parking brake. Complete a rigorous site inspection for ground stability, hidden obstacles, and overhead lines, maintaining a strict minimum 10-meter clearance from high-voltage electrical wires. Fully extend all outriggers with their respective support pads, confirming the chassis is perfectly level to eliminate tipping hazards during heavy lifts. Operators must strictly follow the provided load chart, never exceeding the rated capacity for the current boom radius and angle.
For long-term equipment health, establish a routine maintenance schedule to lubricate all pivot points and boom slides. Regularly inspect hydraulic oil levels, check hose integrity for micro-leaks, and tighten any loose structural bolts. To ensure maximum safety and operational efficiency, we provide comprehensive multi-language operator manuals and offer customized on-site or remote technical training for your crew. Furthermore, our established global supply network guarantees rapid delivery of original (OEM) spare parts, ensuring your equipment remains in peak condition throughout its entire lifecycle.
It is highly optimized for extreme heavy-duty applications, including massive infrastructure construction, complex industrial equipment installation, remote energy projects, and large-scale logistics handling. Its design specifically caters to projects requiring consistent, high-load lifting performance in environments where space may be restricted but power demands remain high.
This unit is engineered for integration with heavy-duty commercial truck chassis that possess sufficient payload capacity, reinforced frame strength, and adequate hydraulic power take-off (PTO) capabilities to safely support both its 5,950kg installation weight and the intense stress of 18,000kg lifting loads.
Yes, absolutely. Its high-power 30MPa hydraulic system, massive 250L large-capacity oil tank for superior cooling, and robotic-welded reinforced steel structure are purpose-built to endure continuous, heavy-duty operation in the most demanding and abrasive construction environments without suffering performance degradation.
We protect your investment with a standardized, long-term warranty policy backed by a comprehensive global service network. Users have access to a 24/7 technical support hotline, expert maintenance consultation, expedited international OEM spare parts delivery, and remote diagnostic assistance to minimize equipment downtime and maximize project profitability.
