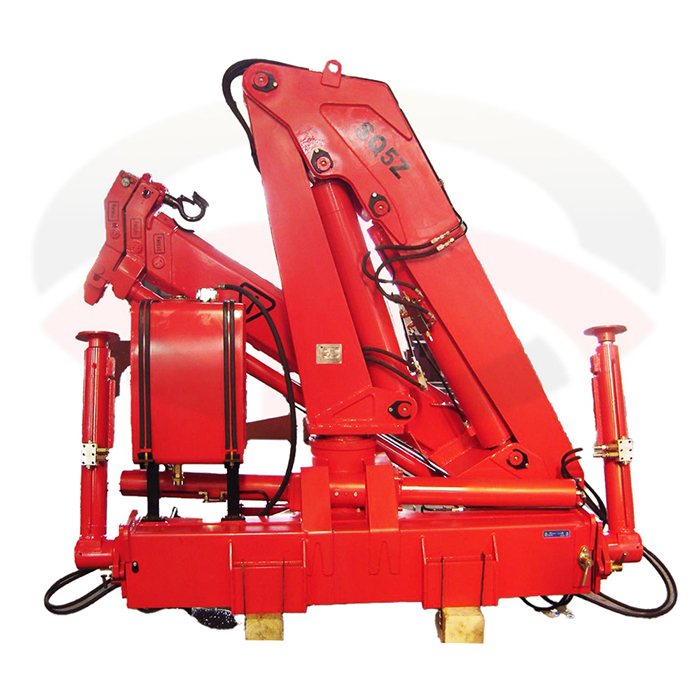

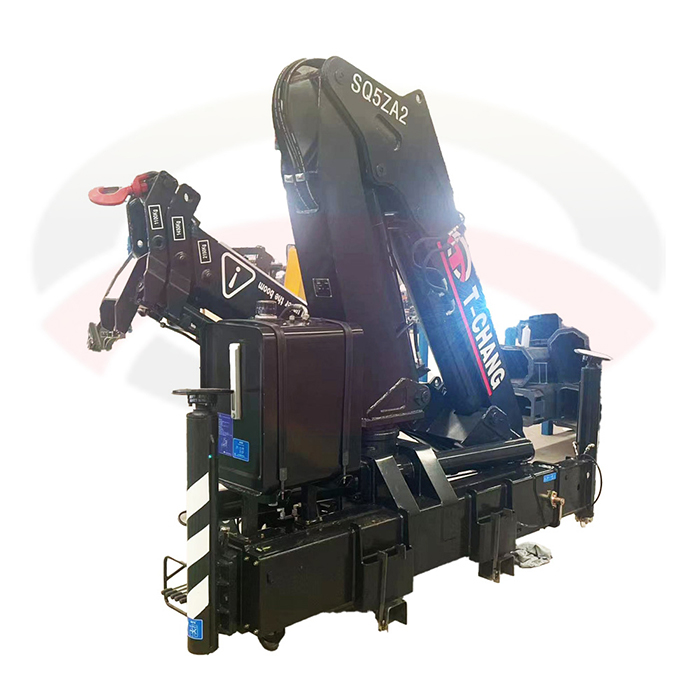

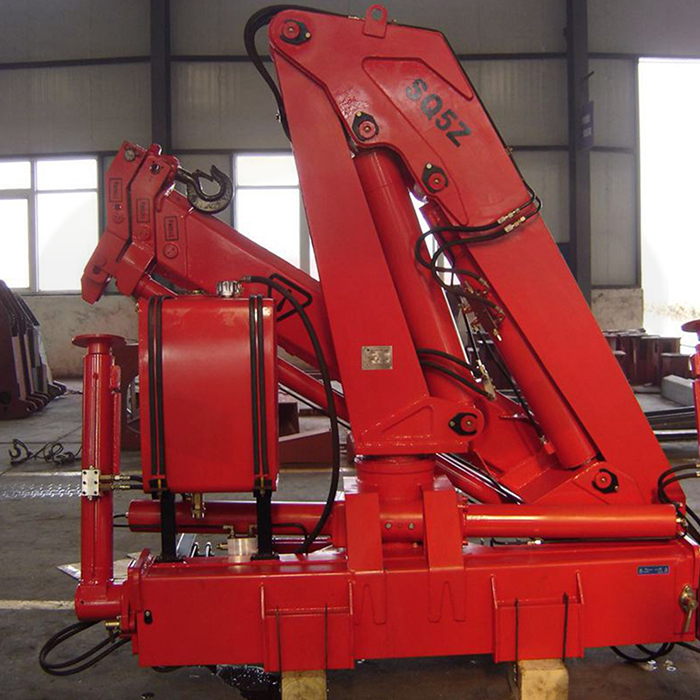

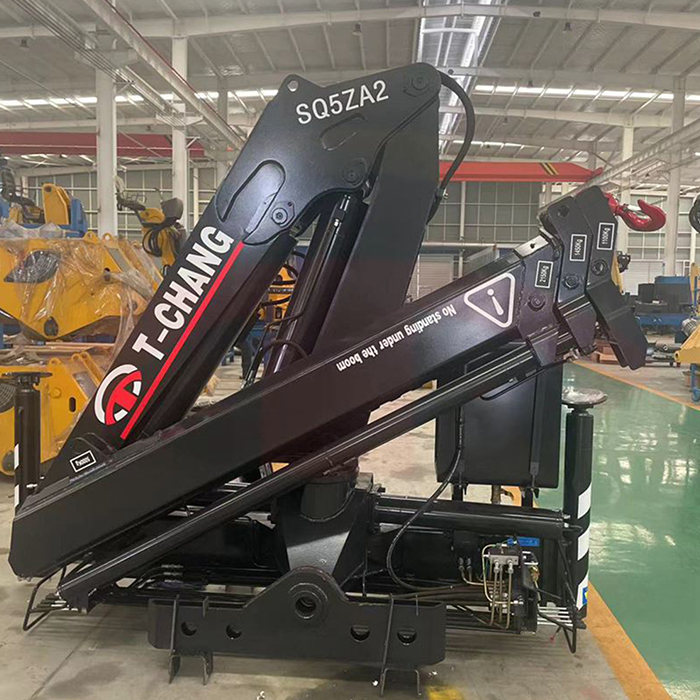

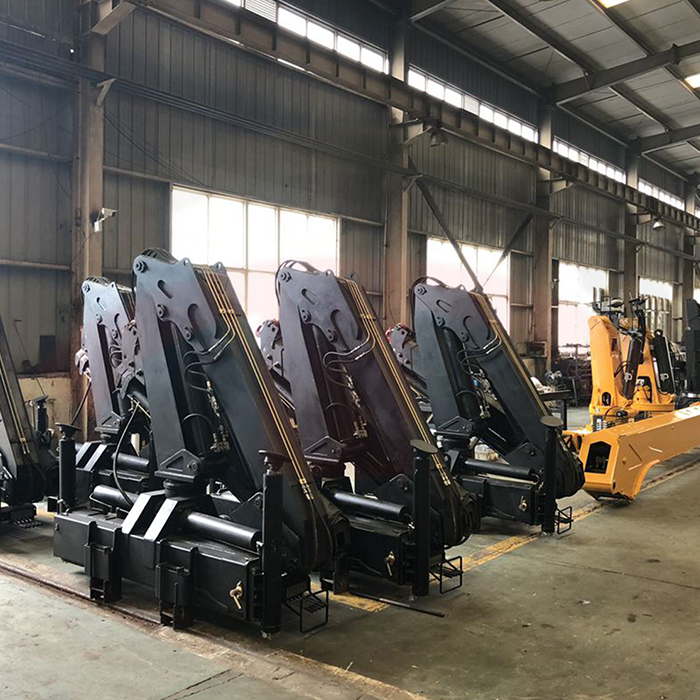

(SQZ105A.3) 5 ton truck crane

Model: SQZ105A.3

The SQZ105A.3 is a reinforced version of the 5-ton knuckle boom truck mounted crane series from Tengchang Construction Machinery, also referred to as a heavy-duty loader crane, folding arm crane, or articulated hydraulic truck crane. Maintaining the same 10 t.m lifting moment as the A.2 version, this model features enhanced structural strength and increased crane weight for improved stability during frequent or high-intensity operations. It is engineered for users who demand higher durability and long-term reliability in construction, industrial logistics, and equipment handling.

Availability:

Quantity:



Inquire Add to Basket

truck mounted crane 5 ton knuckle boom crane hydraulic truck crane compact truck crane heavy duty truck crane

Product Description

Product Description Safety Related Products

Product Description

|

Product Advantage

1. Reinforced Structure for Intensive Use
With an increased crane weight of 2,100 kg, the SQZ105A.3 provides enhanced stability and fatigue resistance, making it suitable for high-frequency daily lifting tasks.

2. Consistent 5-Ton Lifting Capacity
The crane maintains a strong 5,000 kg lifting capability with excellent load control, ensuring safety and efficiency across various working conditions.

3. Reliable Hydraulic Power Matching
The 20 kW recommended power and optimized oil flow ensure smooth operation while reducing hydraulic stress and energy loss.

4. 400° Slewing for Efficient Workflow
The wide slewing angle allows flexible material handling without frequent truck movement, improving job site productivity.

5. Manufacturer-Level Quality Assurance
Backed by Tengchang Construction Machinery, the crane benefits from standardized production, strict inspection, and professional technical support.

|

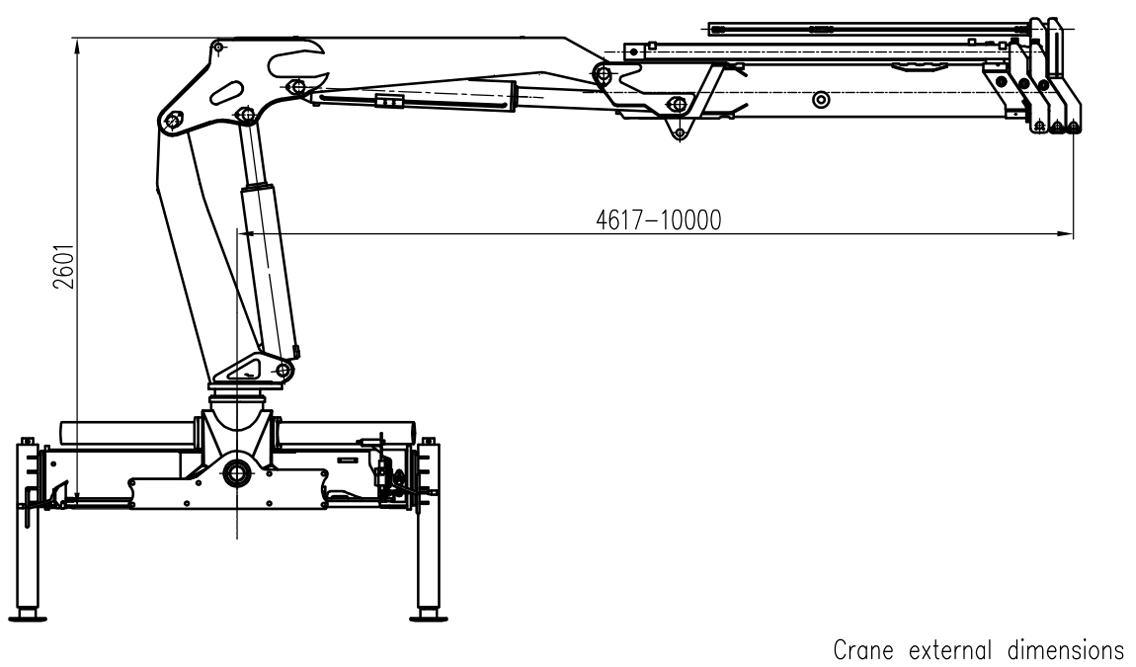

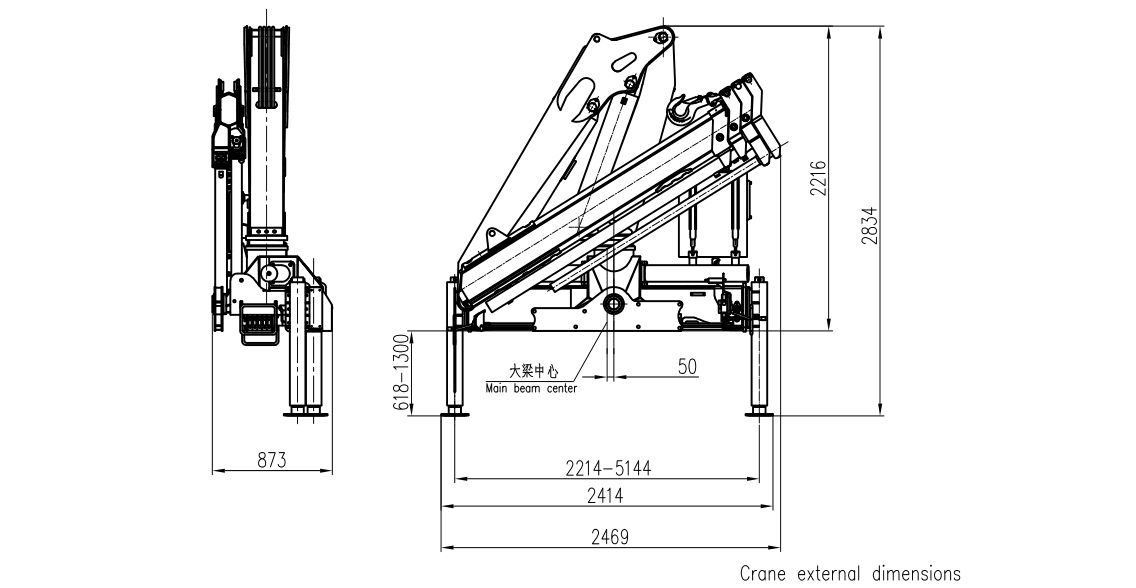

Technical Parameters

Crane main technical parameters

Maximun lifting weight	5000Kg	Oil tank capacity	100L
Max lifting movement.	10.0 t.m	Slewing angle	400°
Recommended power	20KW	Hydraulic crane weight	2100kg
Recommended hydraulic flow	40 L/min	Installation space	1070mm
Rated hydraulic pressure	28MPa

|

Product Uses

1. Industrial Equipment Handling
Ideal for lifting motors, pumps, compressors, and industrial assemblies in factories, workshops, and maintenance sites.

2. Construction and Infrastructure Transport
Commonly used for transporting and placing heavy building materials on bridges, roads, and urban construction projects.

3. Fleet and Rental Operations
Well-suited for crane rental companies requiring durable, low-maintenance equipment with stable long-term performance.

4. Energy and Utility Services
Applied in power, water, and communication infrastructure projects where precise lifting is essential.

|

FAQ

1. How does SQZ105A.3 differ from SQZ105A.2?

A: SQZ105A.3 features a reinforced structure and higher self-weight for improved stability and durability.

2. Can Tengchang provide OEM services?

A: Yes, OEM branding, color customization, and configuration adjustments are supported.

3. Is the crane suitable for continuous operation?

A: Yes, it is designed for frequent and long-duration use under demanding conditions.

4. What certifications does the crane comply with?

A: Manufactured under ISO9001 quality management standards.

Truck-Mounted Crane Safety & Operation Guide

Ensuring operator and crew Safety with proper handling.

Boom Positioning & Load Alignmen

Rotate the crane to align the boom over the load.

Adjust boom height and telescopic extension to position the hook correctly.

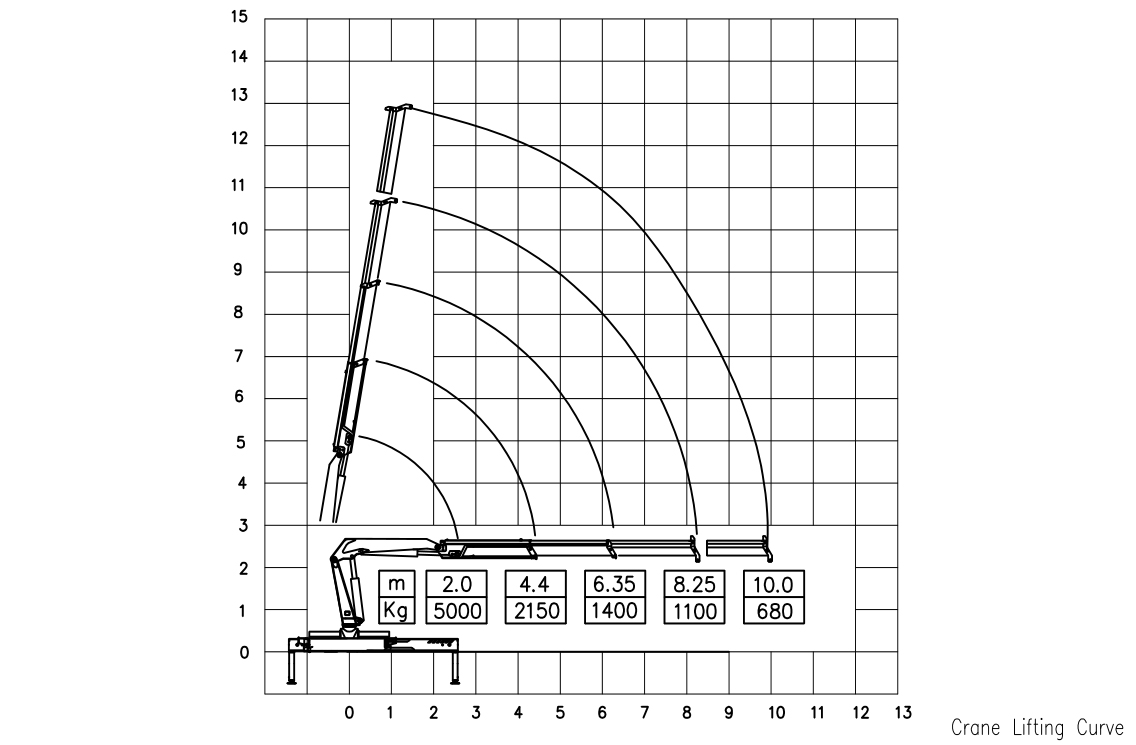

Safety Tip: Follow the load chart and ensure lifting weight is within allowed limits for current boom radius and angle.
Crane Extension Preparation

Sit at operator seat and slowly operate boom angle handles to extend the main boom and telescopic sections.

Move one handle at a time.

Safety Tip: Never operate multiple boom handles simultaneously. Keep boom path clear of personnel.
Outrigger Setup

Unlock outriggers and extend main and auxiliary outriggers fully.

Place support pads under each outrigger on soft ground.

Safety Tip: Ensure the truck is level. Incomplete extension may lead to tipping hazards.
Engaging Power Take-Off (PTO)

Ensure truck gear is in neutral and PTO switch is off.

Start engine and wait for safe air pressure levels.

Engage PTO slowly to drive the hydraulic crane system.

Safety Tip: Confirm all control levers are neutral before operation. Improper PTO engagement can damage hydraulic components.
Pre-Operation Site Check

Park the truck on firm, level ground. Engage the parking brake.

Inspect the surrounding area for obstacles, overhead lines, or unstable surfaces.

Confirm the load is within crane rated capacity and lifting height limits.

Safety Tip: Never operate on soft or sloped surfaces. Maintain at least 10 meters distance from high-voltage lines.

Post-Operation Maintenance

Lubricate pivot points, boom slides, and hydraulic cylinder pins

Check hydraulic oil levels, inspect hoses, and tighten bolts

Safety Tip: Only trained personnel should perform hydraulic maintenance. Replace worn parts immediately.
Crane Retraction & Stowage

Retract telescopic sections and fold boom sequentially.

Rotate crane to stowed position and fully retract outriggers

Safety Tip: Follow reverse order of extension to protect hydraulic cylinders and boom sections.
Lowering & Load Placement

Lower the load carefully to the designated position.

Detach slings and cables only when load is stable and personnel are clear.

Safety Tip: Never leave a suspended load unattended. Avoid sudden lowering.
Rotating with Load

Rotate the crane slowly to move the load

Monitor outrigger stability and crane tipping indicators.

Safety Tip: Do not extend the working radius while rotating a loaded boom. Keep movements smooth.
Lifting Operation

Lift the load slowly and steadily. Avoid sudden movements or swinging.

Monitor vehicle stability and outrigger pressure during the lift.

Safety Tip: Never exceed rated capacity. Avoid lifting loads over personnel.
