Designed for professional heavy-lifting contractors, industrial project operators and large-scale construction service providers, the 16 ton folding crane SQZ350A.7 is a heavy-duty hydraulic knuckle boom truck mounted crane built for high-load, long-cycle lifting operations. With a 16000kg maximum lifting weight, 35 t.m rated lifting moment, 30MPa high-pressure hydraulic system and full 360° continuous slewing, this model balances uncompromised lifting power, stable performance and installation flexibility, making it a dependable solution for professional lifting tasks worldwide.
Delivering 16000kg maximum lifting weight and 35 t.m rated lifting moment, this crane is engineered for heavy materials including steel structures, large machinery, precast components and oversized equipment, perfectly matching the needs of contractors handling complex high-load lifting tasks.
With a 30MPa rated hydraulic pressure, 63 L/min recommended flow and 35KW hydraulic power unit, paired with a 200L large-capacity oil tank, it delivers powerful yet smooth lifting performance, supports long-duty cycles, minimizes downtime and maximizes jobsite productivity.
The reinforced folding boom optimizes load distribution and reduces operational stress, while full 360° slewing enables precise heavy-load positioning. With only 1500mm required installation space and 5800kg net weight, it is compatible with heavy-duty truck chassis, balancing lifting power and on-road practicality.
Built with industrial-grade materials and precision manufacturing, it integrates overload protection, hydraulic safety systems and smooth control mechanisms. Manufactured under ISO9001 standards, it ensures safe operation in harsh working conditions and extends equipment service life.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 16000kg | Oil Tank Capacity | 200L |
Maximum Lifting Moment | 35 t.m | Slewing Angle | 360° |

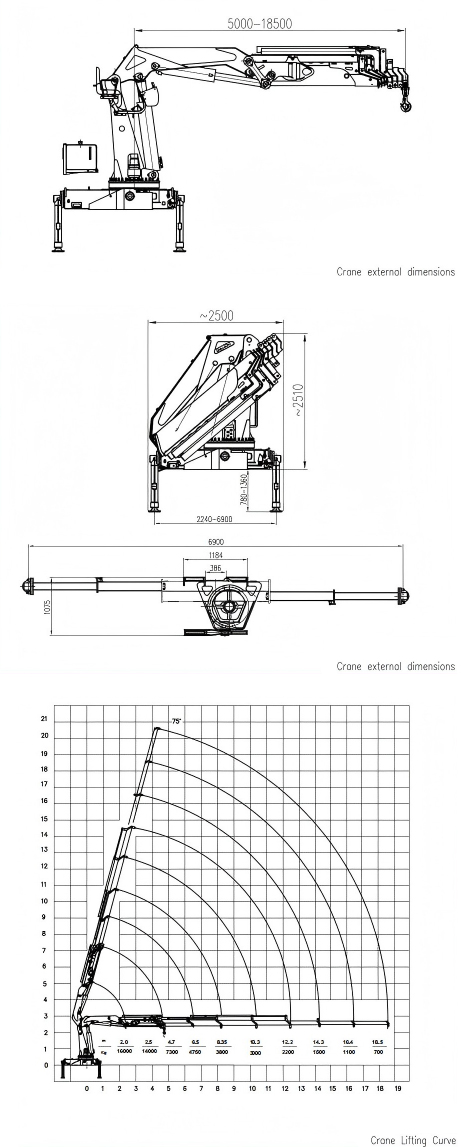

Maximum Working Range | 18.5m | Stabilizer Spread | 6900mm |
Rated Hydraulic Pressure | 30MPa | Crane Net Weight | 5800kg |
Recommended Hydraulic Flow | 63 L/min | Required Installation Space | 1500mm |
This heavy-duty hydraulic knuckle boom crane is widely used in heavy construction and structural engineering for lifting steel frameworks and bridge components; industrial installation and plant maintenance for heavy equipment and transformer setup; infrastructure and civil works for road, bridge and railway projects; logistics and port operations for oversized cargo handling; and emergency recovery and disaster relief operations requiring reliable high-power lifting.
For safe operation of this industrial lifting folding crane, follow standardized protocols: pre-operation checks include parking on firm level ground, engaging the parking brake, inspecting for obstacles and high-voltage lines, and confirming load limits. Fully extend outriggers with support pads to keep the truck level. Operate only one control lever at a time, strictly follow the load chart, and never overload. Post-operation, retract the boom and outriggers in reverse extension order, regularly lubricate pivot points, check hydraulic oil levels and hose integrity, and only allow trained personnel to perform hydraulic maintenance.
This 16 ton folding boom crane features a higher 35 t.m lifting moment, 30MPa high-pressure hydraulic system and 200L large oil tank, ensuring stable non-stop performance for intensive heavy-duty applications with minimal downtime.
It fits heavy-duty truck chassis with sufficient payload capacity, frame strength and hydraulic output to support its 5800kg net weight. We provide full installation guidance and engineering support for chassis integration.
Yes, we offer customized configurations including control systems, hydraulic components and project-specific attachments to meet unique operational requirements.
All cranes are manufactured under strict ISO9001 quality management systems, with full inspections throughout design, manufacturing and final testing to ensure consistent quality and long-term reliability.
