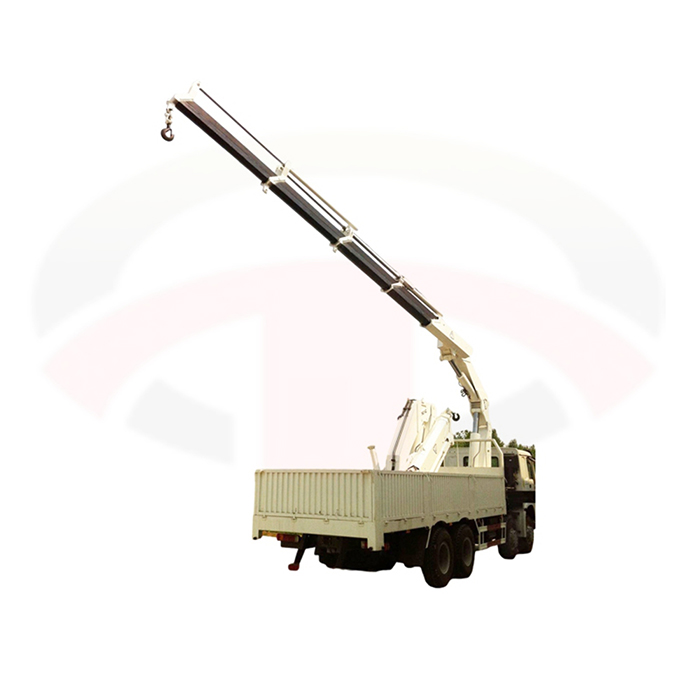

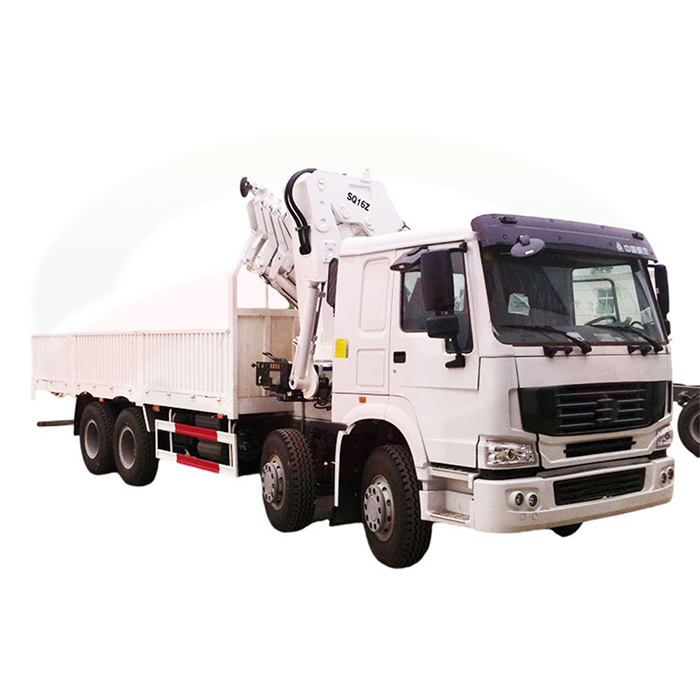

Built for professional construction contractors, industrial equipment installers, municipal engineering teams and logistics service providers, the 16 ton knuckle boom crane SQZ350A.4 is a heavy-duty hydraulic articulated truck mounted crane optimized for versatile, high-efficiency lifting. With a 16000kg rated lifting capacity, 30 t.m lifting moment and full 360° slewing capability, this model excels in tight-space operations, continuous industrial lifting and mid-to-heavy construction tasks, delivering superior fatigue resistance and precise load control for diverse commercial lifting applications.
Boasting 16 ton maximum lifting capacity and 30 t.m rated lifting moment, this crane is optimized for heavy steel beams, precast concrete modules, industrial machinery and oversized cargo. Its reinforced boom and base structure deliver exceptional stability even under high-stress, continuous lifting cycles.
Powered by a 35kW recommended power unit, with 28MPa rated hydraulic pressure and 60 L/min optimized hydraulic flow, the system ensures smooth operation, fast response and ultra-precise load control. The 180L oil tank supports consistent performance during extended daily operations, reducing maintenance frequency and improving on-site productivity.
The continuous 360° slewing design enables safe, efficient material handling around the entire truck without repositioning, a critical advantage for crowded construction sites, narrow urban work zones and compact industrial yards.
Built with thicker high-strength steel, advanced welding technology and optimized boom geometry, this articulated truck loader crane offers superior vibration damping, fatigue resistance and structural longevity compared to standard market models, minimizing operational risks and long-term ownership costs.
Manufactured in strict compliance with ISO9001 quality management standards, every unit undergoes multi-stage inspections during design, fabrication and final testing, ensuring uniform quality and reliable performance for long-term use.

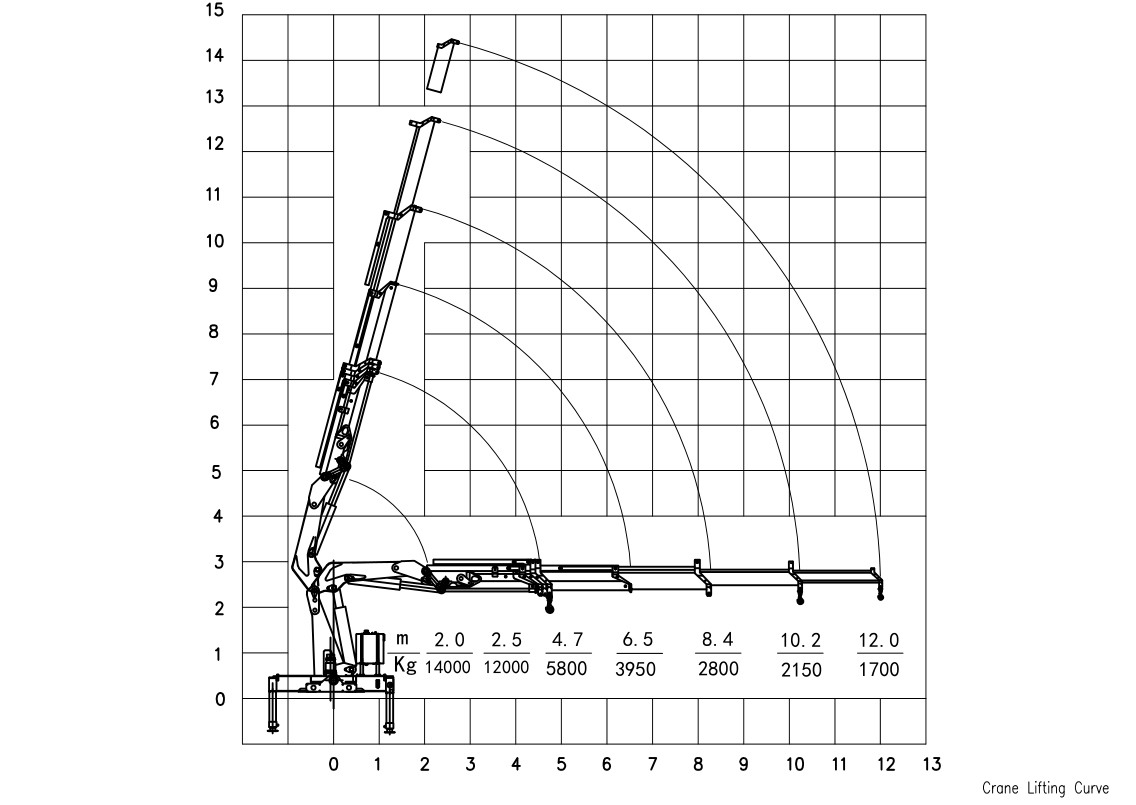

Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 14000kg | Oil Tank Capacity | 180L |
Maximum Lifting Moment | 30 t.m | Slewing Angle | 360° |

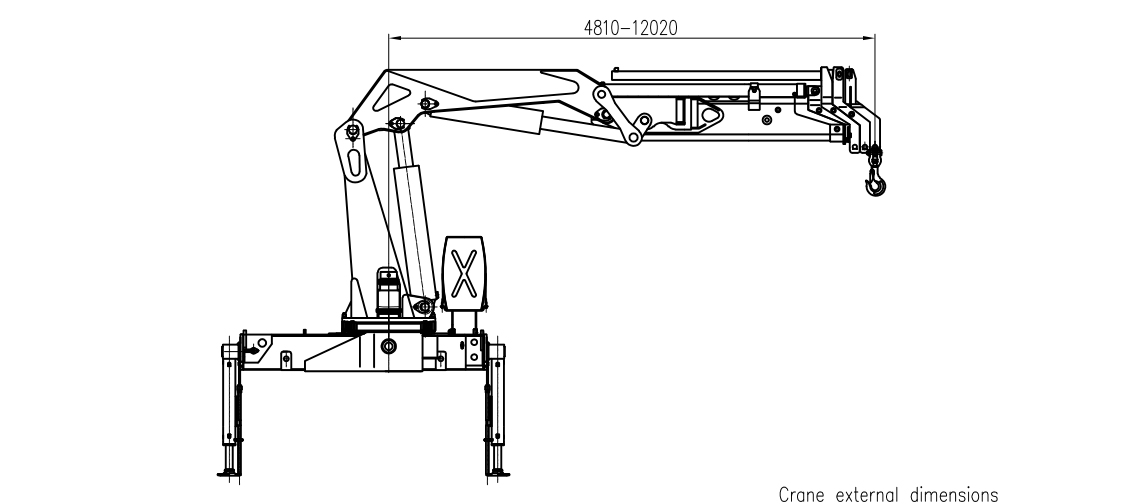

Maximum Working Range | 12.02m | Crane Net Weight | 4450kg |

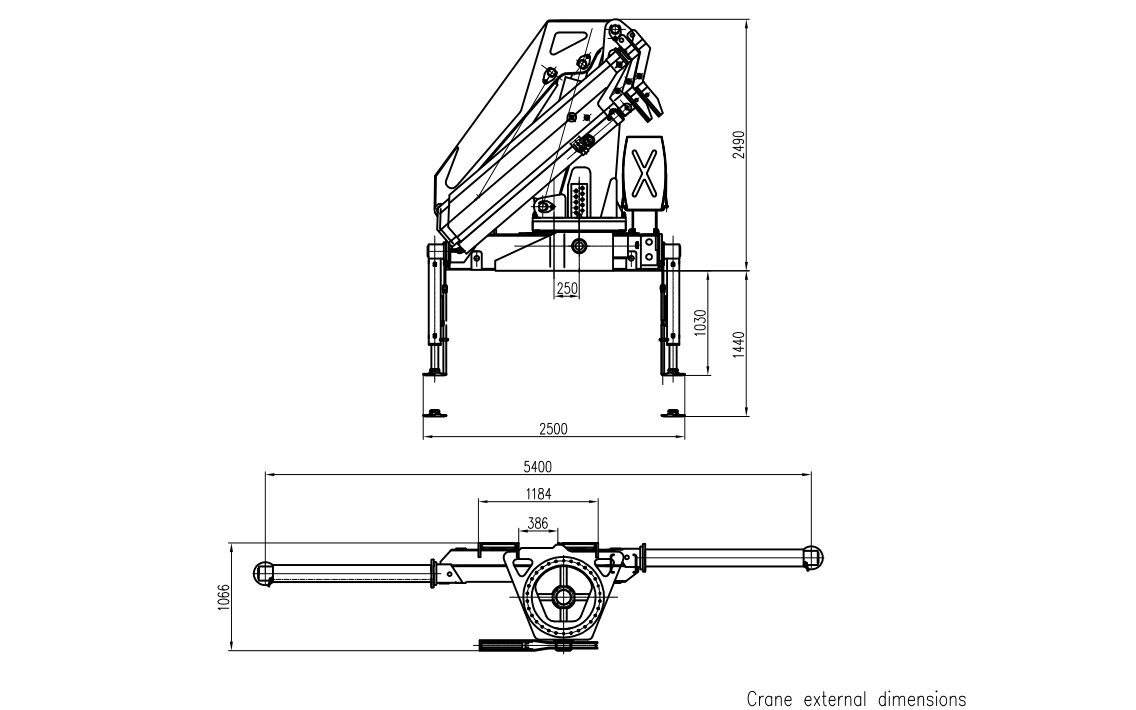

Rated Hydraulic Pressure | 28MPa | Required Installation Space | 1300mm |
Recommended Hydraulic Flow | 60 L/min | Recommended Power | 35kW |
This hydraulic folding boom crane for construction is widely deployed in infrastructure and municipal urban engineering for road and bridge maintenance in tight urban spaces; industrial equipment installation and plant maintenance for precision setup of production machinery and transformers; logistics and port cargo handling for oversized freight turnover; energy and utility projects for wind turbine and substation component installation; and tight-space urban construction for high-rise material lifting where traditional straight boom cranes cannot operate.
For safe operation of this 16 ton knuckle boom truck mounted crane, all operators must follow standardized protocols: pre-operation checks include parking on firm level ground, engaging the parking brake, maintaining a minimum 10m distance from high-voltage lines, and confirming load limits match the current boom radius and angle. Fully extend outriggers with proper support pads to ensure a level vehicle stance. During operation, only one control lever may be used at a time; simultaneous multi-lever operation is strictly prohibited. Never exceed rated capacity or lift loads over personnel. Post-operation, retract the boom and outriggers in reverse extension order, perform regular lubrication of pivot points, check hydraulic oil levels, and only allow trained professionals to conduct hydraulic system maintenance.
This compact articulated boom crane features a 1300mm minimal installation space and full 360° slewing, delivering exceptional maneuverability in narrow work zones where traditional cranes cannot operate efficiently.
Yes, its optimized hydraulic system, reinforced high-strength steel structure and fatigue-resistant design ensure stable, consistent performance during intensive, continuous industrial lifting operations.
We offer comprehensive after-sales service including full installation guidance, technical support, genuine spare parts supply, maintenance training and global service assistance for all our crane models.
It is compatible with medium-to-heavy duty trucks that meet structural strength, payload capacity and hydraulic output requirements. Our engineering team provides full technical drawings and integration support for seamless chassis installation.
