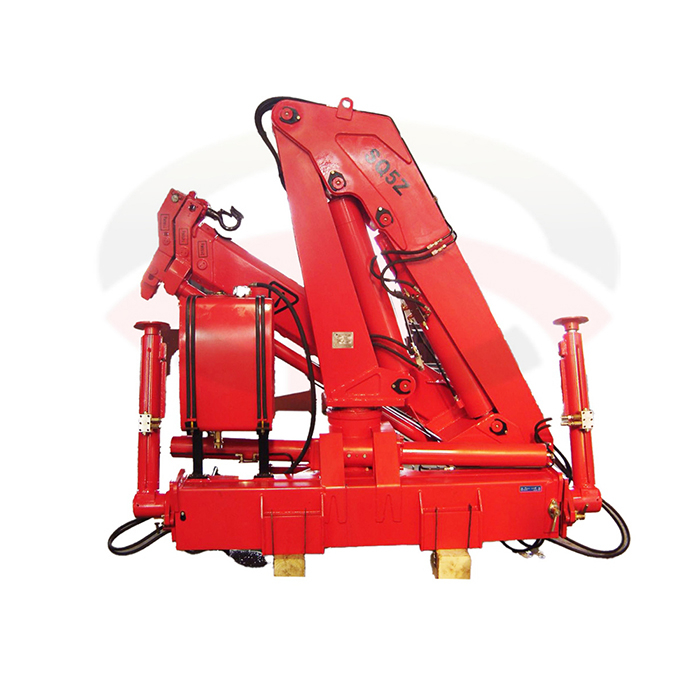

The SQZ105B.3 5 ton knuckle boom truck mounted crane serves as a highly capable, compact lifting asset engineered for precision-driven material handling across commercial and urban environments. Designed to maximize operational efficiency, this 5 ton hydraulic loader crane provides a 5,000kg maximum lifting capacity alongside a 10 t·m lifting moment. Driven by a dependable 30KW power system, operators achieve smooth, continuous 360° slewing for exact load placement. Weighing just 2,100kg and requiring a mere 1,050mm of installation space, this compact 5 ton truck mounted crane integrates easily onto various vehicle frames. Manufactured under strict ISO quality management systems and CE safety certifications, it stands as a fully compliant, reliable lifting solution for transport fleets, municipal crews, and industrial facilities worldwide.
This small 5 ton truck crane for transport is driven by a 30KW high-output power system, delivering exceptional hydraulic force for demanding lifts. We utilize premium-grade hydraulic pumps, multi-way valves, and imported sealing components. This configuration ensures fluid, jerk-free boom movements and exceptional micro-control during delicate positioning tasks. The upgraded seals provide long-term resistance against oil leaks, even under continuous heavy loads, while the ultra-compact footprint allows direct integration onto light and medium truck chassis for narrow-space operations.
Navigating complex, space-restricted environments requires absolute control. The full 360° slewing mechanism allows operators to position loads with pinpoint accuracy. You can hear the quiet, consistent hum of the slewing drive as it rotates smoothly without hesitation. This precise rotational capability significantly reduces the time needed to align materials, improving daily operational efficiency for indoor factory equipment installations and narrow-street municipal repairs where maneuvering room is strictly limited.
The core boom and primary load-bearing components are constructed from high-yield strength steel, ensuring excellent structural stability. Through robotic precision welding, the seams are uniform and deeply penetrated, offering outstanding fatigue resistance during frequent, intensive daily operations. The exterior is finished with a multi-layer anti-corrosion baking paint process, giving the crane a smooth, durable surface that actively resists rust and environmental degradation in harsh weather conditions. Despite this heavy-duty build, the unit maintains a manageable 2,100kg self-weight.

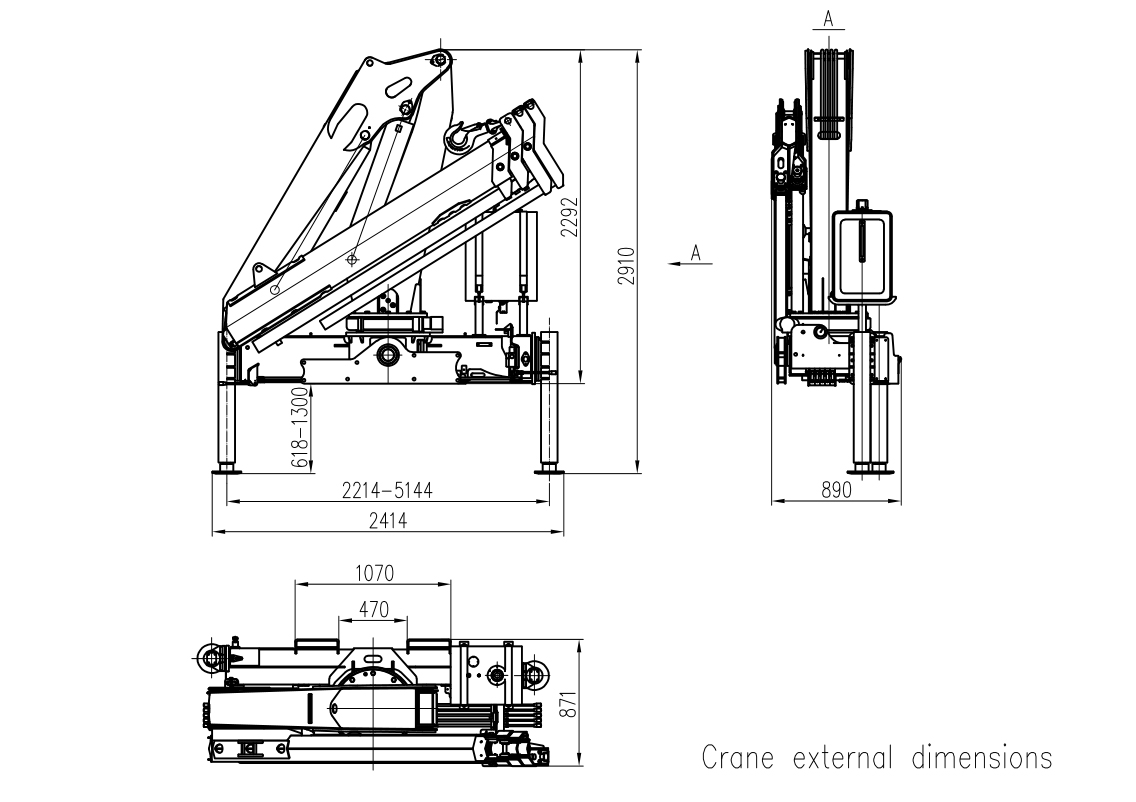

Fleet managers often face challenges when matching lifting equipment to existing vehicles. Requiring only 1,050mm of installation space along the frame, this 5 ton knuckle boom crane for commercial use is highly compatible with most mainstream light and medium truck chassis. This minimal footprint preserves valuable cargo space on the flatbed, reducing the need for expensive structural modifications and drastically cutting down deployment time for new fleet additions.
Beyond standard lever operations, buyers can configure the crane with optional remote control and proportional control systems to match specific site requirements. Furthermore, the boom tip is designed to readily accept various specialized attachments. Operators can easily swap out standard hooks for grabs, clamps, or aerial work baskets, transforming the crane into a multi-functional tool suitable for diverse commercial applications. Buyers can also request custom exterior color schemes to match corporate fleet branding.
Core Parameter | Specification | Core Parameter | Specification |
Maximum Lifting Weight | 5000Kg | Oil Tank Capacity | 100L |
Max Lifting Moment | 10 t·m | Slewing Angle | 360° |
Recommended Power | 30 KW | Crane Weight | 2100kg |
Rated Hydraulic Pressure | 28MPa | Required Installation Space | 1050mm |
Recommended Hydraulic Flow | 40 L/min | Max Slewing Pressure | ≤20MPa |
This 5 ton truck crane for industrial use is engineered to solve complex material handling challenges across multiple sectors:
Municipal Maintenance & Small-Scale Construction: Perfect for urban road maintenance, landscape engineering, and small building construction. The compact slewing radius allows crews to operate safely within narrow urban spaces without disrupting adjacent traffic lanes.
Industrial Logistics & Factory Operations: Highly effective for heavy machinery handling, production line equipment installation, and bulk cargo loading in factories. The precise hydraulic micro-control ensures sensitive equipment is placed gently, without jarring impacts.
Utility & Power Installation: Frequently deployed for transformer installation, street lamp maintenance, and small-scale power grid construction projects. The optional aerial basket attachment makes it a versatile tool for overhead line workers.
Specialized Transport & Equipment Handling: Provides reliable loading and unloading capabilities for oversized, high-value equipment. Transport companies rely on the crane's stability to secure loads quickly, minimizing downtime between deliveries.
Urban Emergency Repair: Enables quick-response emergency maintenance for municipal facilities, water supply, and drainage systems. The fast deployment of the outriggers and rapid boom extension means crews can address critical infrastructure failures immediately.
Factory-certified safety begins before the equipment ever reaches your facility. Every crane undergoes rigorous factory testing, including overload lifting trials, hydraulic system pressure retention tests, and full-machine fatigue assessments to guarantee absolute safety under continuous, high-intensity workloads. Before daily operation, operators must complete a full visual and physical inspection of the crane structure, hydraulic hoses, and control systems. Confirm all control levers rest securely in the neutral position before engaging the PTO. When working in narrow spaces, fully extend the outriggers and place appropriate support pads on the ground. Ensure the truck chassis is perfectly level to prevent stability risks during horizontal boom extension. Operators should avoid moving multiple boom handles simultaneously unless fully experienced, and always keep the boom's swing path entirely clear of ground personnel. For routine maintenance, establish a schedule to regularly lubricate all pivot points, verify hydraulic oil levels, and promptly replace any worn sealing components. Maintaining clean hydraulic fluid is critical to extending the service life of the multi-way valves and ensuring the boom continues to glide silently and smoothly.
This model provides a superior 30KW power output and a reinforced high-yield steel structural design. The integration of premium multi-way valves ensures enhanced control precision and completely eliminates the jerky movements often found in basic entry-level cranes. It is specifically engineered for demanding commercial operations that require continuous, heavy-duty lifting without overheating or structural fatigue.
Yes, optional remote control and proportional control systems can be configured according to your specific operational needs, allowing the operator to maintain a safe distance while retaining full visual oversight of the load. Additionally, the crane supports various attachments, including grabs, clamps, and aerial work baskets, making it a highly adaptable tool for multiple industries.
Thanks to its 1,050mm ultra-compact installation footprint and manageable 2,100kg self-weight, it is compatible with most light and medium truck chassis that possess sufficient frame strength and payload capacity. This minimal space requirement preserves your truck's flatbed area, maximizing the volume of cargo you can transport alongside the lifting equipment.
We provide comprehensive solutions for global procurement. Each crane receives professional anti-rust and moisture-proof packaging, with dismantling and fastening plans optimized for standard ocean shipping containers to minimize transit damage and freight costs. Post-delivery, we offer extended warranty commitments on core components, a rapid global spare parts supply network, and 24/7 remote technical guidance to ensure your equipment remains operational year-round.
