The Q160LA2 2.2 ton log crane with integrated grapple is a purpose-built, heavy-duty timber handling solution engineered for professional forestry contractors, timber yard operators, and large-scale wood processing facilities. Designed to excel in rugged, unyielding logging environments, this forestry log grapple crane delivers exceptional lifting power combined with precise grapple control. With a maximum lifting capacity of 2,200 kg (grapple included) and a rated lifting moment of 16 t·m, it provides the brute strength needed to move massive timber payloads efficiently. One of its most compelling attributes is its structural adaptability; requiring only a compact 1,000 mm installation footprint, it integrates directly with heavy trucks, specialized forestry trailers, and stationary platforms. By connecting efficiently to the host vehicle's Power Take-Off (PTO) and hydraulic systems, it transforms standard transport vehicles into highly capable timber loading powerhouses. The solid, tactile feel of the reinforced steel construction and the steady mechanical rhythm of its optimized hydraulic flow communicate immediate reliability to operators facing demanding daily quotas, making it a versatile workhorse for both in-forest logging and industrial timber yard operations.
At the heart of this timber handling truck mounted crane is its integrated high-torque hydraulic grapple, paired with a 2.2 t maximum load capacity and 16 t·m lifting moment. This configuration allows operators to safely grip, lift, and transport even irregularly shaped large logs and dense timber bundles with unmatched efficiency. The jaw geometry is specifically engineered to bite into rough bark and wet wood without slipping, ensuring a secure hold during rapid transit. Every movement feels deliberate and controlled, minimizing the risk of dropped loads in active work zones and accelerating the overall loading cycle.
Equipped with a powerful 32 kW hydraulic system delivering an 80 L/min flow at a 28 MPa rated pressure, this hydraulic forestry log loader crane ensures smooth, responsive grapple and boom operations. This large-flow capacity translates to rapid cycle times and eliminates sluggish movements, enabling precise load control in dense woodlots and tight working spaces. Operators will notice the immediate, fluid response of the controls, allowing for zero-dead-angle positioning and exact placement of heavy logs onto transport beds without jarring or hesitation.
The industry-leading 380° slewing design delivers extended rotational flexibility, allowing operators to position logs efficiently across a wide working radius without constantly repositioning the host vehicle. This extended arc drastically improves productivity for 380° rotation logging crane applications, especially on narrow forest roads where vehicle maneuvering is heavily restricted. The slewing mechanism operates with a quiet, continuous hum, reflecting the precision engineering of the internal gears and bearings designed to handle constant rotational stress.
Fabricated with reinforced high-strength steel and utilizing precision welding techniques, the crane body delivers exceptional impact resistance and fatigue durability, with a total weight of 2,700 kg. Built to withstand the rigors of daily forestry operations—where equipment is constantly battered by falling branches and extreme weather—it features integrated overload protection and reinforced boom components. Furthermore, every unit is manufactured strictly under the ISO9001 quality management system and undergoes rigorous hydraulic and structural load testing before leaving the factory, guaranteeing long-term reliability under intense workloads.
Parameter | Specification |
Maximum Lifting Weight (grapple included) | 2,200 kg |
Rated Lifting Moment | 16 t·m |
Recommended Power | 32 kW |
Rated Hydraulic Pressure | 28 MPa |
Recommended Hydraulic Flow | 80 L/min |
Slewing Angle | 380° |
Crane Weight | 2,700 kg |
Required Installation Space | 1,000 mm |
Oil Tank Capacity | 260 L |
This log crane for truck mounting is tailored for a wide range of commercial timber handling applications. To maximize operational efficiency, it serves multiple critical roles across the wood supply chain:
Commercial Forestry & Logging Operations: Ideal for in-forest log sorting, rapid transport loading, and clearing felled timber from uneven terrain directly at the harvesting site.
Industrial Timber Yard Management: Streamlines lumber stacking, freight handling, and inventory organization, significantly reducing manual labor requirements and yard congestion.
Wood Processing Facilities: Accelerates the movement of raw logs into the mill and facilitates the organized transport of finished lumber outward to distribution channels.
Port & Cargo Timber Handling: Provides the heavy lifting capacity required for bulk wood product loading and unloading onto cargo vessels or freight trains with precise placement.
By adapting to these varied environments, the crane significantly reduces the need for secondary handling equipment, thereby lowering operational costs and accelerating project timelines for forestry enterprises.

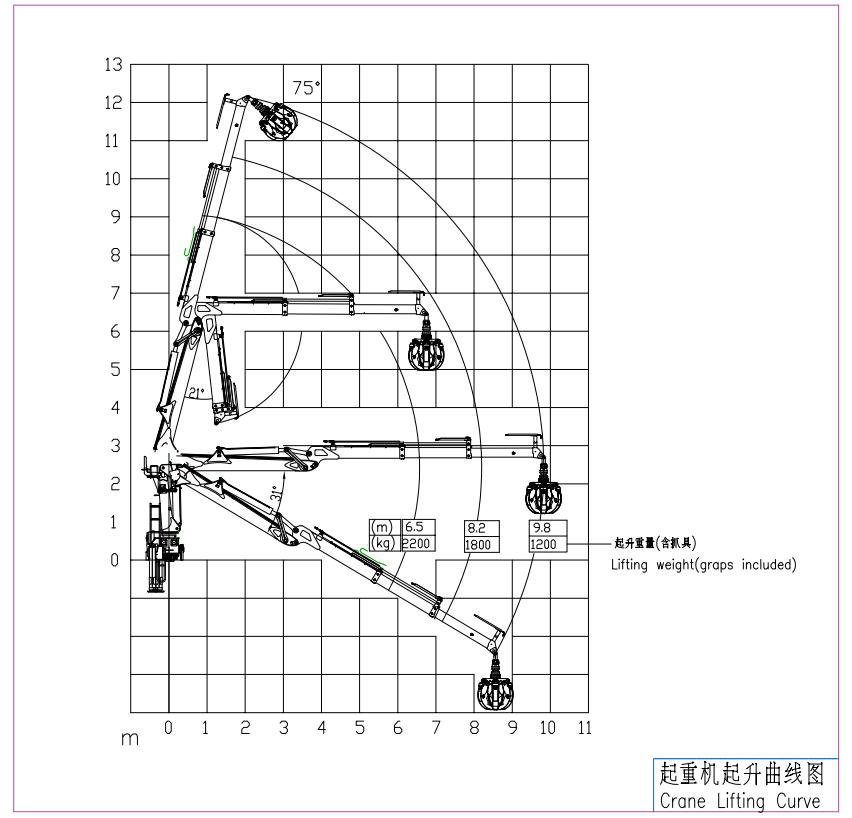

Prior to operation, park the host vehicle on firm, level ground, engage the parking brake, and fully extend all outriggers with appropriate support pads for maximum stability in uneven forest terrain. The Q160LA2 is engineered with core safety protection mechanisms, including hydraulic safety valves, emergency braking functions, and active outrigger stability monitoring. Always inspect the grapple and boom for damage before use, and strictly follow the official load chart, never exceeding the rated capacity for the current boom radius and angle. Maintain clear visibility of the working area at all times, keeping personnel clear of the boom and load path to prevent accidents during heavy lifting phases.
To ensure long-term performance and safety in harsh forestry conditions, conduct full inspections of hydraulic oil, filters, hoses, and grapple components every 500 operational hours. Regularly lubricate pivot points, boom slides, and hydraulic cylinder pins to maintain the smooth, quiet operation of the mechanical joints. Operators should also perform daily visual walk-arounds, checking for any hydraulic fluid weeping or unusual wear on the grapple teeth. Replace worn or damaged components immediately to prevent cascading failures. All maintenance should be performed by trained professional personnel, utilizing genuine replacement parts to preserve the equipment's structural integrity and operational warranty.
This crane is highly adaptable, compatible with heavy trucks, specialized trailers, and stationary platforms that provide a compact 1,000 mm installation space and sufficient payload capacity. It integrates directly with the vehicle's PTO and hydraulic systems to support the crane's 2,700 kg weight and maximum load.
Yes, the high-torque hydraulic grapple is specifically engineered to safely grip and handle irregularly shaped, heavy timber loads of varying sizes. The combination of the 80 L/min hydraulic flow and precision controls ensures a firm, non-slip hold on rough or wet bark.
The Q160LA2 comes equipped with comprehensive safety mechanisms, including integrated overload protection, hydraulic safety valves, emergency stop functions, and outrigger stability monitoring. These features work together to ensure maximum operator safety across complex forestry terrains.
Yes, we provide complete global after-sales support, including rapid worldwide spare parts supply, remote technical guidance, and full lifecycle maintenance programs. This comprehensive service infrastructure is designed to minimize equipment downtime and ensure consistent performance for your logging operations.
