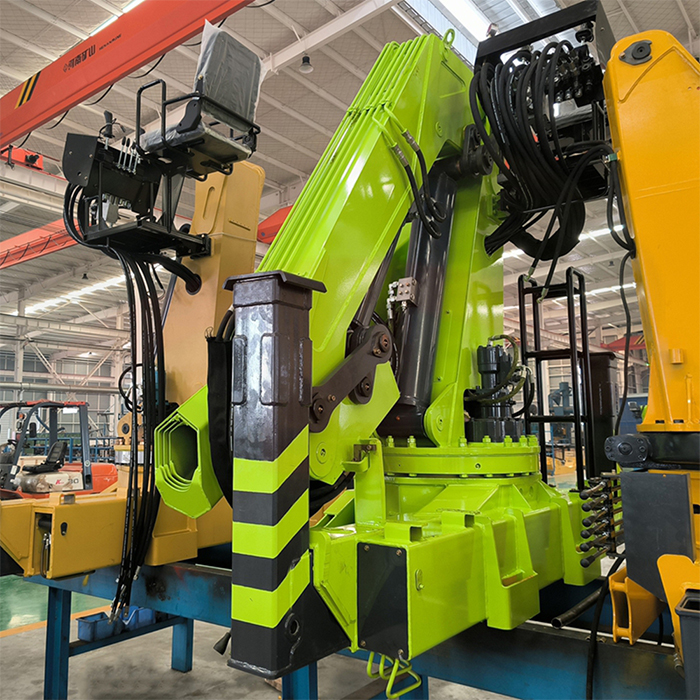

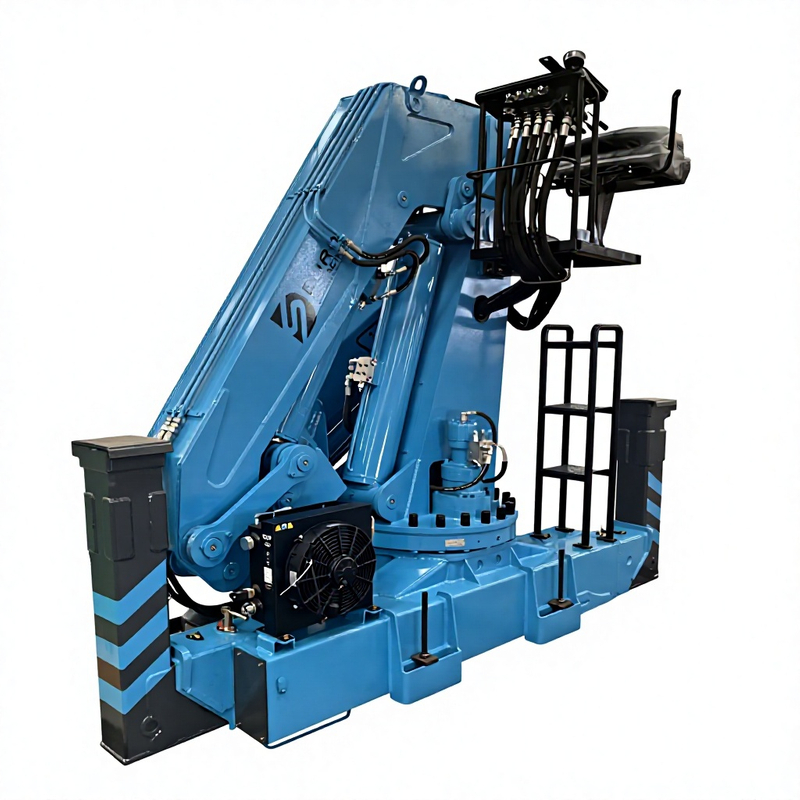

The SQZ160A.3 8 ton knuckle boom crane is engineered to transform how heavy lifting is executed in physically restricted environments. When operators engage the controls, they immediately feel the responsive power of a machine designed for absolute precision. Delivering a substantial 8000kg (8 ton) maximum lifting capacity alongside a 16 t×m rated lifting torque, this unit provides the muscle required for demanding commercial contracting and emergency rescue operations. The cold, heavy-gauge steel construction reassures users of its structural integrity, while the ultra-compact 1200mm installation footprint ensures it integrates perfectly onto medium-duty truck chassis without consuming valuable payload space. Weighing just 3150kg, it minimizes vehicle wear and fuel expenditure. Driven by a highly efficient 30kW hydraulic system, the folding boom extends and retracts with a quiet, steady hum, offering 360° continuous slewing that allows operators to navigate obstacles with pinpoint accuracy. Whether deployed for urban infrastructure maintenance or urgent disaster response, this hydraulic knuckle boom crane stands as a reliable, high-performance asset that drives operational efficiency.
The physical geometry of the articulated arm allows it to fold tightly behind the truck cab, presenting a clean, unobtrusive profile during transit. When deployed, the boom unfolds smoothly, enabling operators to maneuver loads over walls, under low factory ceilings, or deep into narrow alleyways. This exceptional vertical and horizontal flexibility ensures precise load positioning in congested spaces where rigid telescopic alternatives simply cannot operate, making it an indispensable tool for complex urban projects.
At the heart of its performance is a meticulously calibrated hydraulic core operating at a 28MPa rated pressure with a 45 L/min flow rate. Operators will notice the tactile feedback of the control levers—translating minimal physical effort into fast, zero-jerk boom movements. The generously sized 150L hydraulic oil tank keeps fluid temperatures stable, preventing the distinct odor of overheated oil and ensuring consistent, fade-free lifting power during grueling, hours-long operational shifts.
By maintaining a 3150kg self-weight and requiring only 1200mm of mounting space, this compact 8 ton truck crane protects the economic viability of the transport vehicle. Fleet managers benefit directly from reduced deadweight, which translates to superior fuel economy, less mechanical strain on the truck's suspension, and maximized legal payload capacity for transporting essential goods alongside the lifting equipment.
Fabricated from premium high-strength steel and backed by ISO9001 certification, the structural components are built to endure intense mechanical stress. The integrated overload protection system provides an immediate, audible mechanical click and halts operation before dangerous thresholds are crossed. Coupled with hydraulic stabilization and smooth slewing control, this setup drastically reduces operator fatigue and ensures absolute stability during critical emergency rescue deployments.
Core Parameter | Specification | Core Parameter | Specification |
Max Lifting Weight | 8000kg (8 ton) | Crane Self-Weight | 3150kg |
Rated Lifting Torque | 16 t×m | Installation Space | 1200mm |
Recommended Power | 30kW | Slewing Angle | 360° Full Continuous |
Rated Hydraulic Pressure | 28MPa | Oil Tank Capacity | 150L |
Recommended Hydraulic Flow | 45 L/min | Max Boom Reach | 9.7m |
This 8 ton knuckle boom crane is purpose-built to solve complex logistical challenges across various commercial sectors:
Urban Construction & Municipal Maintenance: Safely lifting heavy concrete pipes, steel beams, and utility infrastructure in narrow city streets. The controlled, quiet hydraulic operation minimizes disruption in densely populated residential zones.
Industrial & Factory Operations: Relocating heavy manufacturing machinery indoors. The articulated arm easily navigates around overhead beams and tight warehouse aisles where standard lifting equipment fails.
Emergency Rescue & Disaster Recovery: Providing rapid deployment for clearing heavy debris. The pinpoint accuracy of the boom prevents secondary collapses, ensuring the safety of ground personnel during critical recovery missions.
Small Port & Logistics Hubs: Streamlining the positioning of shipping containers and heavy cargo pallets, accelerating loading and unloading times in small-scale storage facilities.
Specialized Fleet Customization: We offer non-standard engineering services to adapt the crane’s mounting base and hydraulic configurations, ensuring perfect alignment with specific chassis requirements and unique environmental demands.
To maximize the lifecycle and ensure the absolute safety of this folding boom truck mounted crane, operators must adhere to standardized protocols:
Pre-Operation Checks: Always park the vehicle on firm, level ground. Fully extend the hydraulic outriggers and secure them with heavy-duty support pads. Confirm all control levers rest in the neutral position before engaging the PTO, and strictly maintain a 10m minimum clearance from overhead high-voltage lines.

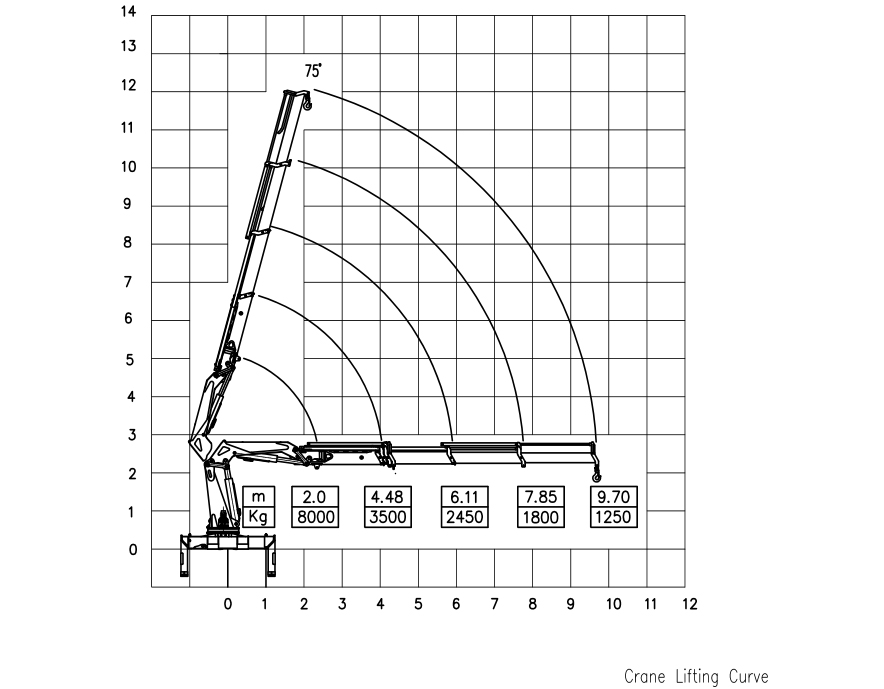

Safe Lifting Protocols: Consult the load chart meticulously before every lift. Never exceed the 8000kg rated capacity for the specific boom radius. Execute commands smoothly to avoid sudden jerks, never suspend loads directly over personnel, and ensure a lifted load is never left unattended.
Routine Maintenance: Apply thick, protective grease to all boom pivot points and cylinder pins before daily use to prevent metal-on-metal friction. Conduct visual inspections of hydraulic hoses for micro-abrasions, check bolt torque, and follow the manufacturer's exact schedule for hydraulic oil replacement to maintain system purity.
This 8 ton knuckle boom crane delivers a maximum safe working load of 8000kg (8 ton) paired with a 16 t×m rated lifting torque. Operators must strictly observe the load chart, as exceeding these limits risks mechanical failure and voids the comprehensive product warranty.
Absolutely. The equipment features an ultra-compact 1200mm installation footprint, a 3150kg lightweight profile, and a highly articulated folding boom. These characteristics make it exceptionally capable of navigating narrow urban streets, cramped factory yards, and confined construction sites with ease.
We provide a robust global support network that includes detailed installation guidance, standardized maintenance plans, and expert technical consultation. Our equipment is backed by ISO9001 certified manufacturing standards and full national truck crane manufacturing licensing, significantly reducing your long-term operating costs.
Yes, it is highly recommended for such scenarios. Its ability to deploy rapidly, combined with a compact footprint and zero-jerk precise boom control, makes it an invaluable asset for emergency rescue, disaster recovery, and urgent industrial accident response where precision is critical.
Yes, we offer specialized engineering customization. Whether you require modifications to the mounting base to fit a non-standard vehicle chassis, or unique hydraulic adaptations for extreme working environments, our engineering team can tailor the equipment to meet your exact fleet requirements.
