The SQS200G-5 offers a maximum lifting capacity of 8,000kg and a lifting moment of 16.7 t.m, positioning it as a highly capable asset for demanding material handling. When lifting dense structural components or heavy machinery, operators will notice the solid, unyielding stability of the boom. It delivers strong lifting power while maintaining precise, micro-level control, drastically reducing the time required to position heavy loads accurately on busy sites.
With a recommended hydraulic flow of 63 L/min and a rated pressure of 28MPa, the crane ensures fast boom extension and an immediately responsive lifting action. Utilizing premium-grade hydraulic valves, the system produces a quiet, consistent hum rather than a strained mechanical noise under heavy loads. Furthermore, the 150L oil tank provides excellent thermal dissipation, preventing fluid overheating and supporting continuous operation during extended, intensive work shifts.
Constructed from premium high-strength steel, the straight boom design allows efficient vertical lifting and extended working height. The exterior is finished with a tactile, three-layer anti-corrosion coating that physically repels moisture and resists abrasive environmental wear. This specialized treatment ensures the crane maintains its structural integrity and professional appearance even after years of exposure to harsh weather, making it highly reliable for building construction and overhead material placement.
Despite its impressive 8-ton capacity, the SQS200G-5 requires only 1,200mm of installation space behind the cab and has a dead weight of 4,250kg, leaving ample payload capacity for cargo. To guarantee a stable and compliant setup, we provide comprehensive chassis strength evaluations and precise Power Take-Off (PTO) matching guidelines. This ensures the equipment integrates perfectly with mainstream medium-duty truck chassis, maintaining excellent road maneuverability.
Safety is engineered into every joint of this machine. The crane integrates advanced overload protection and stable slewing control. Buyers can opt for an intelligent Load Moment Indicator (LMI) and anti-overload system that acts as a vigilant co-pilot. By actively monitoring boom angles, working radii, and current loads in real-time, this system physically prevents side-tipping and mechanical strain, ensuring absolute reliability under unpredictable working conditions.
Understanding that every project has unique demands, this model supports extensive OEM/ODM customization. Fleet managers can easily expand the crane's utility by equipping it with hydraulic grab buckets for loose materials, aerial work baskets for high-altitude maintenance, specialized lifting clamps, or responsive wireless remote control systems. This adaptability transforms a standard lifting truck into a multi-purpose operational hub.
Evaluating the operational limits of the SQS200G-5 reveals a machine built for rigorous field execution. The data below outlines exact lifting capacities, hydraulic pressure thresholds, and working radii. Every metric reflects strict load testing under ISO9001 quality management protocols, ensuring that the physical performance precisely matches these documented specifications. Buyers can rely on these parameters for accurate project planning and chassis matching.
Item | Unit | SQS200G-5 |
Max. lifting moment | kN·m | 210 |
Max lifting capacity | kg | 8000 |
Max hydraulic outreach | m | 18.6 |
Slewing angle | ° | 360° |
Stabilizer spread | mm | 2316-7424 |
Installation space | mm | 1200 |
Max operating pressure | MPa | 26 |
Recommended pump capacity | L/min | 63+50 |
Oil tank capacity | L | 200 |
Dead weight | kg | 4250 kg |
Specifications subject to change without notice

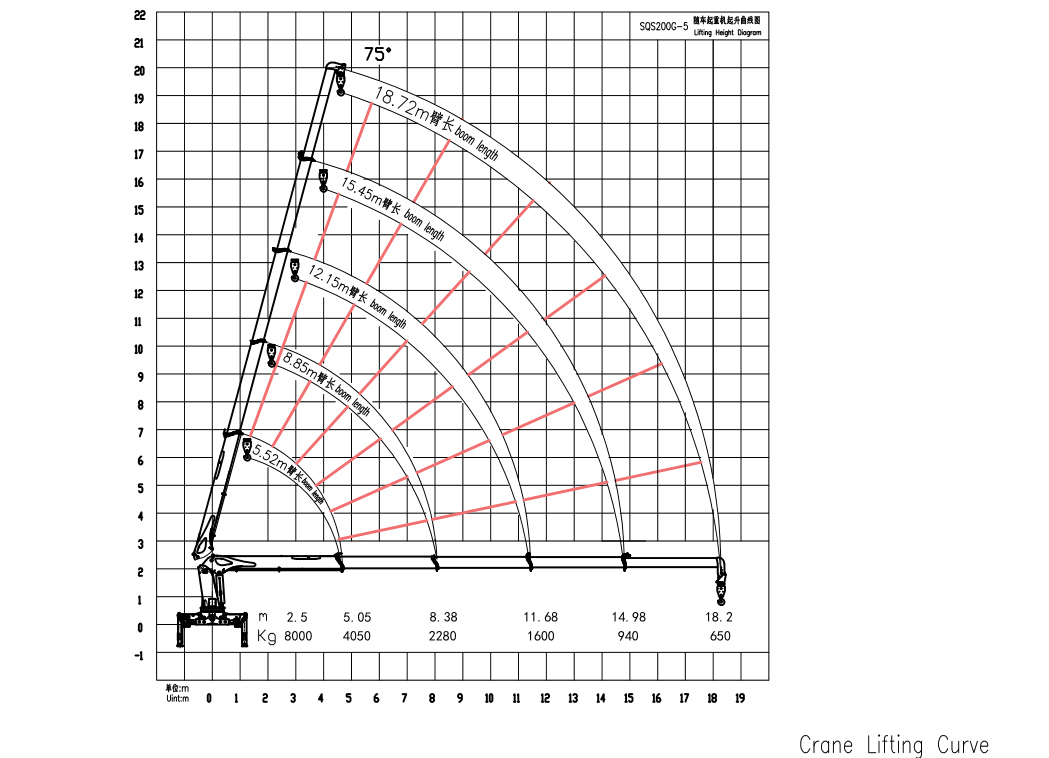

Working Radius | 5.52 | 8.85 | 12.15 | 15.45 | 18.72 |
2.5 | 8000 | 6500 | - | - | - |
3.0 | 6500 | 5800 | 5000 | 3500 | - |
4.0 | 5200 | 4500 | 4260 | 3500 | - |
5.0 | 4050(5.05) | 3550 | 3350 | 3150 | 2900 |
6.0 | - | 2900 | 2800 | 2600 | 2480 |
7.0 | - | 2700 | 2600 | 2280 | 2130 |
8.0 | - | 2280(8.38) | 2300 | 2080 | 1860 |
9.0 | - | - | 2000 | 1890 | 1650 |
10.0 | - | - | 1850 | 1690 | 1480 |
11.0 | - | - | 1650 | 1490 | 1340 |
12.0 | - | - | 1600(11.68) | 1390 | 1240 |
13.0 | - | - | - | 1240 | 1140 |
14.0 | - | - | - | 1140 | 1030 |
15.0 | - | - | - | 940(14.98) | 910 |
16.0 | - | - | - | - | 790 |
17.0 | - | - | - | - | 700 |
18.0 | - | - | - | - | 650(18.2) |
Specifications subject to change without notice
Used extensively for lifting heavy concrete materials, structural steel components, formwork, and essential construction equipment. On residential, commercial, and industrial building sites, its precise placement capabilities reduce manual labor and accelerate project timelines.
Ideal for moving and installing delicate or heavy machinery, industrial compressors, power generators, and production line equipment. The smooth hydraulic response prevents sudden jolts, ensuring that expensive factory assets are relocated safely without internal damage.
Supports critical urban infrastructure projects such as streetlight installation, large signage erection, and heavy pipeline maintenance. The crane’s compact footprint allows operators to perform precise vertical lifting in narrow city streets without causing major traffic disruptions.
Highly suitable for loading and unloading oversized goods, heavy pallets, and crated machinery at busy logistics centers, warehouses, and freight yards. It streamlines cargo transfer between transport vehicles and storage zones, significantly boosting daily throughput.
Applied successfully in remote energy projects, agricultural machinery handling, and field service operations. Whether lifting transformers in rural areas or moving heavy harvesters, it provides reliable mobile lifting power where stationary cranes cannot reach.
A: The SQS200G-5 offers a significantly higher 8,000kg lifting capacity, stronger hydraulic performance, and a longer working range up to 18.6 meters. This expanded capability makes it suitable for much more demanding construction tasks and heavy industrial applications that would strain entry-level equipment.
A: Yes. Engineered with a robust power system, a 63 L/min hydraulic flow rate, and a large-capacity 150L oil tank, the crane effectively dissipates heat. This thermal management ensures fluid viscosity remains stable, allowing for continuous, high-efficiency operation during long shifts.
A: The crane is typically mounted on medium-duty truck chassis that possess sufficient payload capacity to handle its 4,250kg dead weight. We provide detailed chassis strength evaluations and exact PTO matching guidelines to ensure the installation is safe, compliant, and highly stable on the road.
A: Absolutely. We support deep OEM/ODM customization options. Depending on your operational needs, we can modify control systems, adjust hydraulic configurations, and integrate specialized attachments such as grab buckets, aerial work baskets, lifting clamps, or advanced wireless remote controls.
A: Production operates strictly under ISO9001 quality management systems. Drawing on over a decade of industry manufacturing experience, every crane undergoes rigorous structural and dynamic load testing before leaving the facility, ensuring international-grade reliability that is trusted by buyers across dozens of countries.
A: We offer a comprehensive warranty policy backed by a 24/7 online technical support team. To minimize equipment downtime and maintenance costs, we maintain a vast inventory of original factory spare parts, ensuring rapid global supply and dispatch whenever replacements are needed.
A: Thanks to our standardized modern production lines and proactive inventory management, standard models can be dispatched rapidly. We provide secure, professional international logistics and container loading solutions to ensure the crane arrives at your port in pristine working condition.
