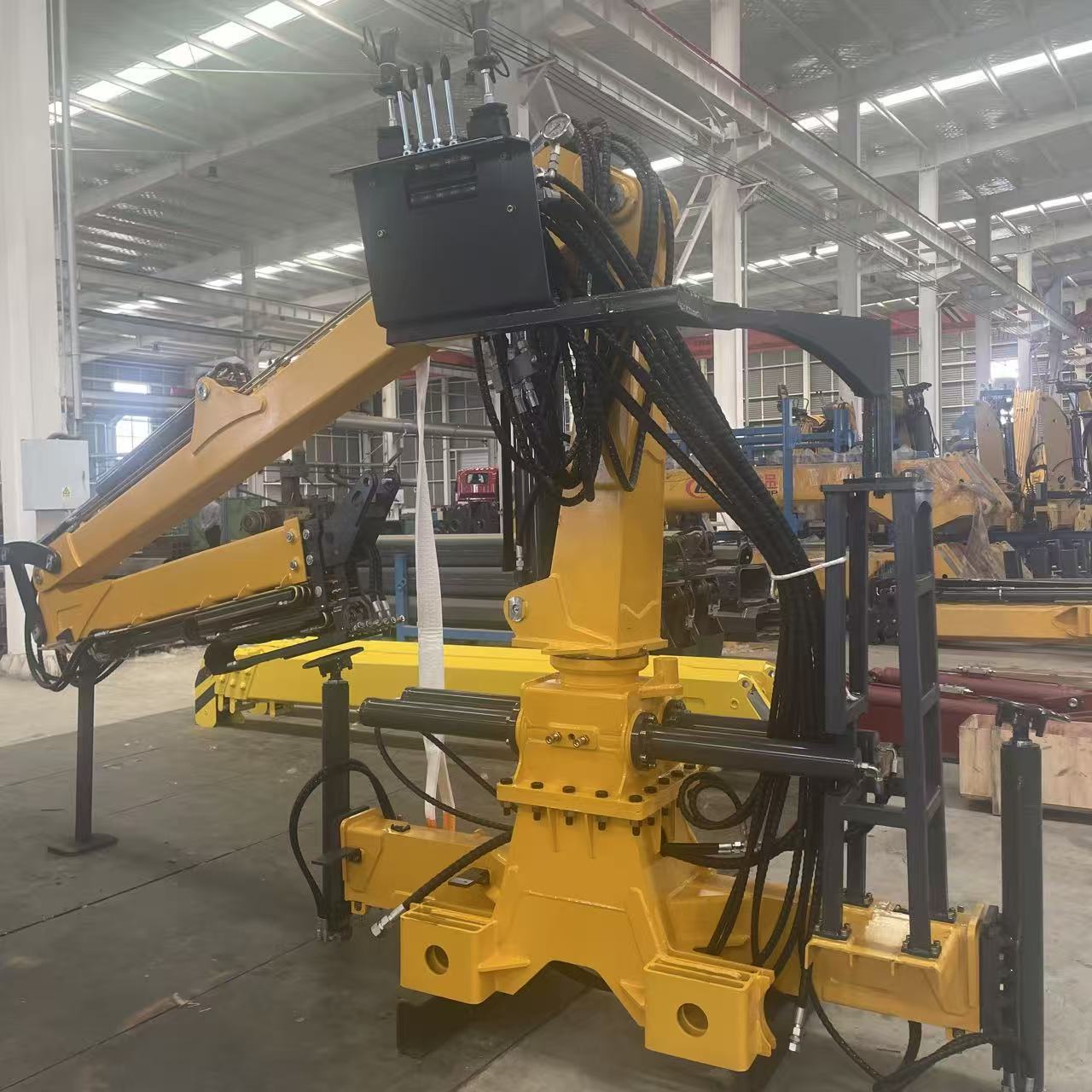

0.7 Ton Wood Crane (ZM66.2)

The ZM66.2 is a compact and efficient timber crane, specially designed for small to medium forestry operations, log handling, and material lifting tasks. With a maximum lifting weight of 700 kg and a lifting moment of 6.5 t.m, it offers reliable and precise lifting performance. The crane features a 380° slewing angle, a recommended hydraulic flow of 45 L/min at 20 MPa, and an oil tank capacity of 60 L, delivering smooth, stable operation. Its lightweight design (1,650 kg) and compact installation space (800 mm) make it ideal for truck-mounted applications or stationary installations.

Availability:

Quantity:



Inquire Add to Basket

timber handling crane portable wood crane wood crane for sale hydraulic wood crane wood crane solutions

Product Description

Product Description Safety Related Products

Product Description

|

Product Advantage

ZM66.2 provides reliable lifting performance, compact structure, and versatile rotation, making it perfect for forestry and material handling.

Precise Load Handling: Maximum lifting weight 700 kg for safe timber and material handling.

Full Rotation Flexibility: 380° slewing enables precise positioning of logs or materials.

Stable Hydraulic System: 45 L/min flow at 20 MPa ensures smooth and responsive operation.

Durable Design: Reinforced steel frame guarantees long-term reliability in forestry applications.

Compact & Lightweight: Easy integration into trucks, trailers, or stationary platforms.

|

Technical Parameters

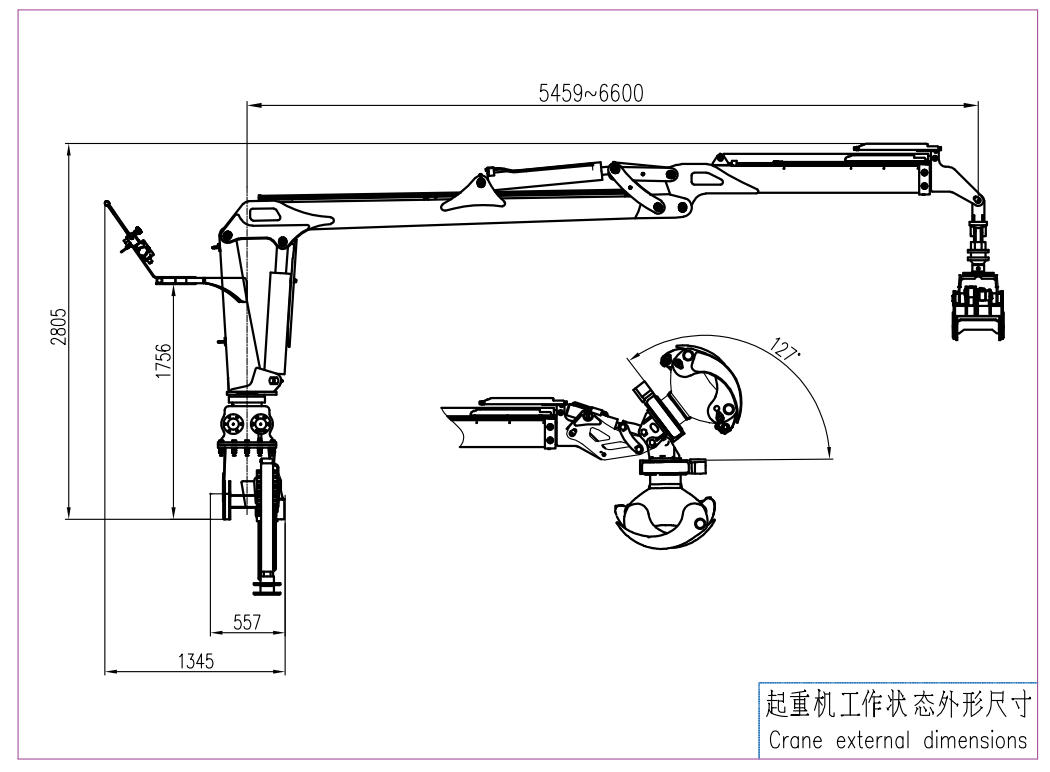

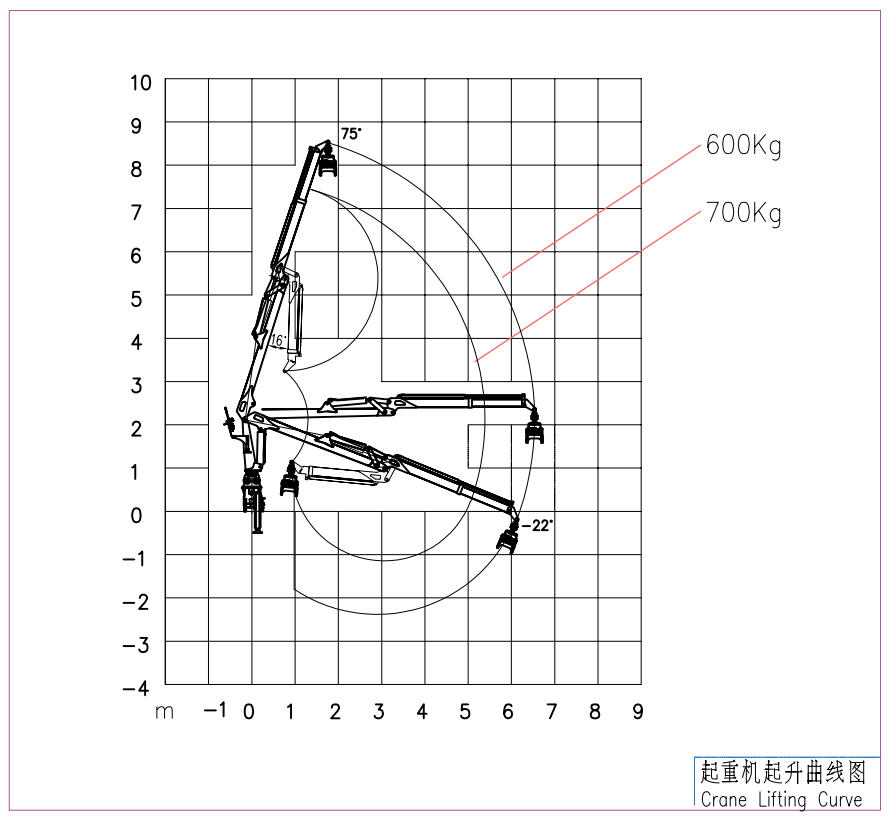

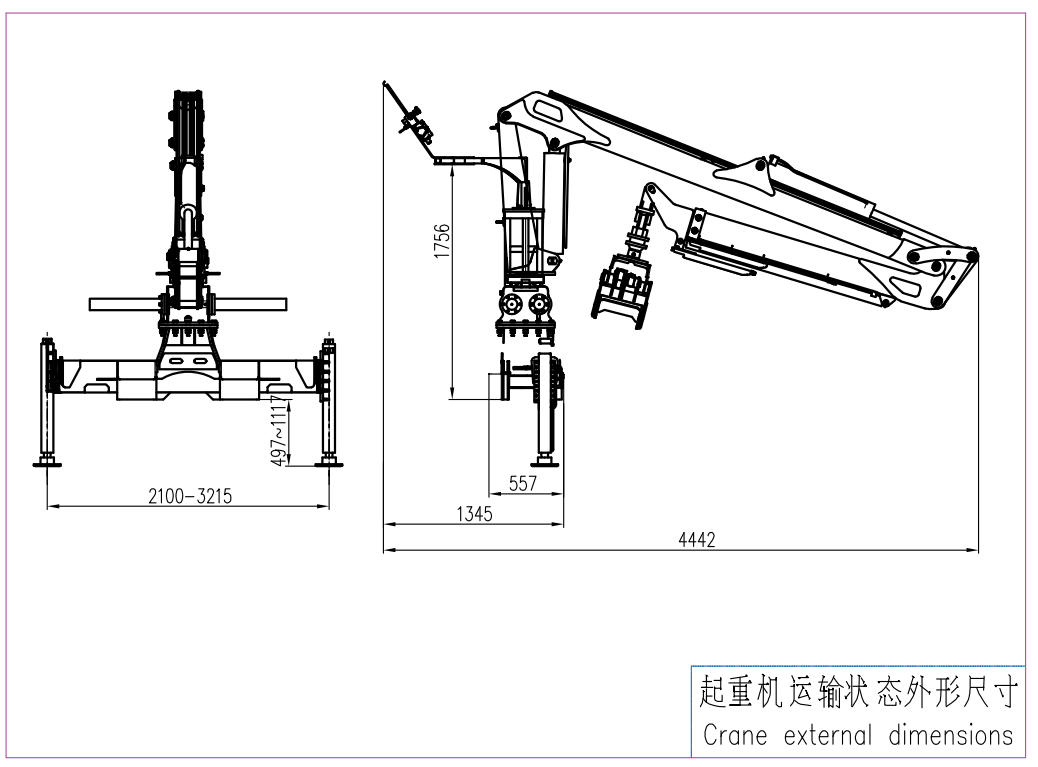

ScreenShot_2026-03-02_133119_934 ScreenShot_2026-03-02_133132_355 ScreenShot_2026-03-02_133142_796

Crane main technical parameters

Maximum Lifting weight (graps included)	700 Kg	Oil tank capacity	60L
Max lifting movement	6.5 t.m	Slewing angle	380°
Recommended power	18KW	Hydrauic Crane weight	1650kg
Recommended hydroulic flow	45 L/min	Installation space	800mm
Rated hydraulic pressure	20MPa

|

Product Uses

Forestry Operations: Lifting and positioning small to medium logs.

Timber Yards & Sawmills: Timber Yards & Sawmills

Construction Sites: Handling timber beams and bulk materials.

Recycling & Wood Processing: Managing scrap wood and bulk timber products.

|

FAQ

1. Can ZM66.2 be installed on small trucks?

A: Yes, its compact size and lightweight design allow easy installation on small to medium truck-mounted cranes.

2. Is continuous rotation possible under full load?

A: Yes, the crane supports 380° rotation while handling the maximum 700 kg load.

3. How does Tengchang ensure product quality?

A: All cranes are ISO9001-certified, undergo rigorous hydraulic and structural testing, and meet GJB9001C-2017 weaponry quality standards.

4. Is technical support available internationally?

A: Yes, Tengchang offers worldwide technical support and spare parts for all crane models.

5. Can the hydraulic flow be adjusted for different lifting tasks?

A: Yes, operators can adjust flow to optimize lifting speed and stability.

Truck-Mounted Crane Safety & Operation Guide

Ensuring operator and crew Safety with proper handling.

Boom Positioning & Load Alignmen

Rotate the crane to align the boom over the load.

Adjust boom height and telescopic extension to position the hook correctly.

Safety Tip: Follow the load chart and ensure lifting weight is within allowed limits for current boom radius and angle.
Crane Extension Preparation

Sit at operator seat and slowly operate boom angle handles to extend the main boom and telescopic sections.

Move one handle at a time.

Safety Tip: Never operate multiple boom handles simultaneously. Keep boom path clear of personnel.
Outrigger Setup

Unlock outriggers and extend main and auxiliary outriggers fully.

Place support pads under each outrigger on soft ground.

Safety Tip: Ensure the truck is level. Incomplete extension may lead to tipping hazards.
Engaging Power Take-Off (PTO)

Ensure truck gear is in neutral and PTO switch is off.

Start engine and wait for safe air pressure levels.

Engage PTO slowly to drive the hydraulic crane system.

Safety Tip: Confirm all control levers are neutral before operation. Improper PTO engagement can damage hydraulic components.
Pre-Operation Site Check

Park the truck on firm, level ground. Engage the parking brake.

Inspect the surrounding area for obstacles, overhead lines, or unstable surfaces.

Confirm the load is within crane rated capacity and lifting height limits.

Safety Tip: Never operate on soft or sloped surfaces. Maintain at least 10 meters distance from high-voltage lines.

Post-Operation Maintenance

Lubricate pivot points, boom slides, and hydraulic cylinder pins

Check hydraulic oil levels, inspect hoses, and tighten bolts

Safety Tip: Only trained personnel should perform hydraulic maintenance. Replace worn parts immediately.
Crane Retraction & Stowage

Retract telescopic sections and fold boom sequentially.

Rotate crane to stowed position and fully retract outriggers

Safety Tip: Follow reverse order of extension to protect hydraulic cylinders and boom sections.
Lowering & Load Placement

Lower the load carefully to the designated position.

Detach slings and cables only when load is stable and personnel are clear.

Safety Tip: Never leave a suspended load unattended. Avoid sudden lowering.
Rotating with Load

Rotate the crane slowly to move the load

Monitor outrigger stability and crane tipping indicators.

Safety Tip: Do not extend the working radius while rotating a loaded boom. Keep movements smooth.
Lifting Operation

Lift the load slowly and steadily. Avoid sudden movements or swinging.

Monitor vehicle stability and outrigger pressure during the lift.

Safety Tip: Never exceed rated capacity. Avoid lifting loads over personnel.
