Product Advantage
Versatile Lifting Capacity

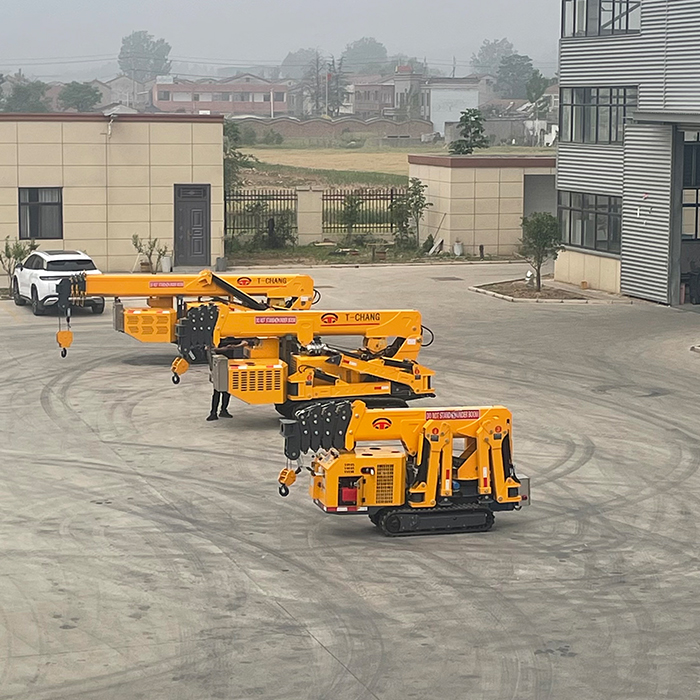

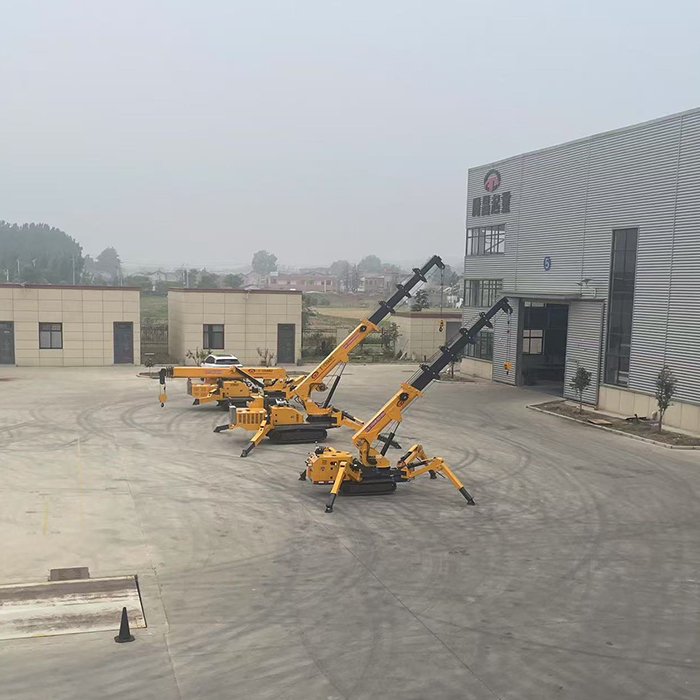

Models range from 3t to 8t lifting capacity with maximum working radii from 10.5m to 18m and maximum lift heights up to 21m, capable of handling steel structures, industrial machinery, HVAC units, transformers, and modular construction components.
Advanced Hydraulic & Boom System

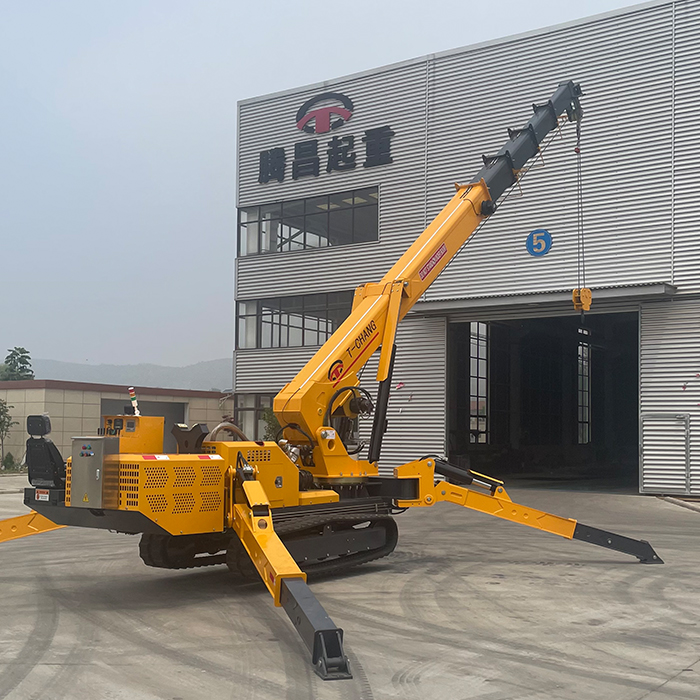

Featuring multi-section telescopic booms, smooth boom extension/retraction, 360° continuous rotation, and precise hoisting control, ensuring stable, accurate, and safe lifting even in constrained spaces.
Compact & All-Terrain Mobility

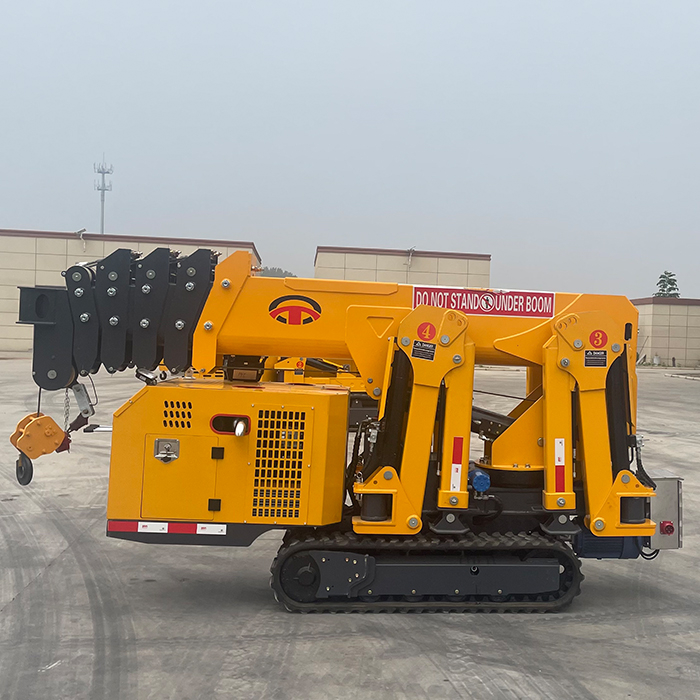

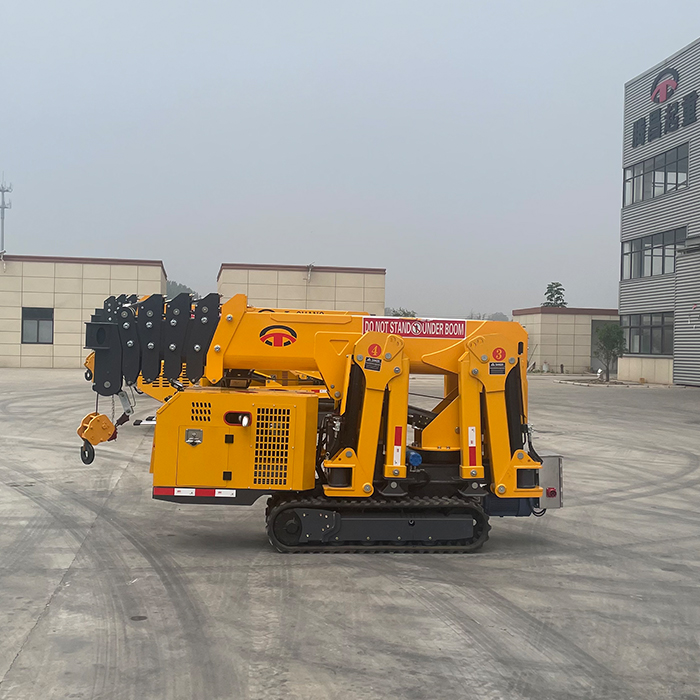

Crawler tracks with hydraulic drive allow zero-turn mobility, climbing angles up to 25°, and speeds up to 2.5 km/h, making these cranes ideal for indoor, urban, and off-road construction sites.
Dual Power & Remote Options
Equipped with diesel engines and electric motors, starting in temperatures from -5°C to 40°C, and optional remote control operation, giving flexibility for indoor lifts, energy-sensitive areas, and urban deployment.
Customizable Outriggers & Safety Features

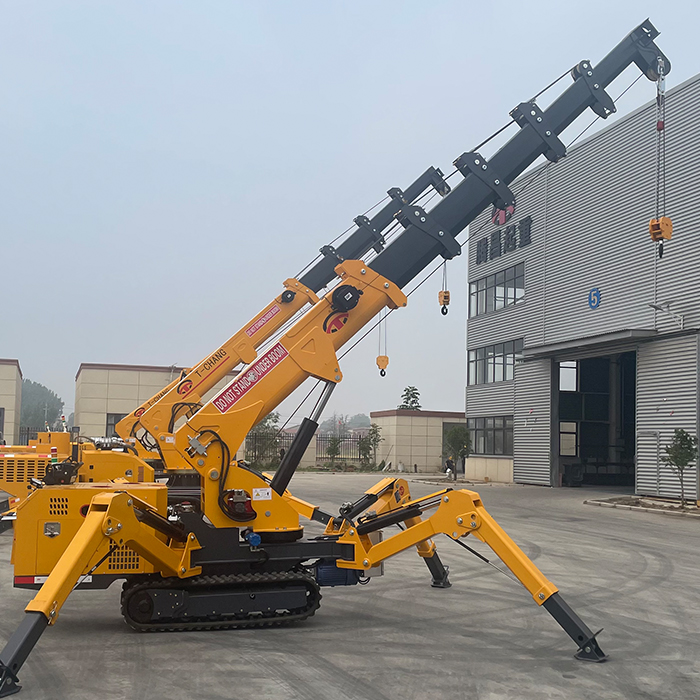

Hydraulically assisted outriggers extend the base footprint for maximum stability. Optional moment-limiting devices, remote control, work platforms, and hydraulic jibs enhance safety and operational efficiency compared to standard mini cranes.
|
Technical Parameters
| Specification | 3t Model | 5t Model | 8t Model |
| Maximum Lifting Capacity | 3,000 kg | 5,000 kg | 8,000 kg |
| Maximum Working Radius | 10.5 m | 15 m | 18 m |
| Maximum Ground Lift Height | 10.8 m | 17 m | 21 m |
| Hoist Speed (Hook) | 0-8 m/min (4 ropes) | 12 m/min (4 ropes) | 12 m/min (4 ropes) |
| Wire Rope Specification | Φ8 mm × 45 m | Φ12 mm × 80 m | Φ12 mm × 80 m |
| Telescopic Boom | 2.4 m × 6 sections (customizable) | 4 m × 5 sections (customizable) | 5 m × 5 sections (customizable) |
| Boom Extension Range / Time | 3.1 m – 9.2 m / 20 sec | 4.5 m – 17 m / 54 sec | 5.5 m – 21 m / 54 sec |
| Boom Angle / Slew Time | 0°–78° / 13 sec | 0°–78° / 13 sec | 0°–78° / 13 sec |
| Rotation (Slew) Angle / Time | 0°–360° continuous / 60 sec | 0°–360° continuous / 38 sec | 0°–360° continuous / 38 sec |
| Outrigger Type | Manual rotate + hydraulic auto support (2-stage) | Manual rotate + hydraulic auto support (2-stage) | Manual rotate + hydraulic auto support (2-stage) |
| Outrigger Maximum Extension (L × Rear × Front) | 4300 × 3700 × 4300 mm | 5800 × 4900 × 5600 mm | 7000 × 5070 × 6700 mm |
| Travel Method | Hydraulic motor drive | Hydraulic motor drive, dual speed | Hydraulic motor drive, dual speed |
| Travel Speed | 0 – 2.5 km/h | 0 – 2.5 km/h | 0 – 2.5 km/h |
| Climbing Ability | 25° (36%) | 25° (36%) | 25° (36%) |
| Engine / Motor | Changchai (customizable) | Yunnei (customizable) | Yunnei (customizable) |
| Engine Type / Displacement | EV80 / F195 | 490 | 490 |
| Start Method | Electric start | Electric start | Electric start |
| Operating Temp. | -5°C ~ 40°C | -5°C ~ 40°C | -5°C ~ 40°C |
| Fuel Type / Tank Capacity | Diesel / 8 L | Diesel / 8 L | Diesel / 8 L |
| Battery Capacity | 12V 45Ah | 24V 45Ah | 24V 45Ah |
| Emission Standard | – | China Stage II | China Stage II |
| Operation Type | Manual boom / outriggers, manual travel (optional remote) | Manual boom / outriggers, manual travel (optional remote) | Manual boom / outriggers, manual travel (optional remote) |
| Overall Dimensions (L × W × H) | 3.5 × 0.8 × 1.85 m | 4.7 × 1.5 × 2.25 m | 6.15 × 1.6 × 2.25 m |
| Cranes Weight | 2,700 kg | 6,100 kg | 8,700 kg |
| Crawler Track Size (Width × Pitch × Links) | 220 × 72 × 50 mm | 300 × 52.5 × 90 mm | 350 × 52.5 × 104 mm |
| Optional Accessories | Moment limiter, remote control, work platform, hydraulic jib | Moment limiter, remote control, work platform, hydraulic jib | Moment limiter, remote control, work platform, hydraulic jib |
|
Product Uses
Urban Construction & Confined Spaces
Ideal for lifting and installing structural components, glass panels, HVAC units, and modular walls in tight urban environments, high-rise buildings, and interior renovations.
Industrial Plant & Equipment Installation
Used for precise placement of machinery, transformers, generators, and production line modules in factories, workshops, and heavy industry facilities.
Port & Material Handling
Capable of moving containers, heavy crates, and industrial cargo in ports, warehouses, and logistics hubs, where maneuverability is critical.
Energy & Utility Projects
Supports installation of wind turbines, solar panels, electrical substations, and piping systems with high lifting precision in constrained spaces.
Maintenance & Retrofit Operations
Efficient for bridge maintenance, HVAC retrofitting, ceiling installations, and equipment replacements, especially where access is limited.
Event & Exhibition Setup Mini crawler cranes are increasingly used for assembly of stages, exhibition stands, and temporary structures, providing safe and controlled lifting in crowded environments.
|
FAQ
1. How does Tengchang Crawler Spider Crane compare to typical mini cranes in the market?
A: Tengchang cranes offer stronger lifting capacity, smoother boom extension, and superior stability. The reinforced boom and advanced hydraulics ensure safer operation and longer service life than standard mini crawler cranes.
2. Can it operate in confined indoor spaces?
A: Yes. With compact dimensions, adjustable outriggers, and electric/diesel dual power, the cranes can safely lift heavy loads indoors or in tight construction sites, unlike many conventional outdoor mini cranes.
3. What customization options are available?
A: Customers can select telescopic boom lengths, hydraulic fly jibs, remote control, work platforms, and optional moment-limiting systems, making the crane adaptable to industrial, municipal, and energy project requirements.
4. How does it handle uneven terrain and slopes?
A: The crawler tracks and hydraulically assisted outriggers allow stable operation on slopes up to 25°, with precise load control, outperforming many market mini cranes that require fully level surfaces.
5. What maintenance support does Tengchang offer?
A: Tengchang provides global technical guidance, spare parts availability, and service support, ensuring uninterrupted operation in industrial plants, ports, and urban construction projects.
