Balancing heavy lifting capacity against job site mobility poses a major operational challenge. Strict spatial constraints often make traditional lifting equipment impractical. You need machinery capable of precise placement without blocking urban streets or congesting busy work zones. A truck-mounted articulating design solves this problem perfectly. Its unique folding geometry provides unmatched agility in extremely tight environments. It completely outperforms traditional straight booms when working under low clearances. We wrote this article to give you a transparent, evidence-based evaluation framework. Fleet managers and procurement teams can use it to assess their equipment options objectively. You will learn how to align specific operational criteria with equipment capabilities. We will help you determine if a truck-mounted articulating crane suits your specific daily tasks and long-term fleet requirements.
Knuckle boom cranes maximize truck payload capacity due to their lighter, compact stowed footprint behind the cab.
Articulating geometry allows for precise load placement in confined, low-clearance environments where straight booms fail.
Evaluating a purchase requires aligning three core metrics: maximum lift moment (tm), chassis compatibility, and attachment versatility.
Total Cost of Ownership (TCO) relies heavily on matching hydraulic systems to operator training and ongoing preventative maintenance.
Commercial fleet operators must maximize every inch of a truck chassis. A Knuckle Boom Crane excels at payload-to-weight optimization. The folding mechanism usually mounts directly behind the cab or at the rear of the chassis. It folds up tightly into a very compact footprint. This design frees up nearly the entire truck bed. You can use a single vehicle as both a material transporter and a heavy lifter. Eliminating the need for a secondary delivery vehicle streamlines site logistics immensely.

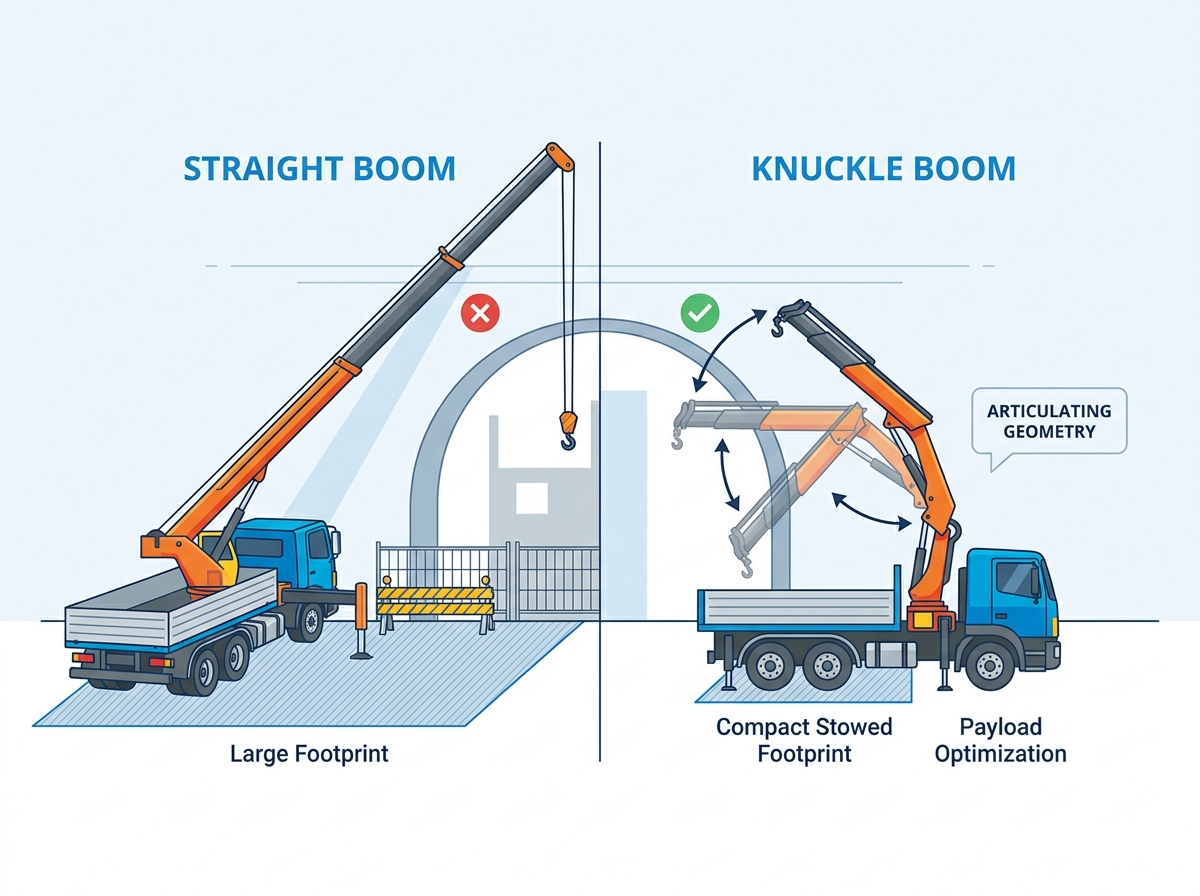

The primary mechanical advantage lies in the articulating joint. Industry professionals call this joint the "knuckle." It functions much like a human finger. This kinematic geometry enables extensive horizontal maneuvering. Traditional straight booms require significant vertical headroom to operate. An articulating boom can easily reach through doorways, under bridges, or inside active warehouse facilities. You can achieve precise payload placement even when overhead obstructions block the skyline.
Congested construction sites demand strict space management. Traditional mobile cranes require massive setup areas. They also need large swing radiuses to rotate their loads safely. An articulating crane requires far less operational space. Operators can set up the equipment in single traffic lanes or narrow residential driveways. This reduced setup footprint minimizes public disruption. It also accelerates your daily project timelines.
Traditional cranes rely almost exclusively on a winch and a hanging hook. This setup limits them to pure suspension tasks. Articulating designs utilize robust hydraulic circuitry running all the way to the boom tip. This hydraulic capacity allows you to quickly swap end-of-boom attachments. You can easily connect grapples, clamshell buckets, pallet forks, or earth-drilling augers. The machine transforms from a lifting device into a multi-functional utility tool in minutes.
Articulating cranes provide superior continuous load control. The boom head stays exceptionally close to the payload during the entire lift. This proximity drastically reduces the dangerous pendulum effect. Operators maintain tight control even during windy conditions. These machines also dominate in material handling and municipal logistics. They offer unmatched payload retention on commercial chassis. You keep your truck bed open for hauling heavy cargo.
Telescopic straight booms excel at maximum vertical reach. You will want a telescopic model when lifting loads over tall, solid barriers. They easily clear multi-story building rooftops. Their structural design involves fewer hydraulic cylinders and pivot points. This simplicity often translates to fewer daily maintenance checks. Telescopic cranes also utilize heavy-duty winches natively. They are the superior choice for lifting tasks requiring deep below-grade material drops.
Choosing between these two technologies requires careful operational analysis. Use this checklist to guide your procurement strategy:
Assess primary daily tasks: Determine if your goal is material delivery and placement or pure vertical suspension.
Evaluate job site constraints: Measure the average overhead clearance and ground space available at your typical work sites.
Analyze fleet capacity: Decide if you need the truck to carry cargo or if it will function solely as a lifting platform.
Review below-grade requirements: Identify how often your operators need to drop materials into deep trenches or utility shafts.
Capability Comparison Chart: Articulating vs. Telescopic Booms
Operational Feature | Articulating Design | Telescopic Design |
|---|---|---|
Load Control | Excellent (Minimal pendulum effect) | Moderate (Prone to swaying) |
Payload Retention | High (Frees up the truck bed) | Low (Consumes most of the chassis) |
Vertical Reach | Moderate | Superior |
Below-Grade Lifting | Limited (Requires special attachments) | Excellent (Winch integrated) |
Overhead Clearance Needs | Minimal | Extensive |
Modern construction sites require rapid material staging. Articulating cranes dominate the delivery of drywall, roofing materials, and concrete blocks. Operators can maneuver heavy pallets directly onto elevated building platforms. They can easily slide materials through second-story windows. This precision eliminates the need for manual hauling up stairwells. It drastically improves daily site productivity.
Tree removal in residential areas presents severe spatial challenges. A Knuckle Boom Crane equipped with a grapple attachment handles these jobs safely. Operators can dismantle large trees section by section. They can maneuver massive logs around power lines and residential rooftops. The machine easily secures timber directly onto its own flatbed for immediate transport.
City maintenance crews face unpredictable daily tasks. Utility providers use articulating cranes for transformer replacements and underground pipe laying. The compact design allows trucks to park securely on narrow city streets. They remove storm debris rapidly using clamshell buckets. Municipalities often deploy these units in highly congested urban grids where straight booms cannot physically deploy.
Port layouts and marine vessel decks offer very little operating room. Maritime operators rely on articulating designs for dockside loading and marine vessel servicing. The cranes fit tightly against bulkheads. They transfer heavy supplies from docks to boat decks safely. They handle cargo efficiently despite the tight spatial layouts common in shipyards.
You must understand how to read a load chart realistically. Manufacturers measure lifting power in ton-meters (tm). This metric calculates the maximum load moment. A crane might lift 10 tons at 1 meter of reach. However, it might only lift 1 ton at a 10-meter horizontal extension. You must evaluate the capacity at your most common maximum reach. Always factor in the physical weight of your attachments. Grapples and augers deduct from your total available lifting threshold.
Mounting heavy equipment onto a commercial truck involves strict engineering realities. You must match the crane weight to the Gross Vehicle Weight Rating (GVWR) of the chassis. Front-axle and rear-axle weight distribution is a critical engineering step. Placing a massive unit behind a cab drastically shifts the center of gravity. Failing to balance this weight correctly causes severe steering issues. It also violates local DOT regulations.
Buyers must choose between manual dual-stand-up controls and radio remote controls. Manual levers require the operator to stand directly beside the truck frame. Radio remote controls offer a massive upgrade in site safety and operational productivity. Remotes allow the operator to walk freely around the work zone. They can stand exactly at the load drop point. This guarantees perfect line-of-sight during complex placements.
The hydraulic system acts as the heart of the machine. You will encounter open-center and closed-center hydraulic systems. Open-center systems pump fluid continuously. Closed-center systems only pump fluid when the operator moves a control lever. Closed-center architecture generally runs much cooler. Continuous duty cycles demand rigorous hydraulic cooling requirements. High temperatures degrade hydraulic fluid rapidly.
Modern equipment relies on advanced safety and stability systems. Overload protection systems are absolutely mandatory. These sensors freeze machine movement immediately if an operator attempts to lift beyond rated capacities. Stability monitoring ensures outriggers maintain firm ground contact. The system restricts boom extension if it detects a potential tipping hazard.
Safe operation begins long before the boom extends. Proper outrigger deployment is an absolute necessity. You must use specialized outrigger pads for effective ground pressure displacement. Soft soil or hot asphalt will easily swallow a bare outrigger foot. Urban environments present complex clearance requirements for stabilizer spread. Operators must carefully calculate how far they can extend the outriggers without blocking active traffic lanes.
Transitioning from straight booms to articulating designs involves a noticeable learning curve. Operators must manage multiple pivot joints simultaneously. This requires advanced spatial awareness. You should mandate formal certification programs. In the US, the NCCCO offers specialized training for articulating crane operations. Ongoing safety compliance ensures your crew handles the equipment efficiently and securely.
Articulating designs feature multiple exposed hydraulic hoses running across the boom joints. These hoses flex continuously during operation. This constant movement makes them vulnerable to abrasion and environmental wear. You must schedule frequent visual hose inspections. The pivot pins require strict routine lubrication to prevent metal-on-metal friction. Wear pads inside the boom extensions degrade steadily. You must adhere to factory replacement schedules to maintain smooth telescopic sliding.
Investing in an articulating equipment setup transforms your fleet's daily capabilities. It provides unmatched site agility and robust multi-tool versatility. This equipment perfectly combines heavy-duty lifting with efficient transport capacity into one unified vehicle. You should always prioritize proper chassis compatibility over raw lifting specifications. Strong local dealer support ensures maximum machine uptime.
We recommend taking an active next step before purchasing. Request a customized load chart analysis from a reputable dealer. Ask for a detailed chassis integration consultation based on your specific industry requirements. This proactive approach guarantees your new equipment will meet your toughest operational demands flawlessly.
A: The average lifespan spans 10 to 15 years. This timeline depends heavily on your daily duty cycles. Strict adherence to hydraulic maintenance schedules extends longevity. Routine cylinder repacking and wear pad replacements prevent premature structural failure.
A: A CDL requirement depends entirely on the combined Gross Vehicle Weight Rating (GVWR) of the truck chassis and the crane payload. The crane itself does not mandate a CDL. You must check local DOT regulations regarding total vehicle weight.
A: Yes, retrofitting is possible. However, the existing truck frame usually requires extensive steel reinforcement. You must install a compatible Power Take-Off (PTO) system. You must also calculate strict payload displacement limitations to ensure safe axle loads.
A: They face severe limitations for below-grade lifting out of the box. Their standard articulating geometry does not reach deep into trenches easily. You must install specific hydraulic winch add-ons to handle deep below-grade suspension tasks safely.
