Product Advantage
High Load Capacity & Versatile Lifting – Supports lifting weights from 2 to 6.3 tons with maximum lifting moments up to 17 t.m. Ideal for heavy-duty industrial tasks and flexible material handling.
Stable Hydraulic System – Rated hydraulic pressure up to 21MPa with recommended flows of 30–45 L/min, ensuring smooth, reliable, and safe lifting operations in demanding environments.
360° Slewing & Precision Control – Full rotation capability enhances operational flexibility, allowing precise positioning of loads even in tight spaces.
Lightweight & Compact Design – Hydraulic crane weights range from 950kg to 2000kg, providing easy installation on tracks without sacrificing stability or performance.
Durable Construction – High-strength steel and reinforced structural design ensure long service life, minimal maintenance, and excellent resistance to industrial wear.
|

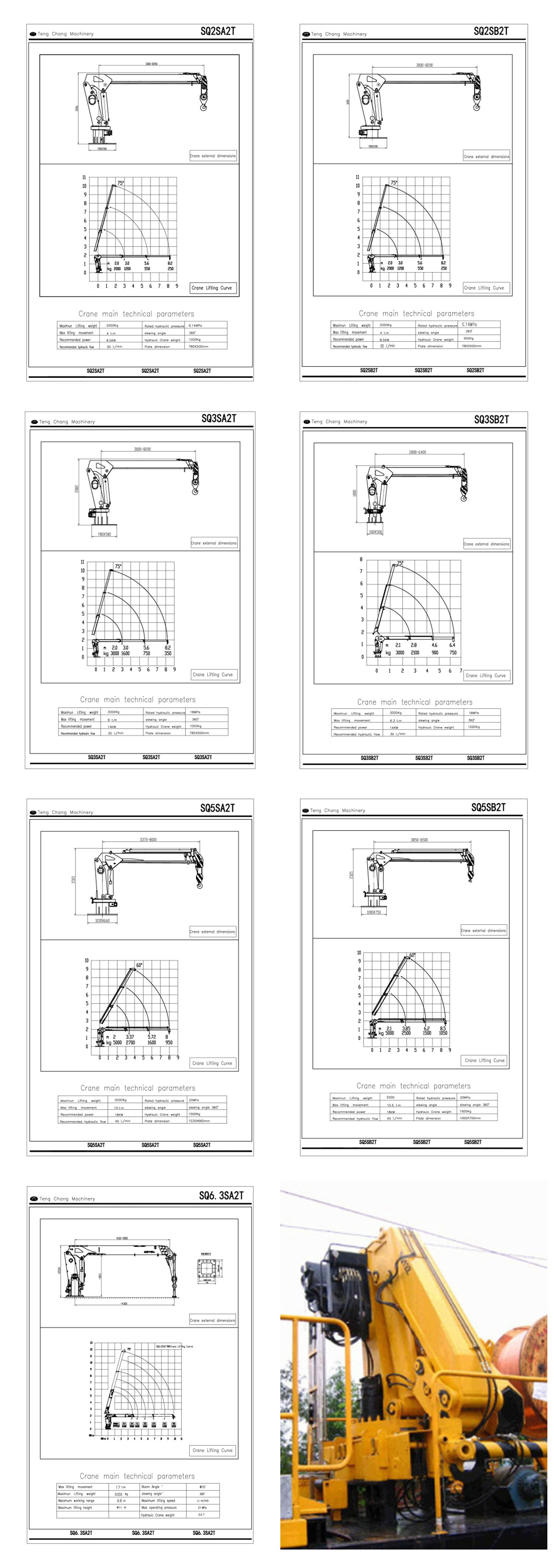

Technical Parameters
| Maximum lifting weight | 2tons 3tons 5tons 6.3tons | Rated hydraulic pressure | ≤14MPa/ 18MPa/ 20MPa/ 21MPa |
| Max lifting movement | 4 t.m 6 t.m 6.3 t.m 10 t.m 10.5 t.m 17 t.m | Slewing angle | 360° |
| Recommended power | 8.5KW 14KW 18KW | Hydraulic crane weight | 950Kg/1000Kg/1020Kg/1050Kg/1500Kg/1600Kg/2000Kg |
| Recommended hydraulic flow | 30 L/ min, 45 L/ min | Plate dimension | 780*500mm/ 1030*660mm/ 1000*750mm |
|
Product Uses
Industrial Manufacturing – Ideal for moving heavy machinery, components, and raw materials along factory tracks, improving workflow efficiency and safety.
Construction Sites – Used for precise lifting of construction materials in assembly lines or confined building areas, reducing manual labor and project time.
Warehouse Operations – Facilitates storage and retrieval of heavy goods in warehouses and logistics centers, optimizing space and operational productivity.
Shipyards & Workshops – Suitable for marine crane applications or maintenance workshops requiring track-mounted lifting for medium to heavy loads.
|

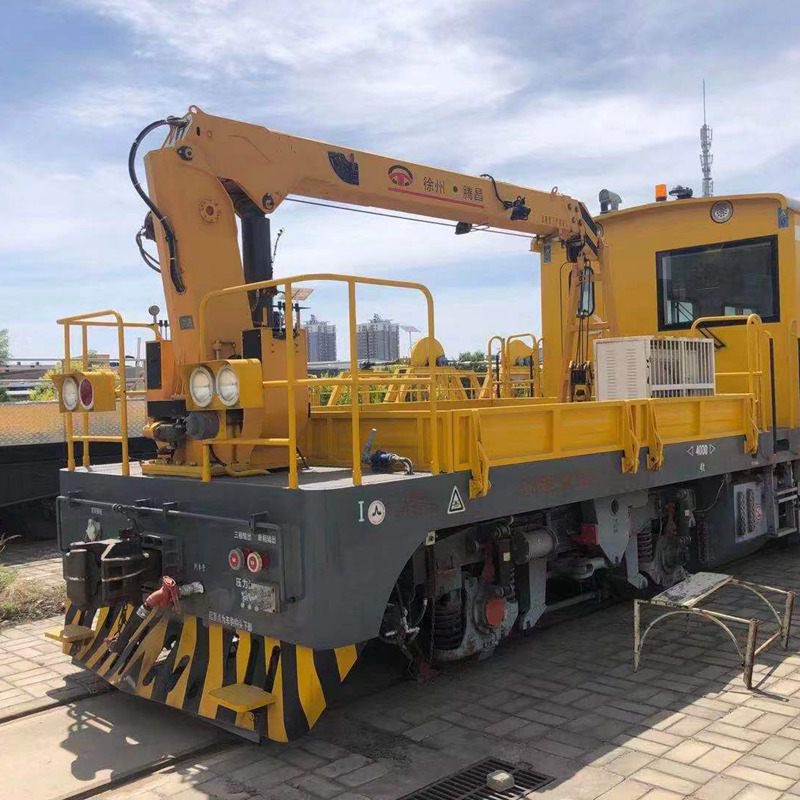

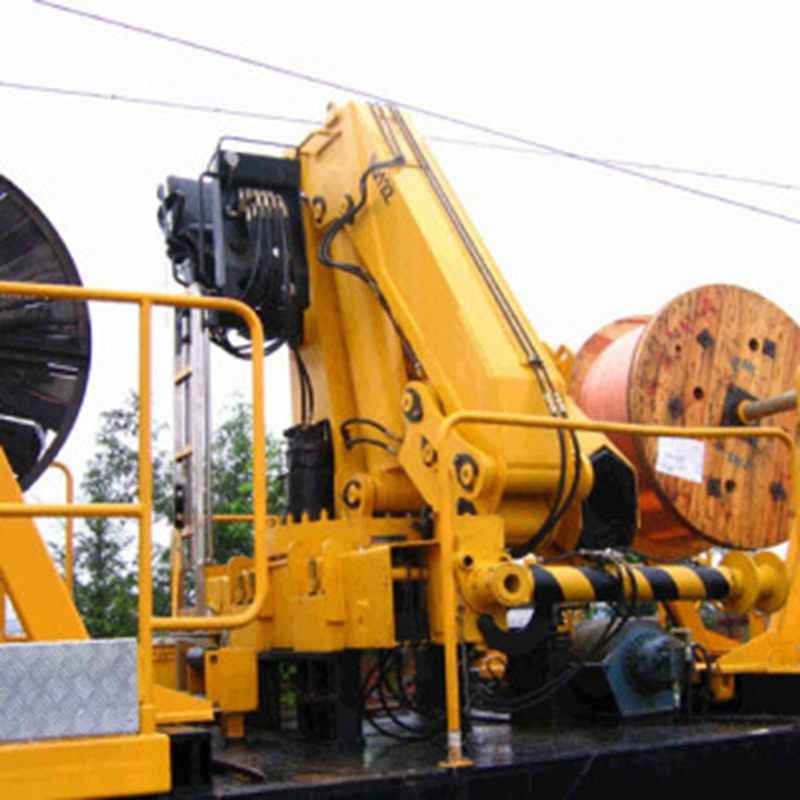

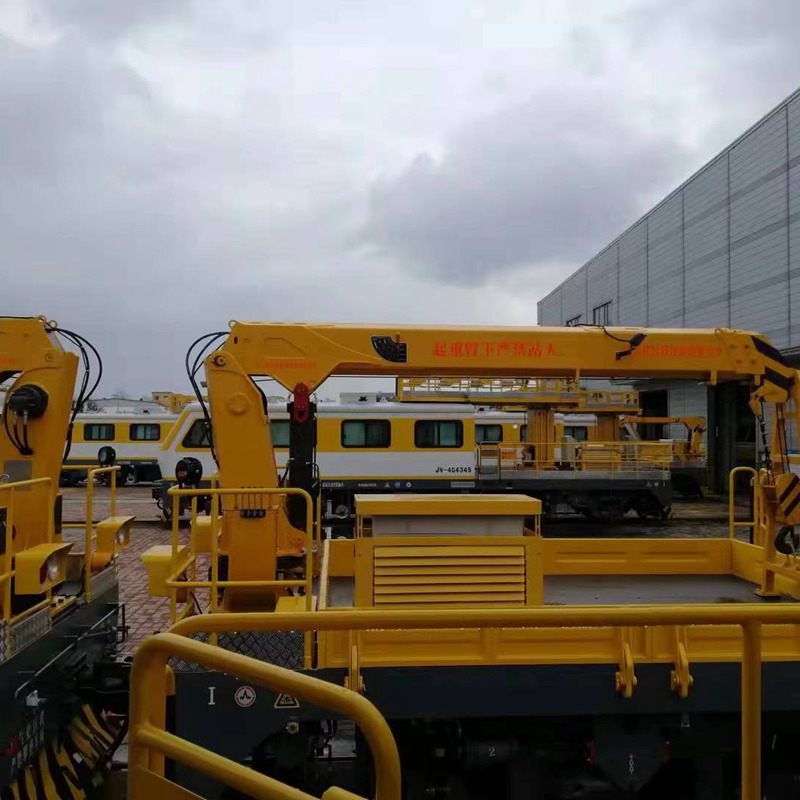

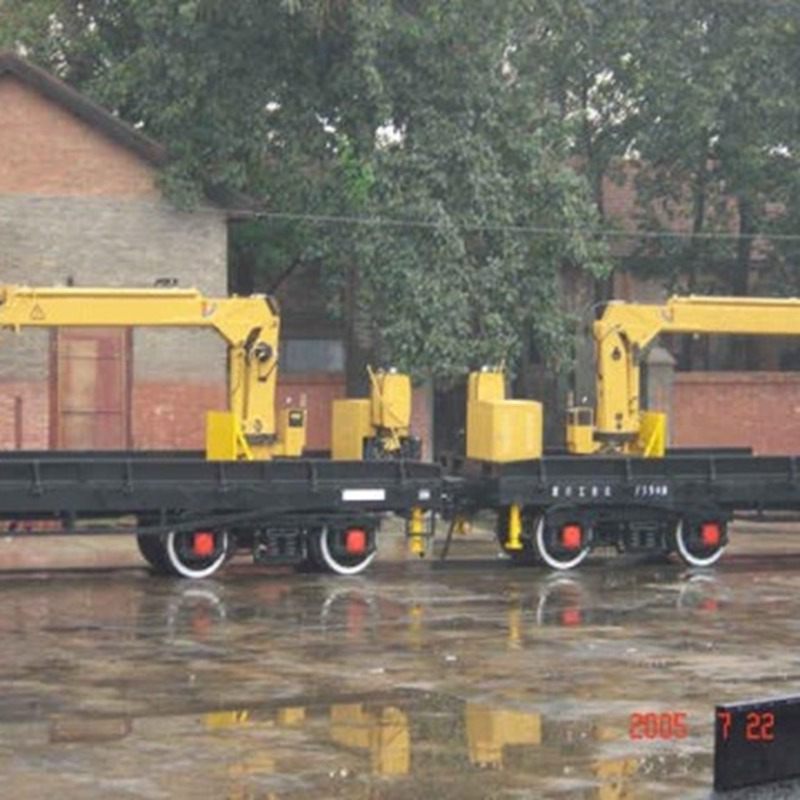

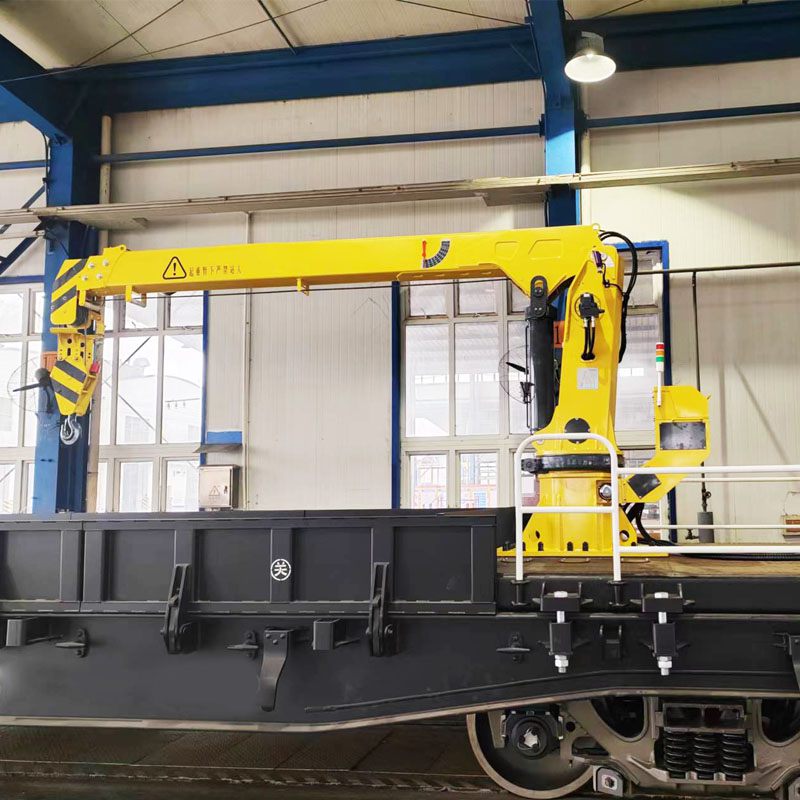

Product Display
|
FAQ
1. What is the maximum lifting capacity of the Tengchang Track Crane?
A: The crane supports maximum lifting weights of 2t, 3t, 5t, and 6.3t depending on the model, with lifting moments ranging from 4 to 17 t.m for flexible operations.
2. What hydraulic pressure and flow does it require?
A: Rated hydraulic pressure ranges from ≤14MPa to 21MPa, with recommended hydraulic flow between 30–45 L/min, ensuring stable and efficient lifting performance.
3. Can the crane rotate fully?
A: Yes, the Tengchang Track Crane features a full 360° slewing angle, allowing precise load positioning and flexible operations on rail tracks.
4. Is the crane suitable for indoor and outdoor use?
A: Yes, it is designed for industrial, construction, warehouse, and shipyard applications, with durable construction for both indoor and outdoor environments.
4. What are the plate dimensions and overall weight?
A: Plate sizes range from 780×500mm to 1030×660mm, and hydraulic crane weight varies from 950kg to 2000kg depending on the model, balancing stability with installation flexibility.
