Product Advantage
High Lifting Capacity – Supports up to 16,000KG with a maximum lifting moment of 40 t.m, ideal for heavy marine loads, cargo handling, and offshore equipment installation.
360° Slewing & Precision Control – Full rotation capability allows precise load positioning in confined decks or dock areas, enhancing operational flexibility.
Powerful Hydraulic System – Rated pressure 30MPa with recommended flow 63 L/min ensures smooth, efficient, and safe lifting operations under marine conditions.
Robust & Durable Construction – Reinforced steel structure and corrosion-resistant materials withstand harsh maritime environments, reducing maintenance needs.
Optimized Deck Installation – Compact footprint (1500mm installation space) and moderate crane weight (5800KG) make it easy to integrate on ships, docks, or offshore platforms.
|
Technical Parameters
| Marine Crane——SQ16ZA2T | |||
| Maximum lifting weight | 16000KG | Rated hydraulic pressure | 30MPa |
| Max lifting movement | 40.0 t.m | Slewing angle | 360° |
| Recommended power | 40KW | Hydraulic crane weight | 5800KG |
| Recommended hydraulic flow | 63 L/ min | Installation space | 1500mm |
| Fuel tank volume | 250L | ||
|
Product Uses
Shipboard Operations – Ideal for lifting and moving cargo, equipment, and supplies on vessels of all sizes, improving loading and unloading efficiency.
Offshore Construction – Supports offshore platform installations, marine construction tasks, and heavy equipment positioning with precision and stability.
Port & Dock Handling – Used in docks and piers for handling heavy loads, container positioning, and maintenance operations, optimizing workflow.
Rescue & Firefighting – Can be configured for emergency marine operations, assisting in lifting and maneuvering rescue or firefighting equipment.
|

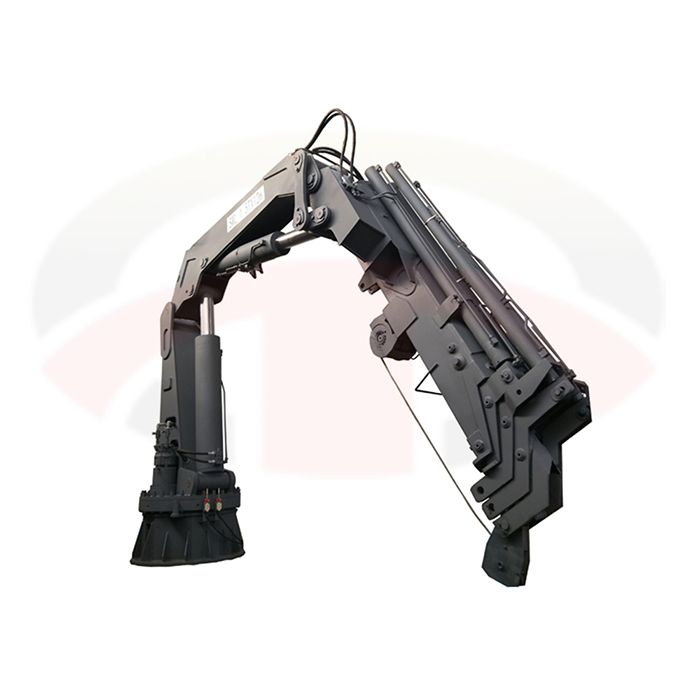

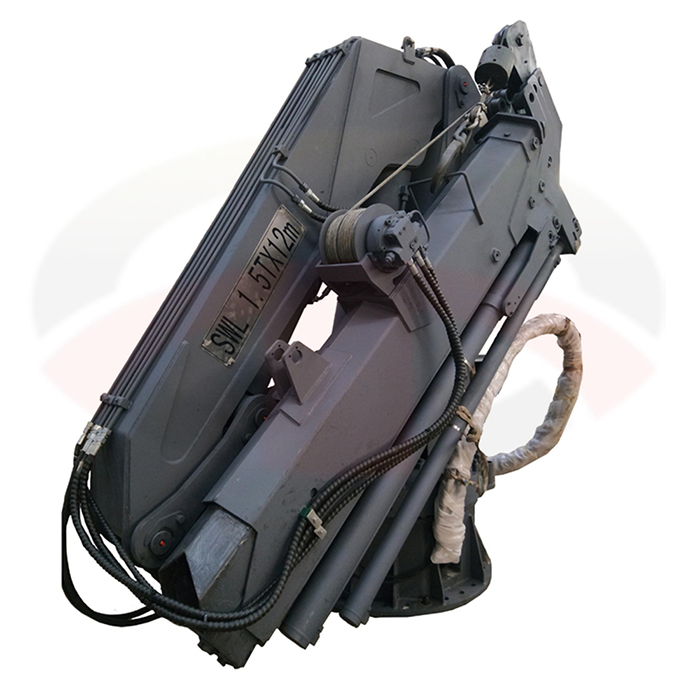

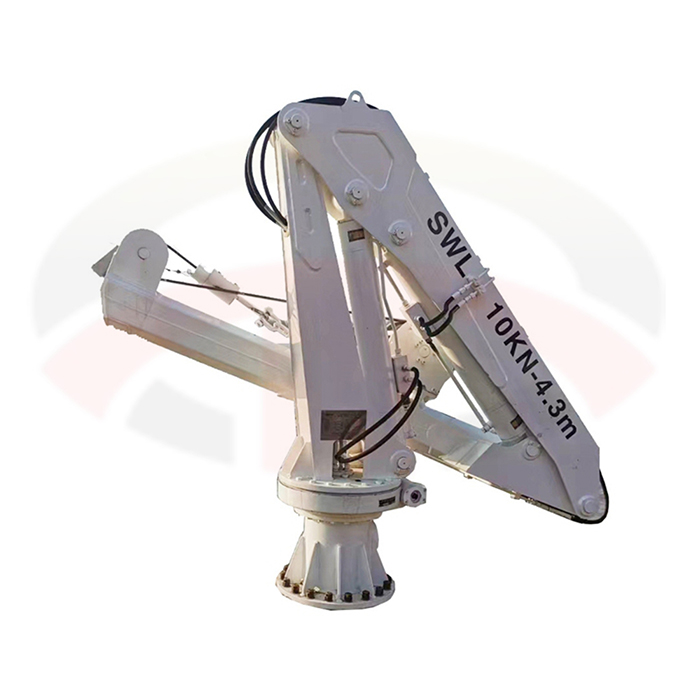

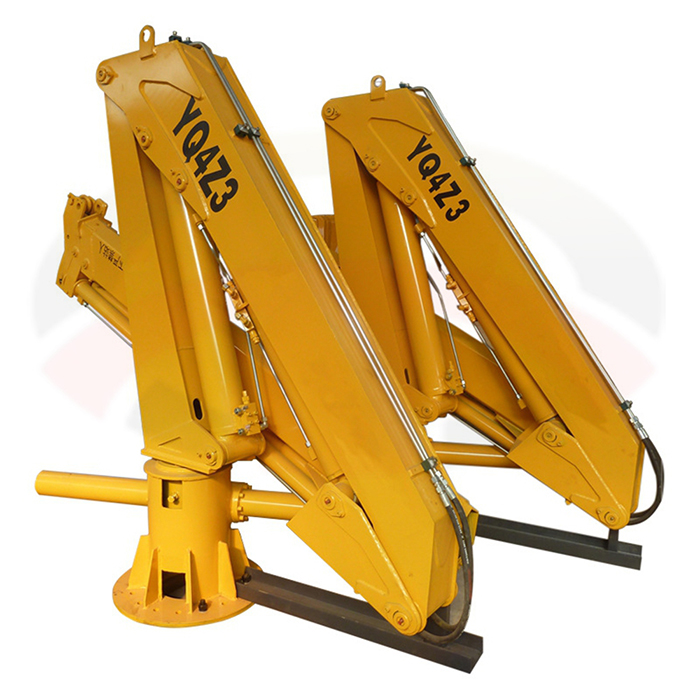

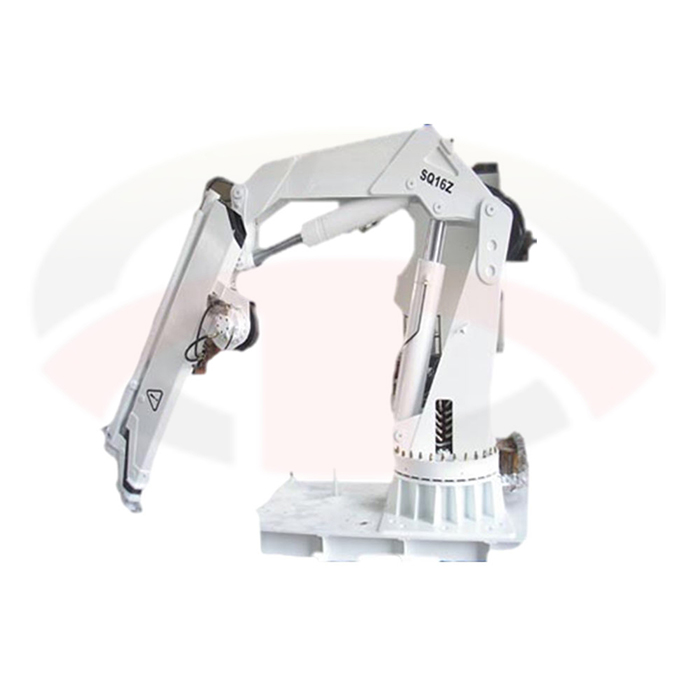

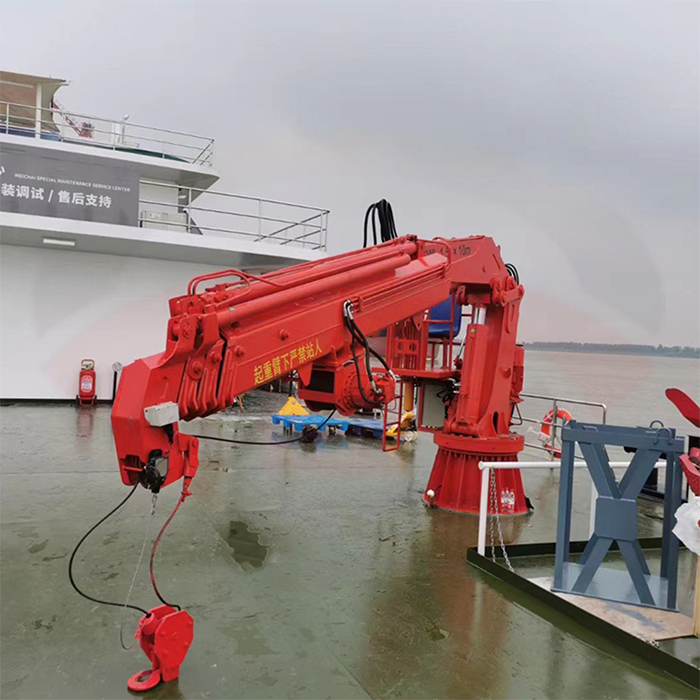

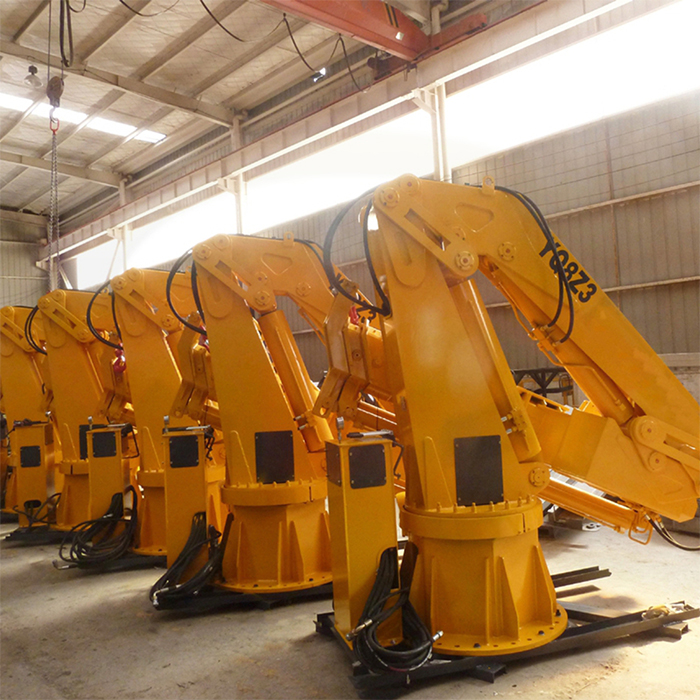

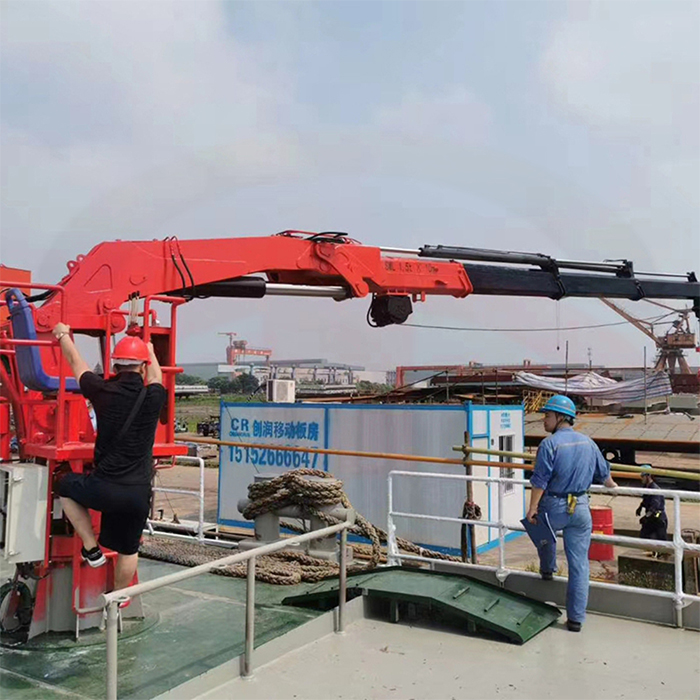

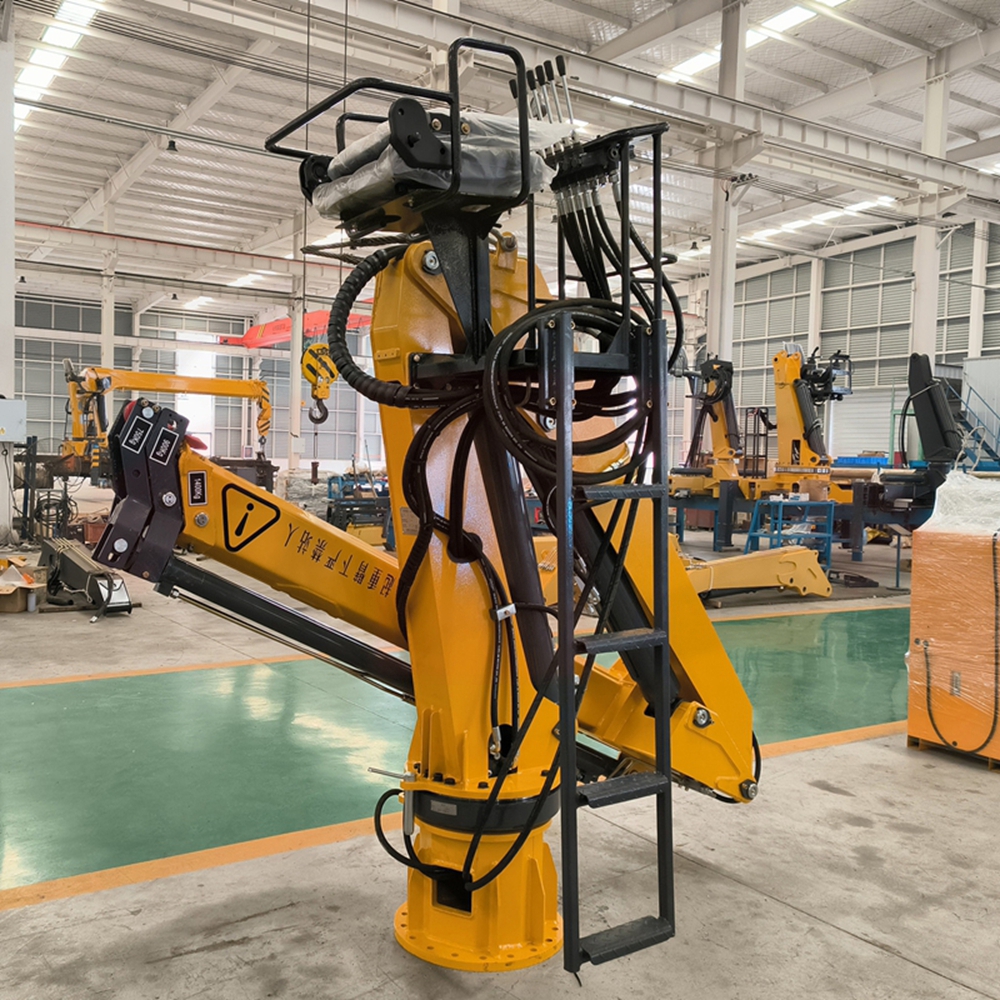

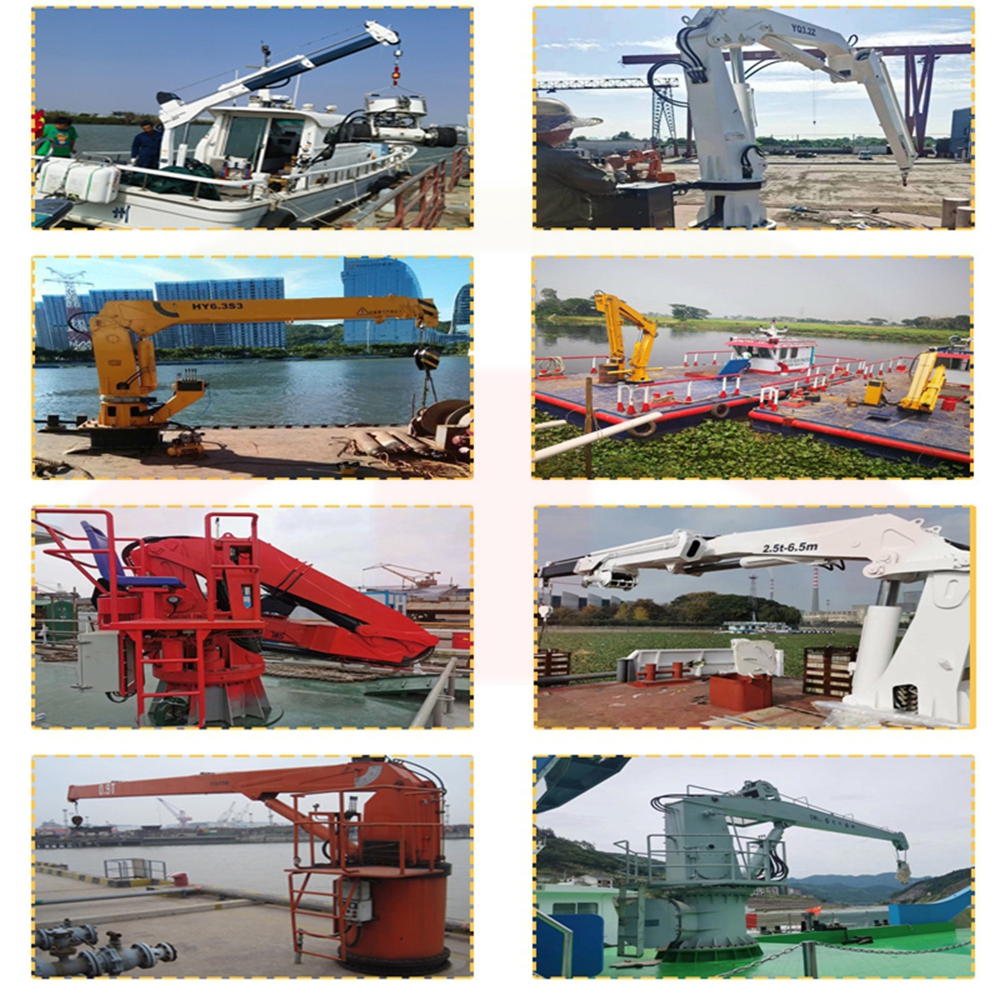

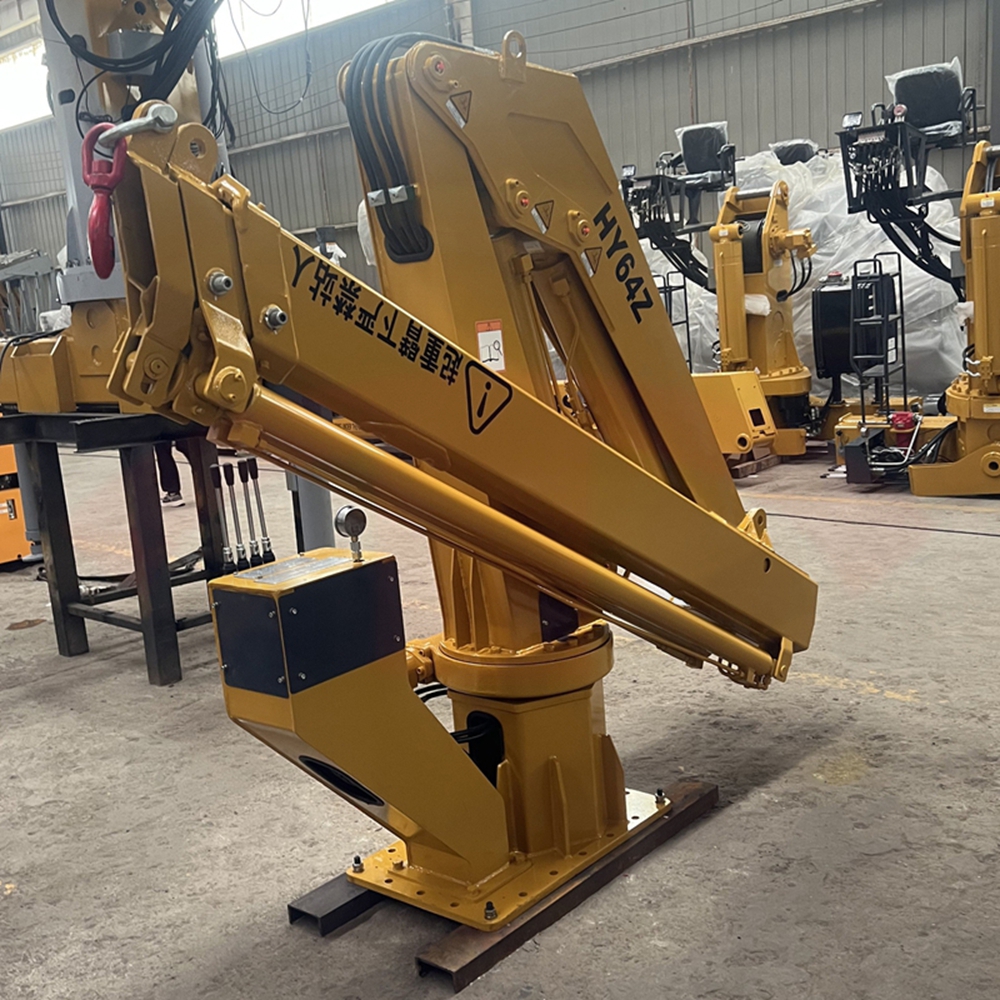

Product Display
|
FAQ
1. What is the maximum lifting capacity of the SQ16ZA2T Marine Crane?
A: It supports a maximum lifting weight of 16,000KG with a lifting moment of 40 t.m, suitable for heavy-duty marine applications.
2. What hydraulic specifications does it require?
A: The crane operates at a rated hydraulic pressure of 30MPa with a recommended flow of 63 L/min, ensuring smooth and safe lifting operations.
3. Can it rotate fully?
A: Yes, the crane features a 360° slewing angle, allowing precise load positioning in tight or complex shipboard and dock areas.
4. What power is needed for operation?
A: The recommended power is 40KW, providing sufficient energy for stable and efficient lifting performance.
5. What are the installation requirements?
A: The crane requires 1500mm installation space with a fuel tank volume of 250L, and its hydraulic crane weight is 5800KG, optimized for ship deck or dock integration.
